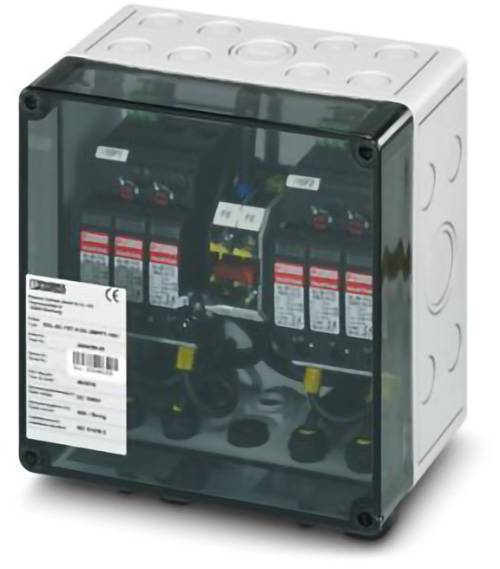

Phoenix Contact 1834564 SOL-SC-1ST-0-DC-2MPPT-1006 Generator junction box
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 298.32 / piece)
€ 298.32
plus VAT.
14-day return policy included
Highlights & Details
Phoenix generator connection box SOL-SC-1ST-0-DC-2MPPT-1006
- Quick installation and start-up
- Standard-compliant combination of switching devices thanks to application of the DIN EN 61439
- Large portfolio of available generator junction boxes
- Application-oriented consulting
Technical specifications
- MPP VOLTAGE 1000 V DC
- Protection system: IP65
- Impact strength: IK08
- Ambient temperature (operation): -20 °C - +55 °C
- Material housing: Polycarbonate
- Material cover/door: Polycarbonate (transparent)
- Number of inputs (strings per MPP tracker): 1
- Number of supported MPP trackers: 2
- Number of outputs (MPP tracker): 2
- Number of outputs (± per MPP tracker: 1
- Type of cable entry: MC4-Evo 2
- Cable cross-section range: 2.5 mm² ... 6 mm².
- Product type
Generator junction box
- Dim
(W x H x D) 180 x 180 x 111 mm
- Content
1 pc(s)
- Width
180 mm
- Height
180 mm
- Depth
111 mm
- System voltage
1000 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3558140 Phoenix Contact 1834564 SOL-SC-1ST-0-DC-2MPPT-1006 Generator junction box
User & Safety Instructions
User & Safety Instructions 3558140 Phoenix Contact 1834564 SOL-SC-1ST-0-DC-2MPPT-1006 Generator junction box
Description
The Solarline generator connection boxes (GAKs) are used in small roof-mounted systems as well as in large open-field systems. The main tasks of the GAKs are the overvoltage protection of the PV system, if necessary the collection of strings and the looping through of the protective equipotential bonding conductor to the local equipotential bonding.
Further functions are optional and dependent on the equipment.
Examples of optional functions are the protection of the strings by means of string fuses as well as the activation of the strings via DC switch disconnectors or DC fire switch.
The full functional scope of the GAKs can be derived from its article name (see user note for the type key of the GAKs, which can be downloaded from the "Downloads" area).
This text is machine translated.
Further functions are optional and dependent on the equipment.
Examples of optional functions are the protection of the strings by means of string fuses as well as the activation of the strings via DC switch disconnectors or DC fire switch.
The full functional scope of the GAKs can be derived from its article name (see user note for the type key of the GAKs, which can be downloaded from the "Downloads" area).
This text is machine translated.
Features
- Equipment: Without special equipment
- Overvoltage protection T1/T2
- Delivery: Without DC-plug connector for connecting the GAKs.
