Name: Phoenix Contact 3273122 Distribution block 28.6 mm Pull spring White 8 pc(s)
Brand: Phoenix Contact
SKU: 1831556
Availability: InStock

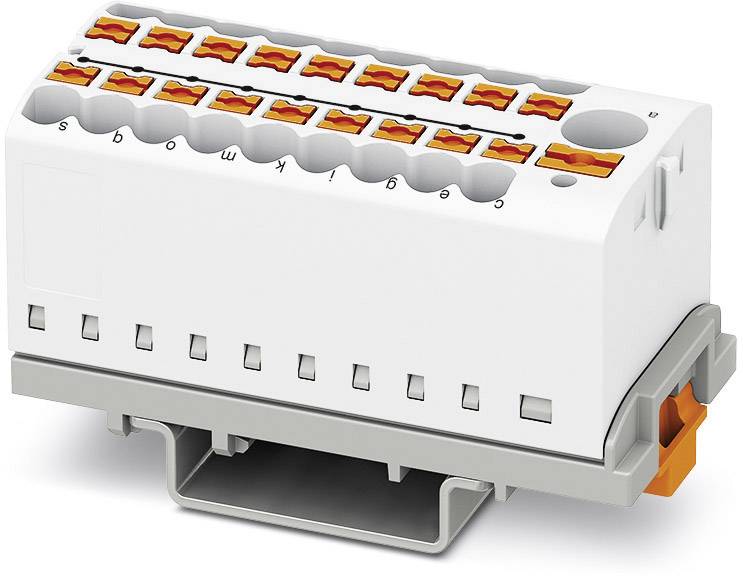

A white electrical terminal block with orange levers for securely connecting cables on a grey mounting rail.

Image similar

Product type

Distribution block

Connection

Pull spring

Cross section (flexible) (max.)

2.50 mm²

Cross section (inflexible) (max.)

2.50 mm²

Nominal current - rounded value

24 A

EAN:

Part number:

Item no:

Dispatches on Wed 11 Nov

343 Set(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number (Package size 8 pc(s))

Set(s)

Total (€ 12.25 / piece)

€ 97.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Distributor block 3273122

PTFIX 6/18X2,5-NS35 WH

Technical specifications

Product type: Distribution block

Features: + push-in spring bracket

Connection: Pull spring

Cross section (flexible) (min.): 0.14 mm²

Cross section (flexible) (max.): 2.50 mm²

Cross section (inflexible) (min.): 0.14 mm²

Cross section (inflexible) (max.): 2.50 mm²

Clamp width: 28.6 mm

No. of rows: 1

Pins per row: 19

Factory colour: White

Nominal current: 24 A

Nominal current - rounded value: 24 A

Nominal voltage: 500 V

Manufacturer part #: 3273122

Content: 8 pc(s)

Type: PTFIX 6/18X2,5-NS35 WH

Dim: (L x W x H) 60.7 x 28.6 x 28.7 mm

Width: 28.6 mm

Height: 28.7 mm

Length: 60.7 mm

Flammability rating: V0

Connector colour: White

UKCA: yes

Variants(All information include VAT, plus shipping costs)

Nominal current - rounded value

Connection

Cross section (inflexible) (max.)

Cross section (flexible) (max.)

Cross section (flexible) (min.)

Factory colour

Content

Cross section (inflexible) (min.)

Features

Phoenix Contact 1046608 Distribution block Pull spring Grey 30 pc(s) Piece

Item no:2435772

Fast track dispatch on Fri 6 Nov

12 Set(s)Conrad Electronic

17.5 A

Pull spring

2.5 mm²

1.5 mm²

0.14 mm²

Grey

30 pc(s)

0.14 mm²

+ sleeve

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 59.99^*

Phoenix Contact 1028361 Distribution block Pull spring Blue 50 pc(s) Piece

Item no:2435793

Unavailable

Conrad Electronic

32 A

Pull spring

6 mm²

0.2 mm²

Blue

50 pc(s)

0.2 mm²

+ push-in spring bracket

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact 1045925 Distribution block Pull spring Blue 50 pc(s) Piece

Item no:2435773

Unavailable

Conrad Electronic

17.5 A

Pull spring

2.5 mm²

1.5 mm²

0.14 mm²

Blue

50 pc(s)

0.14 mm²

SKEDD connectors

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact 1046610 Distribution block Pull spring Blue 30 pc(s) Piece

Item no:2435774

Unavailable

Conrad Electronic

17.5 A

Pull spring

2.5 mm²

1.5 mm²

0.14 mm²

Blue

30 pc(s)

0.14 mm²

+ push-in spring bracket

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact 1046611 Distribution block Pull spring Red 30 pc(s)

Item no:2435775

Unavailable

Conrad Electronic

17.5 A

Pull spring

2.5 mm²

1.5 mm²

0.14 mm²

Red

30 pc(s)

0.14 mm²

+ push-in spring bracket

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact 1046949 Distribution block Pull spring Grey 20 pc(s) Piece

Item no:2435777

Unavailable

Conrad Electronic

17.5 A

Pull spring

2.5 mm²

1.5 mm²

0.14 mm²

Grey

20 pc(s)

0.14 mm²

+ test option

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact 1046950 Distribution block Pull spring Blue 20 pc(s) Piece

Item no:2435778

Unavailable

Conrad Electronic

17.5 A

Pull spring

2.5 mm²

1.5 mm²

0.14 mm²

Blue

20 pc(s)

0.14 mm²

+ push-in spring bracket

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact 1046951 Distribution block Pull spring Red 20 pc(s) Piece

Item no:2435779

Unavailable

Conrad Electronic

17.5 A

Pull spring

2.5 mm²

1.5 mm²

0.14 mm²

Red

20 pc(s)

0.14 mm²

+ push-in spring bracket

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact 1046963 Distribution block Pull spring Red 20 pc(s) Piece

Item no:2435782

Unavailable

Conrad Electronic

17.5 A

Pull spring

2.5 mm²

1.5 mm²

0.14 mm²

Red

20 pc(s)

0.14 mm²

+ push-in spring bracket

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact 1046973 Distribution block Pull spring Grey 20 pc(s) Piece

Item no:2435785

Unavailable

Conrad Electronic

17.5 A

Pull spring

6 mm²

0.2 mm²

Grey

20 pc(s)

0.2 mm²

+ push-in spring bracket

Piece(s)

Minimum order quantity: 1

Multiple: 1

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1831556 Phoenix Contact 3273122 Distribution block 28.6 mm Pull spring White 8 pc(s)

Description

Up to 80% time advantage through assembly-finished blocks without manual bridging. Time-saving conductor connection by tool-free push-in direct plug-in technique. Unique wiring by eleven different color variants. Flexible use through rail mounting, direct mounting or sticking. Up to 50% space savings on the rail through cross-mounting.
