Picotronic Laser module Line Red 16 mW LH 650-16 (16 x 90)-NT-MOUNT
Product type
Laser module
Emission characteristics
Line
Wavelength
650 nm
Power
16 mW
(Ø)
16 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 305.00 / piece)
€ 305.00
incl. VAT
Only 4 Piece(s) available
Highlights & Details
Line laser, red
- Red
- Laser category: 2
- Emission characteristics: Line
Technical specifications
- Line width (3 m) 1 mm
- Product type
Laser module
- Type
LH 650-16 (16 x 90)-NT-MOUNT
- Emission characteristics
Line
- Focus properties
3000 mm fixed-focus
- Factory colour
Red
- Wavelength
650 nm
16 mW
- (Ø)
16 mm
- Length
90 mm
- Laser category
2
- Beam divergence
1 mrad
- Clearance
5 m
- Operating voltage
230 V AC
- Operating current
300 mA
- Material
Aluminium
- Dim

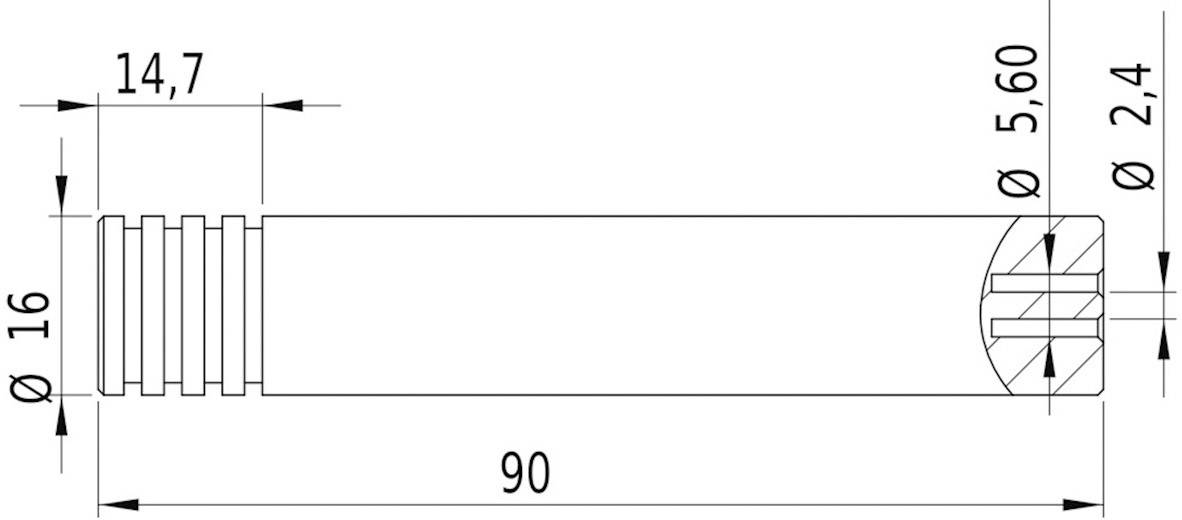

(Ø x L) 16 mm x 90 mm
- Weight
161 g
- RoHS-compliant
Yes
Documents & Downloads
Datasheet
Datasheet 817946 Picotronic Laser module Line Red 16 mW LH 650-16 (16 x 90)-NT-MOUNT
User & Safety Instructions
User & Safety Instructions 817946 Picotronic Laser module Line Red 16 mW LH 650-16 (16 x 90)-NT-MOUNT
Information
Information 817946 Picotronic Laser module Line Red 16 mW LH 650-16 (16 x 90)-NT-MOUNT
Conformity certificate
Conformity certificate 817946 Picotronic Laser module Line Red 16 mW LH 650-16 (16 x 90)-NT-MOUNT
Description
Scope of delivery
- Power supply unit · Holder.
- This text is machine translated.
Hints
Laser beam! Observe safety instructions! Never look into the beam (may damage your retina).
