Name: TRU COMPONENTS Laser module Dot Red 0.95 mW
Brand: TRU COMPONENTS
SKU: 3350211
Availability: InStock

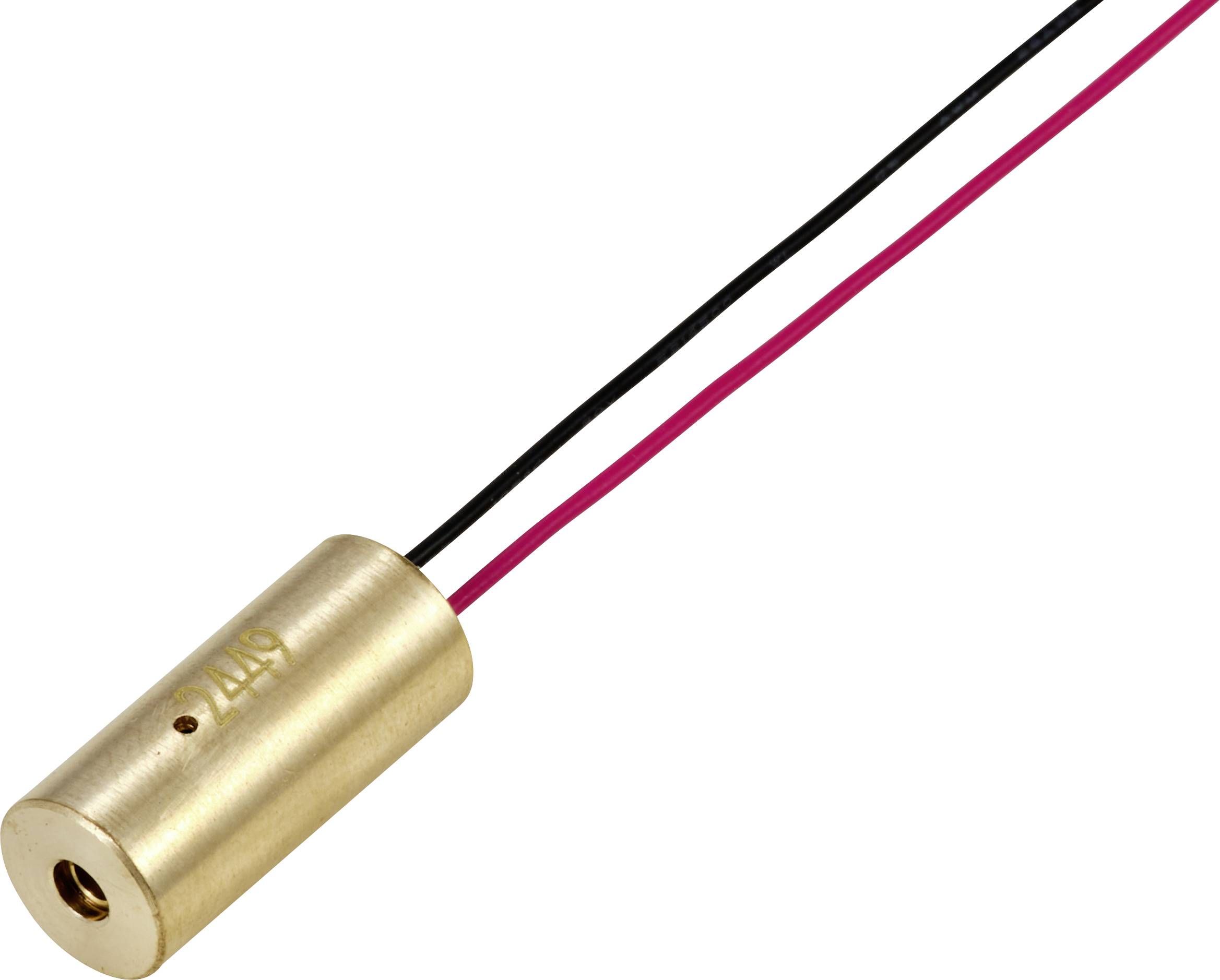

A small, cylindrical, brass-coloured laser with red and black wire.

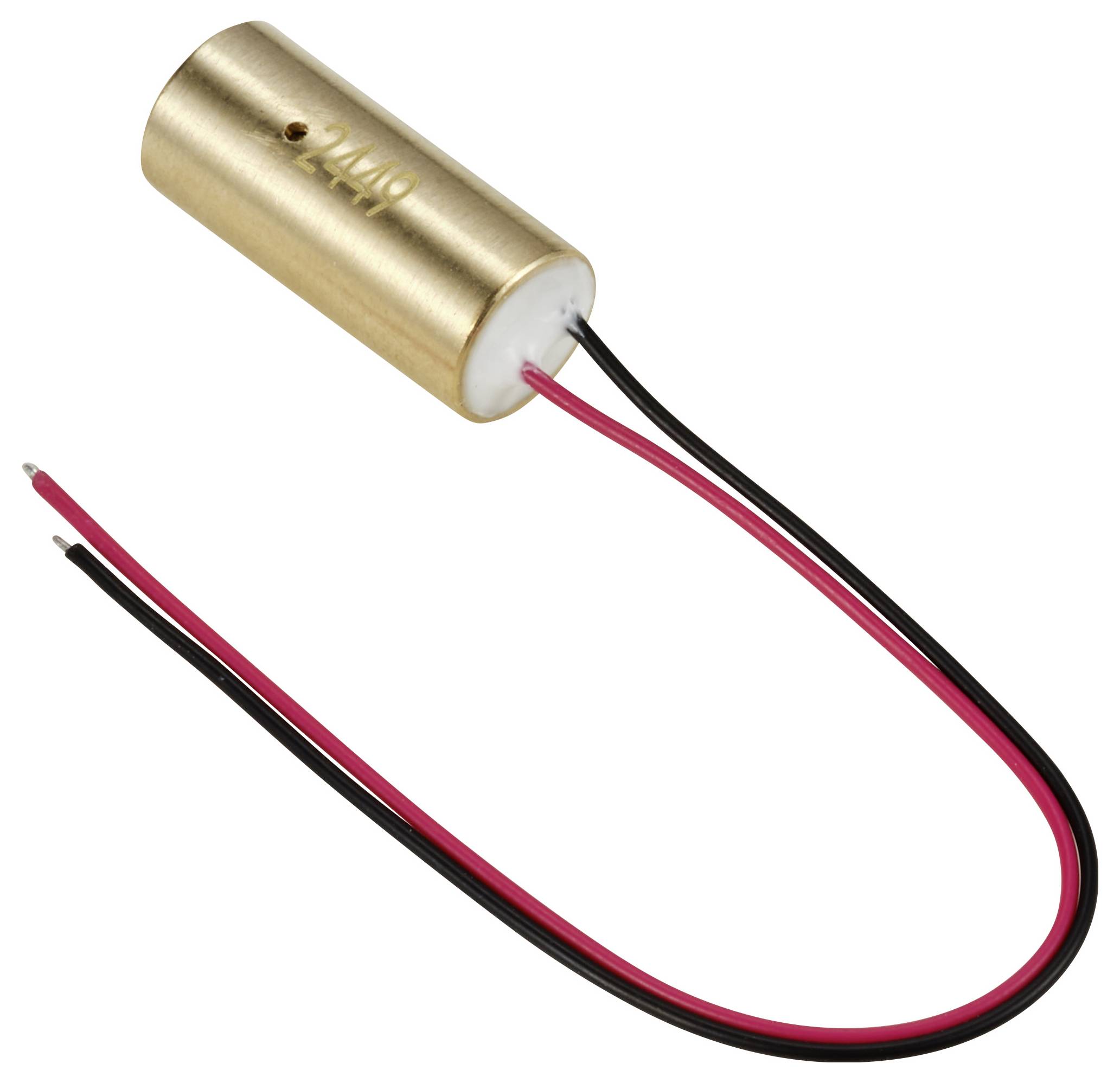

A small, cylindrical electric motor with red and black wires protruding from one side. Suitable for model-making applications.

A crimson, luminous full moon in the night sky, surrounded by darkness.

1/3

Product type

Laser module

Emission characteristics

Dot

Wavelength

650 nm

Power

0.95 mW

(Ø)

9 mm

Fast track dispatch on Wed 14 Oct

743 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 9.99 / piece)

€ 9.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Micro laser module, Dot Red 0.95 mW

Red
Laser category: 2
Emission characteristics: Dot

Technical specifications

Operating current: ≤40 mA

Product type: Laser module

Emission characteristics: Dot

Focus properties: Fixed-focus

Factory colour: Red

Wavelength: 650 nm

: 0.95 mW

(Ø): 9 mm

Length: 20 mm

Laser category: 2

Beam divergence: 17.45 mrad

Clearance: 10 m

Operating voltage: 3 - 12 V DC

Material: Brass

Dim: (Ø x L) 9 mm x 20 mm

RoHS-compliant: Yes

Max. operating voltage: 12 V DC

Min. operating voltage: 3 V DC

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3350211 TRU COMPONENTS Laser module Dot Red 0.95 mW
