Name: Picotronic Laser module Dot Red 1 mW DG650-1-3 (7 x 14)-ADJ
Brand: Picotronic
SKU: 1283408
Availability: InStock

A cylindrical brass temperature sensor with a green ring and two cables, one red and one blue, protrudes.

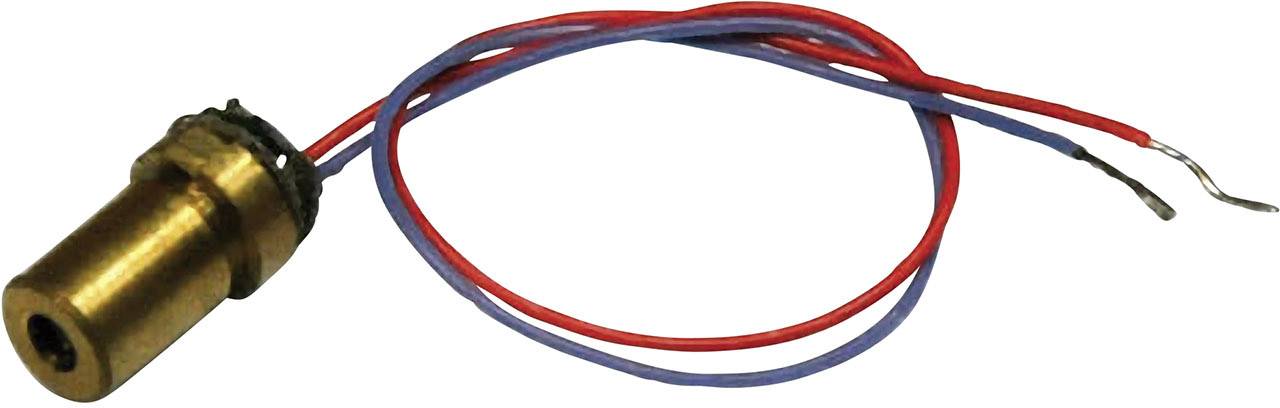

A small metal cylinder with two protruding wires, one red and one blue. This is most likely an electronic component.

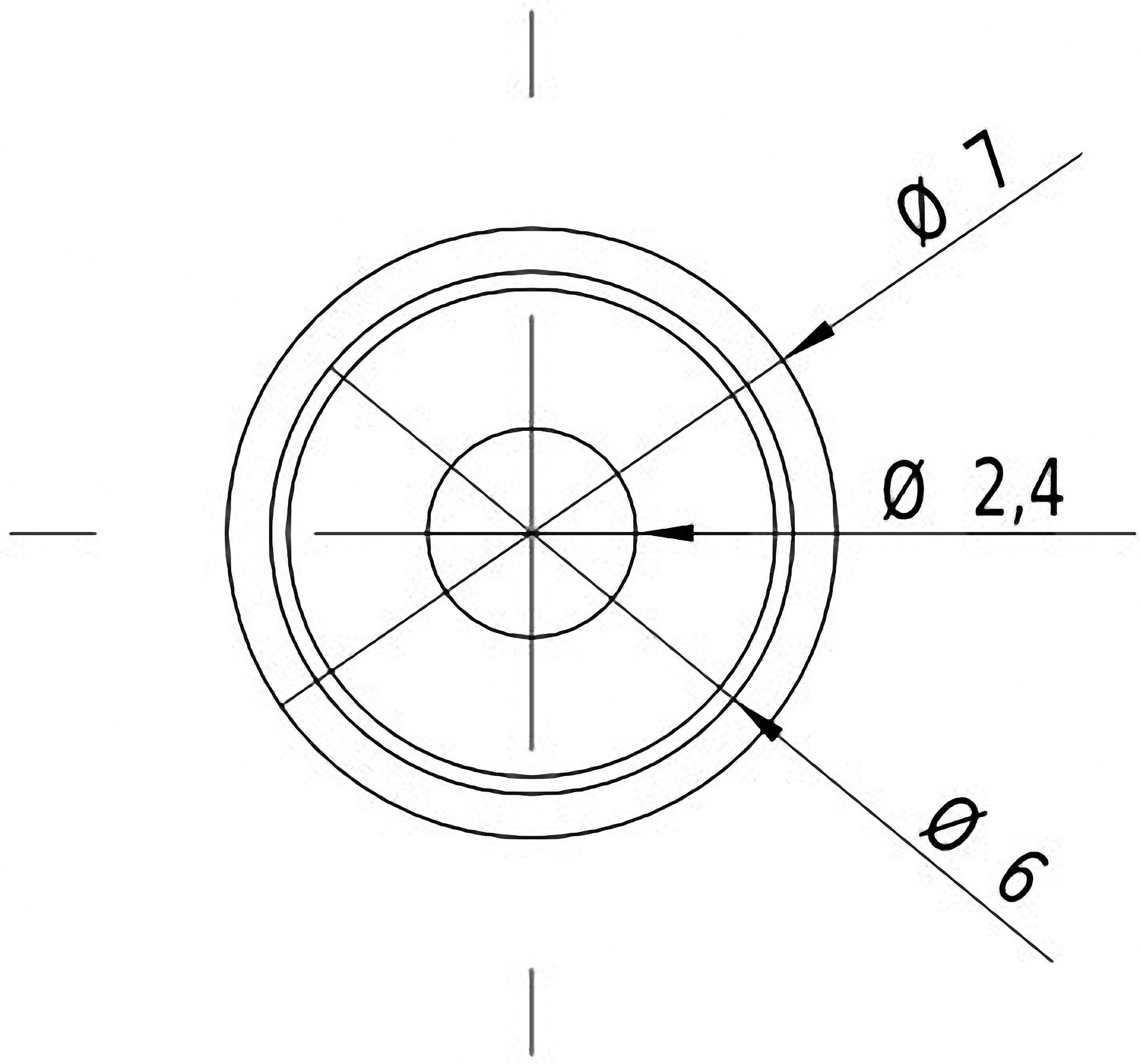

Technical drawing of a circle with three marked diameters: Ø 7, Ø 6 and Ø 2.4.

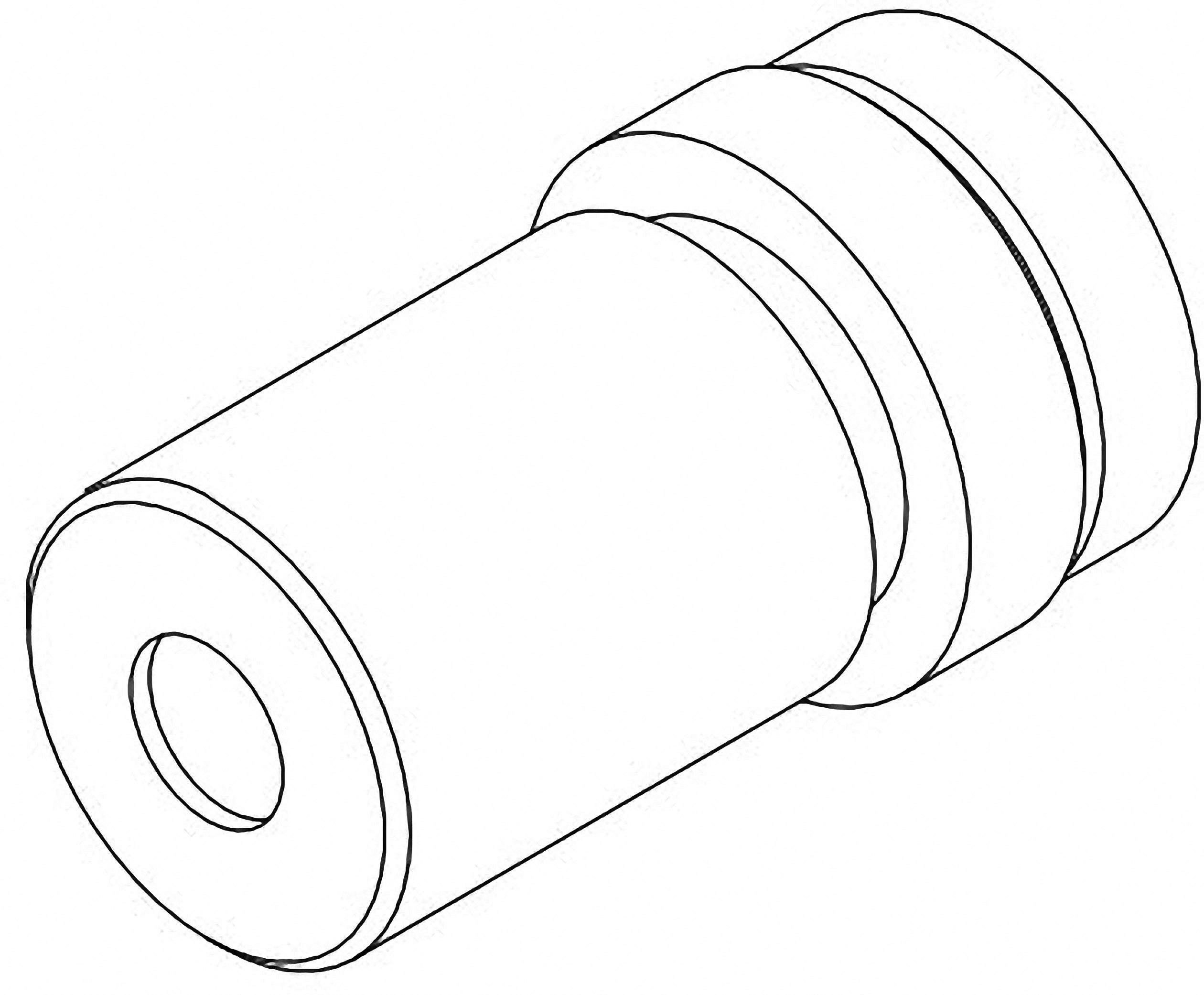

Technical drawing of a cylindrical component with an opening on one side and stepped rings at the opposite end.

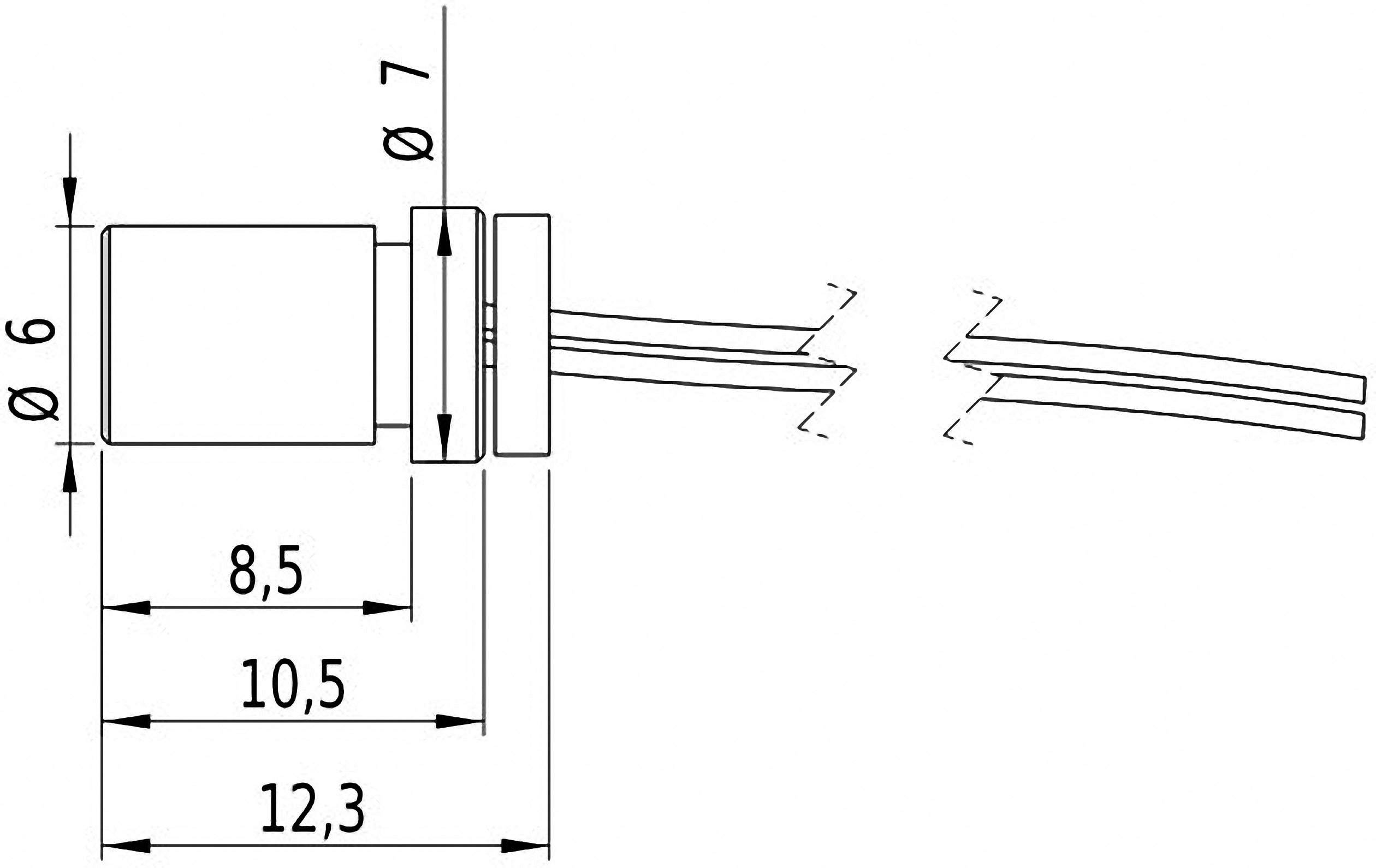

'Drawing of a cylindrical electrical component with cables. Dimensions: diameter 6 mm, length 12.3 mm, additional dimensions 8.5 mm and 10.5 mm.'

1/5

Product type

Laser module

Emission characteristics

Dot

Wavelength

650 nm

Power

1 mW

(Ø)

7 mm

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Fri 30 Oct

70 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 30.99 / piece)

€ 30.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Point laser, red

Red
Laser category: 2
Emission characteristics: Dot

Technical specifications

Can be focussed for 2-3 mm

Product type: Laser module

Type: DG650-1-3 (7 x 14)-ADJ

Emission characteristics: Dot

Focus properties: Selectable focus

Factory colour: Red

Wavelength: 650 nm

: 1 mW

(Ø): 7 mm

Length: 14 mm

Laser category: 2

Beam divergence: 0.8 mrad

Clearance: 10 m

Operating voltage: 3 V DC

Operating current: 20 mA

Material: Brass

Dim: (Ø x L) 7 mm x 14 mm

Weight: 1.5 g

RoHS-compliant: Yes

Max. temperature: 50 °C

Min. temperature: -20 °C

Variants(All information include VAT, plus shipping costs)

(Ø)

Clearance

Emission characteristics

Factory colour

Laser category

Length

Power

Wavelength

Picotronic Laser module Cross line Red 2 mW CB 635-2-24 (16x45) 10 DEG F 1000

Item no:1283337

Dispatches on Fri 30 Oct

1 Piece(s)Conrad Electronic

16 mm

1 m

Cross line

Red

45 mm

2 mW

635 nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 144.99^*

Picotronic Laser module Dot Blue 1 mW DD 405-1-3 (14x45)

Item no:817948

Dispatches on Wed 4 Nov

Conrad Electronic

14 mm

10 m

Dot

Blue

45 mm

1 mW

405 nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 154.99^*

Picotronic Laser module Dot Green 1 mW DD 532-1-3 (16x60)

Item no:1283333

Dispatches on Fri 30 Oct

8 Piece(s)Conrad Electronic

16 mm

50 m

Dot

Green

60 mm

1 mW

532 nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 224.99^*

Picotronic Laser module Dot Green 1 mW DD 532-1-3 (16x60)-AP-C300

Item no:1283336

Dispatches on Fri 30 Oct

8 Piece(s)Conrad Electronic

16 mm

100 m

Dot

Green

60 mm

1 mW

532 nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 349.00^*

Picotronic Laser module Dot Green 1 mW DD 532-1-3 (20x80)

Item no:1283317

Dispatches on Fri 30 Oct

10 Piece(s)Conrad Electronic

20 mm

50 m

Dot

Green

80 mm

1 mW

532 nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 234.99^*

Picotronic Laser module Dot Infrared 0.4 mW IMD 830-0. 4-5 (14 x 30) -10 kHz

Item no:1283390

Dispatches on Fri 30 Oct

4 Piece(s)Conrad Electronic

14 mm

10 m

Dot

Infrared

30 mm

0.4 mW

830 nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 154.99^*

Picotronic Laser module Dot Infrared 0.4 mW MDB 980-0. 4-5-FA (14x45)

Item no:1283326

Dispatches on Fri 30 Oct

4 Piece(s)Conrad Electronic

14 mm

50 m

Dot

Infrared

45 mm

0.4 mW

980 nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 275.00^*

Picotronic Laser module Dot Red 0.3 mW DI 650-0. 3-5 (8 x 21)-F100

Item no:1283427

Dispatches on Fri 30 Oct

1 Piece(s)Conrad Electronic

8 mm

0.1 m

Dot

Red

21 mm

0.3 mW

650 nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 75.99^*

Picotronic Laser module Dot Red 0.4 mW DC650-0.4-3.8x25

Item no:1283349

Dispatches on Fri 30 Oct

99 Piece(s)Conrad Electronic

8 mm

5 m

Dot

Red

25 mm

0.4 mW

650 nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 57.99^*

Picotronic Laser module Dot Red 0.4 mW DD 635-0.4-24 (12 x 45)

Item no:1283345

Dispatches on Mon 14 Dec

Conrad Electronic

12 mm

10 m

Dot

Red

45 mm

0.4 mW

635 nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 119.99^*

Documents & Downloads

Datasheet

Datasheet 1283408 Picotronic Laser module Dot Red 1 mW DG650-1-3 (7 x 14)-ADJ

User & Safety Instructions

User & Safety Instructions 1283408 Picotronic Laser module Dot Red 1 mW DG650-1-3 (7 x 14)-ADJ

Information

Information 1283408 Picotronic Laser module Dot Red 1 mW DG650-1-3 (7 x 14)-ADJ

Conformity certificate

Conformity certificate 1283408 Picotronic Laser module Dot Red 1 mW DG650-1-3 (7 x 14)-ADJ

Hints

Laser beam! Observe safety instructions! Never look into the beam (may damage your retina).

Description

Hints

Laser beam! Observe safety instructions! Never look into the beam (may damage your retina).
