Name: TRU COMPONENTS Laser module Line Red 0.39 mW
Brand: TRU COMPONENTS
SKU: 3350212
Availability: InStock

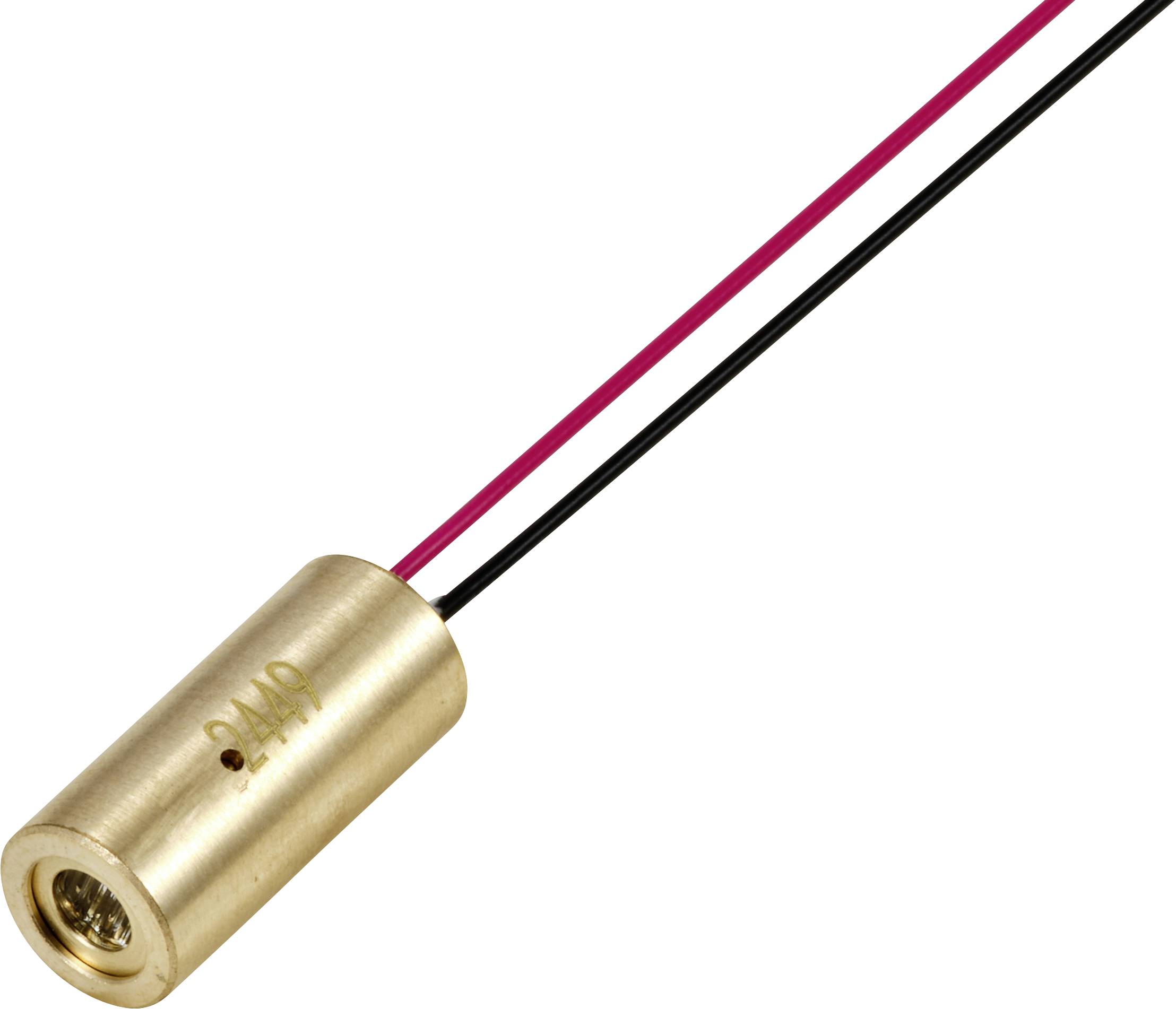

A small golden laser module cylinder with two protruding wires in red and black.

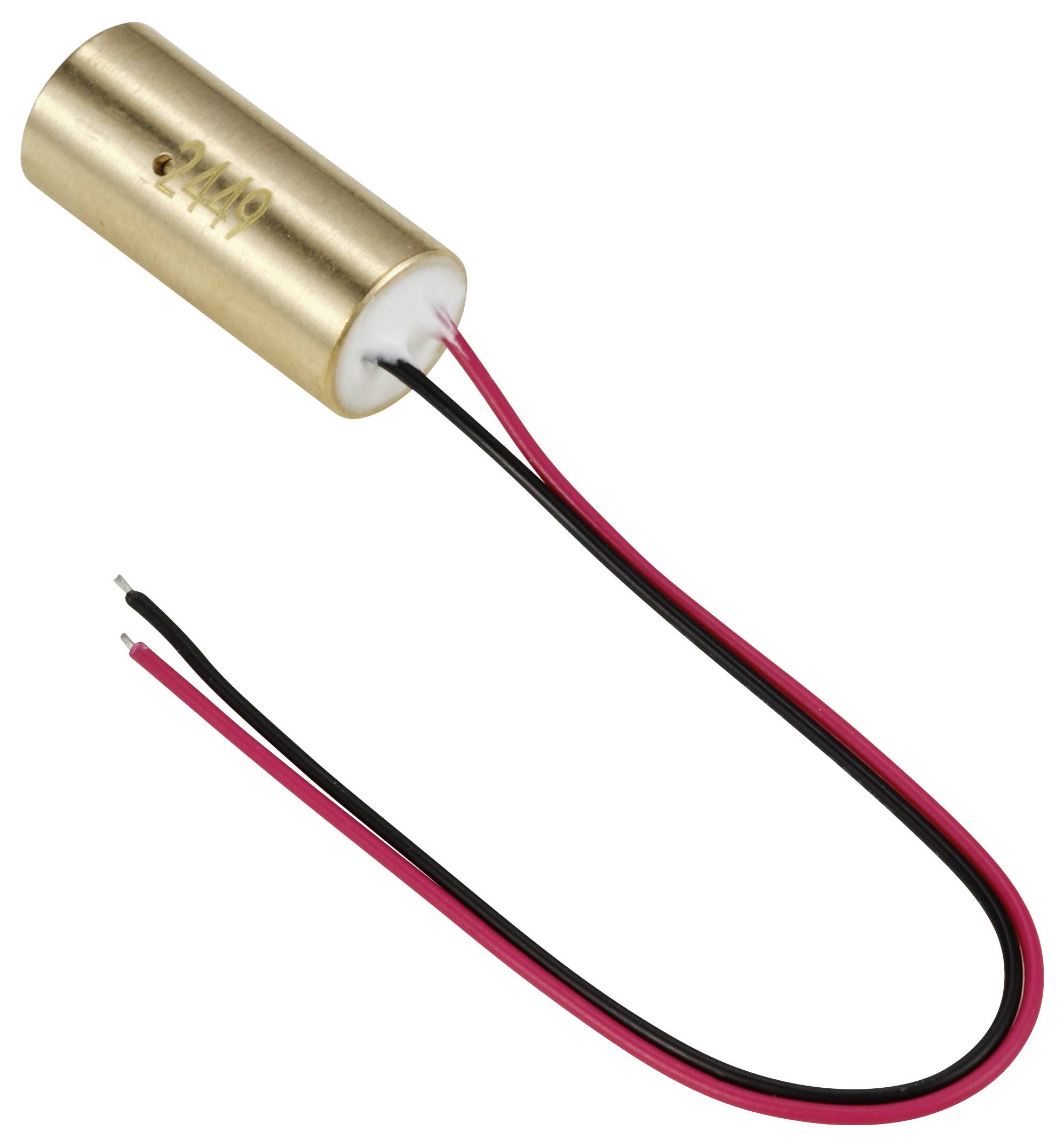

A cylindrical electric motor with two protruding cables, one red and one black, indicates a power supply.

An optical laboratory setup shows red laser beams being directed through lenses and mirrors to investigate light behaviour.

A single red laser beam shining vertically through a dark environment.

1/4

Product type

Laser module

Emission characteristics

Line

Wavelength

635 nm

Power

0.39 mW

(Ø)

9 mm

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

920 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 11.99 / piece)

€ 11.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Micro laser module, Line Red 0.39 mW

Red
Laser category: 1
Emission characteristics: Line

Technical specifications

Product type: Laser module

Emission characteristics: Line

Focus properties: Fixed-focus

Factory colour: Red

Wavelength: 635 nm

: 0.39 mW

(Ø): 9 mm

Length: 20 mm

Laser category: 1

Beam divergence: 17.45 mrad

Clearance: 1 m

Operating voltage: 3 - 6 V DC

Operating current: 20 mA
60 mA

Material: Brass

Dim: (Ø x L) 9 mm x 20 mm

RoHS-compliant: Yes

Max. operating voltage: 6 V DC

Min. operating voltage: 3 V DC

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3350212 TRU COMPONENTS Laser module Line Red 0.39 mW
