Name: TRU COMPONENTS Laser module Line Red 0.39 mW
Brand: TRU COMPONENTS
SKU: 3350210
Availability: InStock

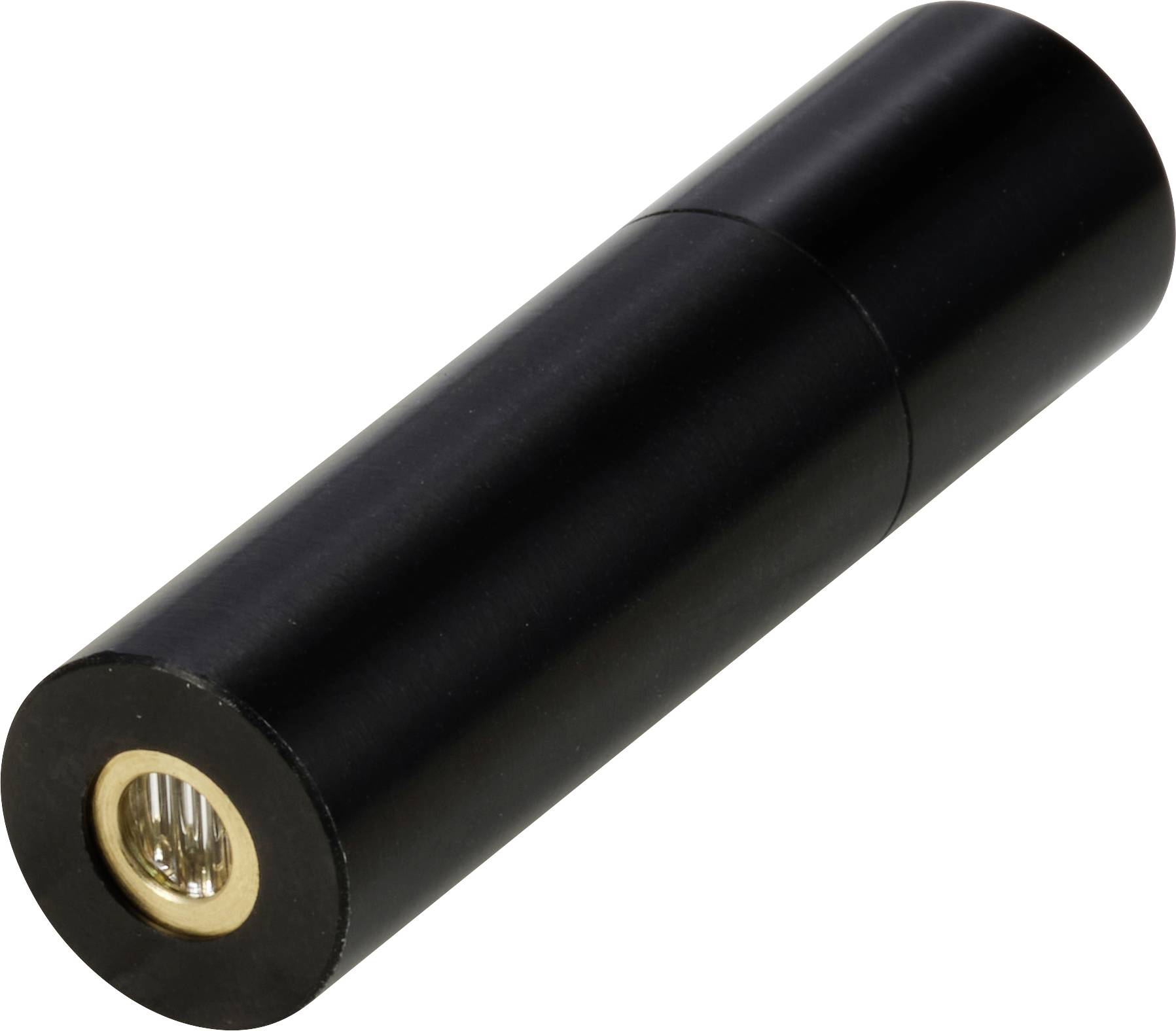

Black cylindrical object with a shiny, gold-coloured fitting at one end.

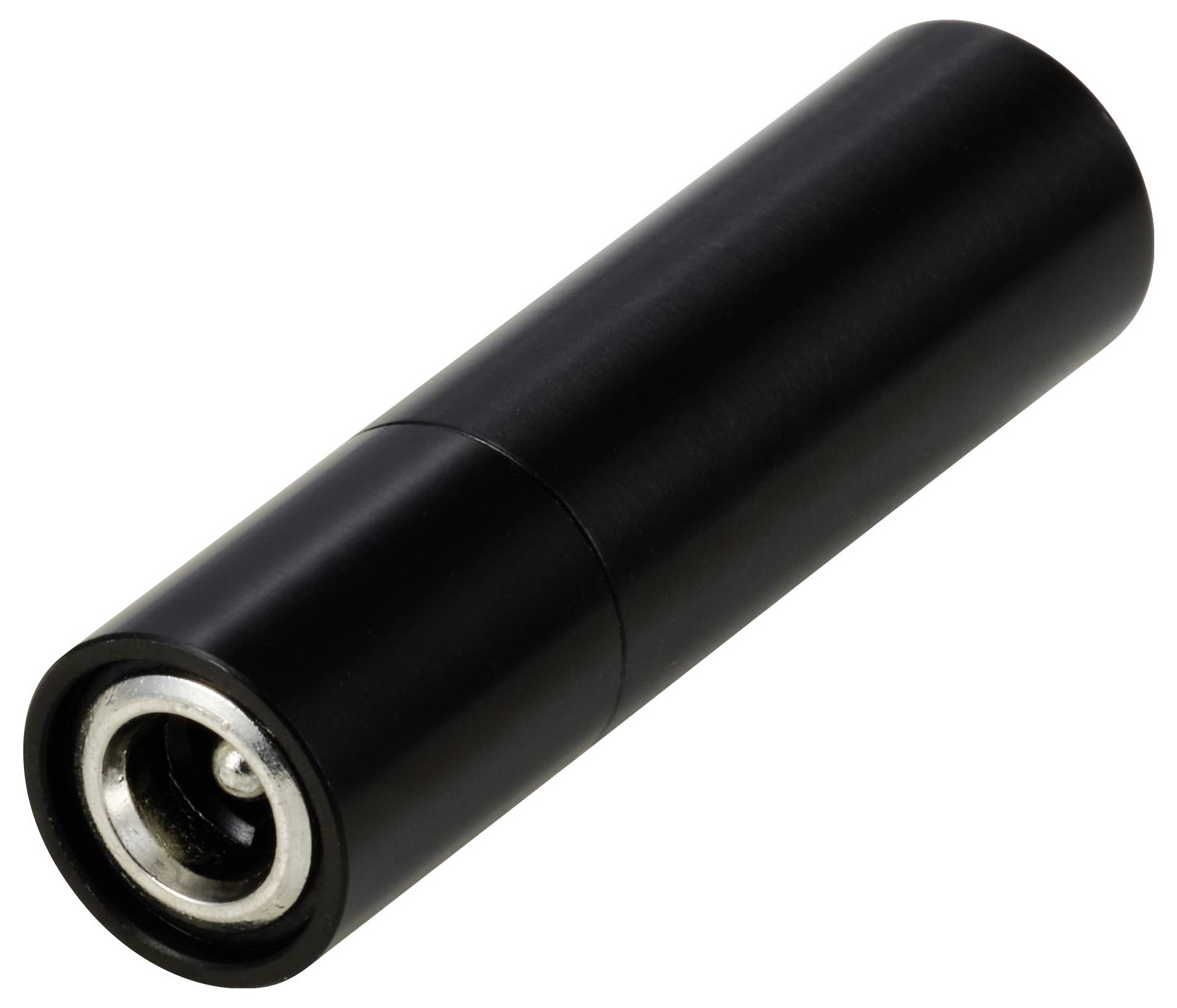

A black cylindrical battery adapter with no visible brands or markings.

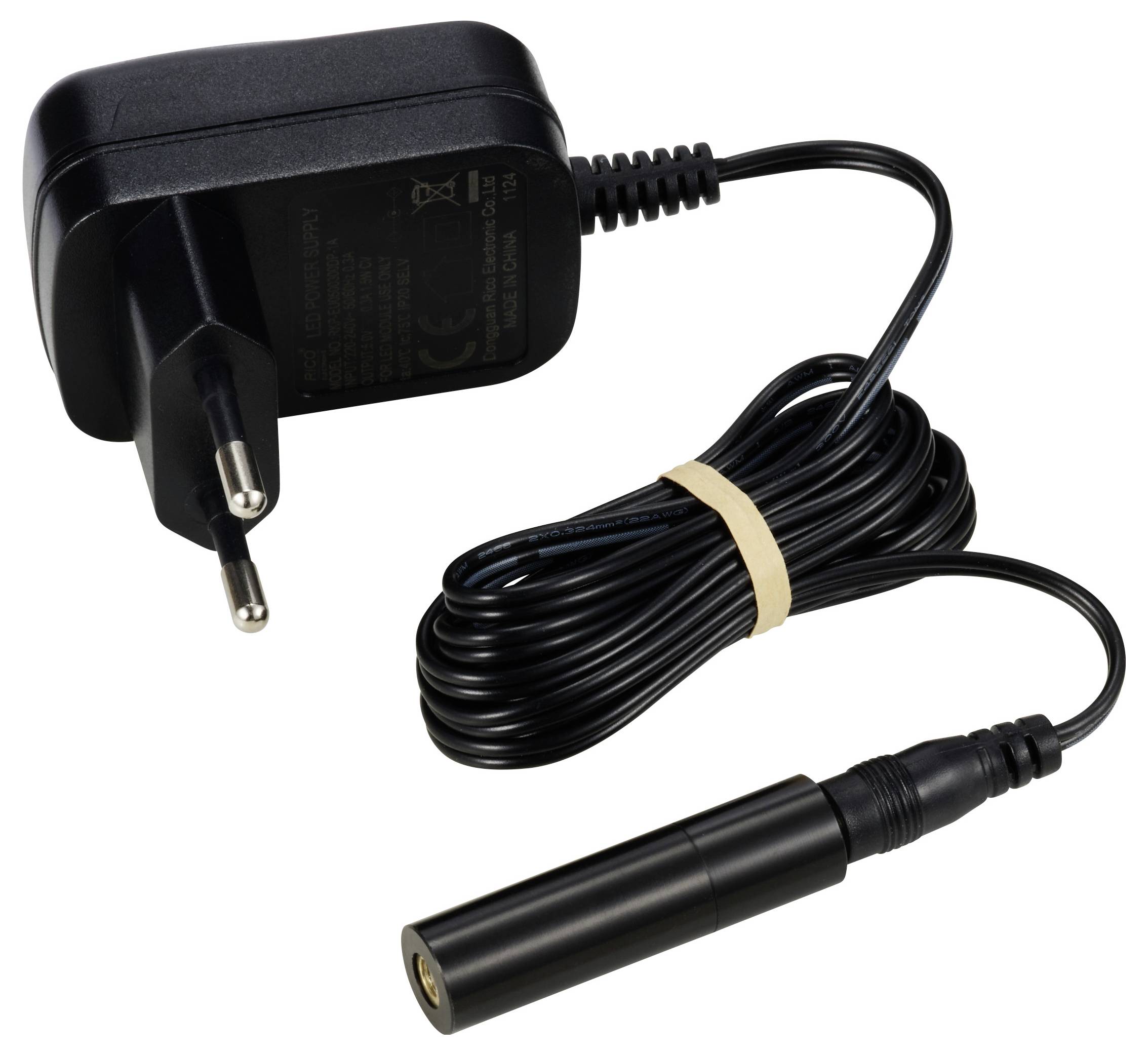

A black power supply with a Europlug and a long, coiled cable. It terminates in a cylindrical connection plug.

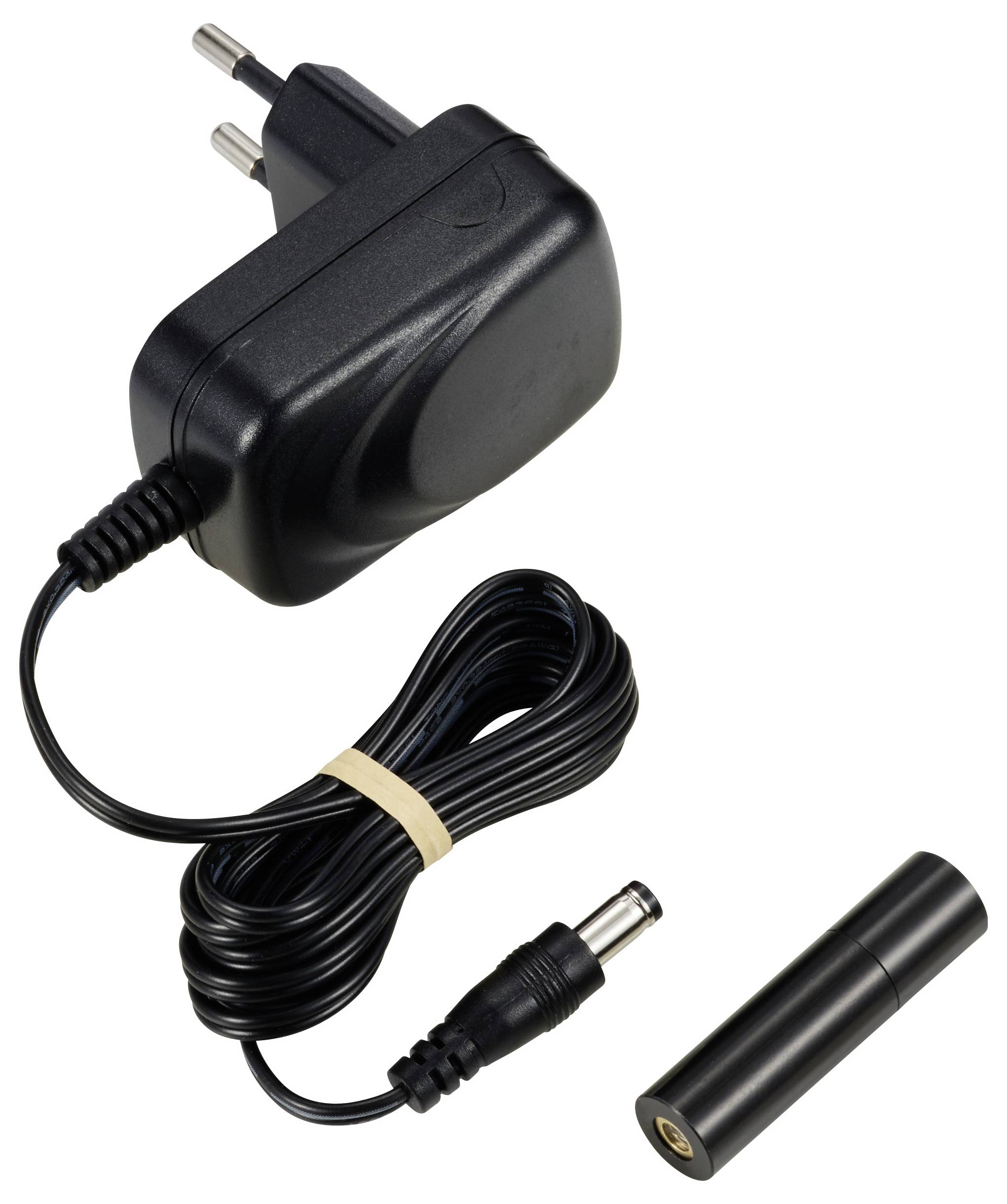

Black power supply with cable and cylindrical adapter. Adapter is designed for connection to electronic devices.

A circular saw cuts wood along a red laser line. Sawdust flies. Safety gloves protect the operator's hand.

A red laser beam shines vertically in a dark room, standing out against the dark background.

1/6

Product type

Laser module

Emission characteristics

Line

Wavelength

650 nm

Power

0.39 mW

(Ø)

12 mm

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

847 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 21.99 / piece)

€ 21.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Micro laser module, Line Red 0.39 mW

Red
Laser category: 1
Emission characteristics: Line

Technical specifications

Product type: Laser module

Emission characteristics: Line

Focus properties: Fixed-focus

Factory colour: Red

Wavelength: 650 nm

: 0.39 mW

(Ø): 12 mm

Length: 45 mm

Laser category: 1

Beam divergence: 17.45 mrad

Clearance: 1 m

Operating voltage: 3 - 5 V DC

Operating current: 10 mA
40 mA

Material: Brass

Dim: (Ø x L) 12 mm x 45 mm

RoHS-compliant: Yes

Max. operating voltage: 5 V DC

Min. operating voltage: 3 V DC

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3350210 TRU COMPONENTS Laser module Line Red 0.39 mW
