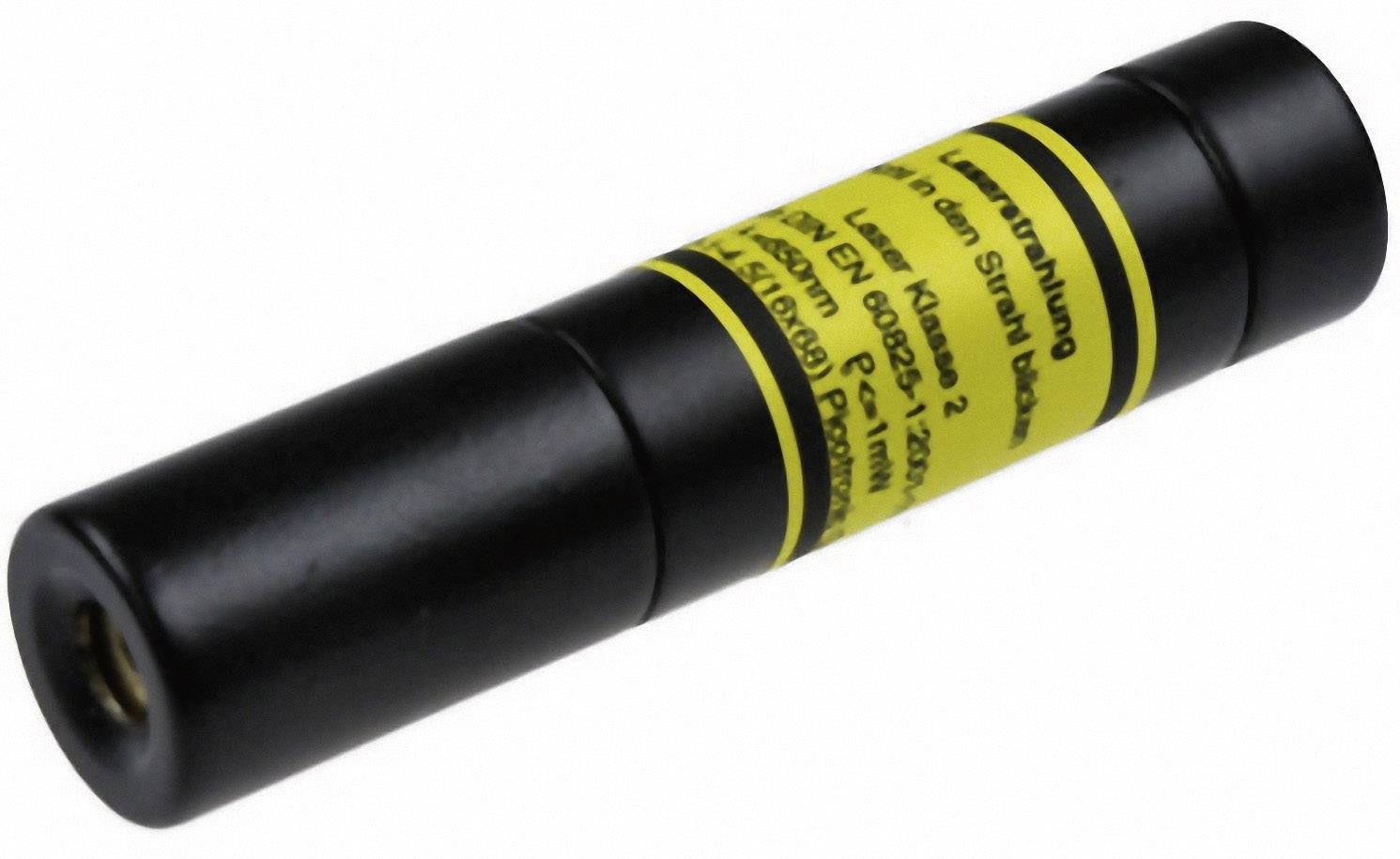

Laserfuchs Laser module Dot Red 1 mW LFD650-1-4.5 (15x68)
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 25.20
3
4% = € 1.09
€ 24.11
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 25.20 / piece)
€ 25.20
plus VAT.
Highlights & Details
Point laser, red, battery-operated
- Red
- Laser category: 2
- Emission characteristics: Dot
Technical specifications
- Beam diameter (5 m) 4 - 6 mm
- Type
LFD650-1-4.5 (15x68)
- Emission characteristics
Dot
- Focus properties
5000 mm fixed-focus
- Factory colour
Red
- Wavelength
650 nm
1 mW
- Laser category
2
- Beam divergence
1 mrad
- Clearance
10 m
- Operating voltage
3 - 4.5 V DC
- Operating current
20 mA
- Material
Aluminium
- Dim
(Ø x L) 15 mm x 68 mm
- Weight
25 g
- RoHS-compliant
Yes
- (Ø)
15 mm
- Length
68 mm
- Min. operating voltage
3 V DC
- Max. operating voltage
4.5 V DC
- Product type
Laser module
Documents & Downloads
Datasheet
Datasheet 817955 Laserfuchs Laser module Dot Red 1 mW LFD650-1-4.5 (15x68)
Information
Information 817955 Laserfuchs Laser module Dot Red 1 mW LFD650-1-4.5 (15x68)
Conformity certificate
Conformity certificate 817955 Laserfuchs Laser module Dot Red 1 mW LFD650-1-4.5 (15x68)
Security datasheet
Security datasheet 817955 Laserfuchs Laser module Dot Red 1 mW LFD650-1-4.5 (15x68)
Description
Scope of delivery
- Batteries.
- This text is machine translated.
Hints
Laser beam! Observe safety instructions! Never look into the beam (may damage your retina).
