Name: Picotronic Laser module Line Red 5 mW LD 650-5-3 (12x32) 45-F400
Brand: Picotronic
SKU: 1696023
Availability: InStock

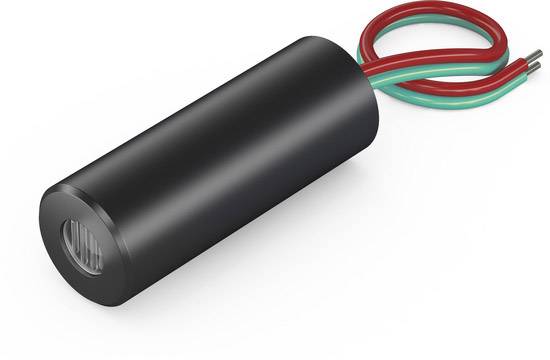

Cylindrical, black sensor with two protruding wires, sheathed in red and green. Suitable for electronic applications.

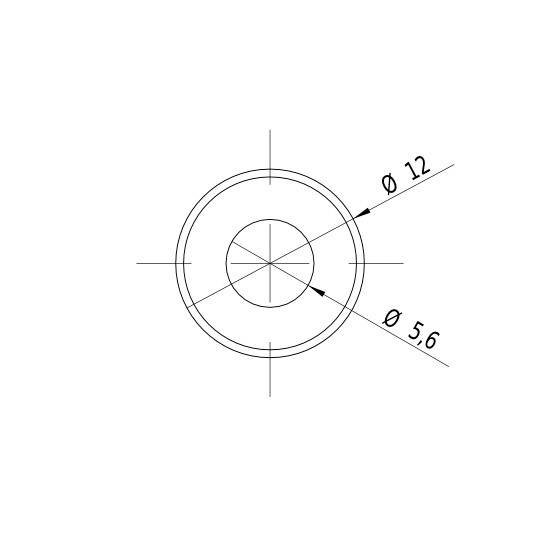

Technical drawing of a circle with two diameter specifications: Ø 12 and Ø 5.6. The smaller circle is located within the larger circle.

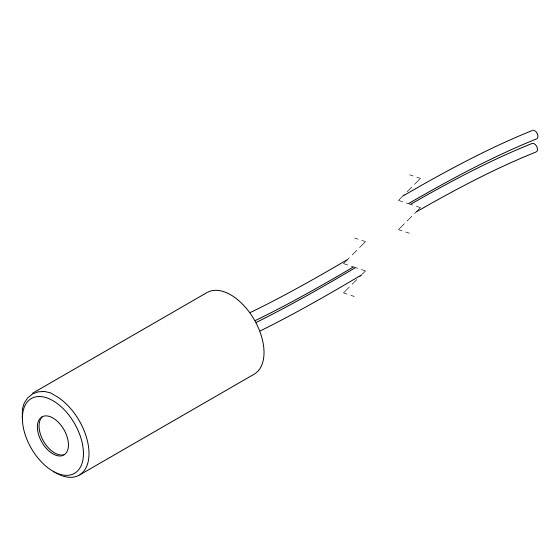

$Two-core cable with exposed wire tip, severed line with marked fracture point.$

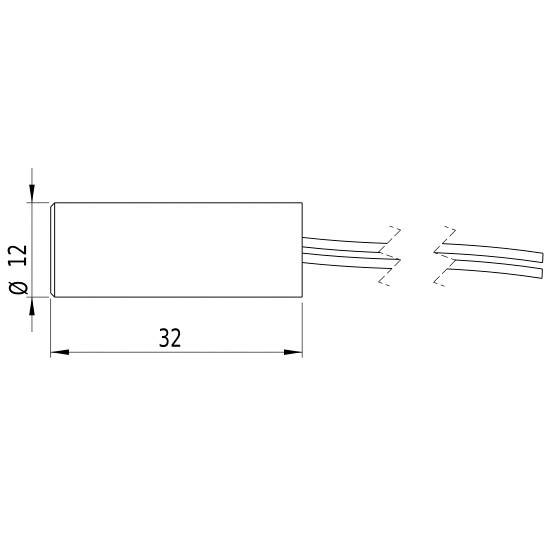

Line drawing of a cylindrical object with a diameter of 12 mm and length of 32 mm. Two cables protrude from one end.

1/4

Product type

Laser module

Emission characteristics

Line

Wavelength

650 nm

Power

5 mW

Laser category

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Mon 2 Nov

6 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 83.99 / piece)

€ 83.99

incl. VAT

Only 6 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Laser module line

Red
Laser category: 1
Emission characteristics: Line

Technical specifications

Connection cable 100 mm

Product type: Laser module

Type: LD 650-5-3 (12x32) 45-F400

Emission characteristics: Line

Focus properties: 400 mm fixed-focus

Factory colour: Red

Wavelength: 650 nm

: 5 mW

Laser category: 1

Angular aperture: 45°

Beam divergence: 0.5 mrad

Clearance: 0.4 m

Operating voltage: 3 V DC

Operating current: 34 mA

Material: Aluminium

RoHS-compliant: Yes

Max. temperature: +50 °C

Min. temperature: -20 °C

Variants(All information include VAT, plus shipping costs)

Clearance

Factory colour

Laser category

Power

Wavelength

Picotronic Laser module Line Blue 1 mW LE 405-1-3 (14x45) 90 DEG F 150

Item no:1695952

Dispatches on Mon 2 Nov

5 Piece(s)Conrad Electronic

0.15 m

Blue

1 mW

405 nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 285.00^*

Picotronic Laser module Line Blue 16 mW LC 405-16-3-F (14x55) 30

Item no:1695871

Dispatches on Mon 14 Dec

Conrad Electronic

5 m

Blue

16 mW

405 nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 485.00^*

Picotronic Laser module Line Blue 30 mW LC 450-30-24-F (14x60)

Item no:1695901

Dispatches on Mon 2 Nov

3 Piece(s)Conrad Electronic

6 m

Blue

30 mW

450 nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 535.00^*

Picotronic Laser module Line Green 0.1 mW LC 520-0 1-5-F (16 x 65) - QCW

Item no:1695904

Dispatches on Thu 5 Nov

Conrad Electronic

1 m

Green

0.1 mW

520 nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 609.00^*

Picotronic Laser module Line Green 0.1 mW LC 520-0. 1-24-F (16x65)-MV

Item no:1695978

Dispatches on Mon 2 Nov

5 Piece(s)Conrad Electronic

1 m

Green

0.1 mW

520 nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 655.00^*

Picotronic Laser module Line Green 1 mW LE 520-1-3 (14x45) 90 DEG F 150 - QCW

Item no:1696011

Dispatches on Mon 2 Nov

2 Piece(s)Conrad Electronic

0.15 m

Green

1 mW

520 nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 419.00^*

Picotronic Laser module Line Green 10 mW LD 520-10-24 (16 x 80) C1000 QCW

Item no:1695989

Dispatches on Mon 2 Nov

6 Piece(s)Conrad Electronic

5 m

Green

10 mW

520 nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 399.00^*

Picotronic Laser module Line Green 10 mW LD 532-10-24 (20 x 80)-F800

Item no:1695981

Dispatches on Mon 2 Nov

8 Piece(s)Conrad Electronic

0.8 m

Green

10 mW

532 nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 419.00^*

Picotronic Laser module Line Green 10 mW LD 532-10-24 (20 x 80)-PL-C1500-G

Item no:1695863

Dispatches on Mon 2 Nov

28 Piece(s)Conrad Electronic

3 m

Green

10 mW

532 nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 555.00^*

Picotronic Laser module Line Green 10 mW LD 532-10-24 (20 x 80)-PL-C1500-NT

Item no:1695975

Dispatches on Mon 2 Nov

23 Piece(s)Conrad Electronic

5 m

Green

10 mW

532 nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 515.00^*

Documents & Downloads

Datasheet

Datasheet 1696023 Picotronic Laser module Line Red 5 mW LD 650-5-3 (12x32) 45-F400

User & Safety Instructions

User & Safety Instructions 1696023 Picotronic Laser module Line Red 5 mW LD 650-5-3 (12x32) 45-F400

Information

Information 1696023 Picotronic Laser module Line Red 5 mW LD 650-5-3 (12x32) 45-F400

Conformity certificate

Conformity certificate 1696023 Picotronic Laser module Line Red 5 mW LD 650-5-3 (12x32) 45-F400

Hints

Class 1: laser beam! Observe safety instructions! Never look into the beam (may damage your retina).

Description

Hints

Class 1: laser beam! Observe safety instructions! Never look into the beam (may damage your retina).

More interesting products

(^*All information is plus legal VAT)

Picotronic Laser module Line Red 5 mW LD 650-5-5 (12x32) 45-F200

Conrad Electronic

€ 85.99^*

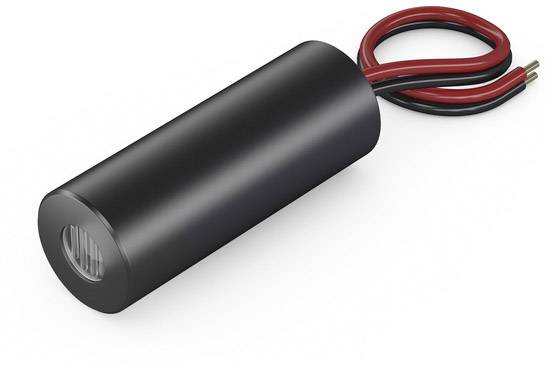

Picotronic Laser module Line Red 2.5 mW LH 650-2. 5-3 (12 x 32)
