Name: Laserfuchs Line laser level Line 5 mW
Brand: Laserfuchs
SKU: 2987721
Availability: InStock

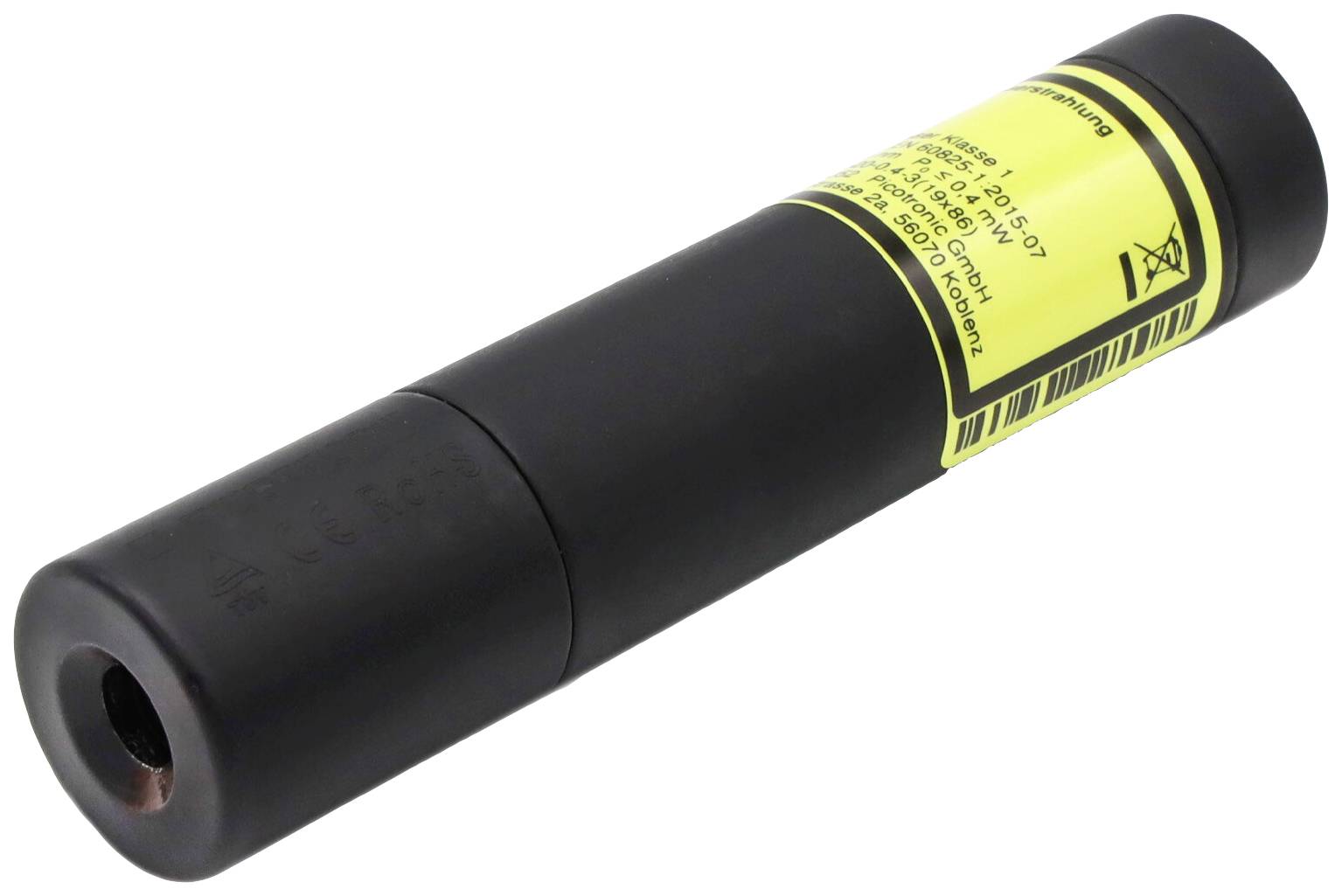

A black cylindrical laser pointer with a yellow warning label. The laser pointer is for optical aids and presentations.<br><br>Note: The translation is already very close to British English, with only minor adjustments made to ensure natural phrasing.

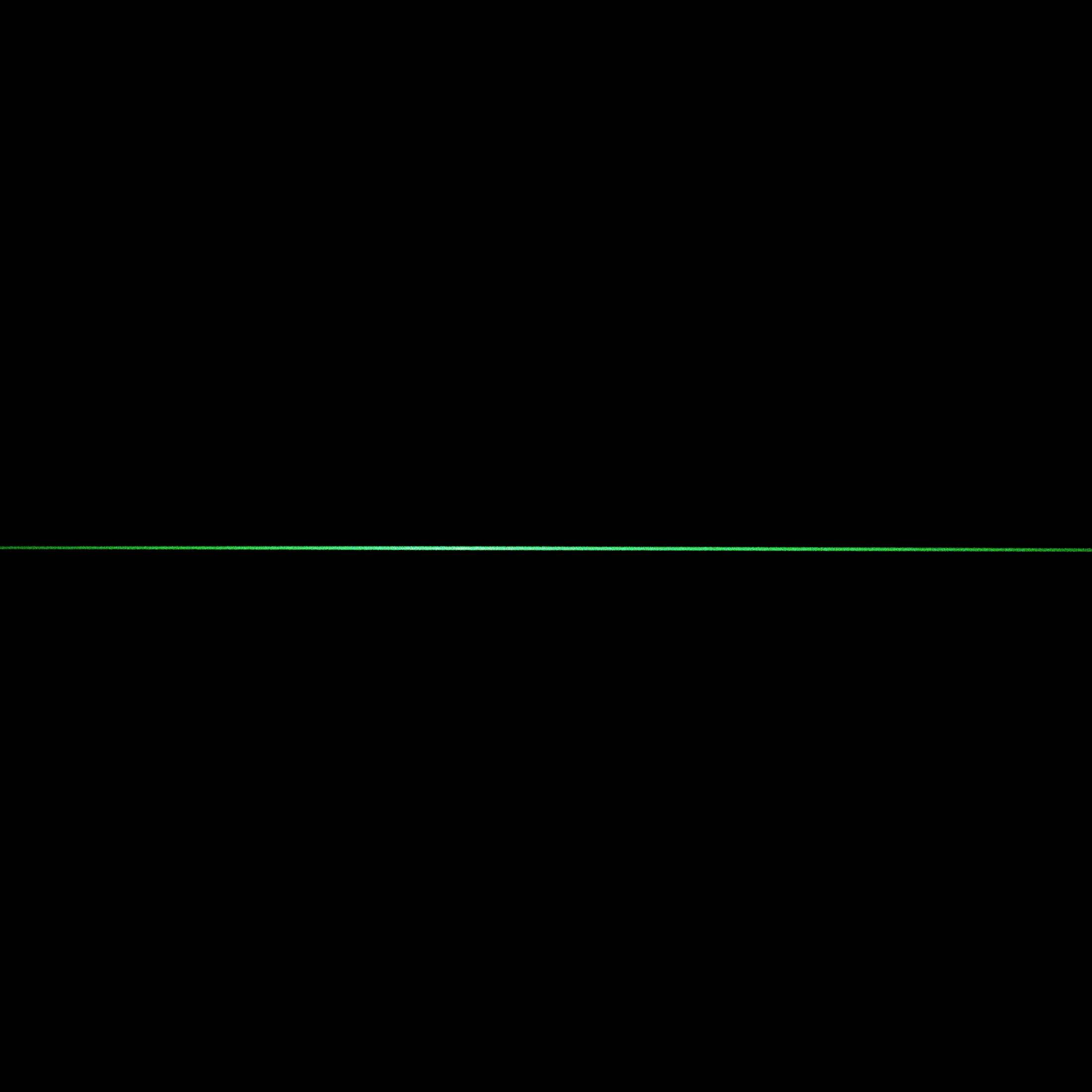

A single, thin, green horizontal light beam on a black background.

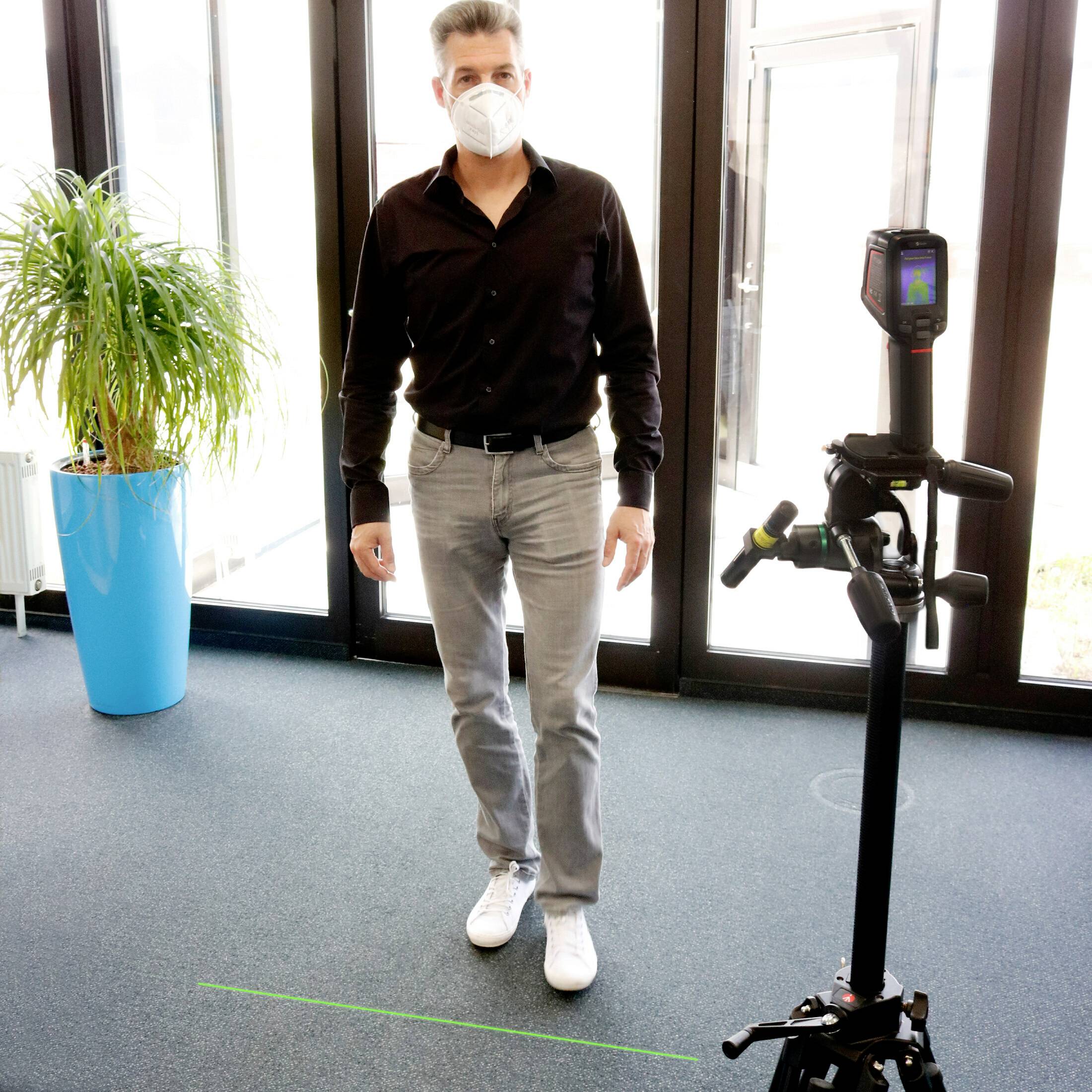

A person wearing a face mask is standing next to a potted plant and behind a measuring device in a bright room with glass doors.

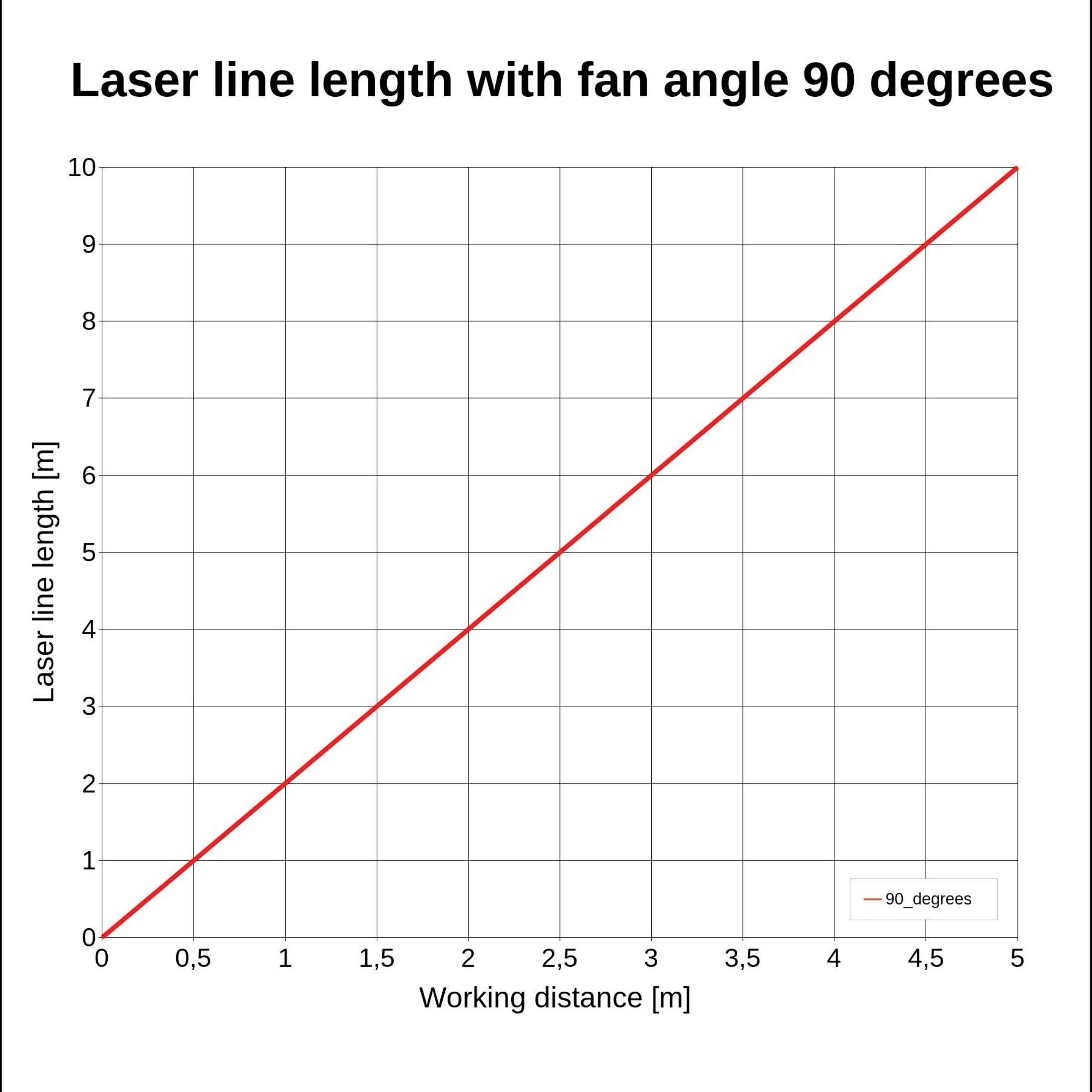

Graph shows: 'Laser Line Length at 90-Degree Fan Angle'. Axes: Working Distance [m], Laser Line Length [m]. Line: Linear Increase.

1/4

Product type

Line laser level

Emission characteristics

Line

Wavelength

520 nm

Power

5 mW

(Ø)

6 mm

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

7 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 104.99 / piece)

€ 104.99

incl. VAT

Only 7 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Line laser, green, 520nm, 5mW, 90°, Laser class 1, Focus 1m, 3V DC, 19x19 86mm, Battery operated

Laser category: 1
Emission characteristics: Line

Technical specifications

Material: Aluminium
Optical power 5 mW
Lifetime 3,000 h
Operating temperature: - 20 °C to 50 °C
Storage temperature: -20°C to 60 °C.
Beam form: Line
Class 1 laser
Divergent: H - 1.0 mrad
Aperture angle: 90 °
1 m operating distance
Acrylic lens
Laser technology: Single mode diode
Focus: Fixed (1000mm)
Potential of the enclosure: VDD(+)
Outlet diameter of optical 6 mm

Product type: Line laser level

Emission characteristics: Line

Focus properties: 1000 mm fixed-focus

Wavelength: 520 nm

: 5 mW

(Ø): 6 mm

Length: 86 mm

Laser category: 1

Angular aperture: 90°

Beam divergence: 1.0 mrad

Clearance: 1 m

Operating voltage: 3 V DC

Operating current: 100 mA

Material: Aluminium

Dim: (Ø x H) 6 mm x 67 mm

Weight: 25 g

RoHS-compliant: Yes

Width: 19 mm

Height: 67 mm

Max. temperature: 50 °C

Min. temperature: -20 °C

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2987721 Laserfuchs Line laser level Line 5 mW

Information

Information 2987721 Laserfuchs Line laser level Line 5 mW

Conformity certificate

Conformity certificate 2987721 Laserfuchs Line laser level Line 5 mW

Features

Line laser, green, 520nm, 5mW, 90°, Laser class 1, Focus 1m, 3V DC, 19x19 86mm, Battery operated
The type LFL520-5-3(19x86)90 is a laser for projection of a green laser line. The laser module emits radiation of the 520nm wavelength. The module is operated with a CR123A battery, which is included in the delivery and enables wireless operation over several hours. The laser has a very compact design (19x86mm). Press the switch at the end of the laser module once and the laser is switched on permanently. If activated again, the laser is switched off again. At a working distance of 1m, the opening angle (90°) generates a laser line length of 2m. For applications in industry, trade, hobby or show sector. Typical usage areas are low-cost applications. This module falls into the laser class 1.
Latch switch: Press the switch at the end of the laser module once and the laser is permanently switched on. Repeated operation switches off the laser again.
Radiation characteristics: Line, line thickness 1.2mm@1m
Optical output: 5mW (laser class 1); focus: 1m
Compact design: 15x67mm; opening angle: 90°; axis deviation up to 3.0°; the opening angle (90°) produces a laser line length of 2m at a working distance of 1m.
For presentations, for positioning of objects and applications in industry, trade, hobby or show sector. Supplied with one CR123A battery.
Delivery includes a CR123A type battery.
This text is machine translated.
