Name: Piher PT10LH01-503A2020-S Carbon film pot Enclosed linear 0.15 W 50 kΩ 220 ° 235 ° 1 pc(s) Piece
Brand: Piher
SKU: 3523541
Price: 0.6036 EUR
Availability: InStock

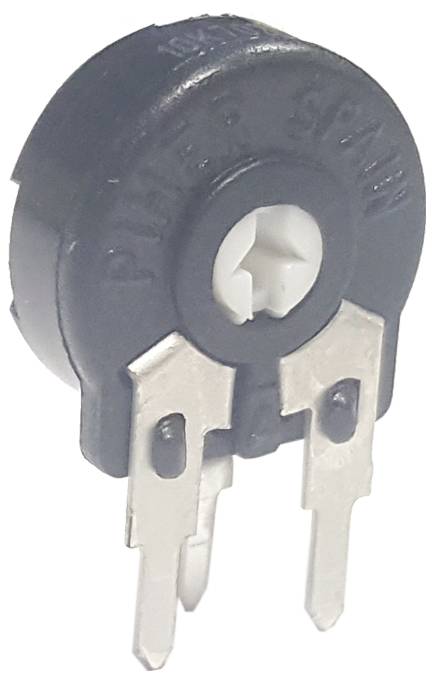

A small, circular electronic component with three metal prongs, labeled with 'Pher Spain,' used for adjusting electrical resistance.

Packaging type

Piece

Product type

Carbon film pot

Resistance

50 kΩ

Resistance characteristic

linear

Power rating

0.15 W

Datasheet (PDF)

Part number:

Item no:

Fast track dispatch on Thu 12 Nov

134 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 0.6036 / piece)

€ 0.60

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Piher e-Regul. Vertical RM2.5/5 50K

Our service for you

Technical specifications

ESD Packaging: No ESD
Series PT10
Design: Vertical
Diameter, housing 10.3 mm
Axis: Arrow slot
Resistance value 50 kOhm
Resistance unit: KOhm
Resistance value_1: 50
Resistance tolerance: ±20 %
Resistance curve: Linear
Rated output: 0.15 W
Max voltage 200 V
Confirmation: Lateral
Mechanical rotation angle 235 °
Electrical angle of rotation 220 °
Stop strength 5 Ncm
Torque 2 Ncm

Packaging type: Piece

Product type: Carbon film pot

Potentiometer features: Enclosed

Resistance: 50 kΩ

Resistance characteristic: linear

Power rating: 0.15 W

Cut-off voltage: 200 V

Electrical angle: 220°

Mechanical angle: 235°

Operation type: side

Tolerance ±: 20 %

Width: 4.8 mm

Height: 15.6 mm

CS: 5 mm

Dim: (W x H) 4.8 mm x 15.6 mm

Content: 1 pc(s)

Type: PT10LH01-503A2020-S

RoHS-compliant: Yes

Outside Ø: 10.3 mm

Documents & Downloads

Datasheet

Datasheet 3523541 Piher PT10LH01-503A2020-S Carbon film pot Enclosed linear 0.15 W 50 kΩ 220 ° 235 ° 1 pc(s) Piece

User & Safety Instructions

User & Safety Instructions 3523541 Piher PT10LH01-503A2020-S Carbon film pot Enclosed linear 0.15 W 50 kΩ 220 ° 235 ° 1 pc(s) Piece

Description

Trimmer PT10LH vertical RM2.5/5 mm

This text is machine translated.

Features

• Support made of high-quality polyester film
• Fully enclosed housing prevents dust, colophonium from entering and protects against other harmful influences
• Double sander, 2-way bearing
• Great stability makes multiple use possible as a shift rotational resistance
• Slider position visible by arrow
• Resistant to cleaning agents, ultrasonic cleaning possible

Description

Trimmer PT10LH vertical RM2.5/5 mm

This text is machine translated.

Features

• Support made of high-quality polyester film
• Fully enclosed housing prevents dust, colophonium from entering and protects against other harmful influences
• Double sander, 2-way bearing
• Great stability makes multiple use possible as a shift rotational resistance
• Slider position visible by arrow
• Resistant to cleaning agents, ultrasonic cleaning possible
