Name: Piher PT10LV10-252A2020-S Carbon film pot Enclosed linear 0.15 W 2.5 kΩ 220 ° 235 ° 1 pc(s)
Brand: Piher
SKU: 3523545
Price: 0.41424 EUR
Availability: InStock

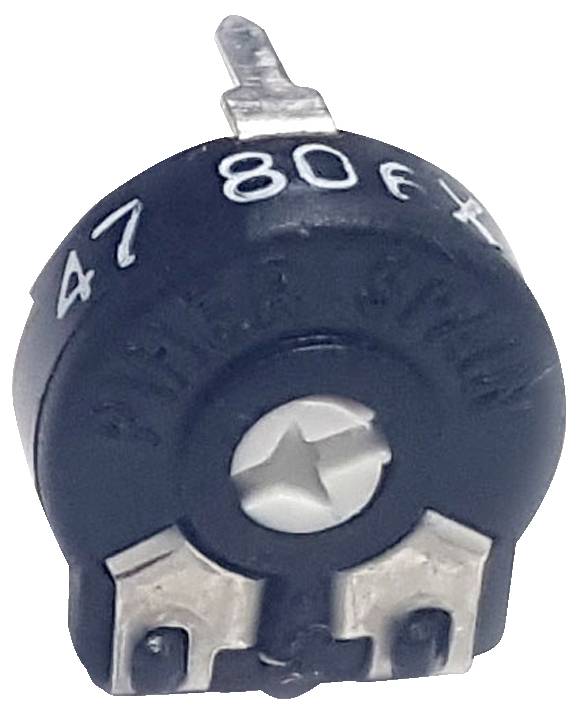

A black circular potentiometer marked '47' and '806' with a three-pronged metal connector at the top.

Product type

Carbon film pot

Resistance

2.5 kΩ

Resistance characteristic

linear

Power rating

0.15 W

Mechanical angle

235 °

Datasheet (PDF)

Part number:

Item no:

Fast track dispatch on Wed 11 Nov

56 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 0.41424 / piece)

€ 0.41

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

ESD Packaging: No ESD
Series PT10
Design: Horizontal
Diameter, housing 10.3 mm
Axis: Arrow slot
Resistance value 2.5 kOhm
Resistance unit: KOhm
Resistance value_1: 2.5
Resistance tolerance: ±20 %
Resistance curve: Linear
Rated output: 0.15 W
Max voltage 200 V
Confirmation: From above
Mechanical rotation angle 235 °
Electrical angle of rotation 220 °
Stop strength 5 Ncm
Torque 2 Ncm

Product type: Carbon film pot

Potentiometer features: Enclosed

Resistance: 2.5 kΩ

Resistance characteristic: linear

Power rating: 0.15 W

Cut-off voltage: 200 V

Electrical angle: 220°

Mechanical angle: 235°

Tolerance ±: 20 %

Height: 9.5 mm

CS: 10 mm

Content: 1 pc(s)

Type: PT10LV10-252A2020-S

RoHS-compliant: Yes

Outside Ø: 10.3 mm

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3523545 Piher PT10LV10-252A2020-S Carbon film pot Enclosed linear 0.15 W 2.5 kΩ 220 ° 235 ° 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3523545 Piher PT10LV10-252A2020-S Carbon film pot Enclosed linear 0.15 W 2.5 kΩ 220 ° 235 ° 1 pc(s)

Description

Trimmer PT10Lv horizontal RM5/10mm

This text is machine translated.

Features

• Support made of high-quality polyester film
• Fully enclosed housing prevents dust, colophonium from entering and protects against other harmful influences
• Double sander, 2-way bearing
• Great stability makes multiple use possible as a shift rotational resistance
• Slider position visible by arrow
• Resistant to cleaning agents, ultrasonic cleaning possible
