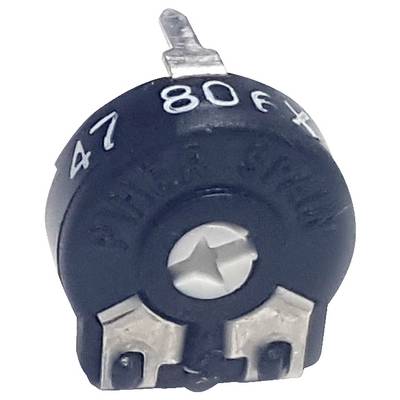

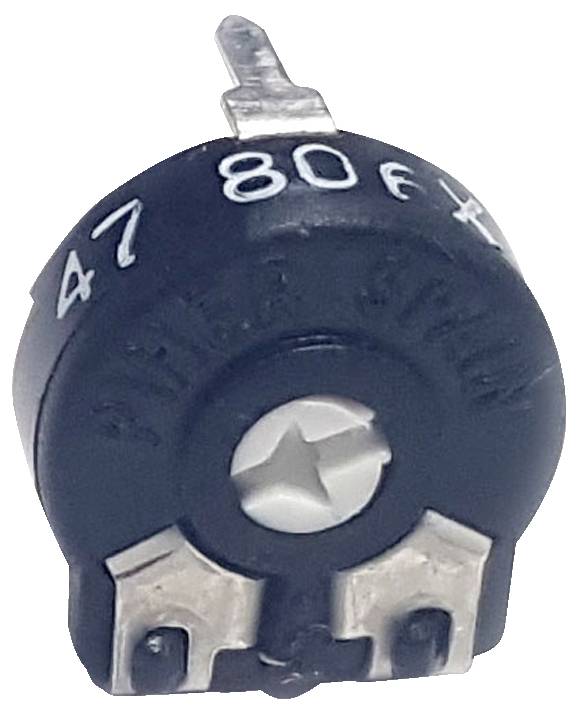

Piher PT10LV10-102A2020-S Carbon film pot Dustproof linear 0.15 W 1 kΩ 220 ° 235 ° 1 pc(s)
Part number:
Item no:
Product type
Carbon film pot
Resistance
1 kΩ
Resistance characteristic
linear
Power rating
0.15 W
Mechanical angle
235 °
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 0.50723
10
8% = € 0.04
€ 0.46639
25
11% = € 0.06
€ 0.45006
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 0.50723 / piece)
€ 0.51
plus VAT.
14-day return policy included
Highlights & Details
Piher e-controller horizontal RM5/10 1K
Our service for you
Technical specifications
- ESD Packaging: No ESD
- Series PT10
- Design: Horizontal
- Diameter, housing 10.3 mm
- Axis: Arrow slot
- Resistance value 1 kOhm
- Resistance unit: KOhm
- Resistance value_1: 1
- Resistance tolerance: ±20 %
- Resistance curve: Linear
- Rated output: 0.15 W
- Max voltage 200 V
- Confirmation: From above
- Mechanical rotation angle 235 °
- Electrical angle of rotation 220 °
- Stop strength 5 Ncm
- Torque 2 Ncm
- Product type
Carbon film pot
- Potentiometer features
Dustproof
- Resistance
1 kΩ
- Resistance characteristic
linear
- Power rating
0.15 W
- Cut-off voltage
200 V
- Electrical angle
220°
- Mechanical angle
235°
- Tolerance ±
20 %
- Height
9.5 mm
- CS
10 mm
- Content
1 pc(s)
- Type
PT10LV10-102A2020-S
- RoHS-compliant
Yes
- Outside Ø
10.3 mm
Documents & Downloads
Datasheet
Datasheet 3523544 Piher PT10LV10-102A2020-S Carbon film pot Dustproof linear 0.15 W 1 kΩ 220 ° 235 ° 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3523544 Piher PT10LV10-102A2020-S Carbon film pot Dustproof linear 0.15 W 1 kΩ 220 ° 235 ° 1 pc(s)
Description
Trimmer PT10Lv horizontal RM5/10mm
This text is machine translated.
This text is machine translated.
Features
- • Support made of high-quality polyester film
- • Fully enclosed housing prevents dust, colophonium from entering and protects against other harmful influences
- • Double sander, 2-way bearing
- • Great stability makes multiple use possible as a shift rotational resistance
- • Slider position visible by arrow
- • Resistant to cleaning agents, ultrasonic cleaning possible
