Name: Piher PT10LV10-105A2020-S Carbon film pot Enclosed linear 0.15 W 1 MΩ 220 ° 235 ° 1 pc(s)
Brand: Piher
SKU: 3523552
Price: 0.6036 EUR
Availability: InStock

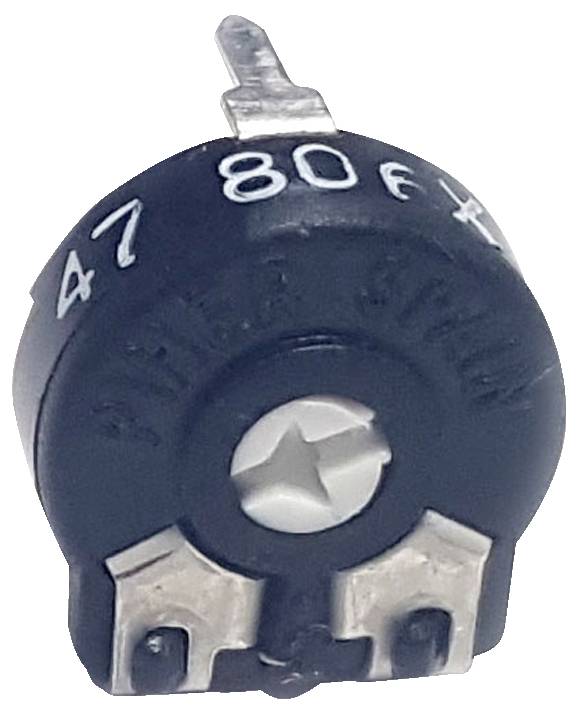

A black variable resistor with a knob for adjusting resistance, marked '47'. Used in electronics to control current flow.

Product type

Carbon film pot

Resistance

1 MΩ

Resistance characteristic

linear

Power rating

0.15 W

Mechanical angle

235 °

Datasheet (PDF)

Part number:

Item no:

Fast track dispatch on Thu 12 Nov

76 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 0.6036 / piece)

€ 0.60

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

ESD Packaging: No ESD
Series PT10
Design: Horizontal
Diameter, housing 10.3 mm
Axis: Arrow slot
Resistance value 1 MOhm
MOhm
Resistance value_1: 1.0
Resistance tolerance: ±20 %
Resistance curve: Linear
Rated output: 0.15 W
Max voltage 200 V
Confirmation: From above
Mechanical rotation angle 235 °
Electrical angle of rotation 220 °
Stop strength 5 Ncm
Torque 2 Ncm

Product type: Carbon film pot

Potentiometer features: Enclosed

Resistance: 1 MΩ

Resistance characteristic: linear

Power rating: 0.15 W

Cut-off voltage: 200 V

Electrical angle: 220°

Mechanical angle: 235°

Operation type: top

Tolerance ±: 20 %

Height: 9.5 mm

CS: 10 mm

Content: 1 pc(s)

Type: PT10LV10-105A2020-S

RoHS-compliant: Yes

Outside Ø: 10.3 mm

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3523552 Piher PT10LV10-105A2020-S Carbon film pot Enclosed linear 0.15 W 1 MΩ 220 ° 235 ° 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3523552 Piher PT10LV10-105A2020-S Carbon film pot Enclosed linear 0.15 W 1 MΩ 220 ° 235 ° 1 pc(s)

Description

Trimmer PT10Lv horizontal RM5/10mm

This text is machine translated.

Features

• Support made of high-quality polyester film
• Fully enclosed housing prevents dust, colophonium from entering and protects against other harmful influences
• Double sander, 2-way bearing
• Great stability makes multiple use possible as a shift rotational resistance
• Slider position visible by arrow
• Resistant to cleaning agents, ultrasonic cleaning possible

Description

Trimmer PT10Lv horizontal RM5/10mm

This text is machine translated.

Features

• Support made of high-quality polyester film
• Fully enclosed housing prevents dust, colophonium from entering and protects against other harmful influences
• Double sander, 2-way bearing
• Great stability makes multiple use possible as a shift rotational resistance
• Slider position visible by arrow
• Resistant to cleaning agents, ultrasonic cleaning possible
