Name: Piher PT6KV-103A2020 PT6KV103A2020 Carbon film pot Enclosed linear 0.1 W 10 kΩ 220 ° 235 ° 1 pc(s)
Brand: Piher
SKU: 3523555
Price: 0.8798 EUR
Availability: InStock

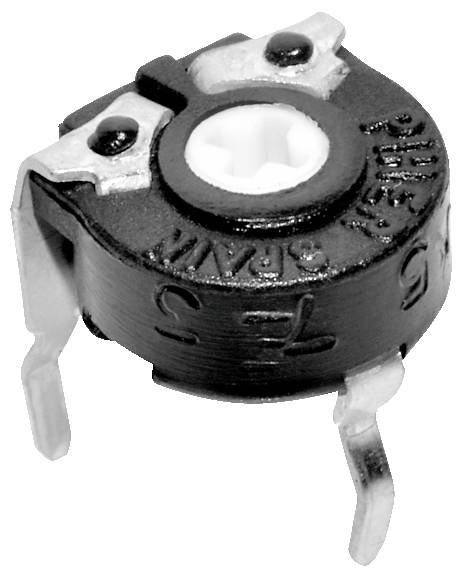

A small, single-turn trimmer potentiometer with three metal legs and an adjustable white dial, used for tuning electronic circuits.

Product type

Carbon film pot

Resistance

10 kΩ

Resistance characteristic

linear

Power rating

0.1 W

Mechanical angle

235 °

Datasheet (PDF)

Part number:

Item no:

Fast track dispatch on Thu 12 Nov

150 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 0.8798 / piece)

€ 0.88

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

ESD Packaging: No ESD
PT6 series
Design: Horizontal
Diameter, housing 6.3 mm
Axis: Arrow slot
Resistance value 10 kOhm
Resistance unit: KOhm
Resistance value_1: 10
Resistance tolerance: ±20 %
Resistance curve: Linear
Rated output: 0.1 W
Max voltage 100 V
Confirmation: From above
Mechanical rotation angle 235 °
Electrical angle of rotation 220 °
Stop strength 4 Ncm
Torque 2 Ncm

Product type: Carbon film pot

Potentiometer features: Enclosed

Resistance: 10 kΩ

Resistance characteristic: linear

Power rating: 0.1 W

Cut-off voltage: 100 V

Electrical angle: 220°

Mechanical angle: 235°

Tolerance ±: 20 %

Height: 7.3 mm

CS: 5 mm

Content: 1 pc(s)

Type: PT6KV103A2020

RoHS-compliant: Yes

Outside Ø: 6.3 mm

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3523555 Piher PT6KV-103A2020 PT6KV103A2020 Carbon film pot Enclosed linear 0.1 W 10 kΩ 220 ° 235 ° 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3523555 Piher PT6KV-103A2020 PT6KV103A2020 Carbon film pot Enclosed linear 0.1 W 10 kΩ 220 ° 235 ° 1 pc(s)

Description

Trimmer PT6v horizontal RM5/5 mm

This text is machine translated.

Features

• Support made of high-quality polyester film
• Fully enclosed housing prevents dust, colophonium from entering and protects against other harmful influences
• Double sander, 2-way bearing
• Great stability makes multiple use possible as a shift rotational resistance
• Slider position visible by arrow
• Resistant to cleaning agents, ultrasonic cleaning possible

Description

Trimmer PT6v horizontal RM5/5 mm

This text is machine translated.

Features

• Support made of high-quality polyester film
• Fully enclosed housing prevents dust, colophonium from entering and protects against other harmful influences
• Double sander, 2-way bearing
• Great stability makes multiple use possible as a shift rotational resistance
• Slider position visible by arrow
• Resistant to cleaning agents, ultrasonic cleaning possible
