Name: Piher PT6KV-502A2020 PT6KV502A2020 Carbon film pot Enclosed linear 0.1 W 5 kΩ 220 ° 235 ° 1 pc(s)
Brand: Piher
SKU: 3523554
Price: 0.8798 EUR
Availability: InStock

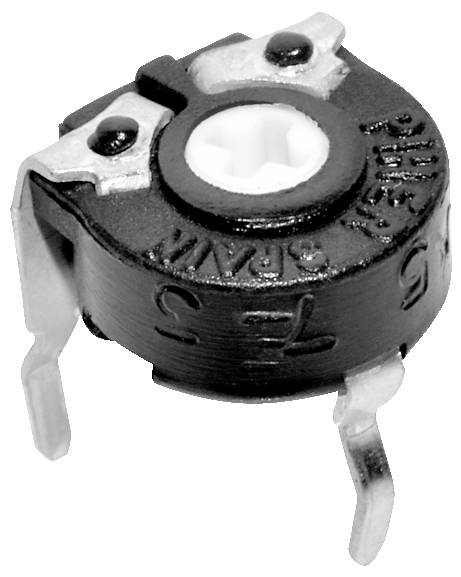

A black trimmer potentiometer with three metal legs extending from the base, used to adjust electrical resistance in circuits.

Product type

Carbon film pot

Resistance

5 kΩ

Resistance characteristic

linear

Power rating

0.1 W

Mechanical angle

235 °

Datasheet (PDF)

Part number:

Item no:

Fast track dispatch on Thu 12 Nov

19 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 0.8798 / piece)

€ 0.88

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

ESD Packaging: No ESD
PT6 series
Design: Horizontal
Diameter, housing 6.3 mm
Axis: Arrow slot
Resistance value 5 kOhm
Resistance unit: KOhm
Resistance value_1: 5
Resistance tolerance: ±20 %
Resistance curve: Linear
Rated output: 0.1 W
Max voltage 100 V
Confirmation: From above
Mechanical rotation angle 235 °
Electrical angle of rotation 220 °
Stop strength 4 Ncm
Torque 2 Ncm

Product type: Carbon film pot

Potentiometer features: Enclosed

Resistance: 5 kΩ

Resistance characteristic: linear

Power rating: 0.1 W

Cut-off voltage: 100 V

Electrical angle: 220°

Mechanical angle: 235°

Tolerance ±: 20 %

Height: 7.3 mm

CS: 5 mm

Content: 1 pc(s)

Type: PT6KV502A2020

RoHS-compliant: Yes

Outside Ø: 6.3 mm

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3523554 Piher PT6KV-502A2020 PT6KV502A2020 Carbon film pot Enclosed linear 0.1 W 5 kΩ 220 ° 235 ° 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3523554 Piher PT6KV-502A2020 PT6KV502A2020 Carbon film pot Enclosed linear 0.1 W 5 kΩ 220 ° 235 ° 1 pc(s)

Description

Trimmer PT6v horizontal RM5/5 mm

This text is machine translated.

Features

• Support made of high-quality polyester film
• Fully enclosed housing prevents dust, colophonium from entering and protects against other harmful influences
• Double sander, 2-way bearing
• Great stability makes multiple use possible as a shift rotational resistance
• Slider position visible by arrow
• Resistant to cleaning agents, ultrasonic cleaning possible
