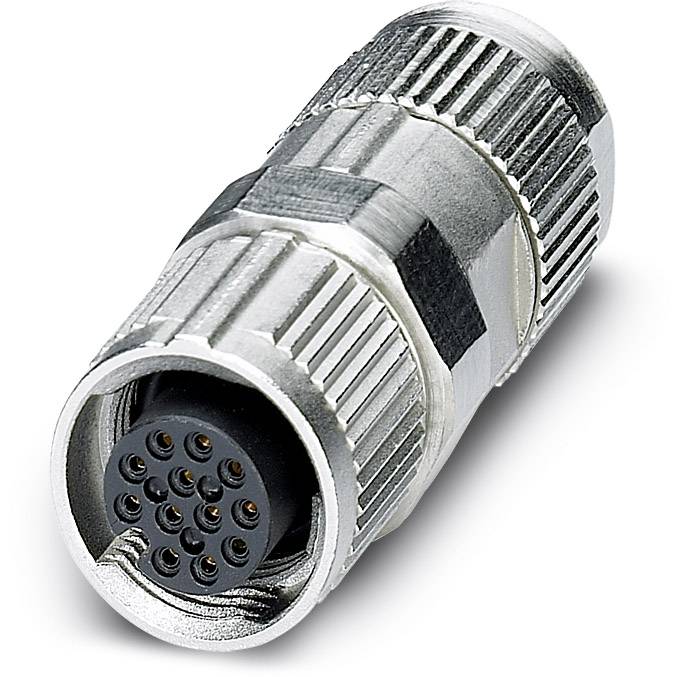

A cylindrical metal connector with multiple pins, used in electronic applications for secure connection.

Image similar

A cylindrical metal connector with multiple pins, used in electronic applications for secure connection.

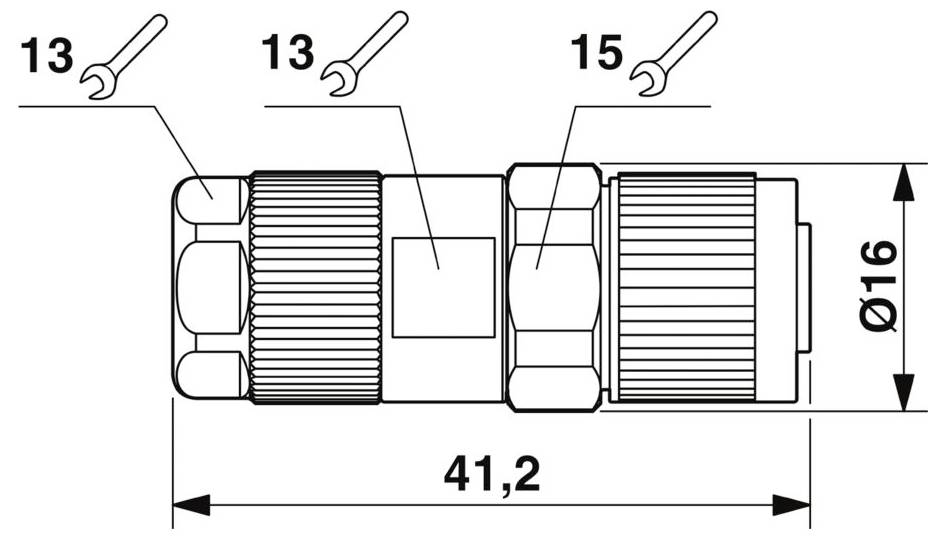

Technical drawing of a cylindrical mechanical connector with a diameter of 16mm and length of 41.2mm, labeled with wrench sizes 13 and 15.

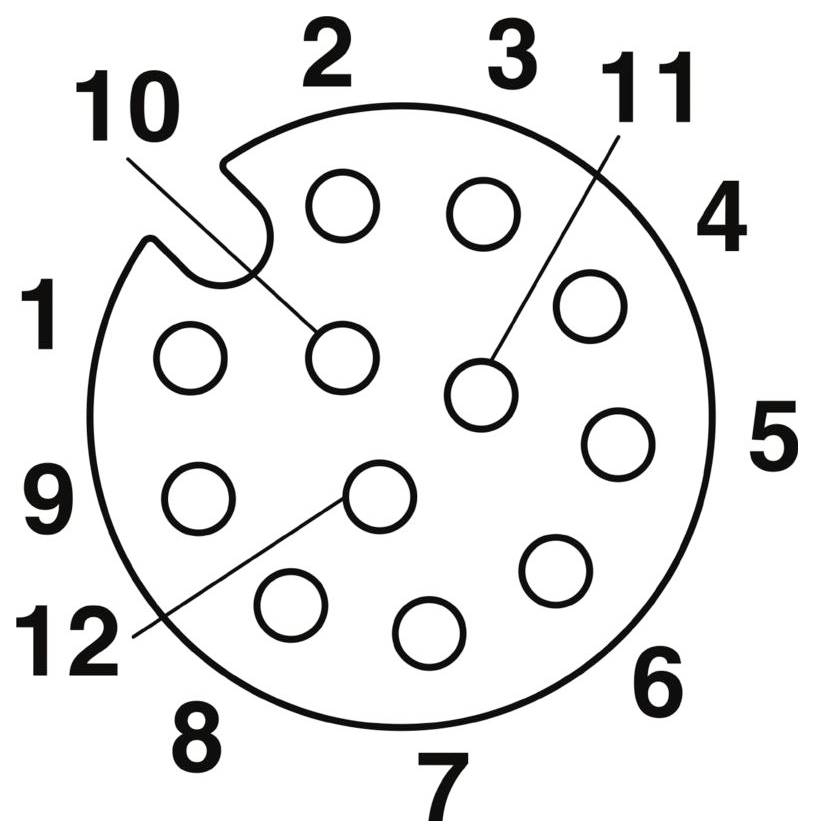

'Diagram of a 12-pin connector, labeled clockwise from 1 to 12, with pin 10 having a slot.'

1/3

Image similar

Product type

Sensor/actuator connector

Connector type

Socket, straight

Connector standard

Sensor connector

Connection side A

M12 socket, straight

Connection side B

Customisable

Datasheet (PDF)

Phoenix Contact

Fast track dispatch on Fri, 25 Sep

25 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 48.73 / piece)

€ 48.73

plus VAT.

14-day return policy included

Report legal concerns

Technical specifications

Type: SACC-FS-12PCON SCO

Product type: Sensor/actuator connector

Connector type: Socket, straight

Connector standard: Sensor connector

Connection side A: M12 socket, straight

Connection side B: Customisable

No. of pins: 12

Nominal voltage: 30 V AC
30 V DC

Nominal current: 1.50 A

Nominal current - rounded value: 1.5 A

Connector cross-section (max.): 0.14 mm²

Outside Ø: 1.05 mm

Cross-section (sensor/actuator wiring): 0.14 mm²

Connection: Quick-connect

Thread type connection side: M12

Thread type (wiring and installation): M12 SPEEDCON

Coding: A

: IP67

Min. temperature: -25 °C

Max. temperature: +85 °C

Manufacturer part #: 1559631

Content: 1 pc(s)

Cable Ø (max.): 8.2 mm

Cable Ø up to: 5.4 mm

Cable Ø range: 5.4 - 8.2 mm

: Other

: 30 V

: FALSE

: Other

: Zinc

: Other

: 85-85 °C

: V0

: Nickel

: II

: 3

: Straight

: 0.14-0.14 mm²

: FALSE

: 1.5 A

: 100

UKCA: yes

Variants(All information is without VAT, plus shipping costs)

Connection side B

Type

Nominal current - rounded value

Connection side A

Connector type

No. of pins

Nominal voltage

Thread type connection side

Plug-in connector SACC-FS-12PCON SCO 1559631 Phoenix Contact

Item no:715102

This article

Customisable

SACC-FS-12PCON SCO

1.5 A

M12 socket, straight

Socket, straight

12

30 V AC30 V DC

M12

Plug-in connector SACC-MS-12PCON SCO 1559592 Phoenix Contact

Item no:583699

Customisable

SACC-MS-12PCON SCO

1.5 A

M12 plug, straight

Plug, straight

12

30 V AC30 V DC

M12

Sensor/Actuator cable SAC-4P-FRT/ 5,0-PUR SH SCO 1424118 Phoenix Contact

Item no:584467

M12 socket, right angle

SAC-4P-FRT/ 5,0-PUR SH SCO

4 A

Cable, open end

Socket, right angle

4

63 V

M12

Adapter SAC-3P-M12MS-M 8FS 1519752 Phoenix Contact

Item no:584562

M8 socket, straight

SAC-3P-M12MS-M 8FS

4 A

M12 plug, straight

Adapter, straight

3

48 V AC

M8M12

Plug-in connector SACC-MS-17PCON SCO 1559602 Phoenix Contact

Item no:584949

Customisable

SACC-MS-17PCON SCO

1.5 A

M12 plug, straight

Plug, straight

17

30 V AC30 V DC

M12

Sensor/Actuator cable SAC-4P-MRT/ 5,0-PUR SH SCO 1424126 Phoenix Contact

Item no:586312

M12 plug, right angle

SAC-4P-MRT/ 5,0-PUR SH SCO

4 A

Cable, open end

Plug, right angle

4

63 V

M12 SPEEDCON

Sensor/Actuator cable SAC-4P-FRS/ 5,0-PUR PE SH SCO 1424102 Phoenix Contact

Item no:587001

M12 socket, right angle

SAC-4P-FRS/ 5,0-PUR PE SH SCO

4 A

Cable, open end

Socket, right angle

4

690 V AC

M12

Plug-in connector SACC-FS-17PCON SCO 1559644 Phoenix Contact

Item no:587405

Customisable

SACC-FS-17PCON SCO

1.5 A

M12 socket, straight

Socket, straight

17

30 V AC30 V DC

M12 SPEEDCON

Adapter SAC-4P-M12MS-M 8FS 1519765 Phoenix Contact

Item no:587568

M8 socket, straight

SAC-4P-M12MS-M 8FS

4 A

M8 socket, straight

Adapter, straight

4

30 V AC

M8M12

Sensor/Actuator cable SAC-4P-FSS/ 5,0-PUR PE SH SCO 1424098 Phoenix Contact

Item no:587657

M12 socket, straight

SAC-4P-FSS/ 5,0-PUR PE SH SCO

4 A

Cable, open end

Socket, straight

4

690 V AC

M12

Documents & Downloads

Datasheet

Datasheet 715102 Plug-in connector SACC-FS-12PCON SCO 1559631 Phoenix Contact

User & Safety Instructions

User & Safety Instructions 715102 Plug-in connector SACC-FS-12PCON SCO 1559631 Phoenix Contact

Description

Sensor/actuator connector, female connector, straight, 12-pos., M12 SPEEDCON, metal knurl, Piercecon^®, maximum cable diameter of 8.2 mm
