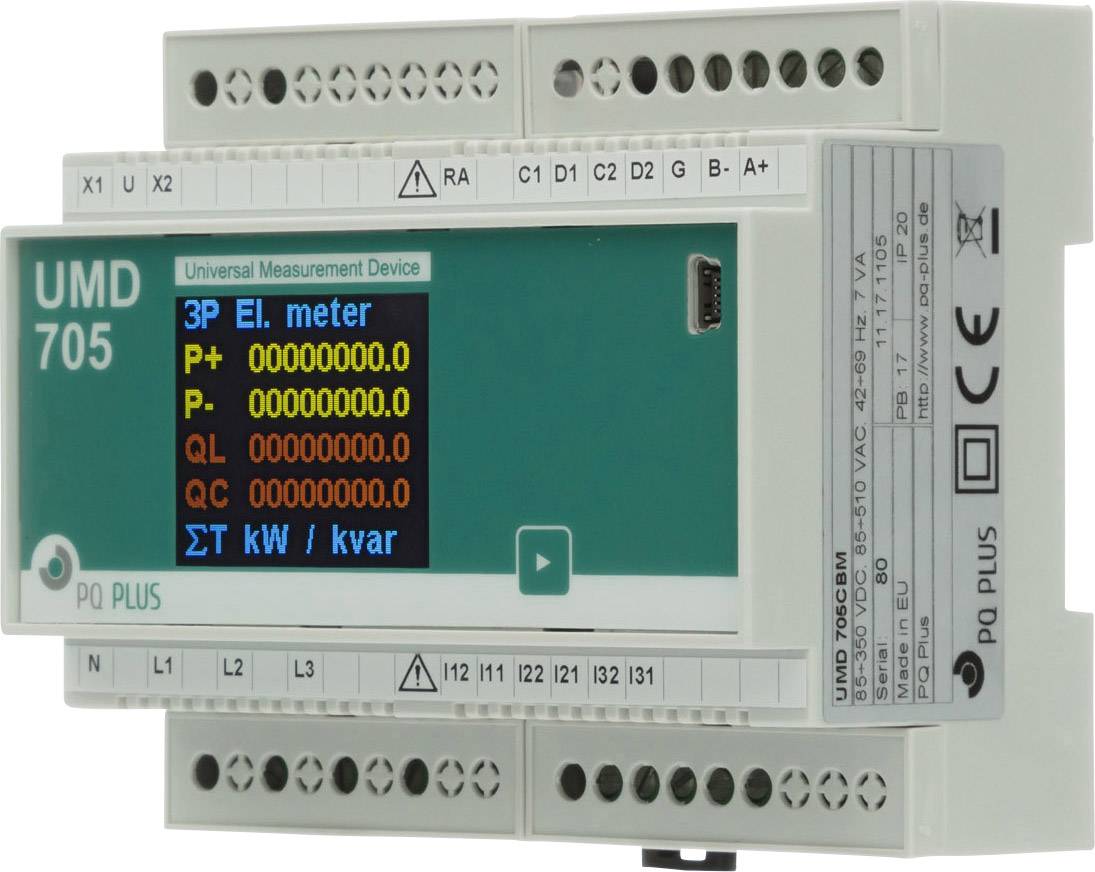

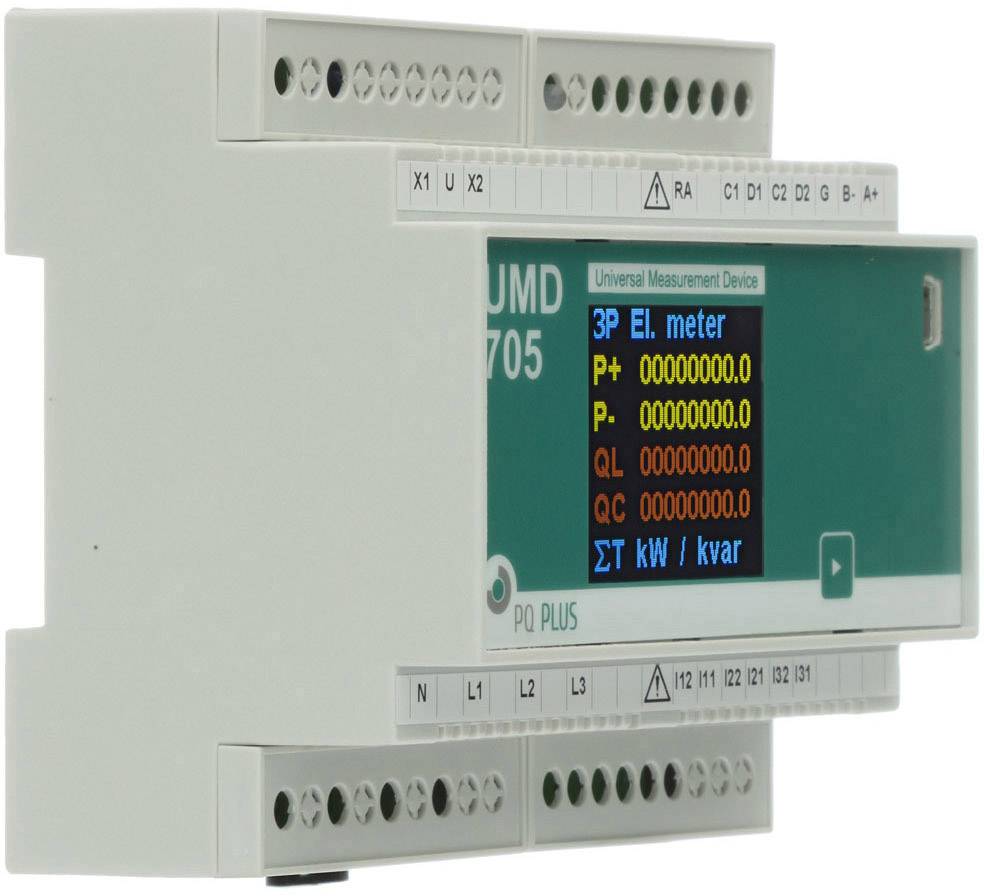

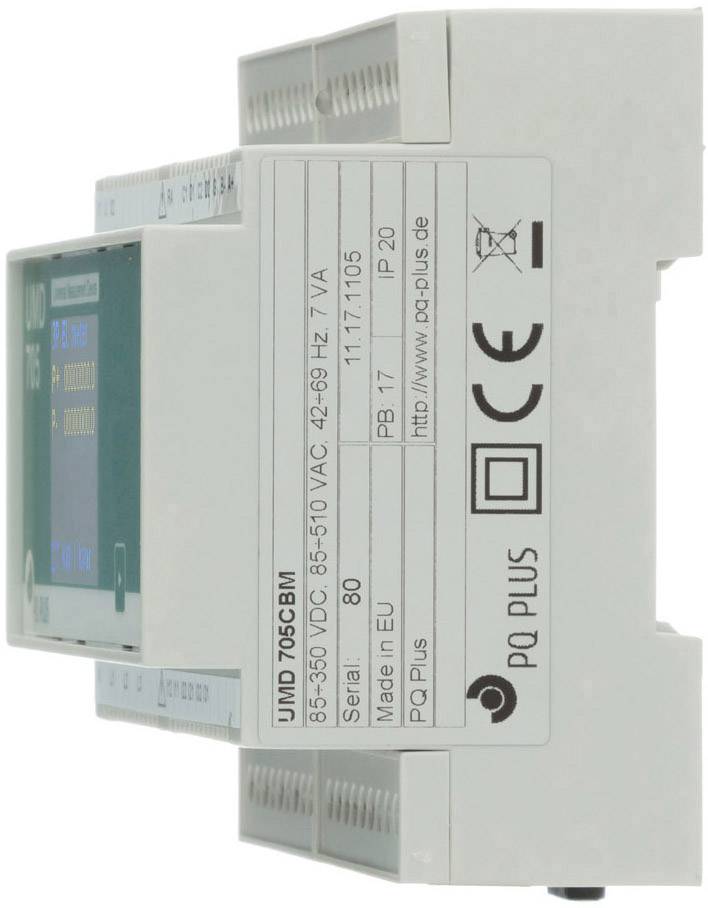

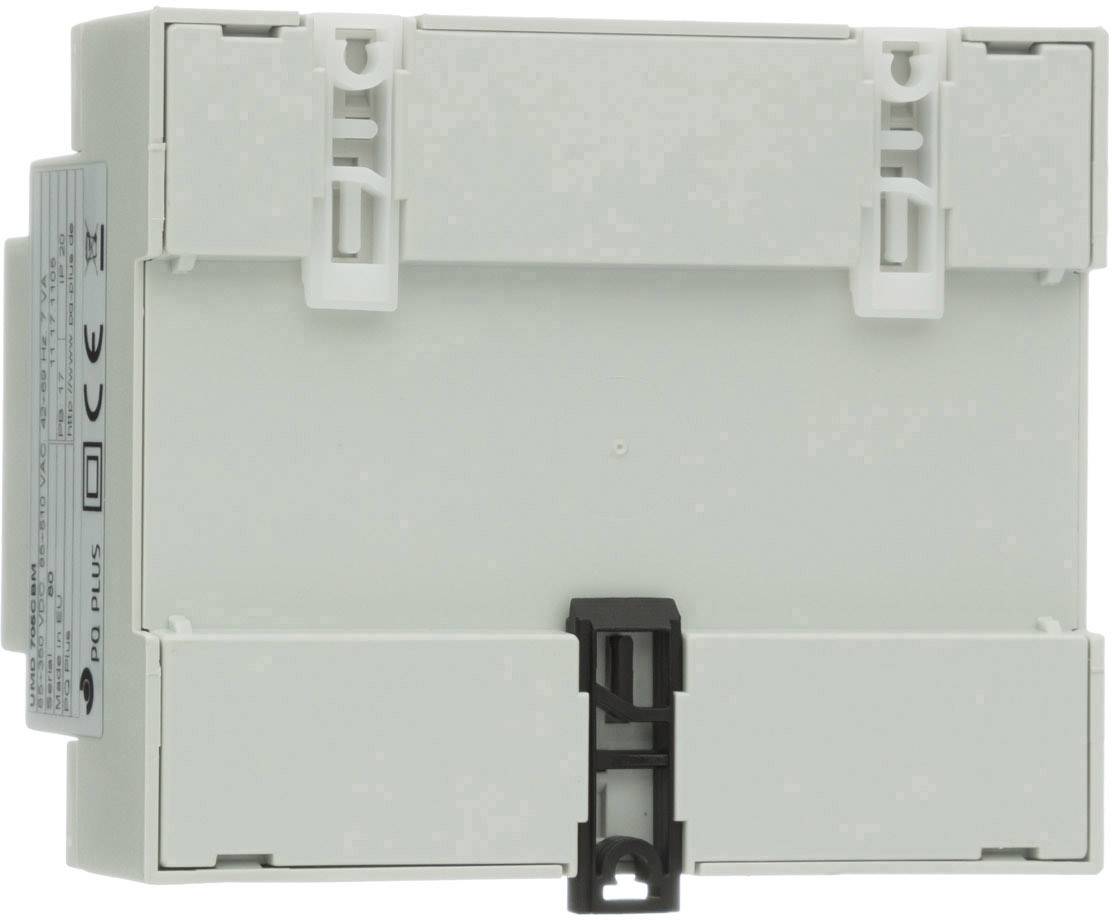

PQ Plus UMD 705CBM (24V) Digital rail-mount meter
Datasheet (PDF)
EAN:
Part number:
Item no:
Total (€ 659.00 / piece)
€ 659.00
incl. VAT
14-day return policy included
Highlights & Details
UMD 705CBM (24V) Universal measuring device-DIN rail mounting
- Interfaces: RS485 and front USB
- LCD color display
- Storage: 512 MB
- 3 voltage and 3 current inputs
- Harmonic for each order 1 - 50. For U/I.
- In conjunction with PQ S module: Measurement and recording of power quality according to DIN EN 50160
Technical specifications
- Product type
Digital rail-mount meter
- Reading type
Power
Apparent power
AC voltage
DC voltage
AC current
DC current
Active power
Reactive power
- Type
UMD 705CBM (24V)
- Display technology
LCD
IP20 (back panel)
- Dim
(L x W x H) 58 x 105 x 90 mm
- Reading category
CAT III 300 V
- Width
105 mm
- Height
90 mm
- Length
58 mm
Documents & Downloads
Datasheet
Datasheet 2143164 PQ Plus UMD 705CBM (24V) Digital rail-mount meter
Description
The UMD 705 is a compact power quality measuring device with data logger for mounting on the DIN rail. It measures 3-phase current and voltage with up to 3 tariffs in 4-quadrant operation and the work in class 0.2 s, as well as all usual line sizes, e.g. harmonics up to 50. Harmonious. It optionally maps the power quality according to EN 50160, EN 61000-2-2, EN 61000-2-4, EN 61000-2-12 with the PQ S firmware module. It has a large 512 MB memory. Digital inputs/outputs, a front USB connection and a serial RS485 interface are integrated. With the optional firmware module GO, oscilloscope functions for current and voltage are activated and trigger signals for limit value events are set.
This text is machine translated.
This text is machine translated.
Features
- Measurement:
- VOLTAGE (ULL; ULN): U1; U2; U3; U12; U23; U31 CL. 0.2
- Current IL1; IL2; IL3; Cl. 0.5
- Active/reactive power import/export per phase L1; L2; L3; per tariff T1; T2; T3
- Effective power: P1; P2; P3; 3P import; export; terminal 1
- Reactive power: Q1, Q2, Q3; 3Q; Cl. 1
- Apparent power: S1; S2 ; S3; 3S; Cl.1
- Harmonic distortion power: D1; D2; D3
- Power factor cos phi: PF1, PF2, PF3, PF, cos phi1, cos phi2, cos phi3; Cl. 0.5
- Symmetry: Yes
- Harmonic voltage: THDU1; THDU2; THDU3; THDU12; THDU23; THDU31; Cl. 2
- Harmonic current: THDI1; THDI2; THDI3; Cl. 2
- Harmonic per order: 1. To 50. For U/I.
- Distortion factor: U1fh; U2fh; U3fh; Unfh; I1fh; I2fh; I3fh; Inph
- Frequency: 40...70 Hz Cl. 0.05
- Active work: 4 quadrants Measurement Import / Export per phase; per tariff; total; Cl. 0.5s
- Reactive work: 4 quadrants Measurement Import/Export per phase; per tariff; total; Cl. 2
- Flicker option: PQ S.
- Data logger:
- Memory 512MB (Flash): ULN; ULL; I; P; Q; S; D; THDU; THDI; f; UFH Status I/O.
- Energy: Active/reactive power import/export per phase L1; L2; L3; per tariff T1; T2; T3
- Voltage dips: Option: PQ S
- Oscillogram function: Option: Go
- Additional functions:
- Alarms: Logic; limits for overshoot/undershoot;I/O: 2 DIO‘s; 60 V AC / 100 V DC, 300 mA
- Memory 512 MB Flash
- Recording interval sec; min; h; days; month; year
- Communication:
- RS485 Modbus; Ethernet 100 Mbps
- Electric connection
- SUPPLY VOLTAGE: U:85...510 V AC / 85...350 V DC
- Power consumption 7 VA/3 W.
- Overvoltage category: CAT III 300 V
- Measuring ranges:
- Nominal voltage 180...280 V AC
- Overload 1.95 kV LN/1s
- Impedance 2.7 MOhm
- Input signal: X/1//5 A;Overcurrent: 1.2x in (max. 70 A/1s)
- Sampling rate 25.6 kHz
- PQ evaluation: Option: En 50160, EN 61000-2-2, EN 61000-2-4, EN 61000-2-12
- Ambient conditions:
- Temperature range Operating: T:-25°C...60°C.
- Temperature range bearing: T:-40°C...85°C.
- Electromagnetic compatibility
- Radiation: En 61000-4-2...-3...-4...-5...-6...-11
- Irradiation: En 55011 Cl. A, EN 55022 Cl. A;
Scope of delivery
- UMD 705CBM (24V)
- ENVIS Basic
