Prebena Air compressor TWINSTAR670 90 l 10 bar
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 1,814.29 / piece)
€ 1,814.29
plus VAT.
Highlights & Details

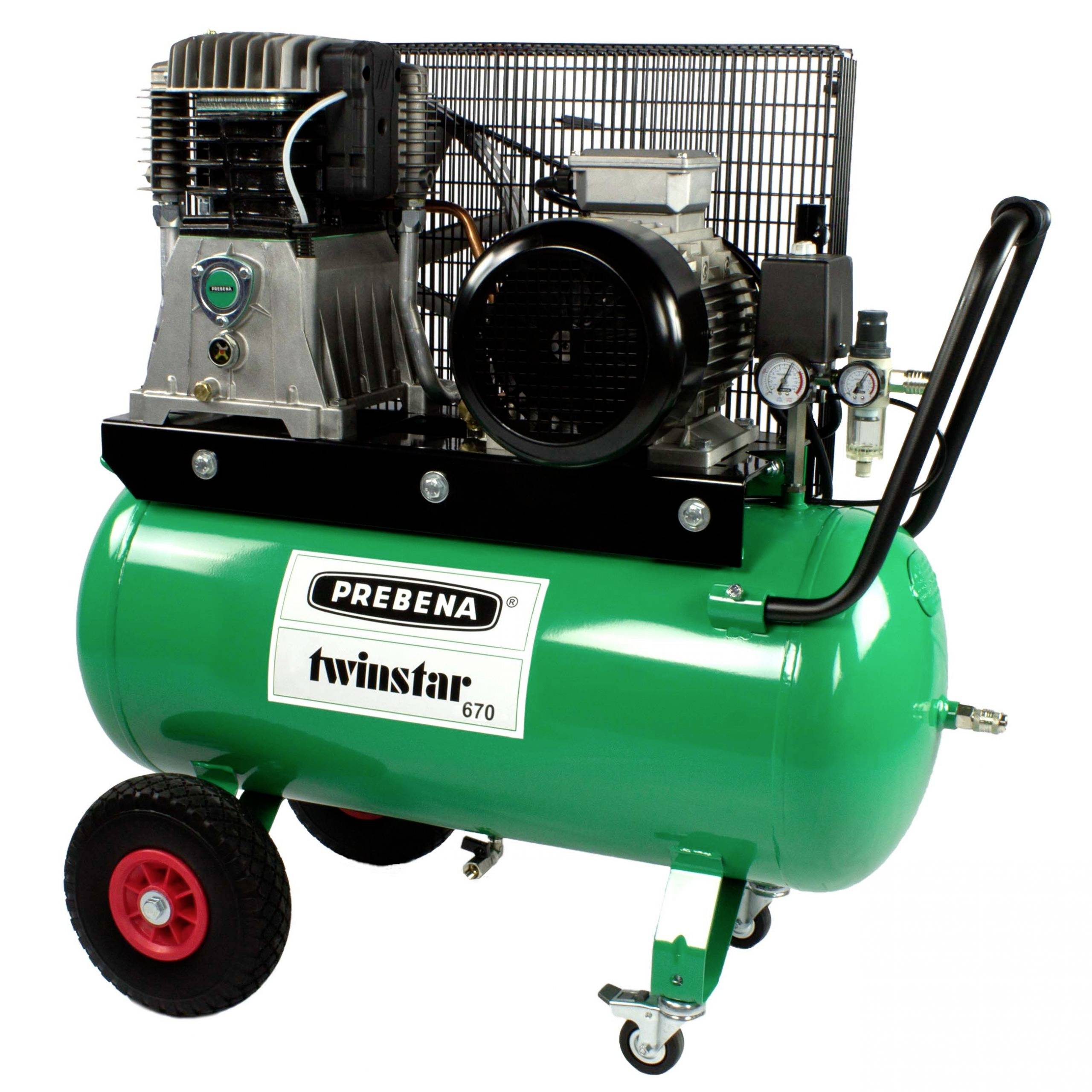

Prebena compressor twinSTAR670
- Boiler volume: 90 l
Technical specifications
- Voltage (V): 400
- Frequency (Hz) 50
- Cylinder: 2
- Max. Pressure (bar): 10
- Compressed air connections: 2
- Oil-free/lubricated: Oil-lubricated
- Motor circuit breaker: Yes
- TÜV-tested safety valve: Yes
- Ball valve for easy draining of condensation: Yes
- Tank pressure gauge: Yes
- Quality pressure switch: Yes
- Pressure pipe ventilation: Yes
- CE earth-contact plug: Yes
- Belt guard made of metal: Yes
- 400V plug with phase inverter: Yes
- Suction filter: Yes
- Connection cable length (m): 3.0
- Engine (kW): 4.00
- Tank volume (l): 90
- Fill Capacity Product Finder 200-500
- Bar Product Finder: 0-10
- Speed (rpm): 1270
- Filling capacity (l/min): 450
- Suction power (l/min): 600
- Electrical fuse (A): 8.5
- Noise emission dB (A): 97
- Oil sight glass: Yes
- Pressure reducer incl. pressure gauge and quick coupling: Yes
- Filter pressure reducer with quick couplers: 1
- Quick couplings 2
- Hand grip with anti-slip coating: Yes
- Full-rubber wheels: Yes
- Protected fittings: Yes
- TUEV-free: Yes
- Product type
Air compressor
- No. of cylinders
2
4000 W
- Vaccum power
600 l/min
- Flow rate
450 l/min
- Operation pressure
10 bar
- Rotational speed (max.)
1270 U/min
- Boiler volume
90 l
- Operating voltage
400 V
- Weight
110 kg
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3779342 Prebena Air compressor TWINSTAR670 90 l 10 bar
User & Safety Instructions
User & Safety Instructions 3779342 Prebena Air compressor TWINSTAR670 90 l 10 bar
Conformity certificate
Conformity certificate 3779342 Prebena Air compressor TWINSTAR670 90 l 10 bar
Description
Compressor with V-belt drive 400 V-plug with phase inverter 16 A, EN/VDE-tested connection cable - length 3 m, large fan wheel for efficient cooling, quality pressure switch with relief valve, pressure reducer with water separator, pressure gauge for boiler and output pressure, tank drainage via ball valve, safety valve, motor circuit breaker, metal belt protection, Handle with anti-slip coating, solid rubber wheels, lockable castors,
75% duty cycle
