Prebena Air compressor TWINSTAR970 90 l 10 bar
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 1,987.39 / piece)
€ 1,987.39
plus VAT.
Highlights & Details

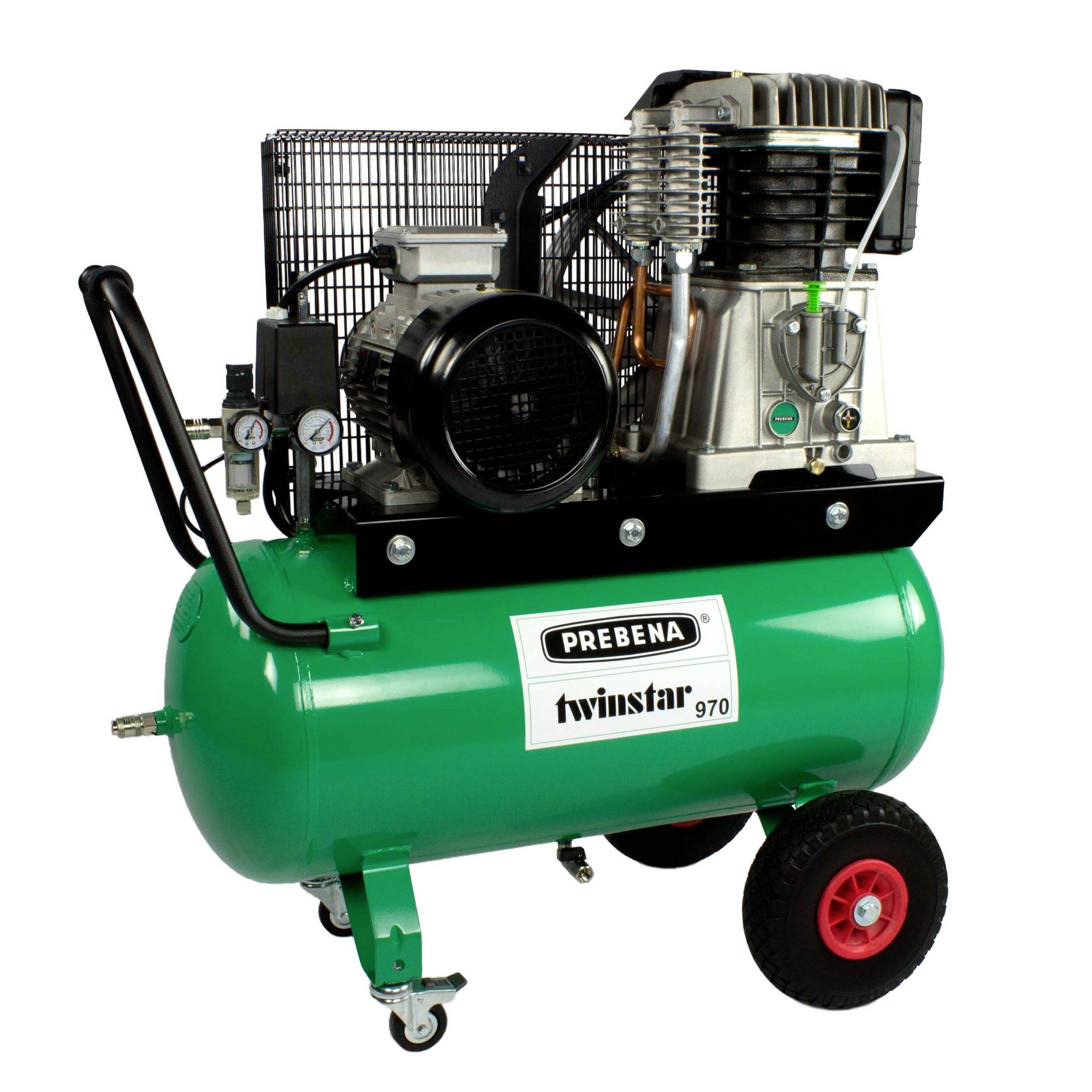

Prebena compressor twinstar 970
- Boiler volume: 90 l
Technical specifications
- Voltage (V): 400
- Frequency (Hz) 50
- Cylinder: 2
- Max. Pressure (bar): 10
- Compressed air connections: 2
- Motor circuit breaker: Yes
- Ball valve for easy draining of condensation: Yes
- Tank pressure gauge: Yes
- Quality pressure switch: Yes
- Pressure pipe ventilation: Yes
- CE earth-contact plug: Yes
- Belt guard made of metal: Yes
- 400V plug with phase inverter: Yes
- Suction filter: Yes
- Connection cable length (m): 3.0
- Engine (kW): 5.50
- Tank volume (l): 90
- Product finder: More than 500
- Bar Product Finder: 0-10
- Speed (rpm): 980
- Filling capacity (l/min): 620
- Suction power (l/min): 950
- Electrical fuse (A): 11.6
- Noise emission dB (A): 97
- Oil sight glass: Yes
- Safety valve tested: Yes
- Pressure reducer incl. pressure gauge and quick coupling: Yes
- Filter pressure reducer with quick couplers: 1
- Quick couplings 2
- Hand grip with anti-slip coating: Yes
- Full-rubber wheels: Yes
- Protected fittings: Yes
- Product type
Air compressor
- No. of cylinders
2
5500 W
- Vaccum power
950 l/min
- Flow rate
620 l/min
- Operation pressure
10 bar
- Rotational speed (max.)
980 U/min
- Boiler volume
90 l
- Operating voltage
400 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3779343 Prebena Air compressor TWINSTAR970 90 l 10 bar
User & Safety Instructions
User & Safety Instructions 3779343 Prebena Air compressor TWINSTAR970 90 l 10 bar
Conformity certificate
Conformity certificate 3779343 Prebena Air compressor TWINSTAR970 90 l 10 bar
Description
Compressor with V-belt drive
400 V plug with phase inverter 32 A, EN/VDE-tested connection cable - length 5 m, large fan wheel for efficient cooling, quality pressure switch with relief valve, pressure reducer with water separator, manometer for boiler and output pressure, boiler drainage via ball valve, safety valve, motor protection switch, metal belt protection, Handle with anti-slip coating, solid rubber wheels, adjustable casters, 75% duty cycle
This text is machine translated.
400 V plug with phase inverter 32 A, EN/VDE-tested connection cable - length 5 m, large fan wheel for efficient cooling, quality pressure switch with relief valve, pressure reducer with water separator, manometer for boiler and output pressure, boiler drainage via ball valve, safety valve, motor protection switch, metal belt protection, Handle with anti-slip coating, solid rubber wheels, adjustable casters, 75% duty cycle
This text is machine translated.
