Name: Protocol analyzers USB-TMSP2-M03-X Teledyne LeCroy USB-TMSP2-M03-X Networks
Brand: Teledyne LeCroy
SKU: 1947400
Availability: BackOrder

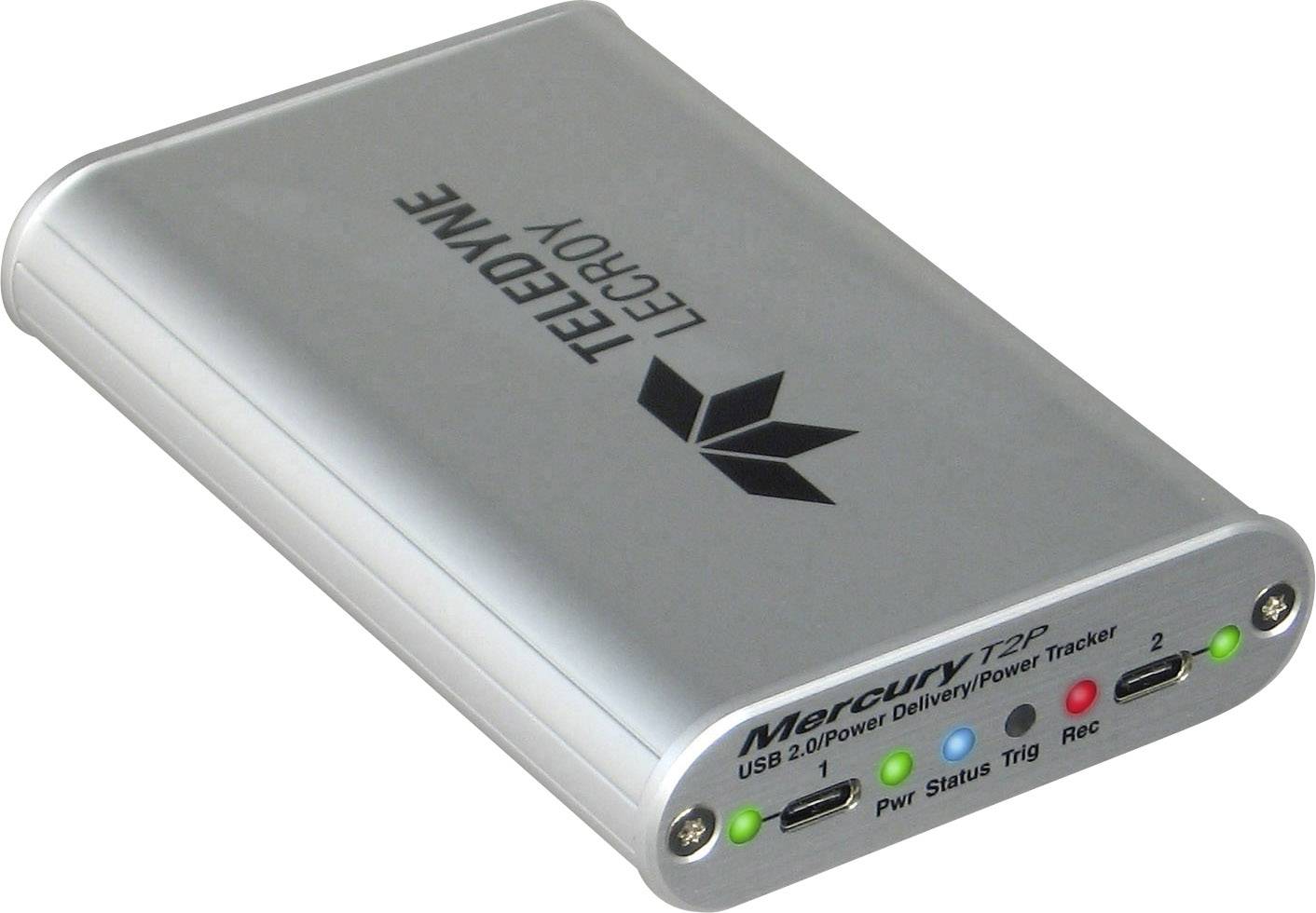

A silver USB 2.0/Power Delivery Power Tracker device from Teledyne LeCroy with status indicators for current, status, trigger, and recording.

EAN:

Part number:

Item no:

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 5,525.00 / piece)

€ 5,525.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Protocol Analyzer USB-TMSP2-M03-X

Technical specifications

Storage capacity: 512 MB

Product type: Protocol analyzers

Display: Graphical

Optical display: Yes

Dim: (L x W x H) 80 x 90 x 24 mm

Weight: 220 g

Range: Networks

Features: Data export mode

Width: 90 mm

Height: 24 mm

Length: 80 mm

Type: USB-TMSP2-M03-X

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1947400 Protocol analyzers USB-TMSP2-M03-X Teledyne LeCroy USB-TMSP2-M03-X Networks

Description

The Mercury T2C adds USB Type-C and Power Delivery 2.0 & 3.0 support to the industry's smallest and most affordable hardware-based USB 2.0 protocol analyzer. The Mercury T2C combines the de-facto standard CATC Trace display, USB Class decoding and Power Delivery 2.0 & 3.0 support in an analyzer that fits in a shirt pocket.
The pocket-sized Mercury T2C supports USB Type-C and Power Delivery 2.0 & 3.0 standards, including capturing and decoding all packages through the new USB Type-C Configuration Channel (CC). The Mercury T2C is the industry's smallest and most affordable hardware-based USB protocol analyzer. The pocket-sized Mercury T2C Analyzer includes new adapters that enable users to use the Mercury T2C with their existing devices and hosts, creating an analyzer that is both backward compatible and future-proof. Thanks to Teledyne LeCroys extensive USB experience, users benefit from the familiar and easy-to-use CATC Trace.

This text is machine translated.

Features

Supports USB Power Delivery 2.0 & 3.0- captures and decodes all Configuration Channel (CC) events
ATC Trace Analysis Software - faster interpretation and debugging of USB traffic
Portable and comfortable analyzer, which is operated with the bus, works with every Windows-based PC
Autodetect USB 2.0 speeds - automatically detects low, full and high speed connections
OTG (On-The-Go) support - recording and analysis of HNP & SRP, including recording VBus and data line pulses
256 MB recording capacity - expand the capture windows by filtering and real-time data truncation
Spool-to-Disk Mode Record for hours or even days with spool-to-disk capture
Non-intrusive high impedance probe - preserves the real signal and timing conditions for the device under test
Advanced triggering - isolates critical traffic, specific errors, or data patterns
Extensive decoding - mass storage, Bluetooth HCI, hub, PTP/still image, printer, human interface devices (HID), audio and communication
Real-time statistics - display bus traffic even if no trace is recorded
Hardware filtering - Automatically exclude non-essential and redundant packets from the trace
Intelligent reporting - quickly identify and track error rates, abnormal bus or timing conditions
Advanced View - provides a complete package, transaction, and transfer layer view of the USB protocol

Description

Features

Supports USB Power Delivery 2.0 & 3.0- captures and decodes all Configuration Channel (CC) events
ATC Trace Analysis Software - faster interpretation and debugging of USB traffic
Portable and comfortable analyzer, which is operated with the bus, works with every Windows-based PC
Autodetect USB 2.0 speeds - automatically detects low, full and high speed connections
OTG (On-The-Go) support - recording and analysis of HNP & SRP, including recording VBus and data line pulses
256 MB recording capacity - expand the capture windows by filtering and real-time data truncation
Spool-to-Disk Mode Record for hours or even days with spool-to-disk capture
Non-intrusive high impedance probe - preserves the real signal and timing conditions for the device under test
Advanced triggering - isolates critical traffic, specific errors, or data patterns
Extensive decoding - mass storage, Bluetooth HCI, hub, PTP/still image, printer, human interface devices (HID), audio and communication
Real-time statistics - display bus traffic even if no trace is recorded
Hardware filtering - Automatically exclude non-essential and redundant packets from the trace
Intelligent reporting - quickly identify and track error rates, abnormal bus or timing conditions
Advanced View - provides a complete package, transaction, and transfer layer view of the USB protocol
