Name: Quadrios 23C490 Bullet connector 0.5 mm² 1.5 mm² Red 100 pc(s)
Brand: Quadrios
SKU: 2870620
Availability: InStock

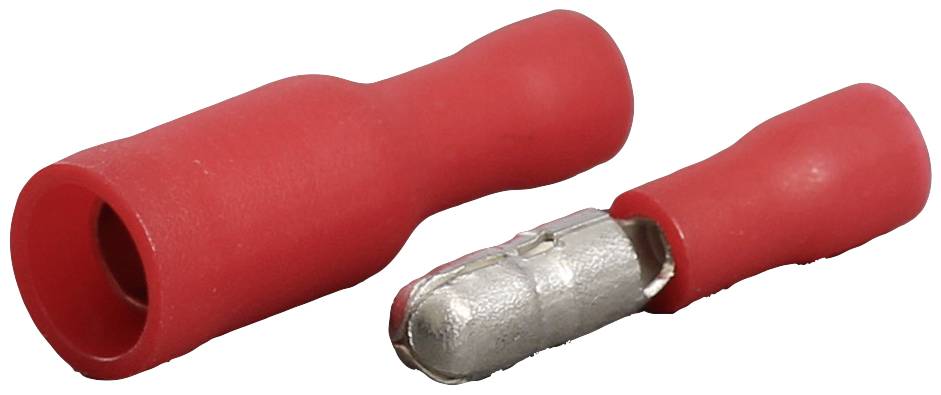

Two red electrical connectors: One is complete, the other shows a protruding metal piece. Used for cable connections.

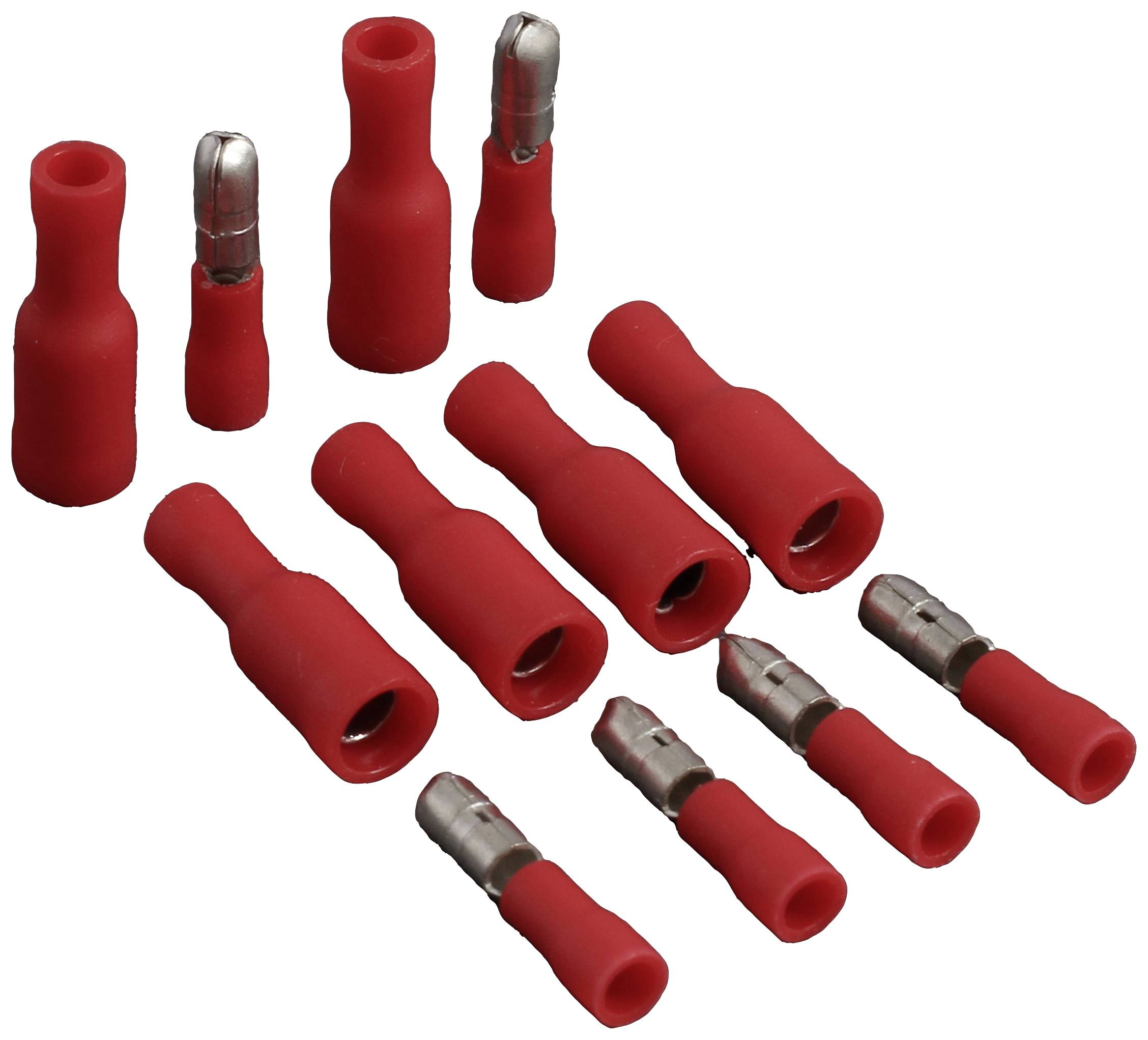

Red insulated cable connectors in various sizes for electrical connections, distributed across a white background.

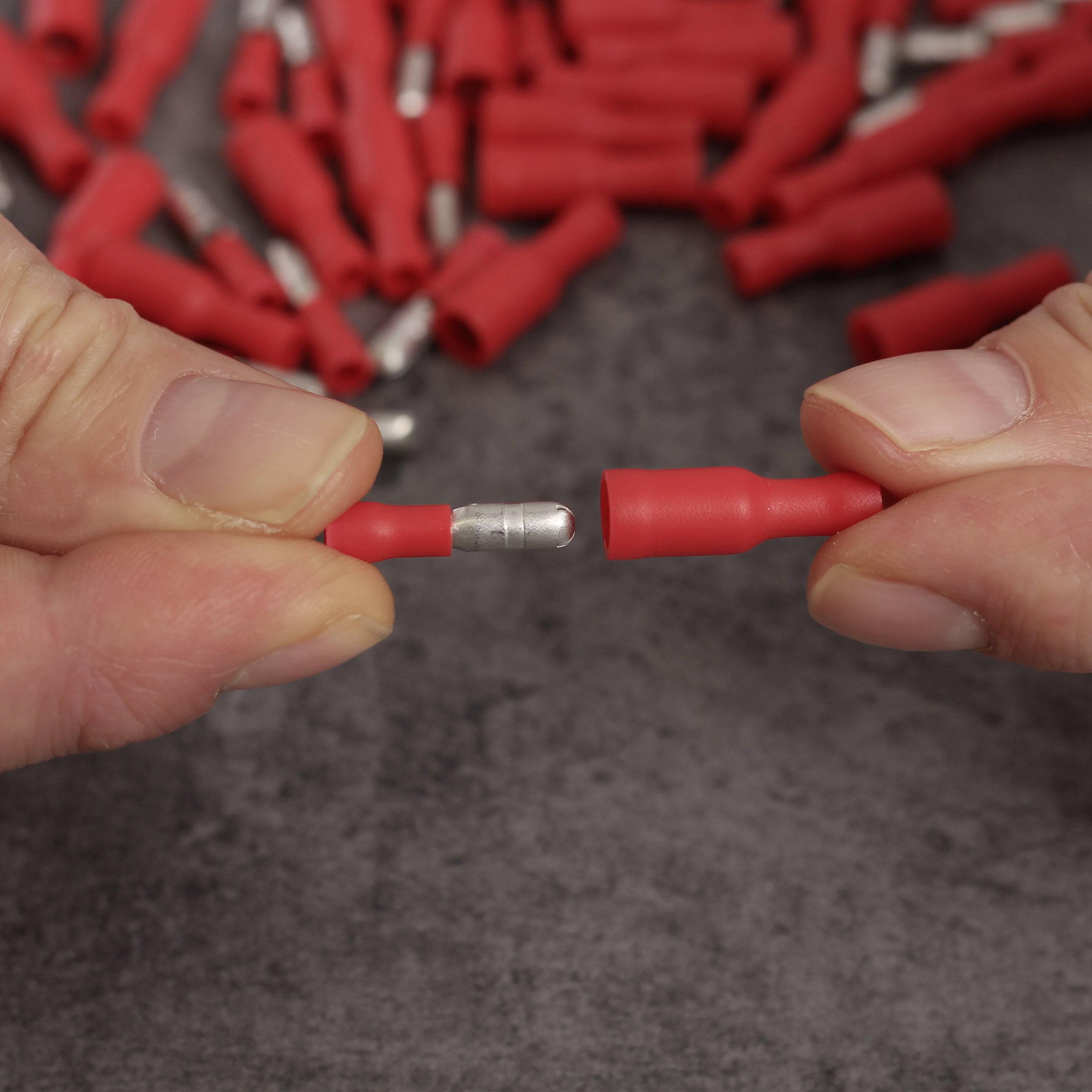

A person is holding two red connectors in their hands. In the background, additional connectors can be seen on a grey surface.

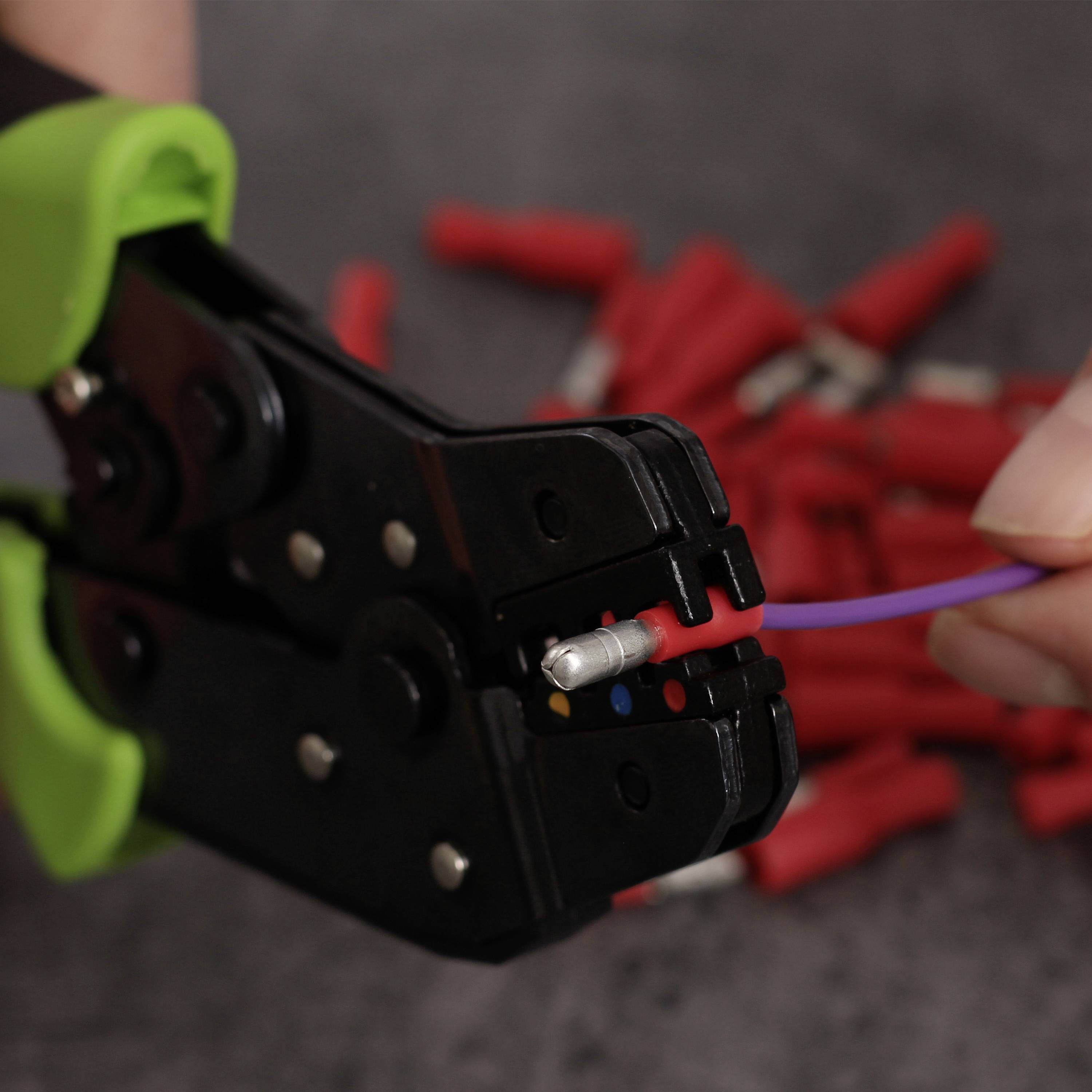

A hand is using a green and black crimping plier to secure a purple wire with a metal connector. Red cable connectors are lying in the background.

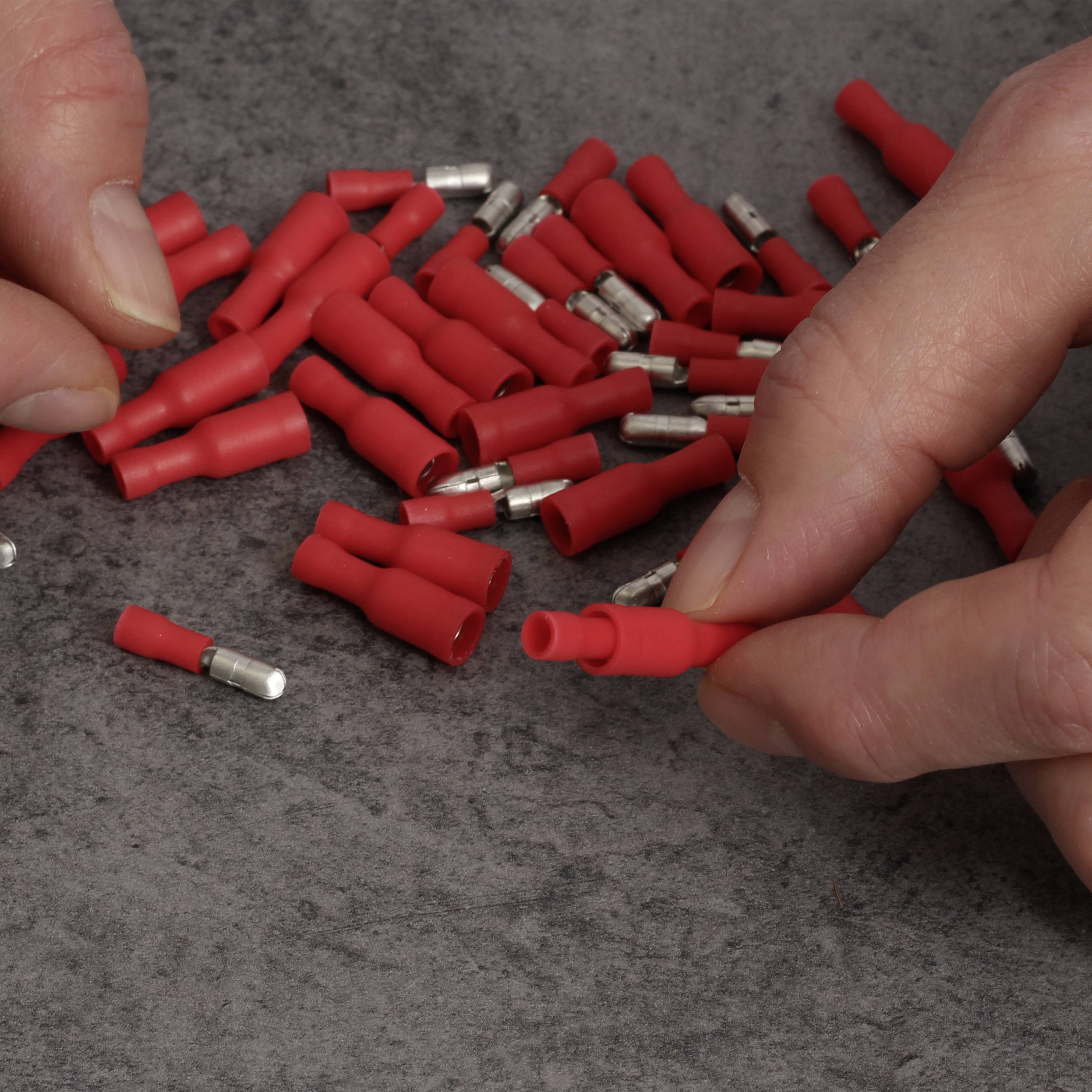

A person is holding a red electrical connector. Many more red connectors are lying on a grey table.

1/6

Product type

Bullet connector

Min. cross section

0.5 mm²

max. cross section

1.5 mm²

Content

100 pc(s)

Factory colour

Red

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Wed 11 Nov

67 Set(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number (Package size 100 pc(s))

Set(s)

Total (€ 7.49 / piece)

€ 7.49

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Round plug + tubes 4 mm 100 pieces 0.5-1.5 mm² red

50x round plug including 50x round socket (100 pieces)
Plug diameter 4 mm, cable cross-section 0.5 to 1.5 mm²
High-quality design made of tin-plated brass, red insulation
Large operating temperature range -10 ... +75 °C

Our service for you

Technical specifications

Product type: Bullet connector

Factory colour: Red

Min. cross section: 0.5 mm²

max. cross section: 1.5 mm²

Contact material: Brass tin plated

Content: 100 pc(s)

Manufacturer part #: 23C490

Insulation material: PVC

Insulation type: Partially insulated

RoHS-compliant: Yes

Temperature range: -10 - +75 °C

Type: 23C490

Operating range (AWG cross section) (max.): 16 awg

Operating range (AWG cross section) (min.): 22 awg

Documents & Downloads

Datasheet

Datasheet 2870620 Quadrios 23C490 Bullet connector 0.5 mm² 1.5 mm² Red 100 pc(s)

User & Safety Instructions

User & Safety Instructions 2870620 Quadrios 23C490 Bullet connector 0.5 mm² 1.5 mm² Red 100 pc(s)

Description

This set is particularly suitable for hobbyists, professionals, field service, service workshops, electronics and laboratory use.

You will receive a 100-piece premium round plug assortment including the suitable round plug sleeves in an application range for cable cross-sections from 0.5 to 1.5 mm². The application is very easy and can be done in a short time by means of suitable crimping tools. It contains both the plugs as well as the corresponding sockets.

Technical data: Material: PVC, (insulation) brass, tin-plated (contact) • Cross-section cable: 0.5 - 1.5 mm² (AWG 22-16) • Current strength (max.): 10 A • Plug-in diameter: 4 mm • Temperature range: -10 ... 75 °C • Contents: 50x round plug, 50x round socket • Colour: Red.

Supplied with 50 round plugs, 50x round sockets.

This text is machine translated.
