Name: Reflexion LED2425 LCD TV 60 cm 24 inch EEC E (A - G) DVB-T2, DVB-C, DVB-S2, Full HD, CI+ Black
Brand: Reflexion
SKU: 3368917
Availability: InStock

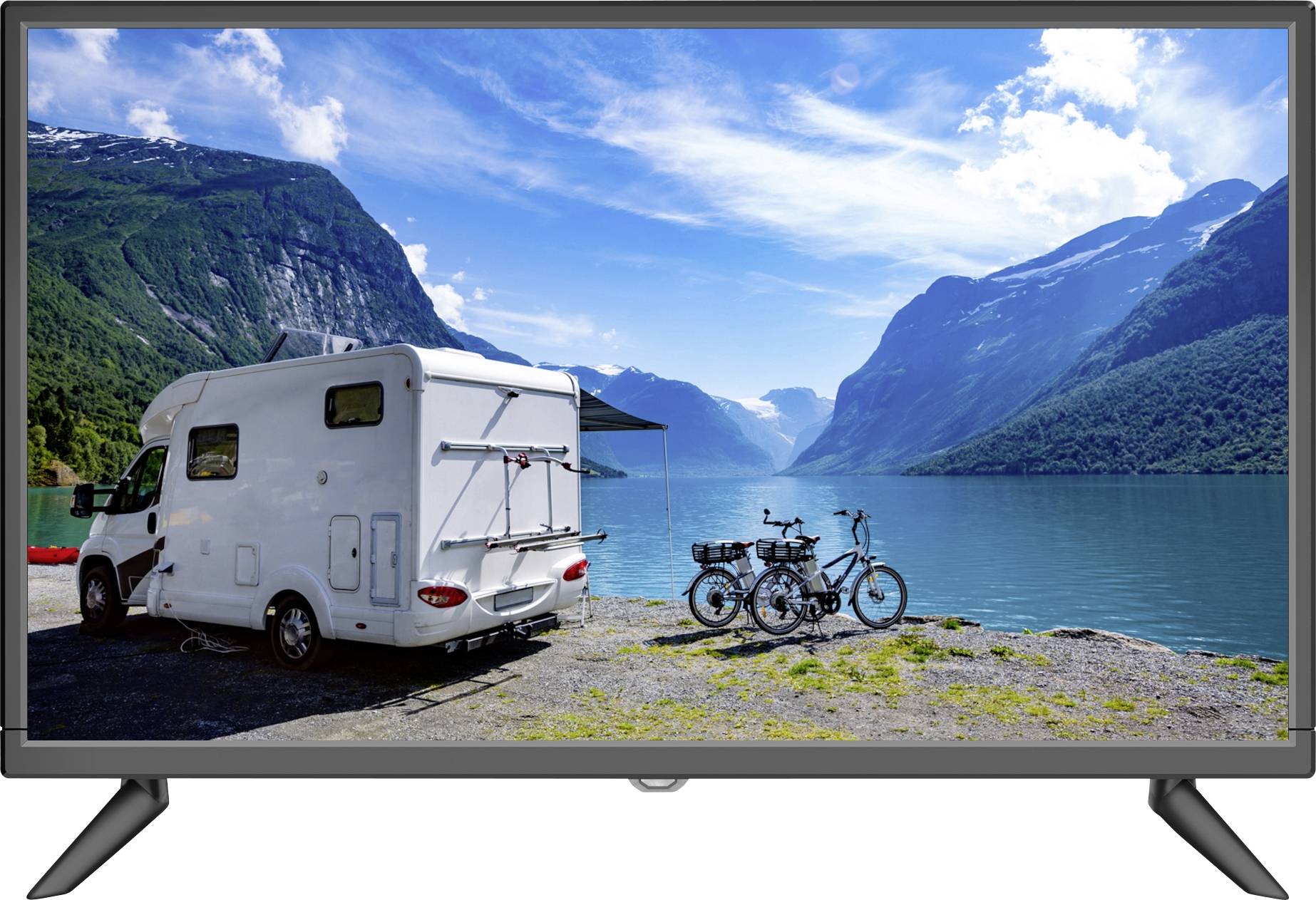

A motorhome and two bicycles are parked beside a picturesque lake, surrounded by mountains and a cloudy sky, with a natural landscape in the background.

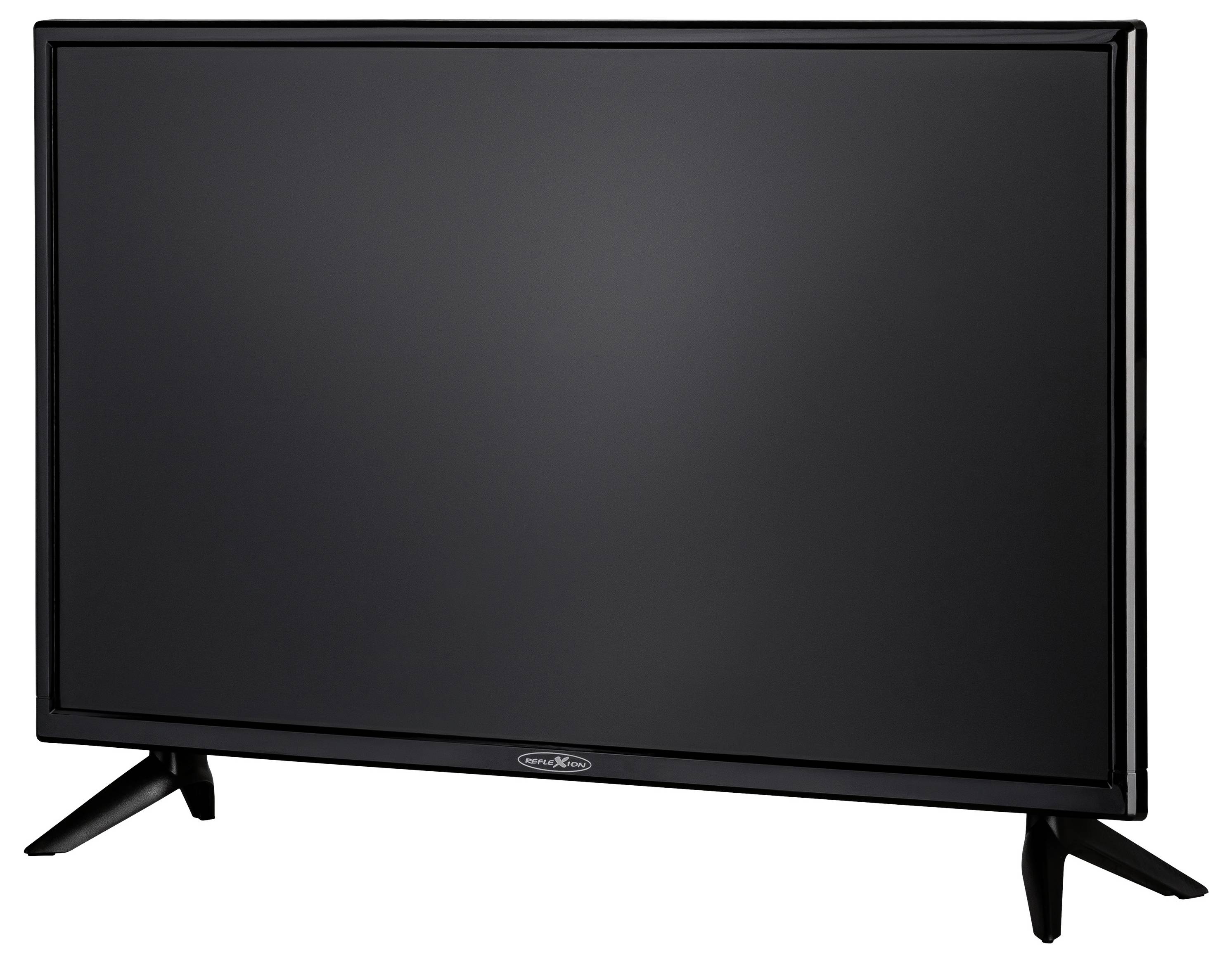

Black flat-screen television on a stand, shown off against a white background.

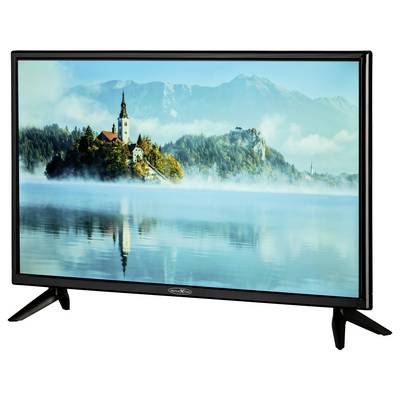

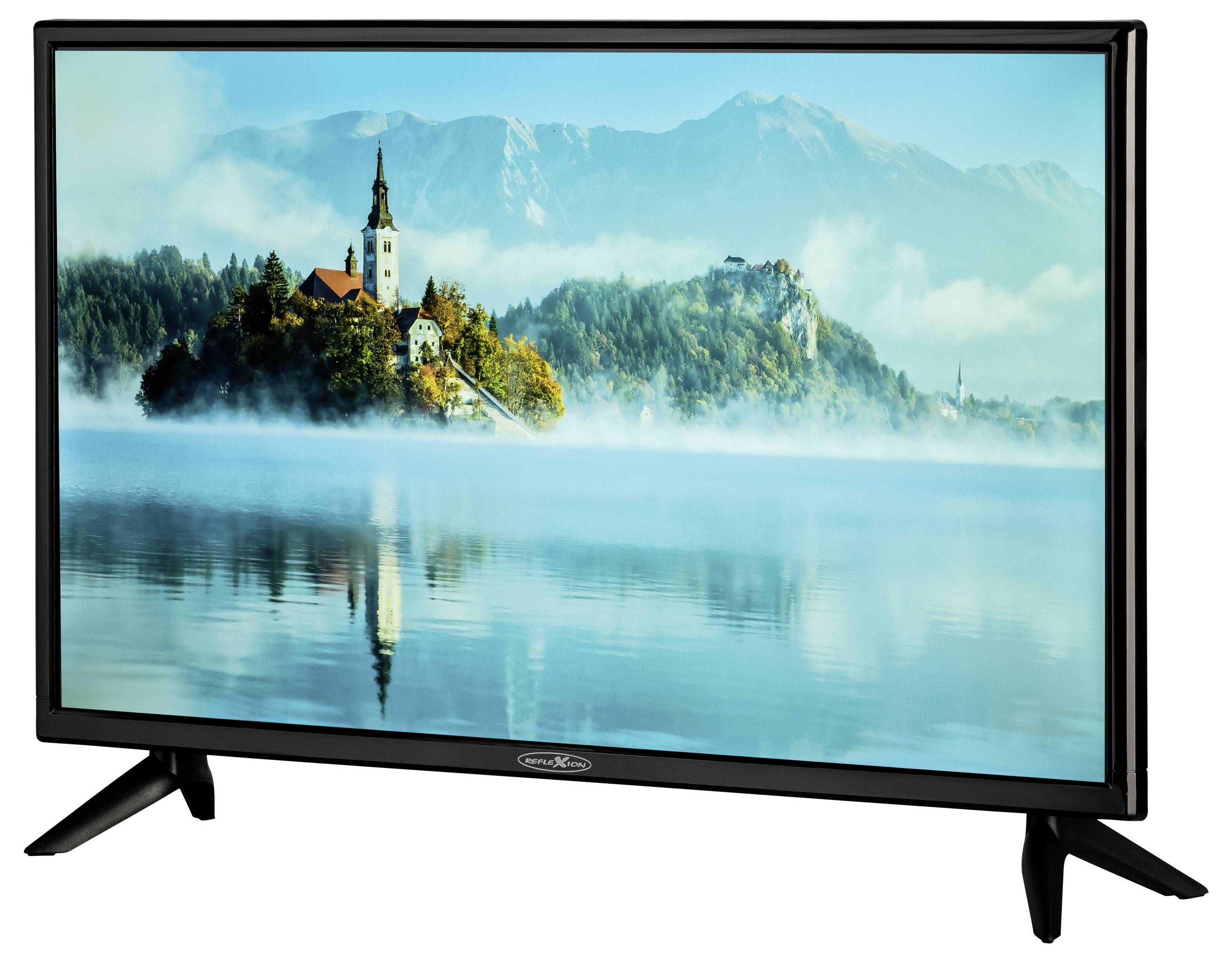

Flat-screen TV displaying a scenic lake and mountain landscape with an island church reflected in calm water.

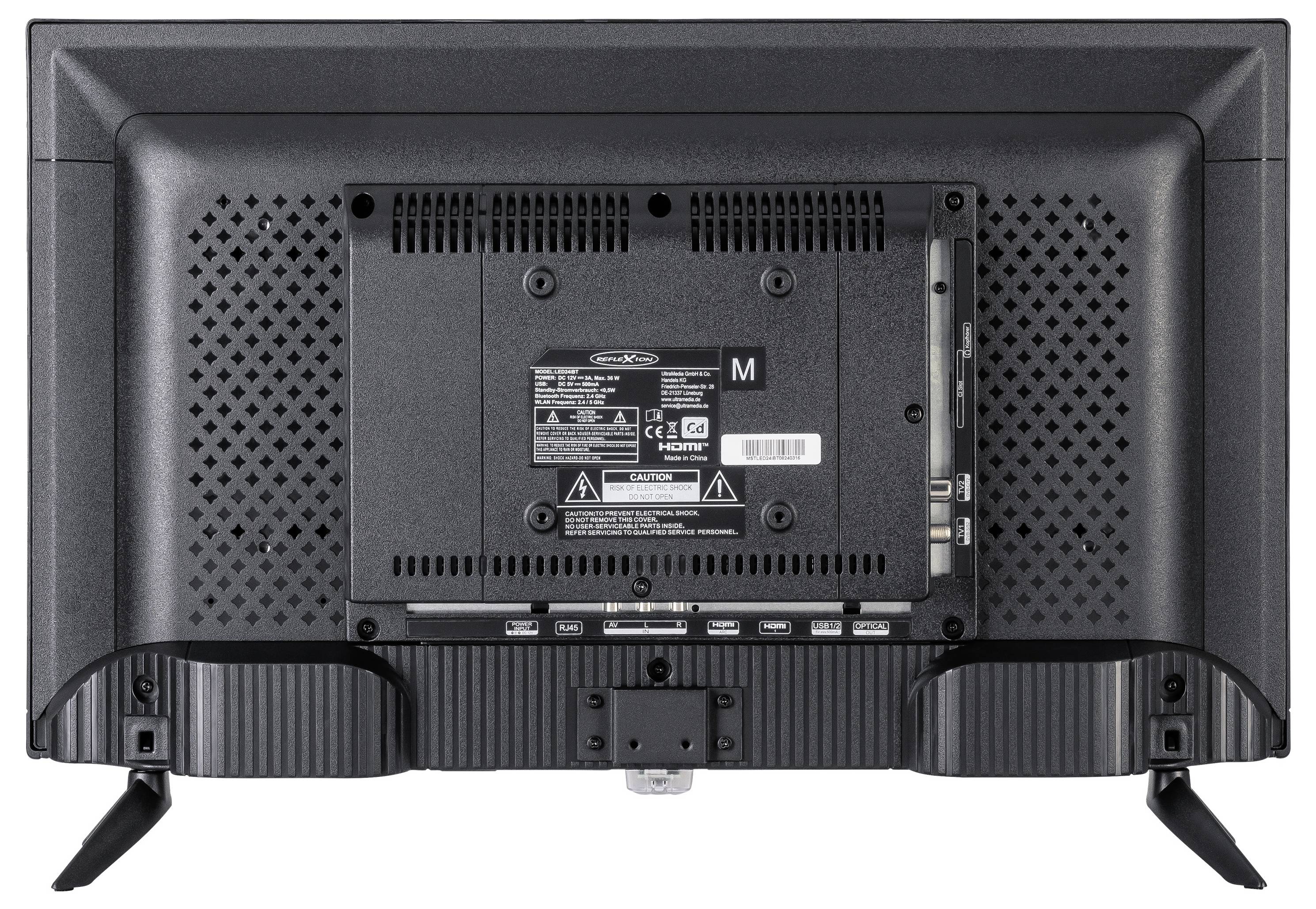

Back view of a flat-screen TV on a stand, showing the mounting panel, input ports, and built-in feet.

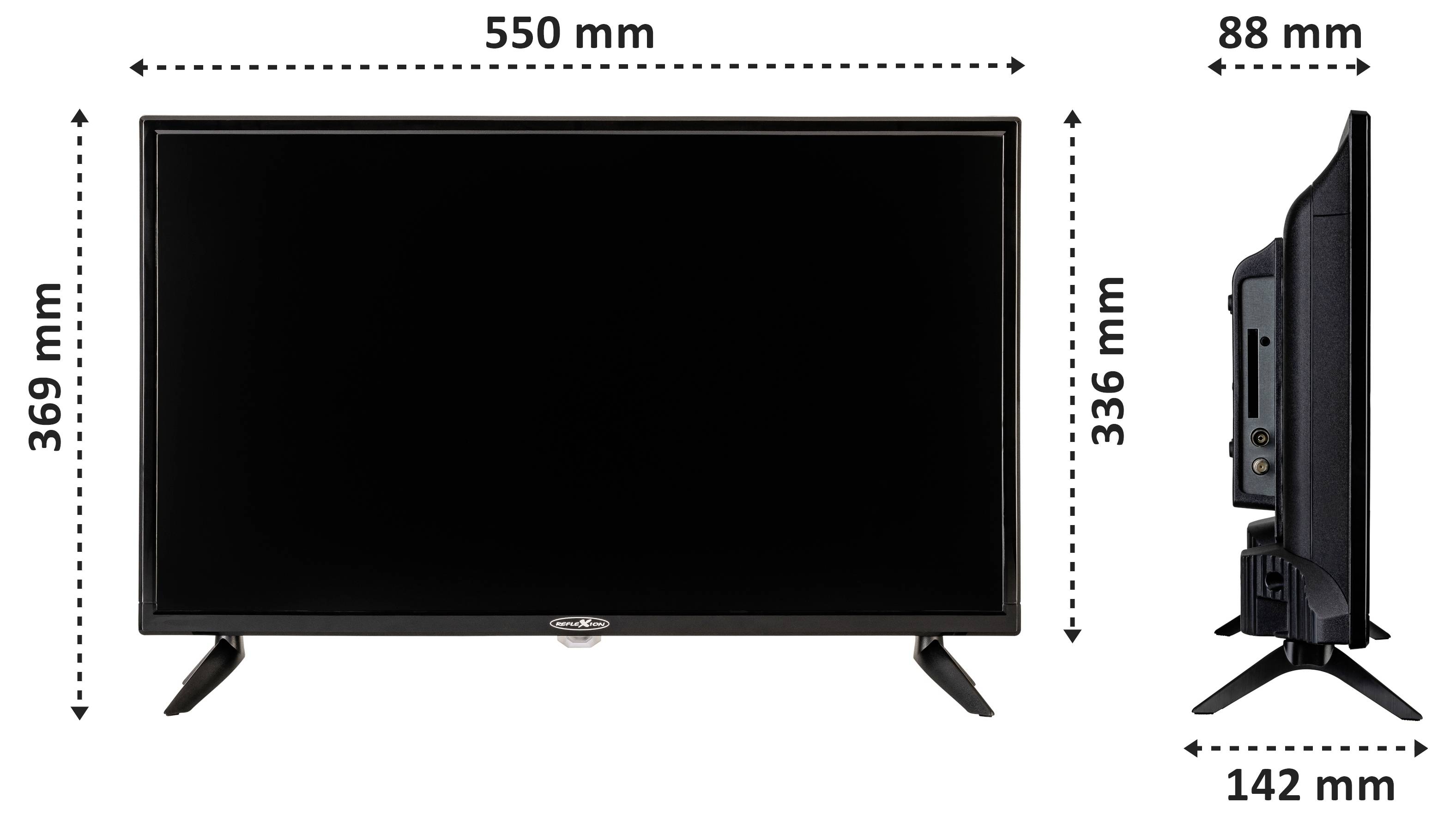

Diagram of a flat-screen TV showing front and side dimensions: 550 mm wide, 369 mm high, 88 mm deep, and 142 mm base width.

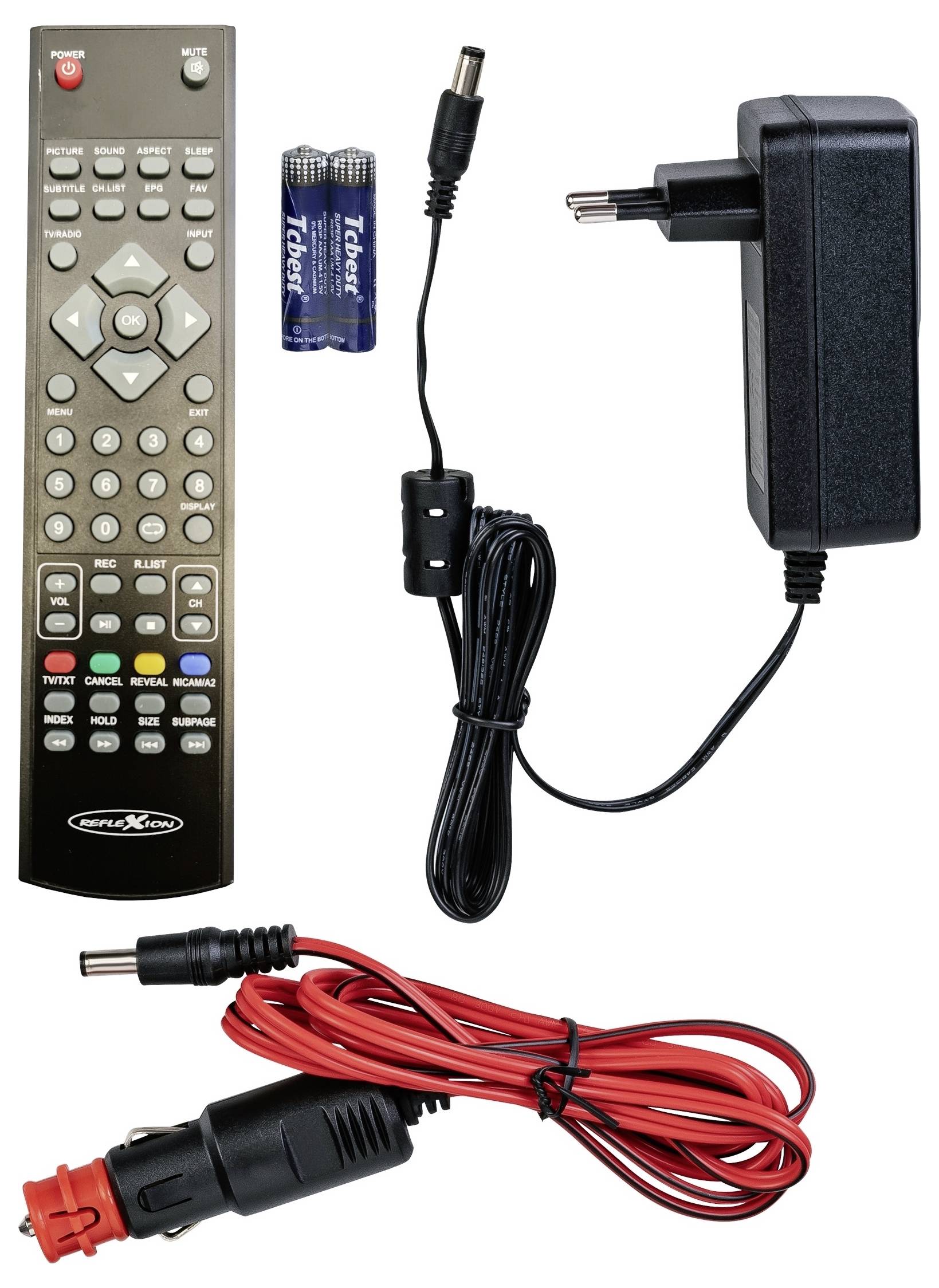

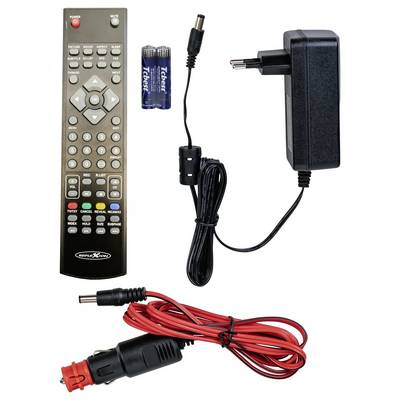

Remote control kit with batteries, wall power adapter, and 12V car charger cable on a white background.

1/6

Product data sheet

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Tue 3 Nov

8 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 199.99 / piece)

€ 199.99

incl. VAT

Only 8 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Reflexion LED2425 24" LED-TV with DVB-S2, DVB-C/T2 HD tuner and recording function

Screen size diagonal: 60 cm (24 inch)
Full HD (1920 x 1080 Pixel)
Reception: DVB-S (sat), DVB-S2, DVB-C (cable), DVB-T2 (aerial)
Energy efficiency rating (calc): E (A - G)
Image enhancement: 60 Hz
Recording function: None

Technical specifications

Power consumption "On" (standard SD): 17.2W
Type of electrical display: DLED, LCD / LED (pixel class 1)
Aspect ratio: 16:9
Screen size (cm) 60 cm
Screen size (inches): 24 inches
Visible screen size: 15.3dm²
Refresh rate / response time 60 Hz / 20 ms
Viewing angle: H:178° / V:178°
3000:1 contrast
Brightness (cd/m²): 180 cd/m²
Power supply: Current supply: Input voltage: AC: 100 – 240V~50/60Hz
Mains unit: Current supply: Output voltage: DC: 12V / 3A
Input voltage for device DC 12V / 3A
Average annual consumption (kWh/1000h): 17.2kWh/1000h
OSD language: German, English, etc.
Power CONSUMPTION MAXIMUM: <36W
Peak luminance ratio in %: <76%
Mercury content included in mg / lead: 0mg / No.
Weight: 3.40kg
Power consumption "On" (Standard SDR): 17.2W
Power consumption standby: < 0.5W
Screen resolution (pixels) 1920 x 1080
Average annual consumption (kWh/1000h)
Standard SDR: 17.2kWh/1000h
Colours: 16.7M colors
TV function: Colour system: PAL / SECAM
TV function: Channels 100/600 (T/C)/3000 (S)
TV-function: Video text (ATV / DTV): 1000 / 1000
Power input DC 12V:1
TV1 DVB-S/S2 1
TV2 DVB-C/T2HD 1
HDMI 1 (ACR)
USB 5 V/500 mA 1
Headphones (3.5 mm): 1
VGA 1
PC AUDIO 1
SCART 1
COAX 1
Mini YPbPr (3.5mm) 1
AUDIO output 2x 3W
Weight (without feet): 2.15 kg
Weight, note: With base
VESA 100 x 100 mm
Wall mounting option: Yes

Features: CI+
Camping TV

Manufacturer: Reflexion

Product type: LCD TV

Screen size diagonal (inches): 24 inch

Frame rate: 60 Hz

Image enhancement: 60 Hz

Reception: DVB-S (sat)
DVB-S2
DVB-C (cable)
DVB-T2 (aerial)

Display size: 24 inch - 29 inch

Contrast ratio (dyn): 3000 : 1

Brightness: 180 cd/m²

No. of HDMI connections: 1

No. of USB ports: 1 x

Interfaces: Headphone jack (3.5 mm)
VGA
Audio line in
SCART
Coax connector
YPbPr

Audio power (max.): 2 x 3 W

Power consumption (standby): 0.5 W

Recording function: None

Image format: 16:9

Display technology: LCD

: 100 x 100 mm

Wall mounting option: Yes

Factory colour: Black

Width: 550 mm

Height: 369 mm

Depth: 142 mm

Height (without base): 336 mm

Device depth (without stand): 88 mm

Weight: 2.15 kg

Weight, information: with base

Power supply (details): 230 V

Power supply (LOV): mains-powered

: E (A - G)

Dim: (W x H x D) 550 x 369 x 142 mm

Viewing angle: 178°

Screen resolution: Full HD (1920 x 1080 Pixel)

Display (cm): 61 cm

Screen size diagonal (cm): 60 cm

Screen size diagonal (inches): 24 inch

Power consumption (ON): 17.2 W

Standby consumption: < 0.5 W

Documents & Downloads

Datasheet

Datasheet 3368917 Reflexion LED2425 LCD TV 60 cm 24 inch EEC E (A - G) DVB-T2, DVB-C, DVB-S2, Full HD, CI+ Black

User & Safety Instructions

User & Safety Instructions 3368917 Reflexion LED2425 LCD TV 60 cm 24 inch EEC E (A - G) DVB-T2, DVB-C, DVB-S2, Full HD, CI+ Black

Warranty Terms

Warranty Terms 3368917 Reflexion LED2425 LCD TV 60 cm 24 inch EEC E (A - G) DVB-T2, DVB-C, DVB-S2, Full HD, CI+ Black

Description

Basic TV with triple tuner

This text is machine translated.

Features

DVB-T2 HD, DVB-S2, DVB-C

Scope of delivery

Remote control (batteries included)
User manual.

Hints

HDMI is a registered trademark of HDMI Licensing, LLC. The “CI Plus” Logo is a trademark of CI Plus LLP. All information provided is subject to change without notice. Design and functions are subject to change
