Name: Renkforce PC tuning kit AMD Ryzen 7 9700X 5.50 GHz 16 GB DDR5 RAM M.2 PCIe ATX
Brand: Renkforce
SKU: 3324657
Price: 829 EUR
Availability: BackOrder

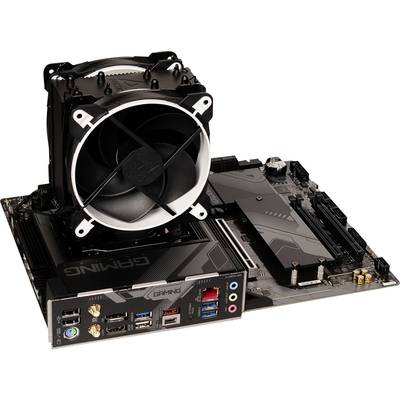

A motherboard with a large CPU cooler. Visible connections: USB ports, audio and video slots.

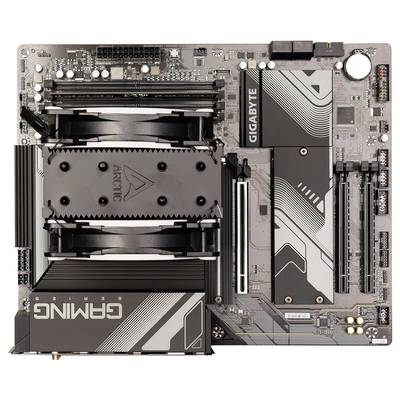

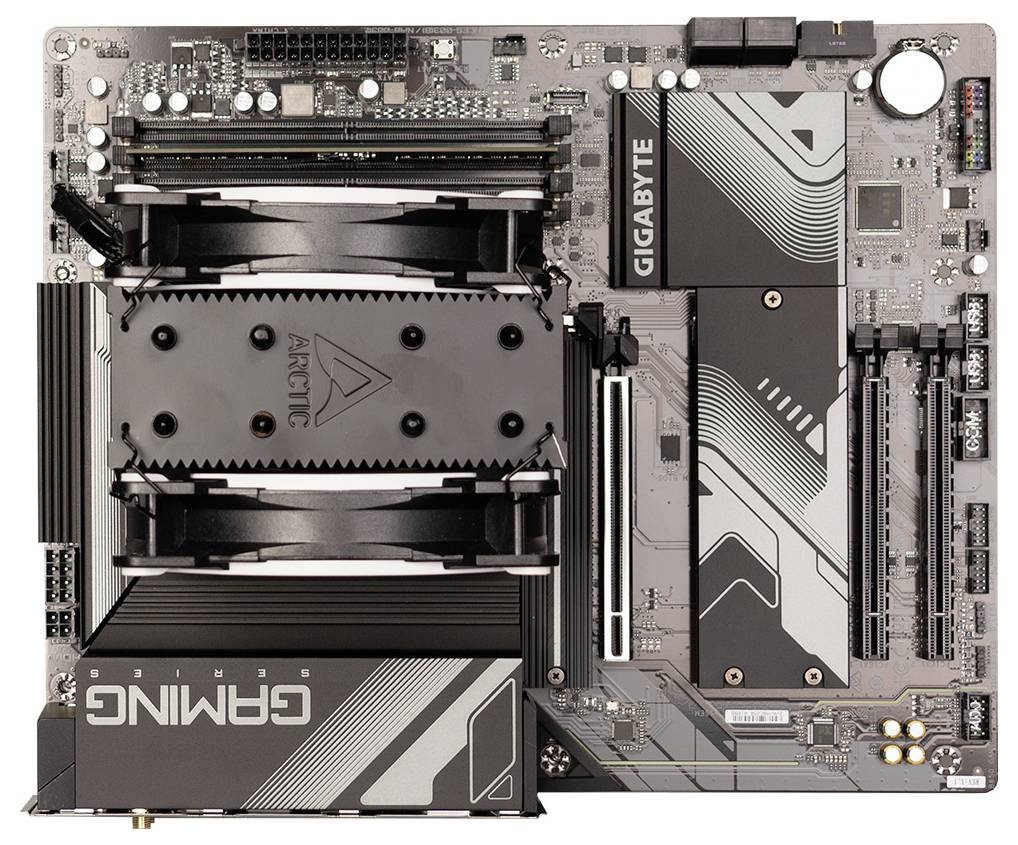

Motherboard with a complex circuit board design, branded 'GIGABYTE' and 'ARCTIC', displays various ports and slots for computer components.

1/2

Datasheet (PDF)

EAN:

Part number:

Item no:

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 829.00 / piece)

€ 829.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Renkforce PC tuning kit AMD Ryzen7-9700X, 16GB DDR5, GA-GamingX-AX, ATX

AMD Ryzen 7 9700X (8 x 3.8/5.5 GHz) processor
Gigabyte GA-B650 Gaming X AX - ATX motherboard
16 GB DDR5 RAM (1x 16 GB module) (can be extended to up to 256 GB (4x64 GB))
Integrated AMD Radeon™ graphics with RDNA2 technology (2-core / 2200 MHz)
1x PCI Express PCIe 4.0 x16 slot for your graphics card
2.5G Gigabit LAN, 7.1 HD audio and WIFI 6e (ax) 2.4/5/6 GHz and Bluetooth 5.2/5.3
3x PCIe 4.0 x4 M.2 SSD connections
1 x USB 3.2 1st Gen 2 Type-C port, 1 x USB 3.2 1st Gen 2 Type A port (red), 3 x USB 3.2 1st Gen 1 ports
High-quality CPU cooler
The ultimate performance booster for your PC
Synchronized components
Assembled and tested

Technical specifications

Internal onboard connections: 1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector; 1 x CPU fan header; 3 x system fan header; 1 x addressable LED strip headers (D_LED1); 1 x RGB LED strip headers; 1 x M.2 slot 1 ports; 4 x SATA 6Gb/s connectors; 2 x front panel audio headers; 3 front panel headers; 1 x USB Type-C® Header with USB 3.2 Gen 2 support; 2 x USB 3.2 Gen 1 Header; 1 x USB 2.0/1.1 Header; 1 x Trusted Platform Module Header (Only for GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 Module); 1 x Serial Connector Header; 1 x Reset Button; 1 x Reset Jumper; 1 x Clear CMOS jumper

Product type: PC tuning kit

Chipset: AMD® B650

Features: CPU cooler included

Motherboard: Gigabyte GA-B650 Gaming X - AX

: #####AMD AM5

Form factor: ATX

CPU series: AMD Ryzen 7

Processor/type: 9700X

CPU cache: 32 MB

Processor cores (No.): 8 x

CPU speed: 3.8 GHz

CPU turbo clock speed (max.): 5.50 GHz

Onboard graphics card: Yes

Onboard graphics card (GPU manufacturer): AMD

Onboard graphics card (version): AMD Radeon

Dedicated graphics card: No

: 16 GB

RAM type: DDR5 RAM

Memory clock speed: 5600 MHz

RAM / Max. upgrade: 256 GB

SSD connection: M.2 PCIe

No. of DDR5 slots: 4 x

No. of Gigabit LANs: 1 x

No. of PCIe 3.0 x16: 2 x

No. of PCIe x4: 1 x

No. of USB 3.2 2nd Gen (USB 3.1): 1 x

No. of USB 3.2: 3 x

No. of USB 3.0 ports: 1 x

No. of USB 2.0 ports: 3 x

No. of SATA III ports: 4 x

Onboard audio: 7.1 HD

No. of PS/2 ports: 2 x

Range of uses: Office
Design
Gaming
Home
Media

CPU clock rate: 8 x 3.8 GHz / max. 5.50 GHz

Documents & Downloads

Datasheet

Datasheet 3324657 Renkforce PC tuning kit AMD Ryzen 7 9700X 5.50 GHz 16 GB DDR5 RAM M.2 PCIe ATX

User & Safety Instructions

User & Safety Instructions 3324657 Renkforce PC tuning kit AMD Ryzen 7 9700X 5.50 GHz 16 GB DDR5 RAM M.2 PCIe ATX

Description

Get the complete package for your computer with this Renkforce upgrade kit. The tuning kit is one of the most effective ways to achieve the targeted performance of a desktop computer. The perfectly matched complete set consists of motherboard, processor, RAM and CPU cooler and is already assembled (tower cooler must be self installed). By changing key components that are critical to the performance of the PC, the PC is brought to the state of the art. Each set is subjected to a detailed test after assembly and is perfectly adjusted, thus offering maximum performance.

The brand new AMD Ryzen 7 9700X (Granite Ridge) on AMD Zen 5 architecture is manufactured in the latest 4Nm FinFET processing and offers 8 processor cores (16 threads) and supports a max. Boost frequency of up to 5.5 GHz.
The processor is AMD-specifically unlocked for overclocking, and has a 640 KB L1 cache, 8 MB L2 cache and 32 MB L3 cache).
