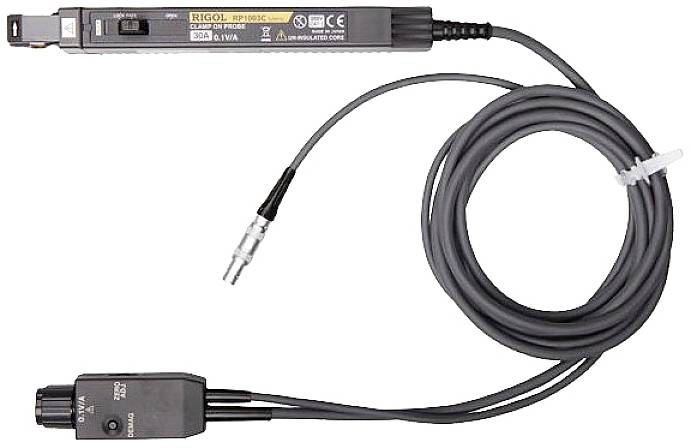

A current measuring sensor with a long cable and plug connection, suitable for measuring electrical currents in technical applications.

A current measuring sensor with a long cable and plug connection, suitable for measuring electrical currents in technical applications.

Rigol

EAN:

Part number:

Item no:

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 4,115.00 / piece)

€ 4,115.00

incl. VAT

Only available for business customers

14-day return policy included

Report legal concerns

Highlights & Details

RP1003C

Requires the RP1000P power supply for the supply

Technical specifications

Product type: Clamp meter

Amperage reading range DC (min.): 20 mA

A DC reading range (max.): 30 A

A AC reading range (min.): 20 mA

Amperage reading range AC (max.): 30 A

Frequency range: DC 50 MHz

Interfaces: BNC

Power supply (details): RP1000P

Height: 18 mm

Width: 40 mm

Length: 175 mm

Weight: 230 g

: Manufacturer's standards (no certificate)

Current reading: AC/DC

Type: RP1003C

Dim: (L x W x H) 175 x 40 x 18 mm

Interfaces: BNC

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2615542 Rigol RP1003C Clamp meter

Warranty Terms

Warranty Terms 2615542 Rigol RP1003C Clamp meter

Description

This current probe can be connected directly to a BNC input connector of a waveform meter measuring device. By clamping the sensor head onto a conductor to be measured, the probe can easily detect the current waveforms.

This text is machine translated.

Features

Highly accurate current detectionSimple current measurementSimple protection function when the input is too high

Scope of delivery

1 x clamp-on ammeter

System requirements

RP1000P supply is required. Can be used for all Rigol oscilloscopes

Description

This current probe can be connected directly to a BNC input connector of a waveform meter measuring device. By clamping the sensor head onto a conductor to be measured, the probe can easily detect the current waveforms.

This text is machine translated.

Features

Highly accurate current detectionSimple current measurementSimple protection function when the input is too high

Scope of delivery

1 x clamp-on ammeter

System requirements

RP1000P supply is required. Can be used for all Rigol oscilloscopes
