RSL Gateway Gateway + socket Switching capacity (max.) 2000 W Max. range (open field) 100 m

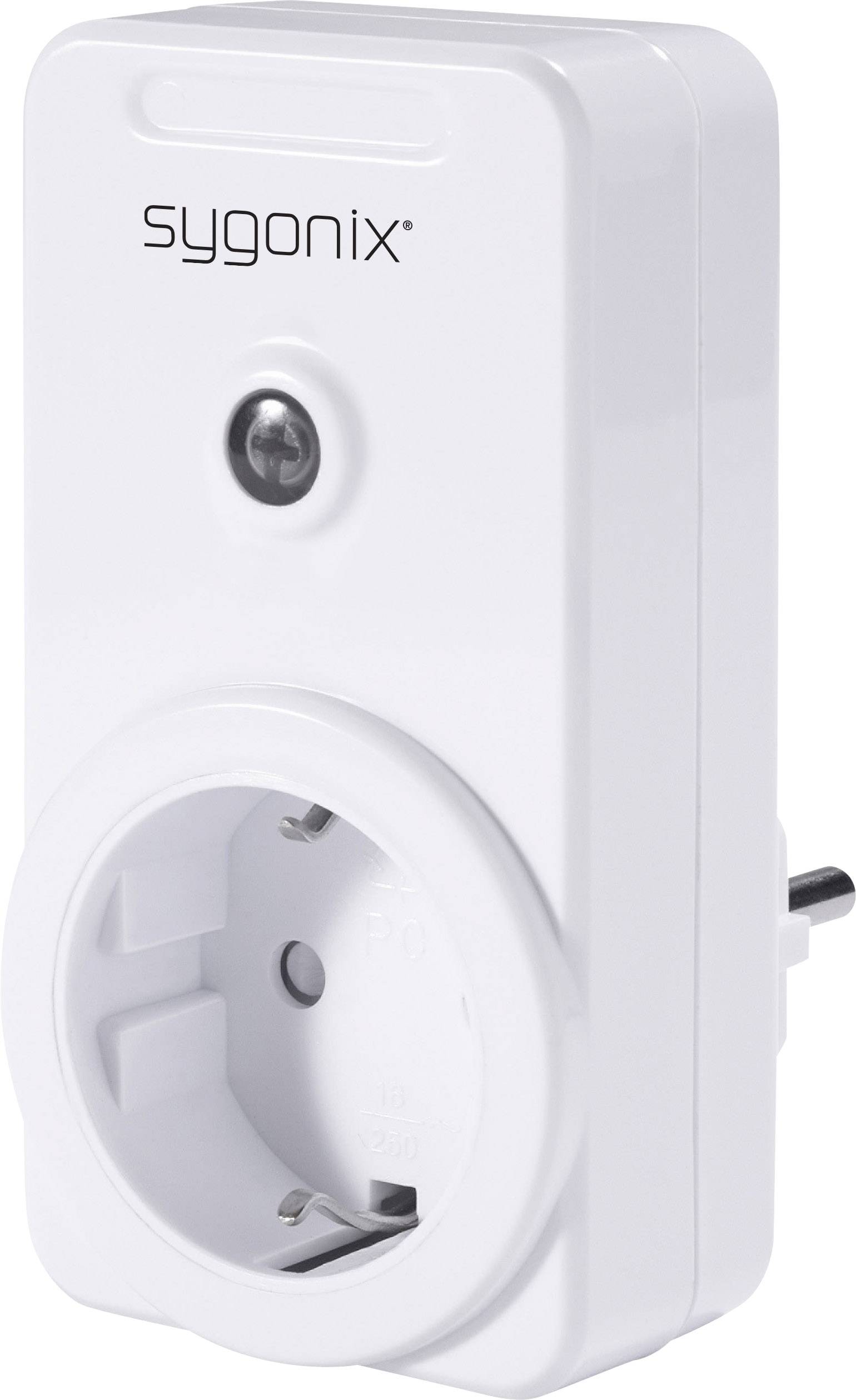

A white Sygonix plug adapter with a round socket and a small switch on top, for controlling electrical devices.

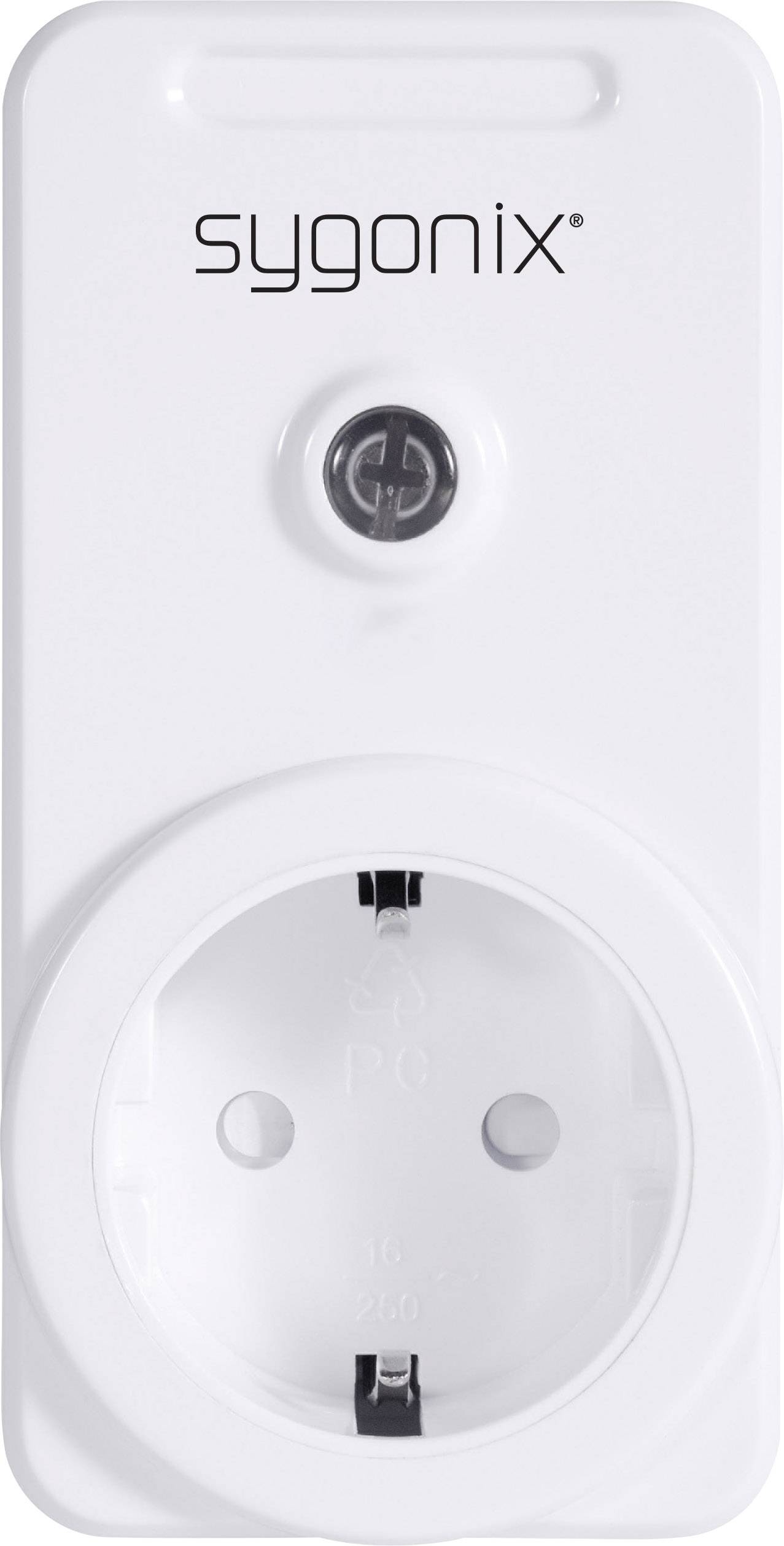

White Sygonix socket with a switch in the centre.
1/2
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 12.99 / piece)
€ 12.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Sygonix RSL gateway

  • Gateway with wireless switch socket
  • Control up to 50 actuators

Our service for you

Technical specifications

  • Gateway: Range max. 100 m (outdoors)
  • Wi-Fi range 10 m (inside)
  • Operating temperature: 0 to + 55 °C
Product type

Gateway + socket

Series

RSL

Transfer Standard (Smart Home)

Wi-Fi

Max. switching capacity

2000 W

Used at

Indoors

Protection class I

Power supply (LOV)

mains-powered

Operating voltage

230 V AC

2000 W

Data transfer (Smart Home)

Wireless

Frequency

433 MHz

100 m

Factory colour

White

Width

55 mm

Height

108 mm

Depth

73 mm

Weight

122 g

Dim

(W x H x D) 55 x 108 x 73 mm

Hub

Not required, optional for remote access

Data exchange

Bidirectional (bi)

n.rel.

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1898921 RSL Gateway Gateway + socket Switching capacity (max.) 2000 W Max. range (open field) 100 m

Conformity certificate

Conformity certificate 1898921 RSL Gateway Gateway + socket Switching capacity (max.) 2000 W Max. range (open field) 100 m

Warranty Terms

Warranty Terms 1898921 RSL Gateway Gateway + socket Switching capacity (max.) 2000 W Max. range (open field) 100 m

Description

The gateway connects your smartphone to the RSL components via the Sygonix RSL/RS2W app. A gateway can control up to 50 actuators, up to 50 gateways can be controlled via an app.

This text is machine translated.

Features

  • Gateway for controlling the RSL series
  • up to 50 actuators can be connected
  • supports the WLAN standards 802.11b/g/n
  • Configuration and control via app (Android/IOS)
  • worldwide free remote access possible
  • Up to 50 gateways can be controlled via an app
  • Sygonix RSL/RS2W app
  • Create individual schedules.

Scope of delivery

  • Gateway
  • User manual.

Hints

Please set dual band router to 2.4 GHz for programming.
