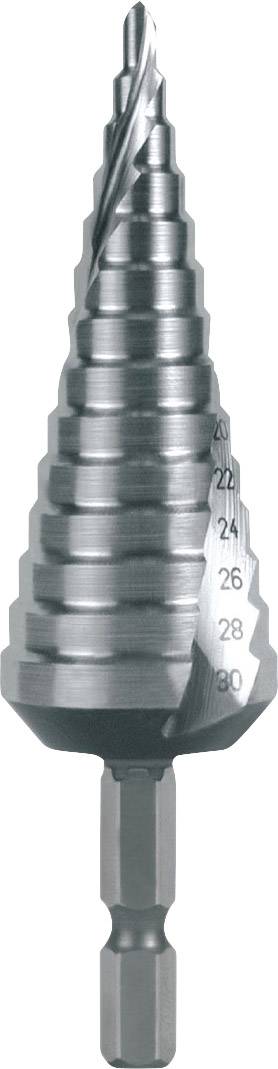

A conically shaped stepped drill bit made of metal with multiple stages. Each stage has markings in millimetres to indicate size.

A conically shaped stepped drill bit made of metal with multiple stages. Each stage has markings in millimetres to indicate size.

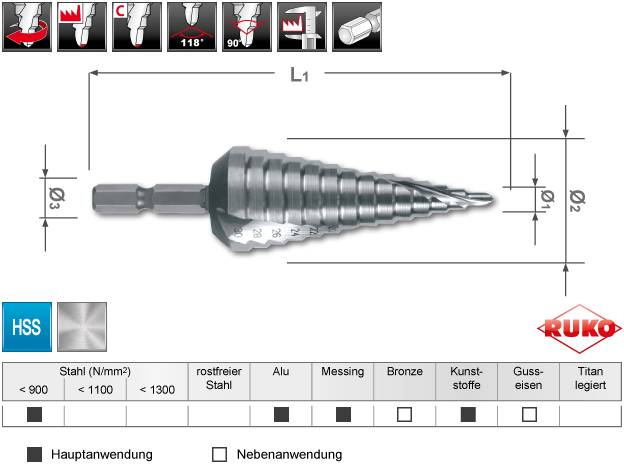

Step drill bit with spiral design, suitable for materials such as steel, aluminium and plastics; dimensional specifications in mm indicate drill diameter ranges.

1/2

RUKO

Product type

Step drill bit

Drill hole Ø

30.0 mm

Content

1 pc(s)

Material

HSS

Material suitability

Steel

Aluminium

Brass

Plastic

Brass

Cast iron

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

10 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 55.99 / piece)

€ 55.99

incl. VAT

Only 10 Piece(s) available

14-day return policy included

Report legal concerns

Technical specifications

Cutting direction right-hand cutting
Shaft bit shaft
Tip polished Form C: Cross polished

Product type: Step drill bit

Drill hole Ø: 30.0 mm

Content: 1 pc(s)

Material: HSS

Material suitability: Steel
Aluminium
Brass
Plastic
Brass
Cast iron

Tool holder: Hex shank

Shank Ø: 6.35 mm

Total length: 105 mm

Drill features: Spiral groove

Drill hole diameter: 4 - 30 mm

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2290822 RUKO 101052H HSS Step drill bit 30.0 mm Total length 105 mm Hex shank 1 pc(s)

Description

Size No. 2. Drilling range 4.0 - 30.0 mm.NEXT GENERATION - With this robust tool, sheets can be centered, drilled, drilled and deburred in one operation.The deep-ground and spiral-shaped clamping groove offers absolute smoothness and high cutting performance. In particular, chips that do not break are cleanly transported away as with a twist drill. This reduces the formation of surface-mounted cutting edges and cold welding on the cutting edges. The cone makes it easier to pull back on pierced sheets. HSS: High-performance high-speed working steel for drilling in well-machined materials with a strength of up to 900 N/mm².

This text is machine translated.

Description

Size No. 2. Drilling range 4.0 - 30.0 mm.NEXT GENERATION - With this robust tool, sheets can be centered, drilled, drilled and deburred in one operation.The deep-ground and spiral-shaped clamping groove offers absolute smoothness and high cutting performance. In particular, chips that do not break are cleanly transported away as with a twist drill. This reduces the formation of surface-mounted cutting edges and cold welding on the cutting edges. The cone makes it easier to pull back on pierced sheets. HSS: High-performance high-speed working steel for drilling in well-machined materials with a strength of up to 900 N/mm².

This text is machine translated.
