Name: Schabus 200950 200950 Suspended float switch
Brand: Schabus
SKU: 2627058
Availability: InStock

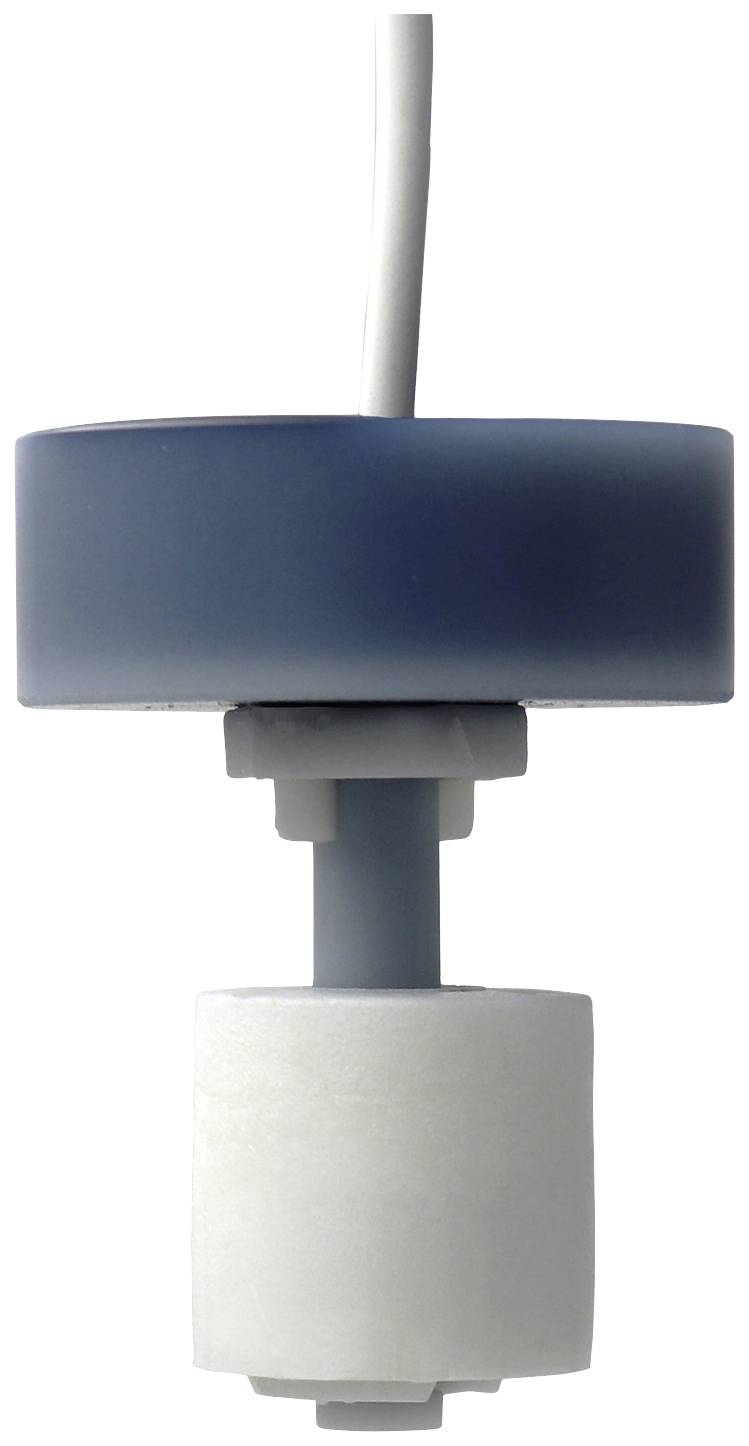

A blue and white float switch with a cable, used for liquid level measurement and control.

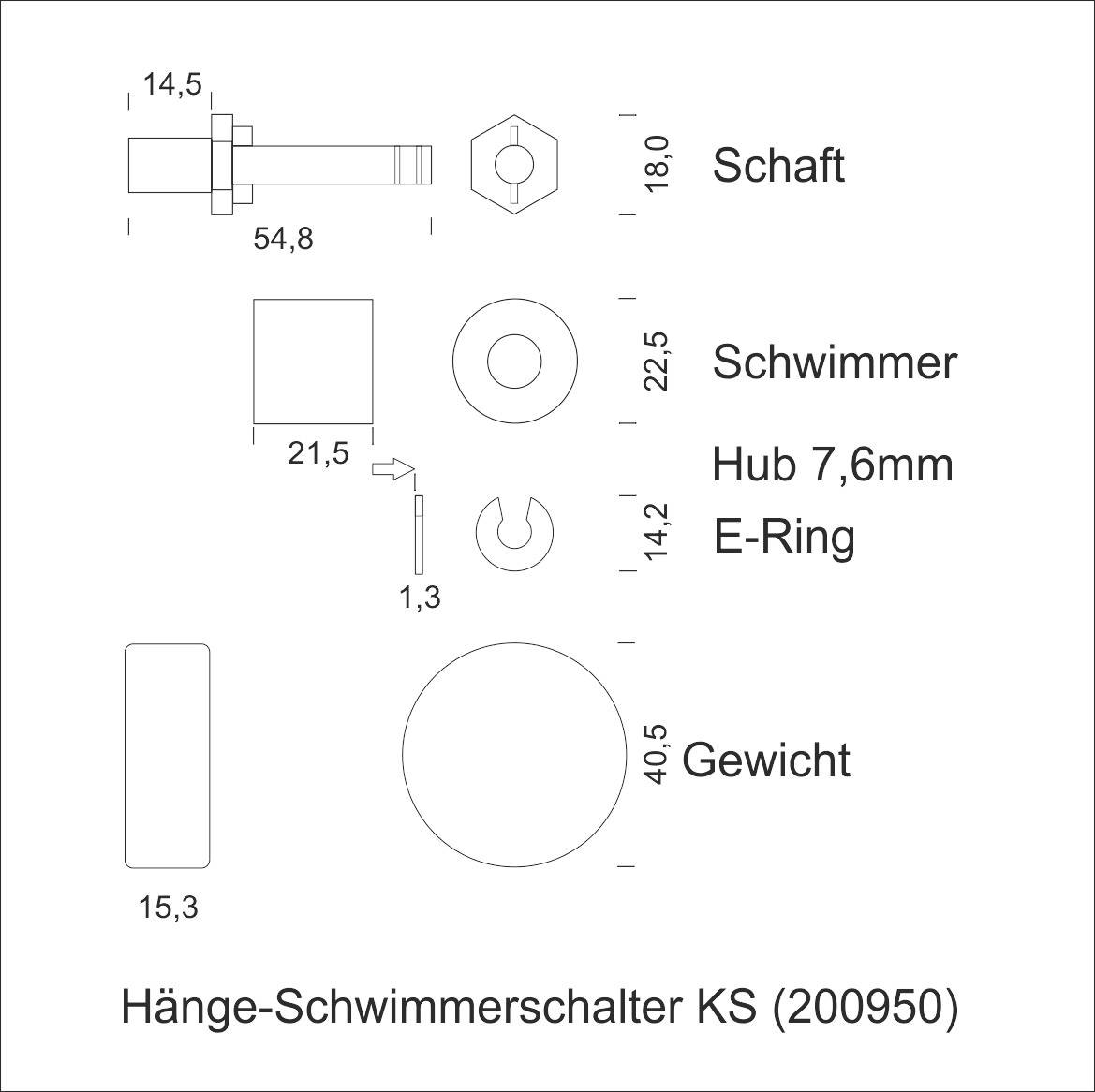

'Diagram shows parts of a suspension float switch KS (200950): shaft, float, stroke 7.6 mm, E-ring and weight.'

1/2

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

2 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 51.99 / piece)

€ 51.99

incl. VAT

Only 2 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Plastic hanging float switch

Suspension float switch with weight and PG screw connectionFor attachment to cable, for barrels, shafts and tanks with horizontal lid

Technical specifications

Electrical connection: Cable 6 m.Mech. Cable connection: PG screw connectionTrack tube: Ø 7 mm made of PPFloat: Ø 23 mm made of PPSwitching function: Opener (NC) / closer (NO)Max. SWITCHING VOLTAGE 25 V AC / 60 V DCmax. switching current 500 mAMax. breaking capacity 10 WTemperature range -20°. . . Max. 80 °C.Protection class: IP68Density of medium: Min. 0.7 g/cm³Pressure: DepressurizedInstallation position: Vertical, free-hangingDimensions switch: H = 58 mm x Ø = 23 mmDimensions Weight: H = 15.5 mm x Ø = 40 mm

Product type: Suspended float switch

Operating voltage: 25 V AC / 60 V DC

UKCA: not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2627058 Schabus 200950 200950 Suspended float switch

Description

Accessories for water detectorThe hanging float switch made of plastic is reliable, maintenance and wear-free and easy to install. The switching contact closes at a level of approx. 4 cm and activates the input of the water detector. By turning the float body upside down, you also get the reverse switching function.The hanging float switch has a built-in weight, so that the float switch always hangs vertically in fluid-free media. The cable is held securely by a PG screw connection, can be positioned continuously and can thus be suspended from above in shafts, tanks or barrels. No further assembly work is required, e.g. with angles and rods.

This text is machine translated.

Features

Plastic material (polypropylene, POM and ABS)Cable length 6 mNC contact / NO contact – the reverse contact function is obtained by turning the float body overSuitable for all liquids with a density of at least 0.7 g/cm³ e.g. water, heating oil, diesel, vegetable oil, lubricating oils, among others

Scope of delivery

Mini float switch with 6 m connection cable
Weight can be screwed on
PG gland material.
