Schabus 300218 SHT 218 Pumpensteuerung Water leak detector mains-powered
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 53.77 / piece)
€ 53.77
plus VAT.
Only 6 Piece(s) available
Highlights & Details

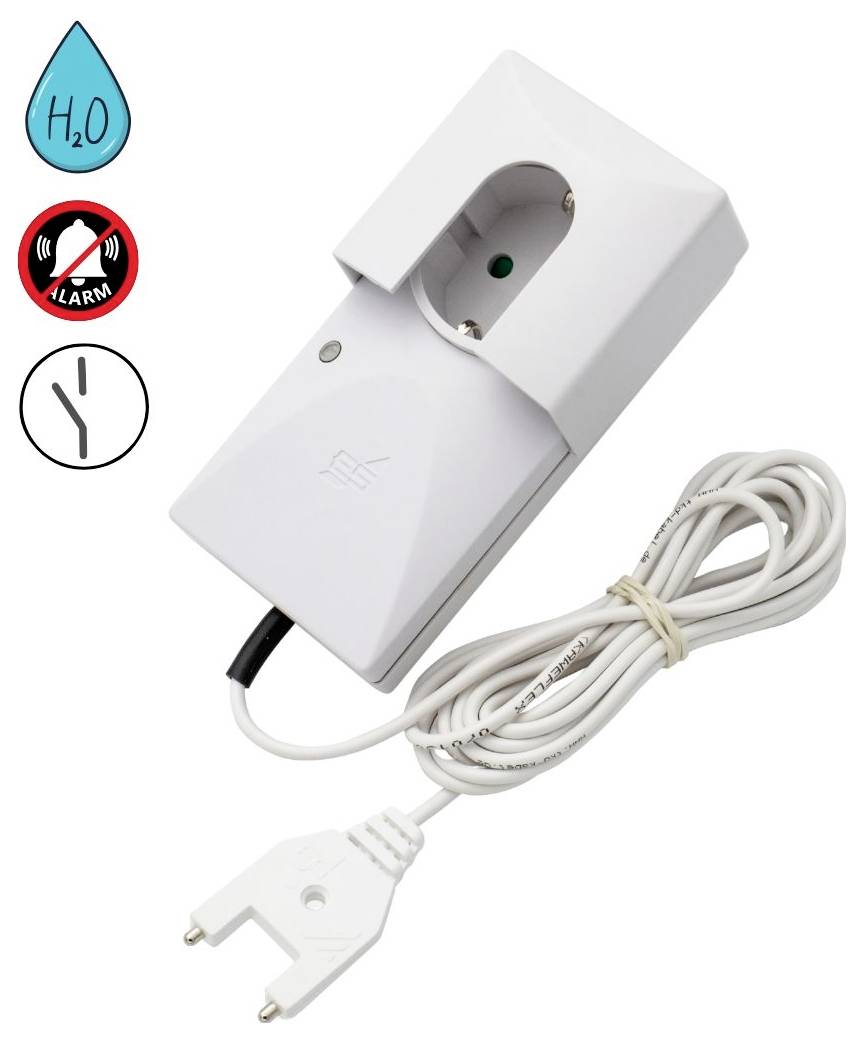

SHT 218 water detector without acoustics
- Simple installation (230 V socket output)
- Without acoustic alarm
- Visual alert
Technical specifications
- SWITCHING CAPACITY 3500VA / 16 A (10 A)
- Sensor cable length: Can be extended up to 50 m.
- Functional range: -15 °C to +40°C.
- Cable length 2.8 m, 2 x 0.14 mm²
- Product type
Water leak detector
- Operating voltage
230 V
- Power supply (LOV)
mains-powered
- Width
57 mm
- Height
121 mm
- Depth
38 mm
- Dim
(W x H x D) 57 x 121 x 38 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2111181 Schabus 300218 SHT 218 Pumpensteuerung Water leak detector mains-powered
User & Safety Instructions
User & Safety Instructions 2111181 Schabus 300218 SHT 218 Pumpensteuerung Water leak detector mains-powered
Conformity certificate
Conformity certificate 2111181 Schabus 300218 SHT 218 Pumpensteuerung Water leak detector mains-powered
Description

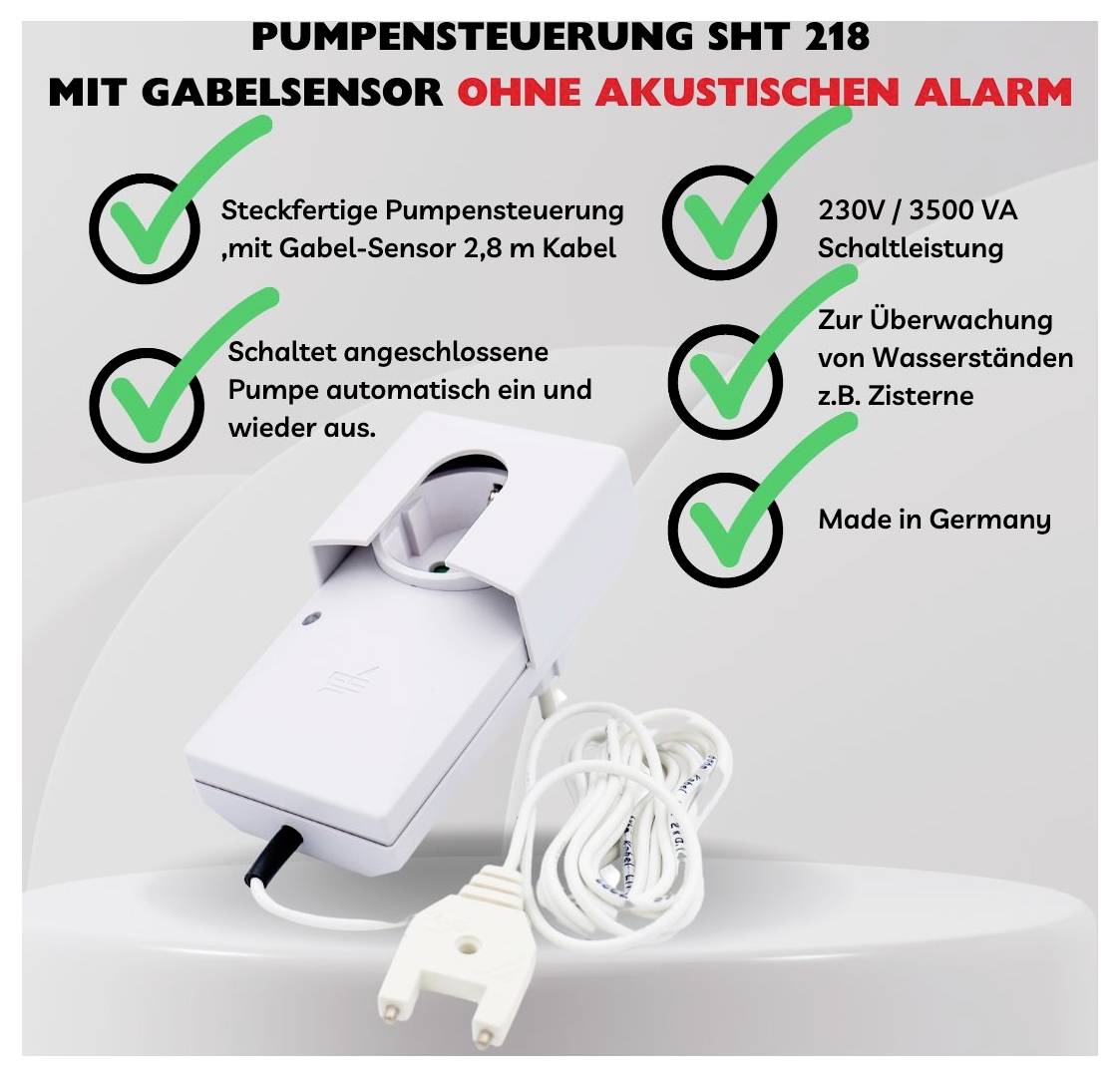

The water detector SHT 218 is a ready-to-plug pump control, which switches on a connected water pump when the sensor height reaches a certain water level and switches it off again after drying the sensor and a specified time. The run-up time of the pump is set from 0 to 100 seconds via a continuously variable adjustment wheel. An optical warning signals the change in water level.
If required, you can extend the sensor cable up to 50 m with a cable (2 x 0.14 mm²). You must cut the existing sensor cable and reconnect it to the terminals.
Not suitable for fuel oil, diesel, vegetable oil, lubricating oils.
This text is machine translated.
If required, you can extend the sensor cable up to 50 m with a cable (2 x 0.14 mm²). You must cut the existing sensor cable and reconnect it to the terminals.
Not suitable for fuel oil, diesel, vegetable oil, lubricating oils.
This text is machine translated.
Features
- Connected device is activated when water is reported
- Continuously adjustable follow-up time from 0 to 100 s.
Scope of delivery
- Water detector with sensor
- Fitting Material
- User manual.
Hints
The operating instructions of the SHT 217 are enclosed. It is the same device with the only difference that the SHT 218 does not have an audible alarm.
