Schabus 300450 SHT 450 Water leak detector via mains outlet

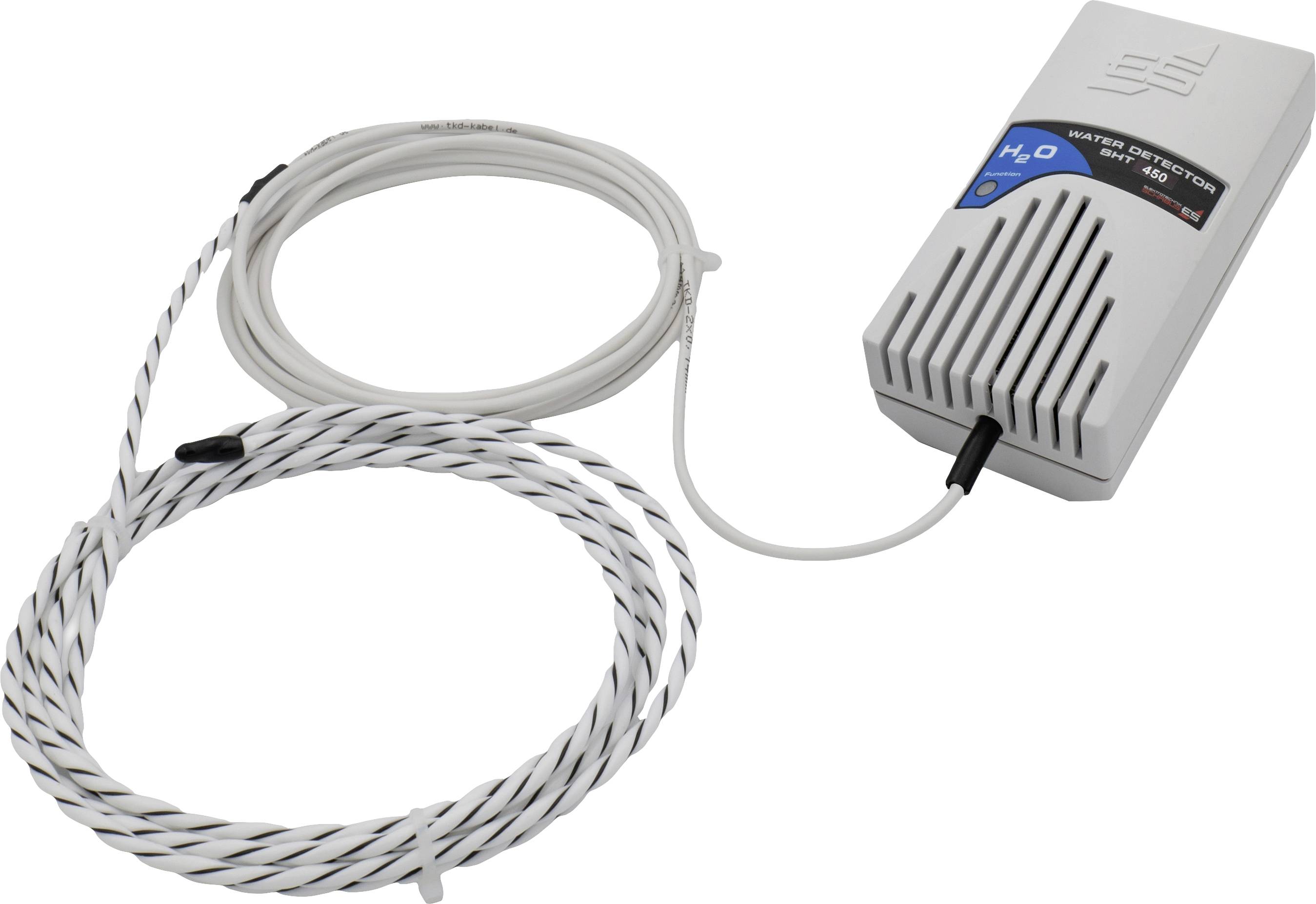

Water leak detector with sensor and cables, used for detecting water leakage in buildings.

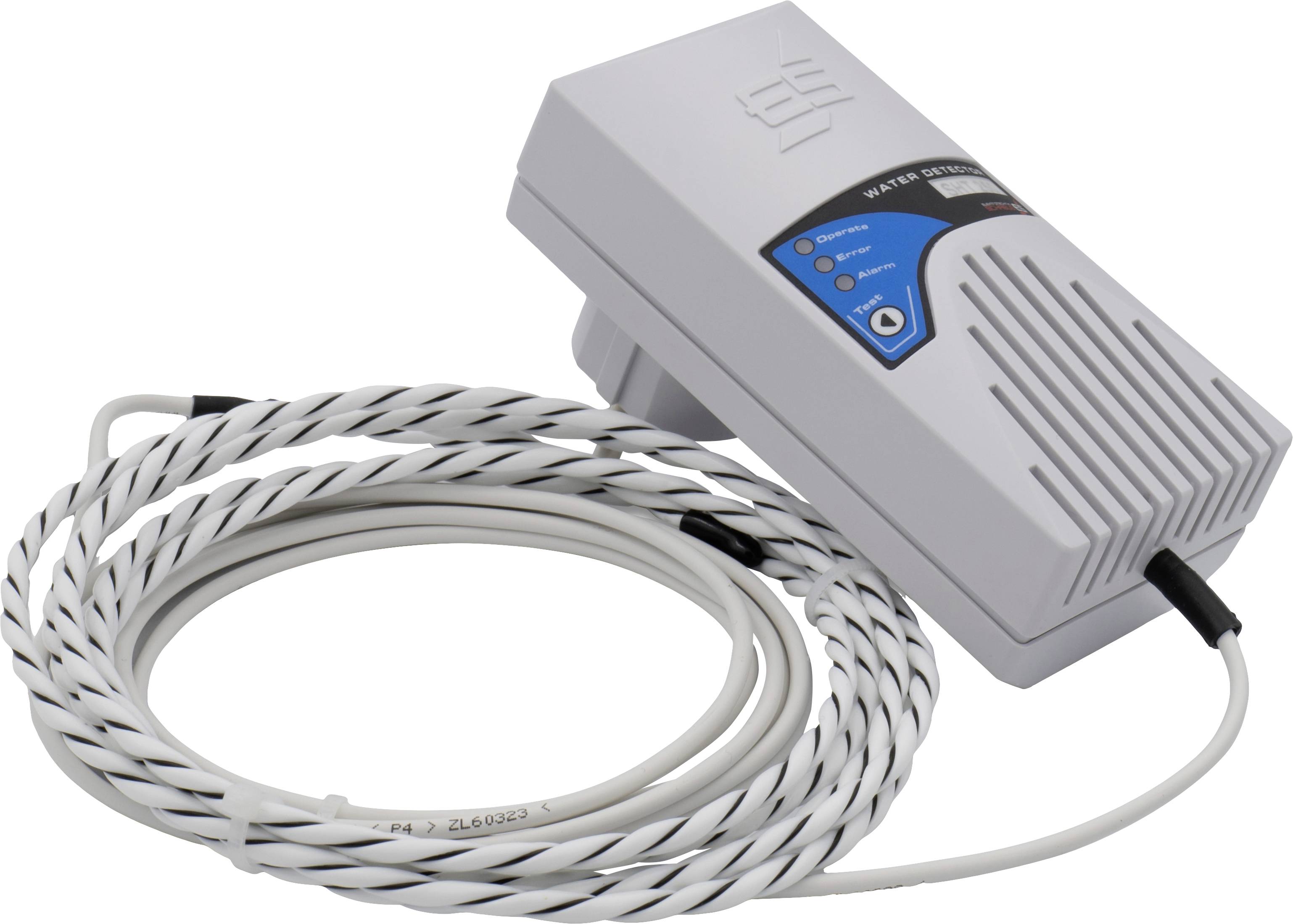

A white water detector with cable, used for leak detection. The device shows status indicators, such as 'Power' and 'Alarm'.

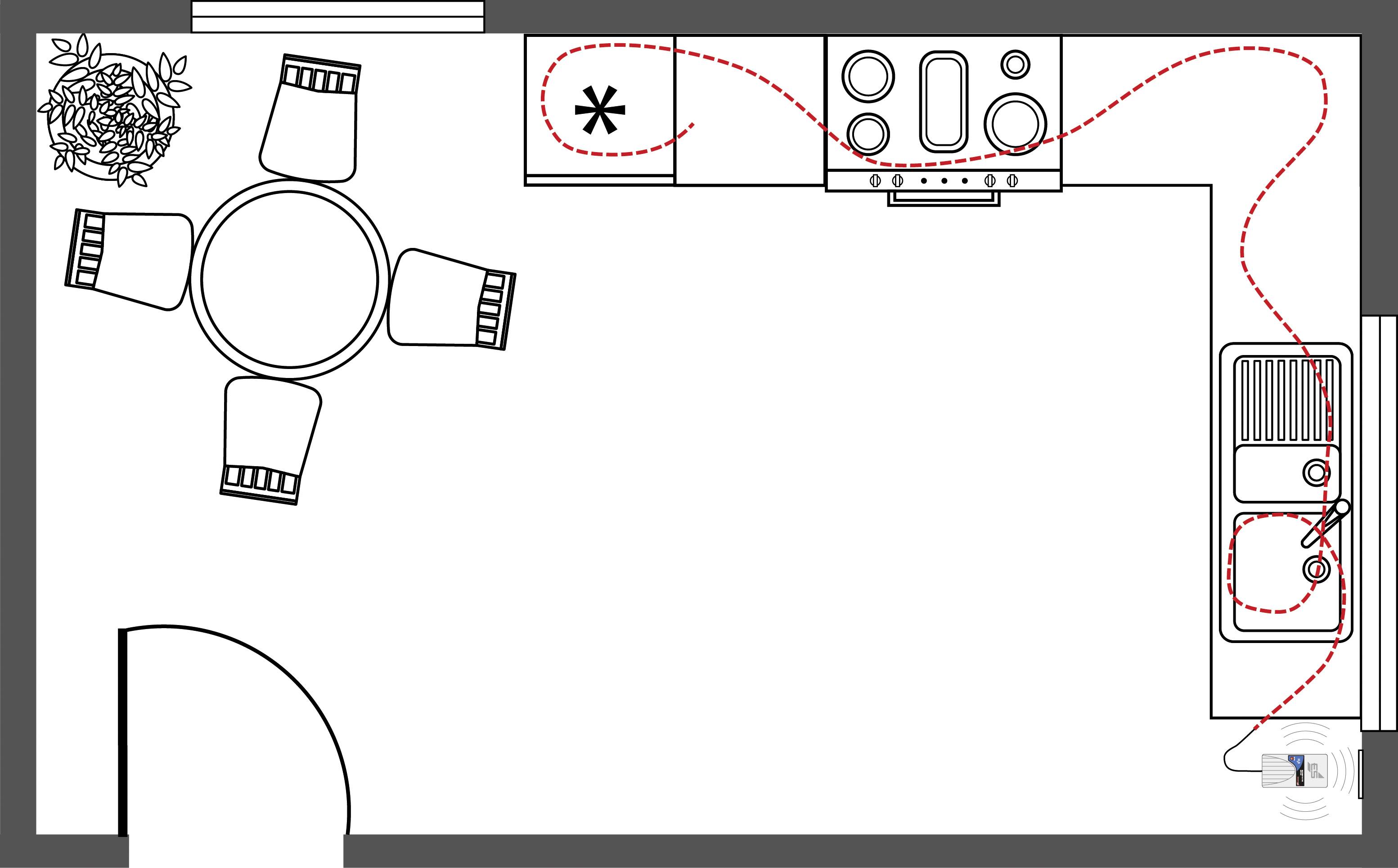

Floor plan of a kitchen shows the work triangle between the fridge, cooker, and sink with red lines; table with four chairs to the left.

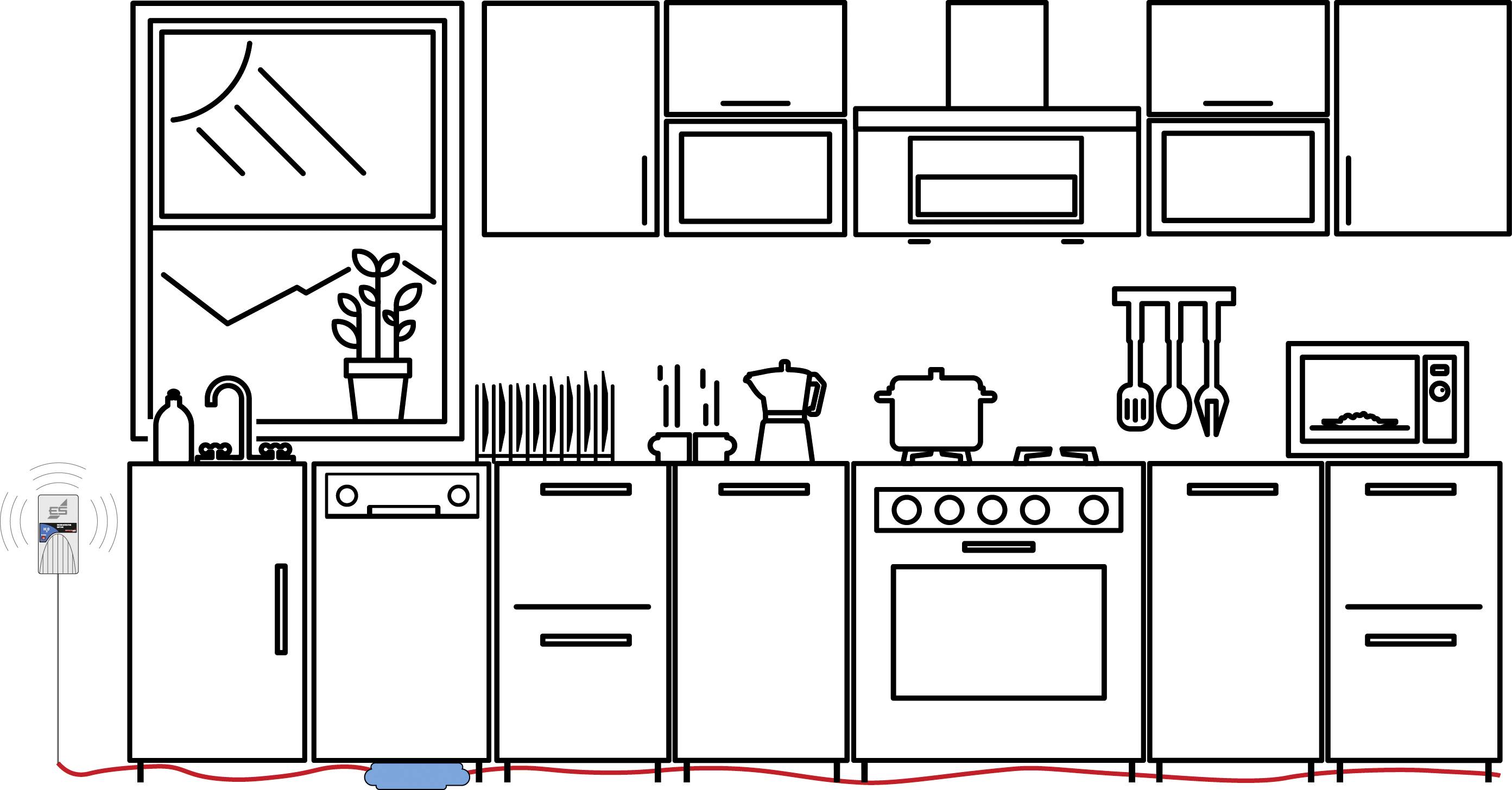

Kitchen unit with cooker, sink, dishwasher, microwave and wall cabinets. A sensor on the floor indicates a leak.
1/4
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Thu 29 Oct
5 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 104.99 / piece)
€ 104.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
Only 5 Piece(s) available
14-day return policy included
Report legal concerns

Highlights & Details

Water detector SHT 450 with sensor line

  • Sensor cable can be laid comfortably, inconspicuously and on a large surface
  • Plug-in power unit

Technical specifications

  • Maximum power: approx. 3 W
  • Operating temperature -15 °C / +40 °C
  • Protection class: IP20
  • Acoustic pressure of 90 dB (distance 10 cm)
  • Cable length 1 m.
  • Approx. 15 seconds drying time
  • 2*30 AWG, sheathing conductive fluoropolymer
Product type

Water leak detector

Mounting type

Socket

Operating voltage

30 V~ (+/-10 %)/50 - 60 Hz

Power supply (LOV)

via mains outlet

Sound pressure

90 dB

Width

60 mm

Height

118 mm

Depth

44 mm

Dim

(W x H x D) 60 x 118 x 44 mm

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 2898034 Schabus 300450 SHT 450 Water leak detector via mains outlet

User & Safety Instructions

User & Safety Instructions 2898034 Schabus 300450 SHT 450 Water leak detector via mains outlet

Description

No matter where…
Whether kitchen cabinets, laundries, bathroom furniture or the aquarium in the living room:
The SHT 450 with its sensor cable identify any water leaks and alert you before any serious damage occurs.

The water detector SHT 240 is a quick to install plug socket device for indoor areas for monitoring cellars, washing rooms, heating rooms, cisterns, and much more. You can lay the sensor cables comfortably, inconspicuously and over a large area. So you cover the entire area reliably and don't have to look for the deepest point where the water would collect.

APPLICATION AREAS
Water intrusion
Cistern monitoring
Level monitoring

This text is machine translated.

Features

  • Simple installation (230 V socket output)
  • Audible and visual alarm signal
  • At water detector 1m cable (extendable), in connection sensor line
  • Sensor cable 2 m (extendable on request).
