Schabus 300719 SHT 5008 Additional sensor for water leak detector
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 34.45 / piece)
€ 34.45
plus VAT.
Highlights & Details
Water sensor for floor mounting
- 2-channel or redundant connection for maximum safety
- For Floor mounting can be screwed
- Due to the slip-resistant and uberfahrbar
Technical specifications
- Cable length 2 m, 3 x 0.14 mm²
- Material: plastic, impact-resistant, Tough-elastic
- Surface Contacts: stainless steel V4A
- Function range: -15°C / +50°C
- Diameter of screw hole: 3.2 mm
- Product type
Additional sensor for water leak detector
- Mounting type
Floor
- Width
9 mm
- Height
25 mm
- Depth
40 mm
- Dim
(W x H x D) 9 x 25 x 40 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1596363 Schabus 300719 SHT 5008 Additional sensor for water leak detector
User & Safety Instructions
User & Safety Instructions 1596363 Schabus 300719 SHT 5008 Additional sensor for water leak detector
Description
Water sensor for floor mounting. Accessories for schabus water detector SHT 5000 and 5001. 2-channel ode 4 r redundant connection for maximum safety
This text is machine translated.
This text is machine translated.
Features

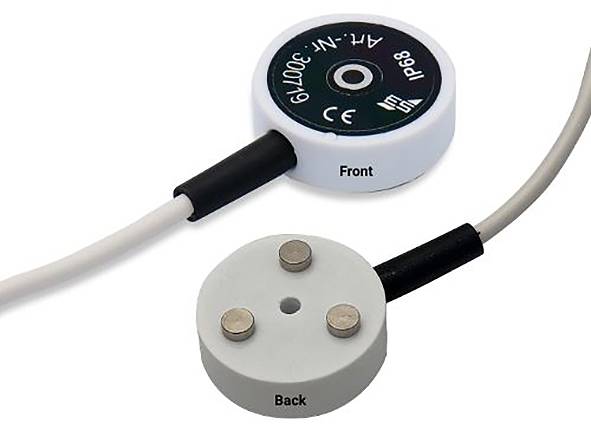

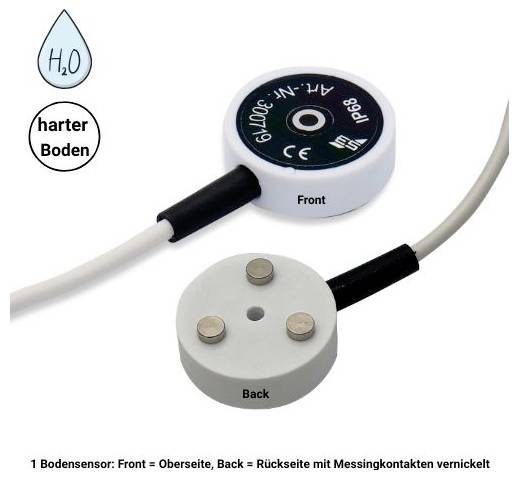

- Sensor with three metal contacts in the plastic housing plastic housing are
- The cable of the sensor can be extended to 50 m (cross-section 3 x 0.14 mm²)
Scope of delivery
- Water sensor with 2 m cable
- Mounting material (screws, dowels)
