Name: Schabus 500240 WWD 240 Wireless water leak detector app-controlled via mains outlet
Brand: Schabus
SKU: 3059285
Availability: BackOrder

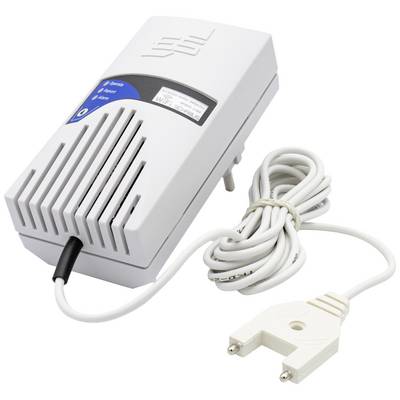

A white electronic device with ventilation slots and cables, presumably a charger or power supply, on a white background.

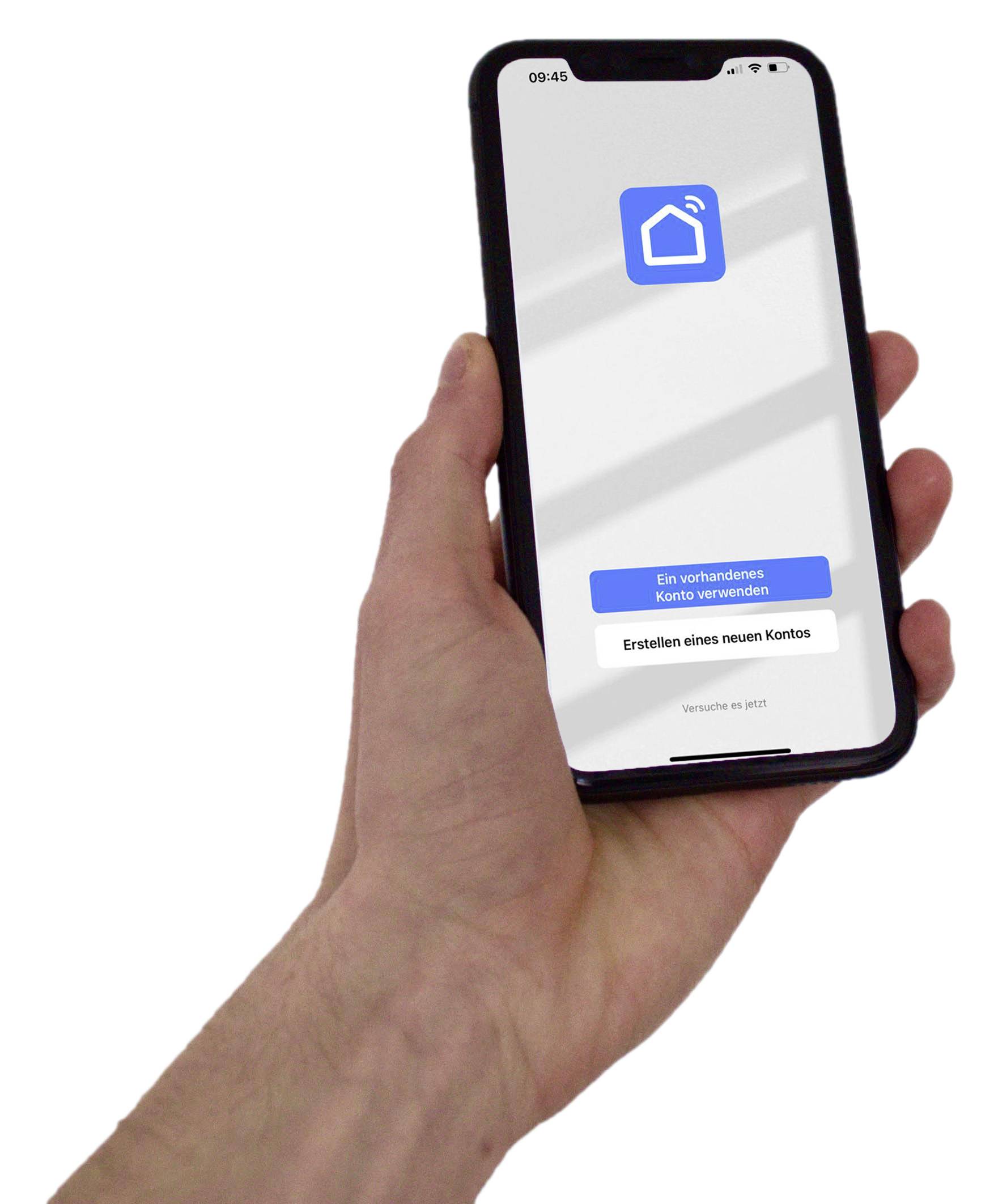

'Hand holding smartphone with app open. Two options visible: "Use an existing account" and "Create a new account".'

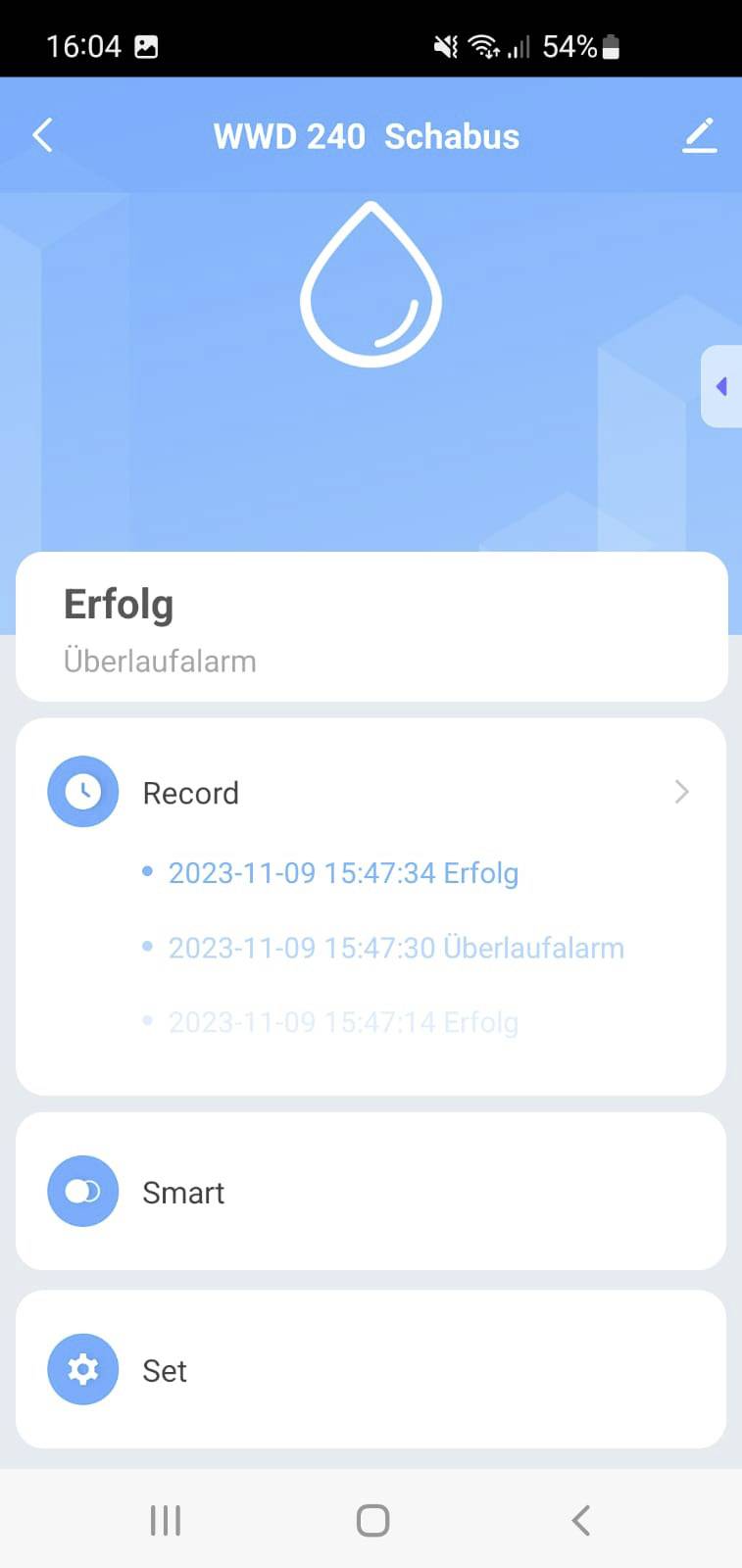

Screen of a water monitoring system titled 'WWD 240 Schabus'. Shows record progression, latest entry 'Success 2023-11-09 15:47:34'.

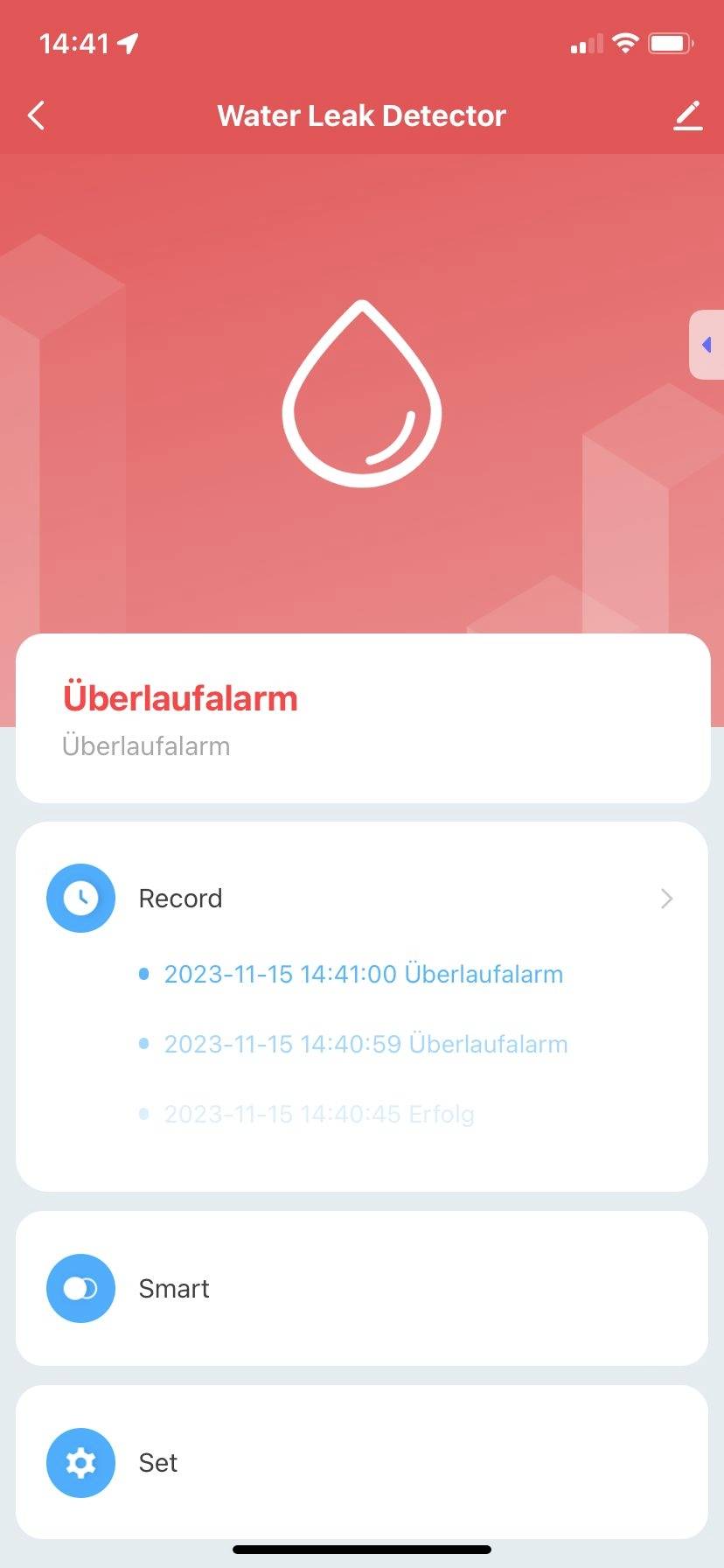

'Screenshot of app interface: Water leak detector reports an overflow alarm on 15/11/2023 at 14:41. Options: Record, Smart, Set.'

1/4

EAN:

Part number:

Item no:

Dispatches on Mon 2 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 164.99 / piece)

€ 164.99

incl. VAT

14-day return policy included

Report legal concerns

Alternative article by SYGONIX

Sygonix SY-6515318 Wireless water leak detector app-controlled battery-powered

Fast track dispatch on Thu 29 Oct

€ 18.99

incl. VAT plus

Highlights & Details

Smart WWD 240 water detector with app control

Simple installation (230 V socket output)
Audible and visual alarm signal
Water sensor with 2.8 m cable (extendable)
For free on the Smart-Life – install the Smart-Living APP

Technical specifications

Operating voltage 230 V~ (+/-10%) / 50-60 Hz
Power consumption: Approx. 0.8 W in standby
Wi-Fi 802.11 b/g/n
Operating temperature -15 °C / +40 °C
Protection class: IP20
Acoustic pressure of 100 dB (distance 10 cm)
Cable length: 2.8 m, extendable with 2 × 0.14 mm² LIYY up to 50 m.

Product type: Wireless water leak detector

Detector features: app-controlled

Operating voltage: 230 V

Power supply (LOV): via mains outlet

Sound pressure: 100 dB

Width: 60 mm

Height: 118 mm

Depth: 44 mm

Dim: (W x H x D) 60 x 118 x 44 mm

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3059285 Schabus 500240 WWD 240 Wireless water leak detector app-controlled via mains outlet

Description

The WWD 240 socket water detector acts as a purely acoustic detector. If soil moisture is detected with the sensor, a loud acoustic alarm sounds and the LED flashes red. After adding the device in the Smart Live app, it sends a push notification to your smartphone in the event of an event. Once the sensor has dried, the device switches to mute automatically and the LED lights up green again. Do not leave the cable and sensor in water permanently but dry them as soon as possible.

Application areas
Water intrusion
Cistern monitoring
Fullmontoring
