Name: Schneider Electric XB5AS84425 Kill switch/EPO switch 30/22 mm 1 breaker IP66 1 pc(s) Piece
Brand: Schneider Electric
SKU: 3757289
Availability: BackOrder

Close-up of a red Schneider Electric push button switch with green and yellow stacked collar, shown on a black mounting base.<br>

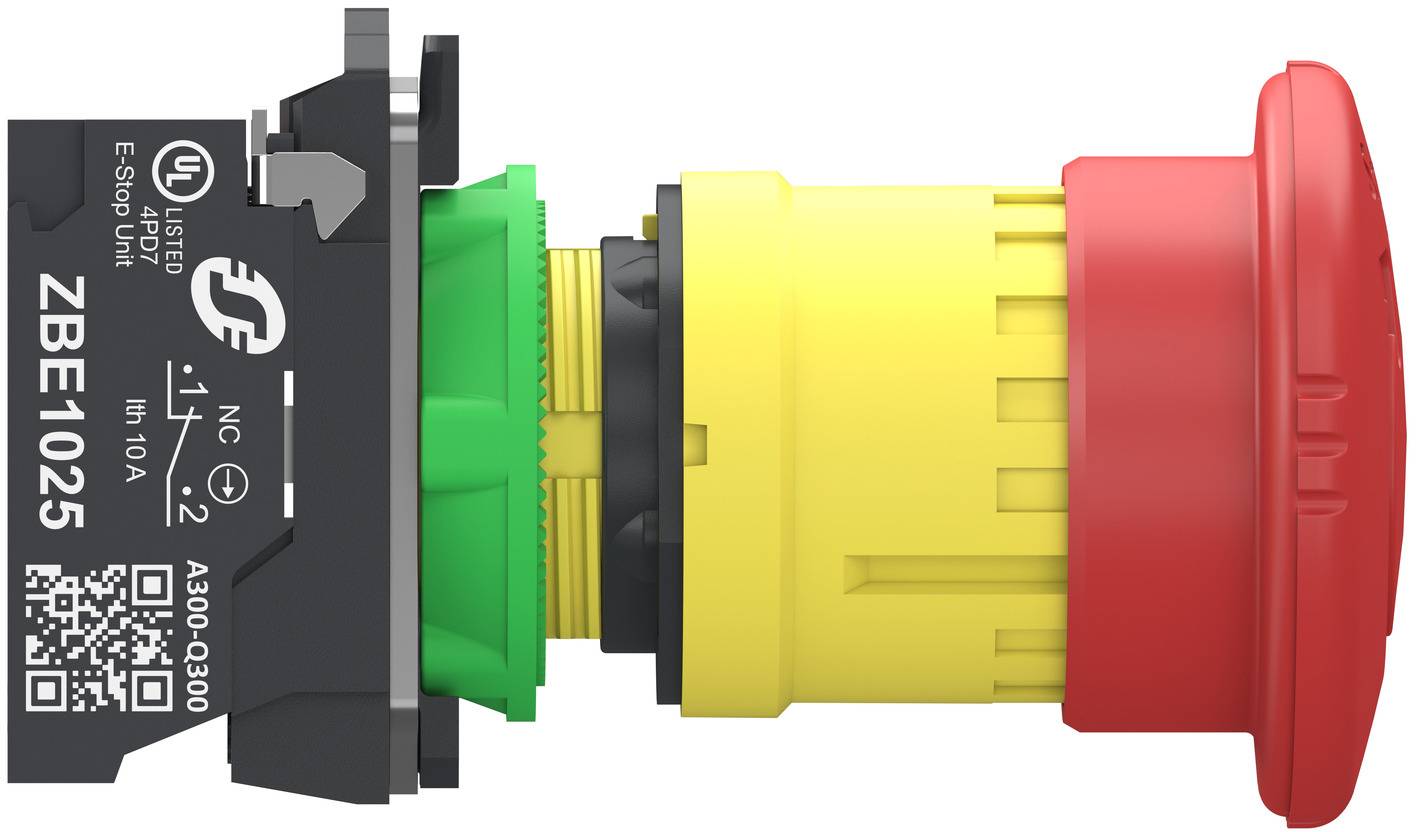

Red emergency stop push button switch with yellow and green base, shown in side view on a white background.

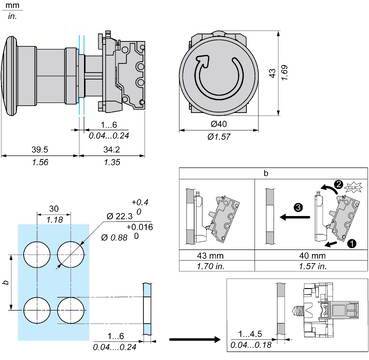

Technical dimension drawing of a cylindrical connector part with front, side, and mounting views, showing measurements in mm and inches and installation arrows.

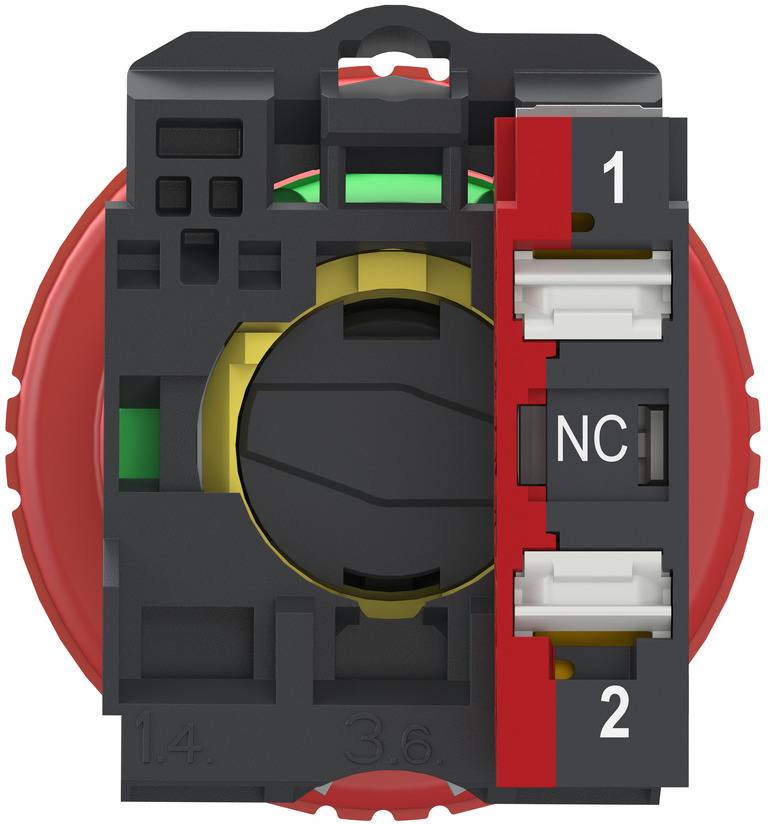

Close-up of a black and red electrical switch contact block with terminals labeled 1, NC, and 2.

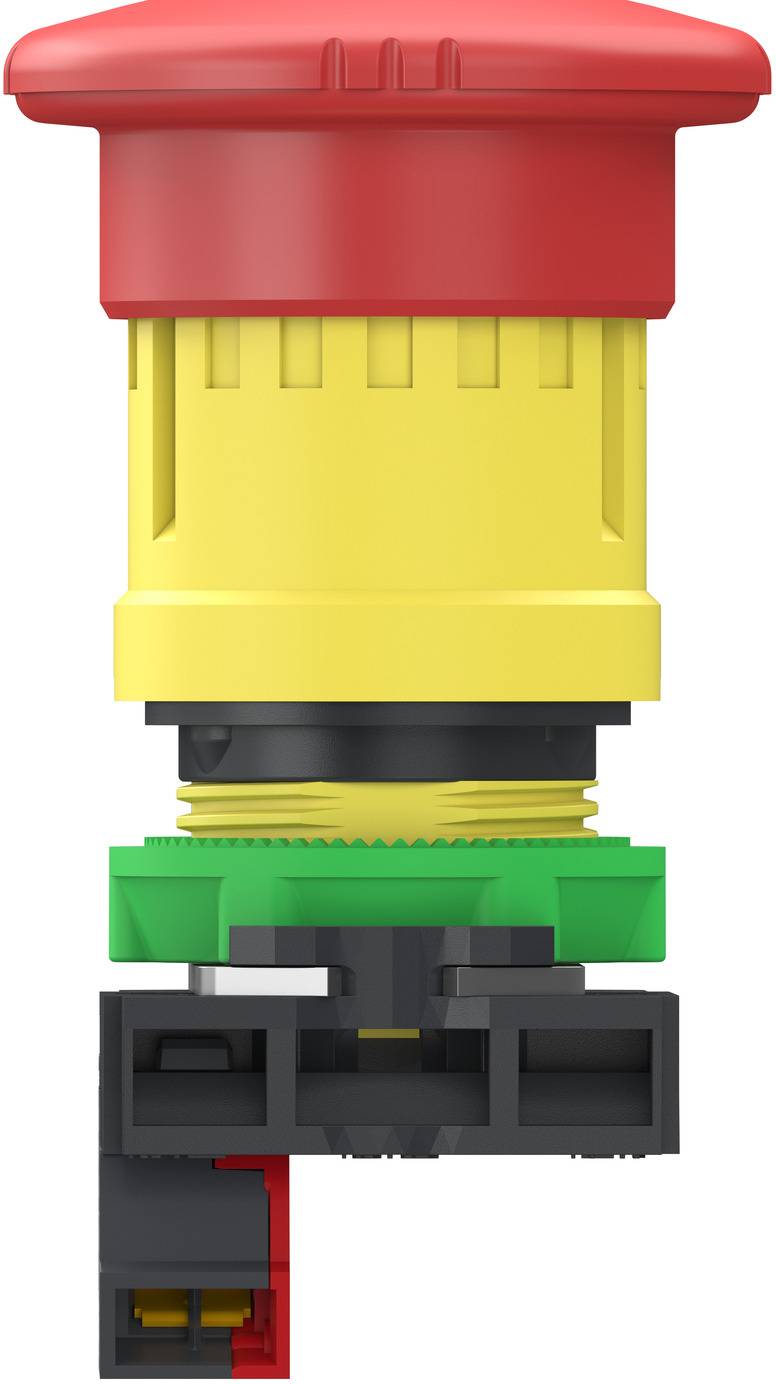

Exploded view of a red emergency stop button assembly with yellow housing and black base, showing internal components stacked vertically.<br>

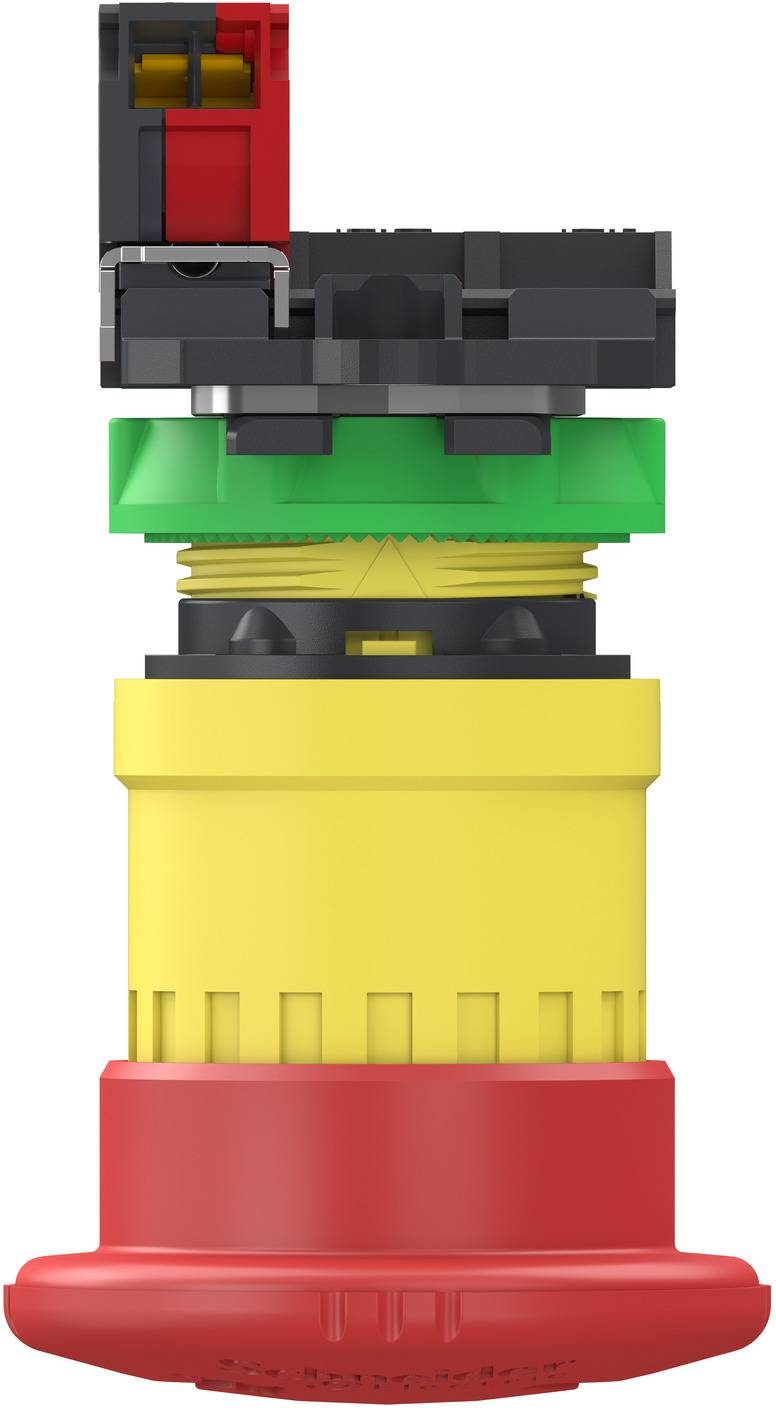

Side view of a red emergency stop button assembly with yellow and green internal components and black top housing.

Side view of a color-coded industrial push button assembly with red mushroom cap, yellow body, green collar, and black/red mounting base.<br>

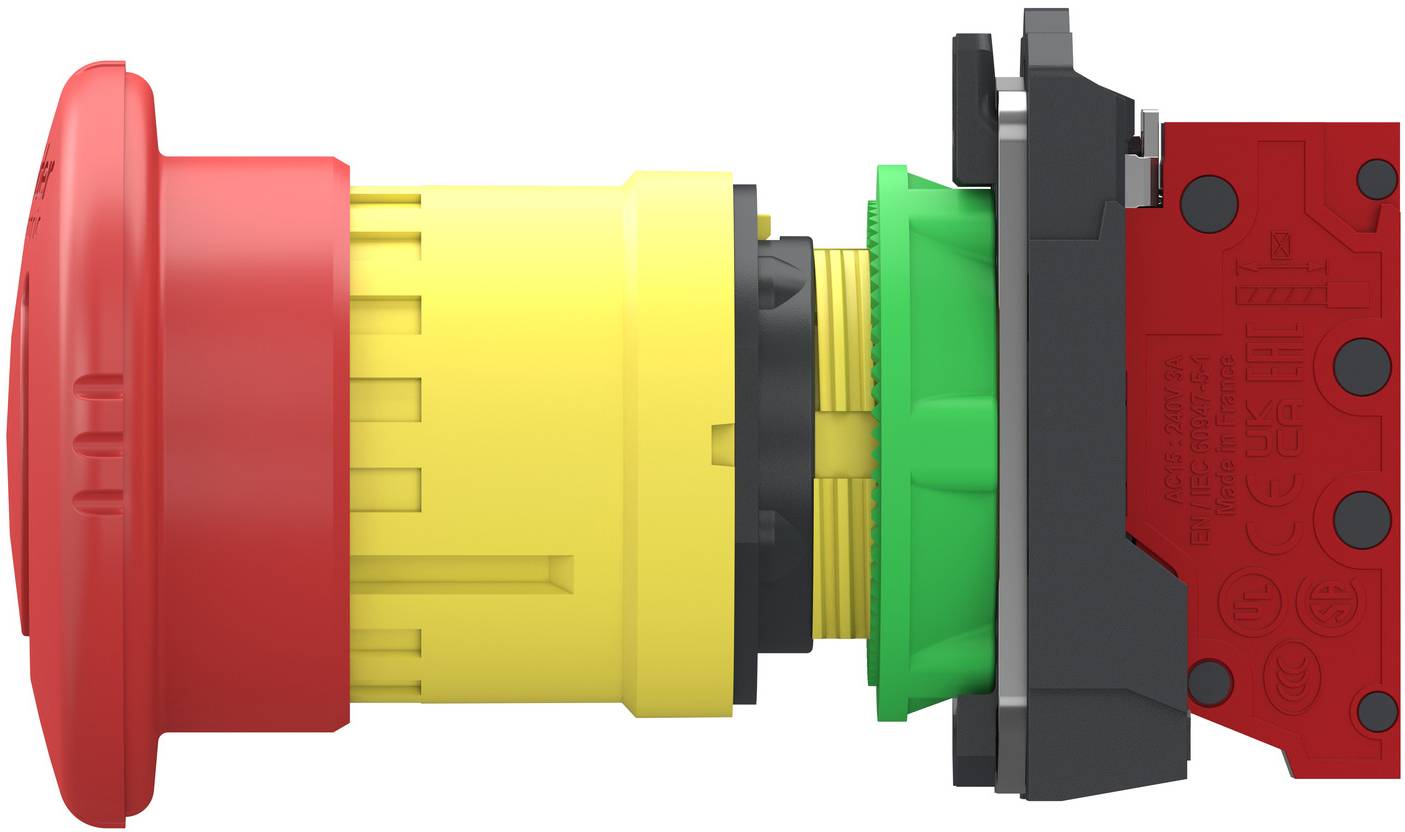

Side view of a red mushroom emergency stop button assembly with yellow body, green collar, and black/red mounting components.<br>

1/8

Datasheet (PDF)

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 27.99 / piece)

€ 27.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Auxiliary circuit connection type: Other
Number of contacts as N/O contacts: 0
Number of contacts as NC contacts: 1
Type of unlocking: Turn-release
Diameter of cap 40 mm
Hole diameter 22.5 mm
With illumination: No.
Protection class (NEMA): 4X, 13

Packaging type: Piece

Product type: Kill switch/EPO switch

Switch/button features: 30/22 mm

Unlocking mechanism: Turn

Print motif: EMERGENCY STOP

Lighting type: None

Contact type: 1 breaker

Connection: Push-in connector

Recess diameter: 22.5 mm

Button Ø: 40 mm

(Ø): 40 mm

: IP66

Type: XB5AS84425

Content: 1 pc(s)

Dim: (Ø) 40 mm

Mounting type: Structure

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 3757289 Schneider Electric XB5AS84425 Kill switch/EPO switch 30/22 mm 1 breaker IP66 1 pc(s) Piece

User & Safety Instructions

User & Safety Instructions 3757289 Schneider Electric XB5AS84425 Kill switch/EPO switch 30/22 mm 1 breaker IP66 1 pc(s) Piece

Description

The Harmony XB5 series of plastic offers a range of 22mm complete devices such as push buttons, indicator lights and selector switches right up to the emergency stop switch. For this product, you can get detailed information on material content, environmental impact and recycling management to support your sustainability goals. The modular design of the devices also allows all components to be purchased as individual elements and, optionally, also for a 30mm installation. Due to the quality, flexibility and extreme robustness (protection classes up to IP69K) the devices Ideal are suitable for most applications in industry and in buildings. This emergency stop switch has 1 NC contacts. This emergency stop switch is unlocked by turning the knob. Mounted in a 22 mm hole the device is connected by push-in terminals at the rear side of the product. Due to the large number of available product standards and certifications, suitable for the international application
