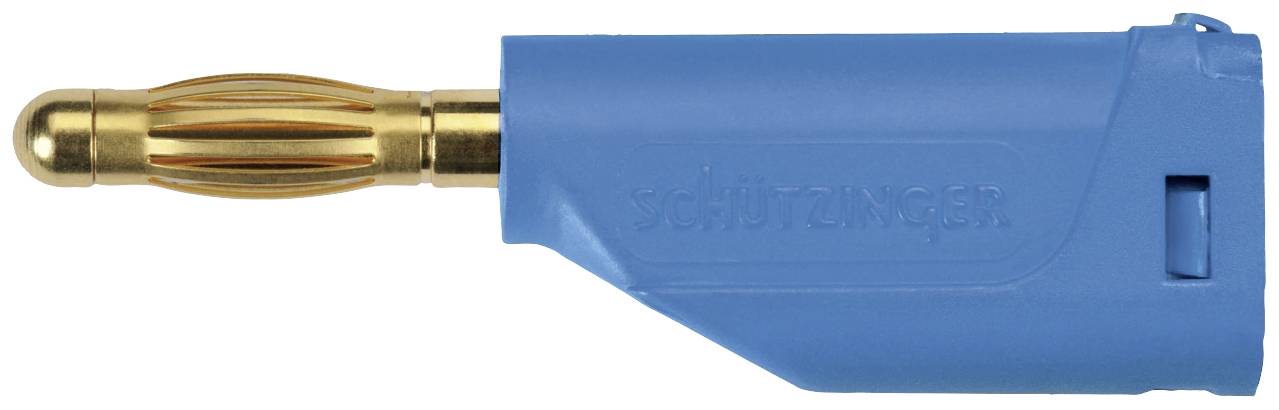

Schützinger Spring-loaded plug Plug Pin diameter: 4 mm Blue 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Spring-loaded plug
Connector type
Plug
Pin Ø
4 mm
Cross section (flexible) (min.)
1 mm²
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 5.45
5
6% = € 0.32
€ 5.13
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 5.45 / piece)
€ 5.45
plus VAT.
14-day return policy included
Highlights & Details
Spring basket plug DI FK 15 L Au / BL
- Blue
Technical specifications
- Design 4 mm-Program
- Contact parts: Gold-plated
- HANDLE SLEEVES PA6.6 (UL94-V2)
- Colour: Blue
- For cable cross-section: Up to 2.5 mm²
- For cable diameters: Up to 4 mm
- Connection: Soldering from 1 - 2.5 mm²
- Constant resistance 4) 2 mΩ
- RATED VOLTAGE2) 30 V/AC;60 V/DC
- Rated current2): Dependent on the cable cross-section
- Operating temperature from -25 °C to +75 °C
- Packaging type
Piece
- Product type
Spring-loaded plug
- Connector type
Plug
- Pin Ø
4 mm
- Cross section (flexible) (min.)
1 mm²
- Cross section (flexible) (max.)
2.5 mm²
- Connection
Soldering
- Factory colour
Blue
- Manufacturer part #
DI FK 15 L Au / BL
- Type
DI FK 15 L Au / BL
- Dim
(Ø) 4 mm
- Jack diameter
4 mm
- Content
1 pc(s)
- Insulation material
PA 6.6 UL94 - V2
- Contact material
Gold plated
- Nominal voltage
30 V AC
60 V DC
- (Ø)
4 mm
- Temperature range
From -25 °C to +75 °C
