Senseca ECO 410-35 Oxygen detector 0 - 100 % External sensor
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 197.47 / piece)
€ 197.47
plus VAT.
Only 9 Piece(s) available
Highlights & Details

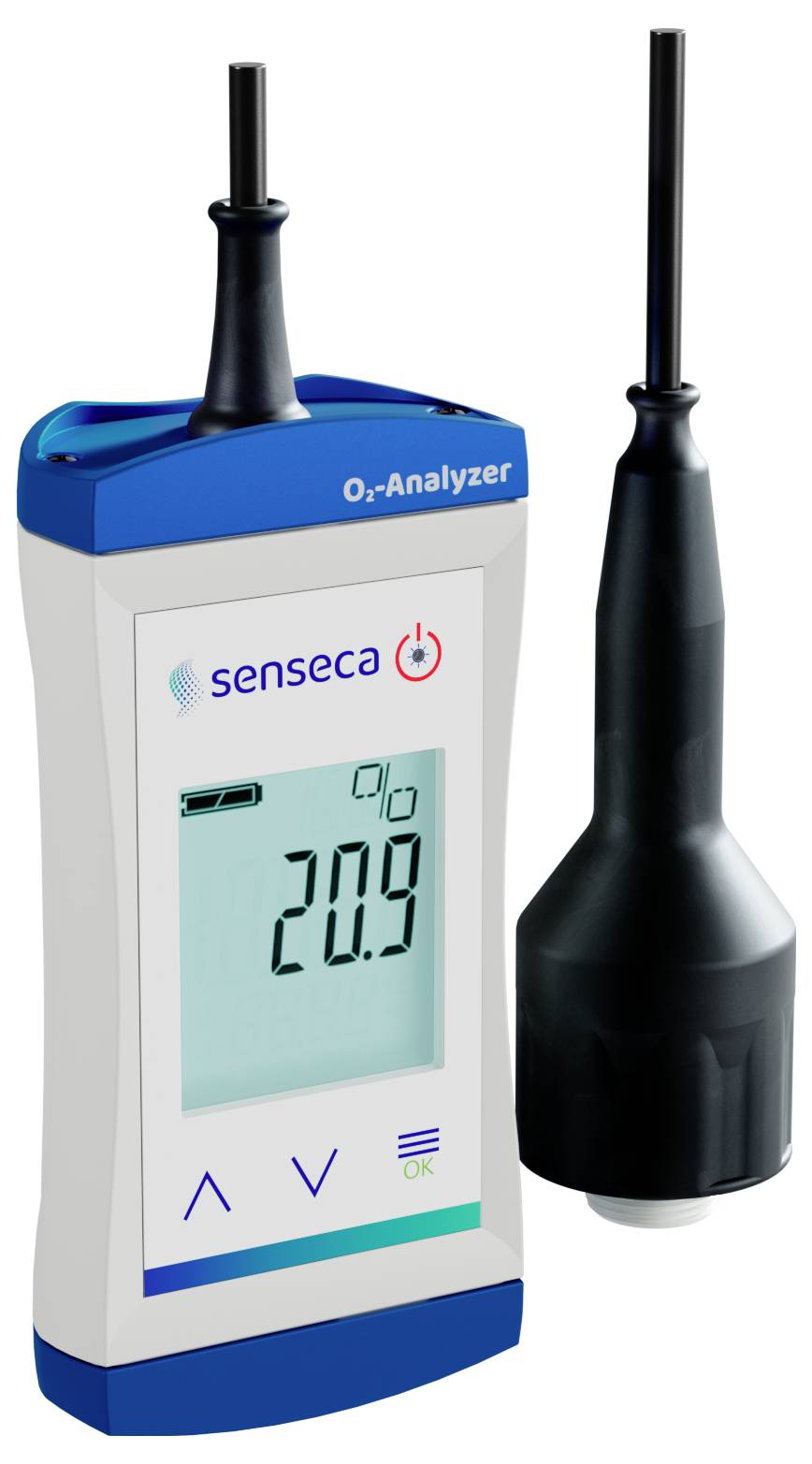

ECO 410-35 OCO2-Analyser / oxygen-measuring device
- Measurement range 0 to 100%
- Comfortable air balancing at the push of a button
- Waterproof, >3000 h battery life
Technical specifications
- Power consumption: Approx. 1 mA
- Battery life: More than 3000 h typical Continuous operation (without background lighting)
- Automatic switch-off
- Protection class sensor IP54
- Casing material: Unbreakable ABS, polyester (front panel)
- Product type
Oxygen detector
- Unit of measurement
Oxygen
- Reading range
0 - 100 %
- Dim
(L x W x H) 54 x 28 x 108 mm
- Features
External sensor
- Weight
175 g
- Cable length
0.95 m
- Reading range (max.)
100 %
- Reading range (min.)
0 %
- Width
28 mm
- Height
108 mm
- Length
54 mm
IP65/67
- Power supply (details)
2 x AA alkaline batteries
Documents & Downloads
Datasheet
Datasheet 3046621 Senseca ECO 410-35 Oxygen detector 0 - 100 % External sensor
User & Safety Instructions
User & Safety Instructions 3046621 Senseca ECO 410-35 Oxygen detector 0 - 100 % External sensor
Description

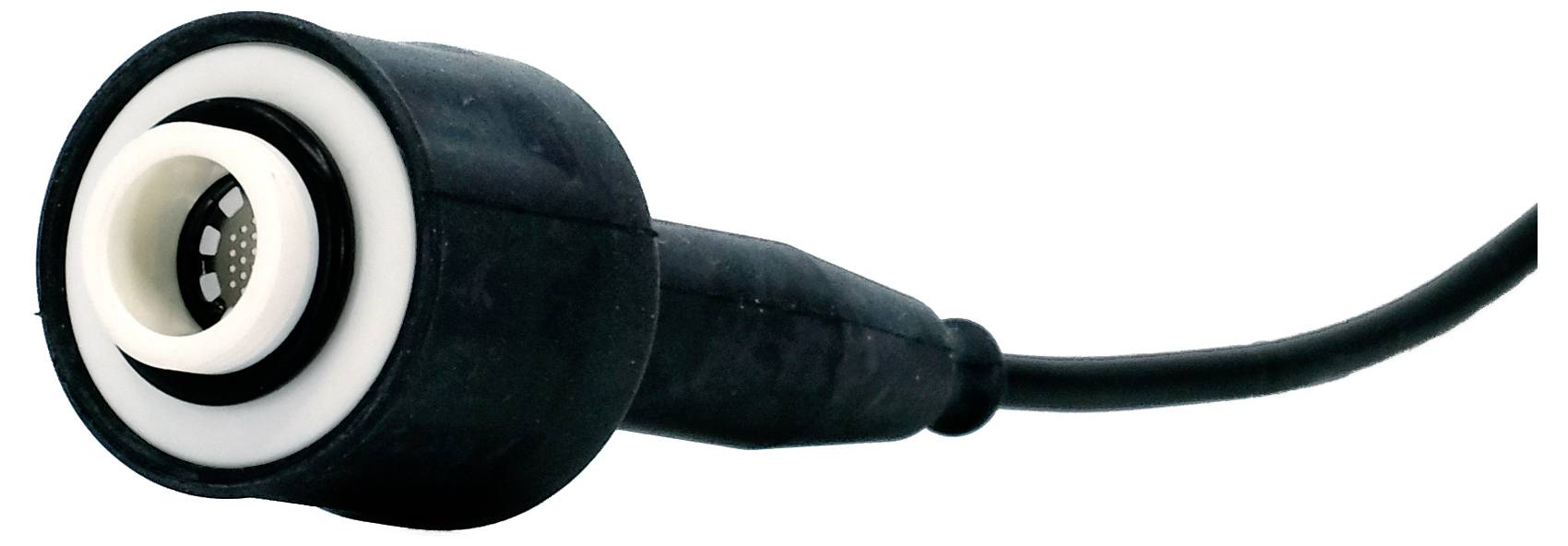

The ECO410 is deliberately focused on the essential functions of measurement technology for reliable measurement of the O2 concentration in gases. Essential for reliability and durability are the sensors used, GOEL 370 and GOEL 381, especially suitable for wet environments. The devices also impress through their ergonomics, water protection and display lighting. As a result, the ECO410 is a cost-effective and precise immersion gas meter, but is also a good value entry for many other oxygen measurements – for example, for inert gas measurements.
Display
The three-line LCD display provides ergonomic wide-angle visibility thanks to the backlight – during the day and at night. The HOLD function makes it possible to freeze the displayed values.
Power Supply
2 powerful AA-batteries, the power-saving design and the configurable automatic switch-off provide for a long operation. Configurable LCD-background lighting for other power saving possibilities.
Reading range
0.0 to 100.0 vol.% O Recommended for 0.2 to 35.0% vol-% Omega (out of reduced accuracy).
Application
Standard for diving gas with sport diving, protective gases with increased CO2 content and much more.
This text is machine translated.
Display
The three-line LCD display provides ergonomic wide-angle visibility thanks to the backlight – during the day and at night. The HOLD function makes it possible to freeze the displayed values.
Power Supply
2 powerful AA-batteries, the power-saving design and the configurable automatic switch-off provide for a long operation. Configurable LCD-background lighting for other power saving possibilities.
Reading range
0.0 to 100.0 vol.% O Recommended for 0.2 to 35.0% vol-% Omega (out of reduced accuracy).
Application
Standard for diving gas with sport diving, protective gases with increased CO2 content and much more.
This text is machine translated.
Features
- Modern and functional housing
- Water tight (IP65 / IP67)
- Comfortable air balancing at the push of a button
- Sports diving variant "T": With MOD calculation for Nitrox
- Long-lasting and maintenance-free sensor
- 3-line display / overhead display by pressing a button
- Backlight
- Robust, long battery life
- Hold-function for freezing the measured values
- Min/max function for minimum and maximum measured values
- Made in Germany
Scope of delivery
- Handheld meter with sensor (not at –GL)
- Flow-Diver ESA 369, T-piece ZOT 369
- 2x AA battery
- Operating instructions
