Name: Sensor/actuator terminal block DIKD 1,5 BU 2716101 Phoenix Contact
Brand: Phoenix Contact
SKU: 565138
Availability: InStock

All things technology
Delivery within Europe
Right to Cancel applies
Specialist retailer since 1923

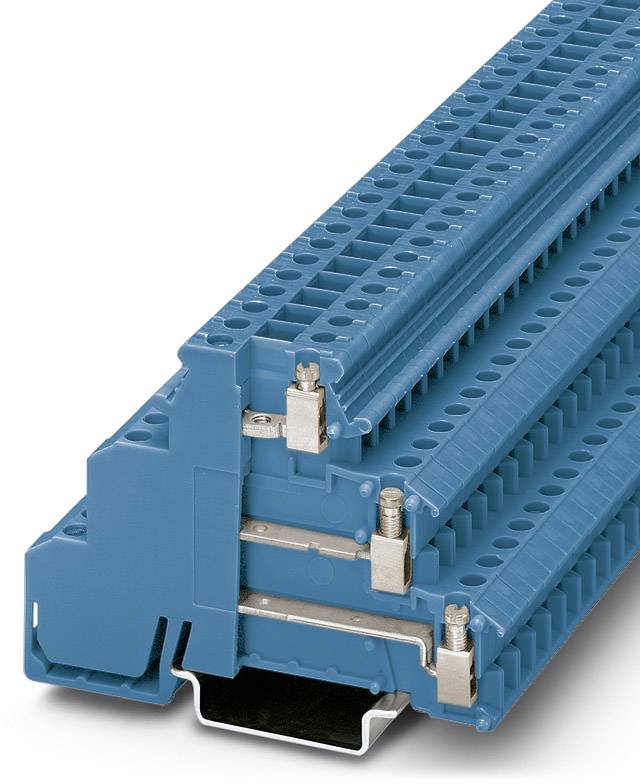

Blue terminal block with multiple connection points and metal clamps for electrical wiring, mounted on a metal rail.

Image similar

Packaging type

Piece

Product type

Proximity switch/actuator terminal

Connection

Screws

Cross section (flexible) (max.)

2.5 mm²

Cross section (inflexible) (max.)

4 mm²

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Fri 30 Oct

1 Set(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number (Package size 50 pc(s))

Set(s)

Total (€ 7.70 / piece)

€ 385.00

incl. VAT

Only 1 Set(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Sensor/actuator terminal block DIKD 1,5 BU

DIKD 1,5 BU

Technical specifications

Packaging type: Piece

Product type: Proximity switch/actuator terminal

Features: with screw connection

Connection: Screws

Cross section (flexible) (min.): 0.2 mm²

Cross section (flexible) (max.): 2.5 mm²

Cross section (inflexible) (min.): 0.2 mm²

Cross section (inflexible) (max.): 4 mm²

AWG (min.): 24

AWG max.: 12

Clamp width: 6.2 mm

No. of rows: 3

Pins per row: 2

Number of pins: 6

Factory colour: Blue

Nominal current: 24 A

Nominal current - rounded value: 24 A

Nominal voltage: 250 V

Stripping length (max.): 8 mm

Manufacturer part #: 2716101

Content: 50 pc(s)

Industrial packaging: Yes

Type: DIKD 1,5 BU

Dim: (L x W x H) 72.5 x 6.2 x 54.5 mm

Width: 6.2 mm

Height: 54.5 mm

Length: 72.5 mm

Contamination level: 3

Flammability rating: V2

Insulation material: PA

Insulation: PA

UKCA: yes

Variants(All information include VAT, plus shipping costs)

Content

Factory colour

Nominal current - rounded value

Sensor/actuator terminal block DIKD 1,5 BU 2716101 Phoenix Contact

Item no:565138

Dispatches on Fri 30 Oct

1 Set(s)Conrad Electronic

This article

50 pc(s)

Blue

24 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 385.00^*

Phoenix Contact 2715966 DIK 1,5 Three-level Initiator Terminal. Grey

Item no:743109

Available soon

Conrad Electronic

1 pc(s)

Grey

24 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 5.99^*

Phoenix Contact 2715979 DIKD 1,5 Three-level Feed-through Terminal Block Grey

Item no:743122

Fast track dispatch on Wed 28 Oct

104 Piece(s)Conrad Electronic

1 pc(s)

Grey

24 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 9.49^*

Sensor/actuator terminal block DIK 1,5-LA 24GN/O-M 2715762 Phoenix Contact

Item no:565132

Dispatches on Thu 19 Nov

Conrad Electronic

50 pc(s)

Grey

24 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 535.00^*

Sensor/actuator terminal block DIK 1,5-LA 24RD/O-M 2715856 Phoenix Contact

Item no:565134

Dispatches on Wed 25 Nov

Conrad Electronic

50 pc(s)

Grey

24 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 535.00^*

Sensor/actuator terminal block DIKD 1,5-2D 2716512 Phoenix Contact

Item no:565144

Dispatches on Thu 19 Nov

Conrad Electronic

50 pc(s)

Grey

24 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 355.00^*

Sensor/actuator terminal block DIKD 1,5-LA 24GN/O-M 2716376 Phoenix Contact

Item no:565142

Dispatches on Wed 25 Nov

Conrad Electronic

50 pc(s)

Grey

24 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 605.00^*

Sensor/actuator terminal block DIKD 1,5-LA 24RD/O-M 2715814 Phoenix Contact

Item no:565133

Dispatches on Wed 25 Nov

Conrad Electronic

50 pc(s)

Grey

24 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 605.00^*

Sensor/actuator terminal block DIKD 1,5-LA 24RD/U-O 2716279 Phoenix Contact

Item no:565140

Dispatches on Wed 25 Nov

Conrad Electronic

50 pc(s)

Grey

24 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 605.00^*

Sensor/actuator terminal block DIKD 1,5-PV 2715092 Phoenix Contact

Item no:565128

Dispatches on Fri 30 Oct

17 Set(s)Conrad Electronic

50 pc(s)

Grey

24 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 589.00^*

Documents & Downloads

Datasheet

Datasheet 565138 Sensor/actuator terminal block DIKD 1,5 BU 2716101 Phoenix Contact

User & Safety Instructions

User & Safety Instructions 565138 Sensor/actuator terminal block DIKD 1,5 BU 2716101 Phoenix Contact

Description

Sensor/actuator terminal block, Cross section: 0.2 mm² - 4 mm², AWG: 24 - 12, Connection type: Screw connection, Width: 6.2 mm, Color: blue, Mounting type: NS 35/7,5, NS 35/15

Description

Sensor/actuator terminal block, Cross section: 0.2 mm² - 4 mm², AWG: 24 - 12, Connection type: Screw connection, Width: 6.2 mm, Color: blue, Mounting type: NS 35/7,5, NS 35/15
