Shelly Pro 3EM 120A v2 Shelly Electricity meter Wi-Fi, Bluetooth
EAN:
Part number:
Item no:
Number
Total (€ 130.24 / piece)
€ 130.24
plus VAT.
Only 10 Piece(s) available
Highlights & Details
Shelly DIN rail "Pro 3EM 120A v2" electricity meter incl. 3x 120A clamps measuring function WLAN LAN BT
- Can measure up to 120 A for each phase and the neutral conductor
- 4-quadrant measurement with several connection types
- Accuracy of class B active energy (conformity to IEC 62053-21 based on manufacturer tests)
- Ready for photovoltaic
- Phase sequence error detection (option)
- Optical pulse display of energy consumption
- Measuring accuracy up to 1%
- Stores data in non-volatile memory that can be retrieved in 1 minute intervals for up to 60 days

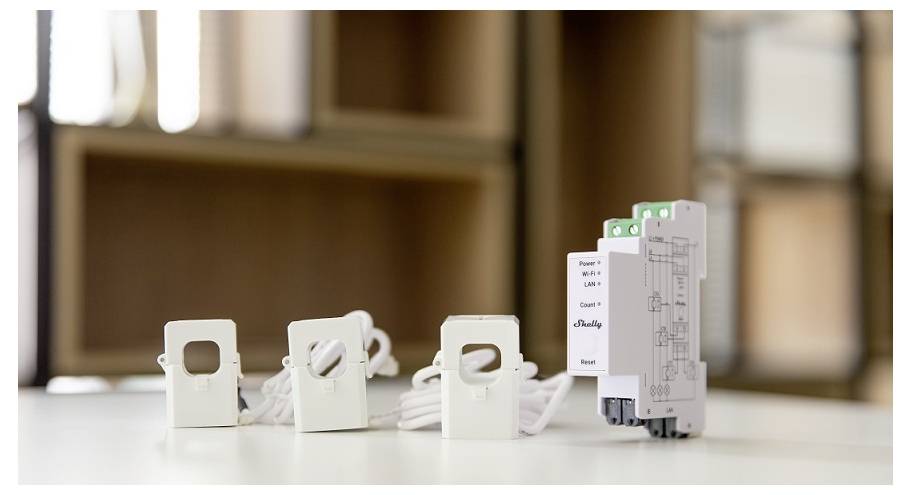

- The package contains three 120 A current transformers
Technical specifications
- Wi-Fi 802.11 b/g/n protocol
- Bluetooth protocol: 4.2
- Product type
Electricity meter
- Series
Shelly
Alexa
Google Home
- Transfer Standard (Smart Home)
Wi-Fi
Bluetooth
- Used at
Indoors
- Data transfer (Smart Home)
Wireless
- Frequency
2.4 GHz
50 m
- Mounting type
DIN rail
- Factory colour
White
- Width
19 mm
- Height
94 mm
- Depth
69 mm
- Weight
62 g
n.rel.
- Dim
(W x H x D) 19 x 94 x 69 mm
- Hub
Not required
- Features
Test function
- Screen size diagonal (inches)
1 inch
- Keyboard layout
None (PC-controlled)
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3775840 Shelly Pro 3EM 120A v2 Shelly Electricity meter Wi-Fi, Bluetooth
Description

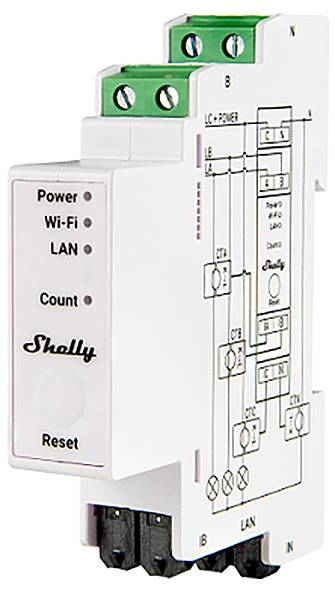

The Shelly Pro 3EM is a WLAN-operated, DIN-mounted 3-phase power consumption meter with WLAN, Bluetooth and LAN-connectivity.
Next generation 3-phase power consumption meter
The Shelly Pro 3EM is a 3-phase current measuring device designed for DIN mounting. Fitted with the flexible Gen 2 firmware and LAN connectivity, it offers professional integrators expanded capabilities for customized end-user solutions. The Shelly Pro 3EM shows the accumulated energy in real time as well as current values for voltage, current and power factor for each phase.
Industry standard safety
The Shelly Pro 3EM supports MTLS for MQTT, HTTP and secure outbound Web connections. This advanced security feature connects directly to your cloud infrastructure and reduces the need for complex networks and VPNs, reducing costs.
Industrial applications
The Shelly Pro 3EM offers comprehensive support for MODBUS for measuring voltage, current, power and energy. With this you can precisely monitor your power consumption as well as real-time values of voltage, current and power.
Monitoring and control of renewable energy sources
Keep an eye on the performance of your solar systems or wind turbines and optimize your energy savings. The Shelly Pro 3EM provides real-time data on the efficiency of your solar and wind power systems.
This text is machine translated.
Next generation 3-phase power consumption meter
The Shelly Pro 3EM is a 3-phase current measuring device designed for DIN mounting. Fitted with the flexible Gen 2 firmware and LAN connectivity, it offers professional integrators expanded capabilities for customized end-user solutions. The Shelly Pro 3EM shows the accumulated energy in real time as well as current values for voltage, current and power factor for each phase.
Industry standard safety
The Shelly Pro 3EM supports MTLS for MQTT, HTTP and secure outbound Web connections. This advanced security feature connects directly to your cloud infrastructure and reduces the need for complex networks and VPNs, reducing costs.
Industrial applications
The Shelly Pro 3EM offers comprehensive support for MODBUS for measuring voltage, current, power and energy. With this you can precisely monitor your power consumption as well as real-time values of voltage, current and power.
Monitoring and control of renewable energy sources
Keep an eye on the performance of your solar systems or wind turbines and optimize your energy savings. The Shelly Pro 3EM provides real-time data on the efficiency of your solar and wind power systems.
This text is machine translated.
Features
- 4-quadrant measurement
- Accuracy class B (active energy): Accuracy 1%
- MODBUS support
- Power supply monitoring
- Scripting features
Scope of delivery
- 1 x relays
- 3 x 120 A terminals
System requirements
- Wi-Fi, iOS, Android, HUAWEI, MQTT
