Siemens 3RM1301-3AA04 3RM13013AA04 Reversing starter Motor power at 400 V 0.12 kW 24 V DC Nominal current 0.5 A
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 205.87 / piece)
€ 205.87
plus VAT.
Highlights & Details
Failsafe reversing starter, 0.1-0.5 A, 24 V DC, screw/spring-type terminals
- Multi-functionality: direct and reversing starters, overload protection, safety switch-off
- Durable and energy-efficient hybrid switching technology
- Small Device variance with wide setting range
Technical specifications
- Protection class IP20; Mechanical life: 3000 0000
- Product type
Reversing starter
- Motor power at 400 V
0.12 kW
- Operating voltage
48 V-550 V
- Nominal voltage
24 V DC
- Type
With electronic overload protection and safety directed off
- Manufacturer part #
3RM13013AA04
- Nominal current
0.5 A
- Nominal current - rounded value
500 mA
- Type
3RM1301-3AA04

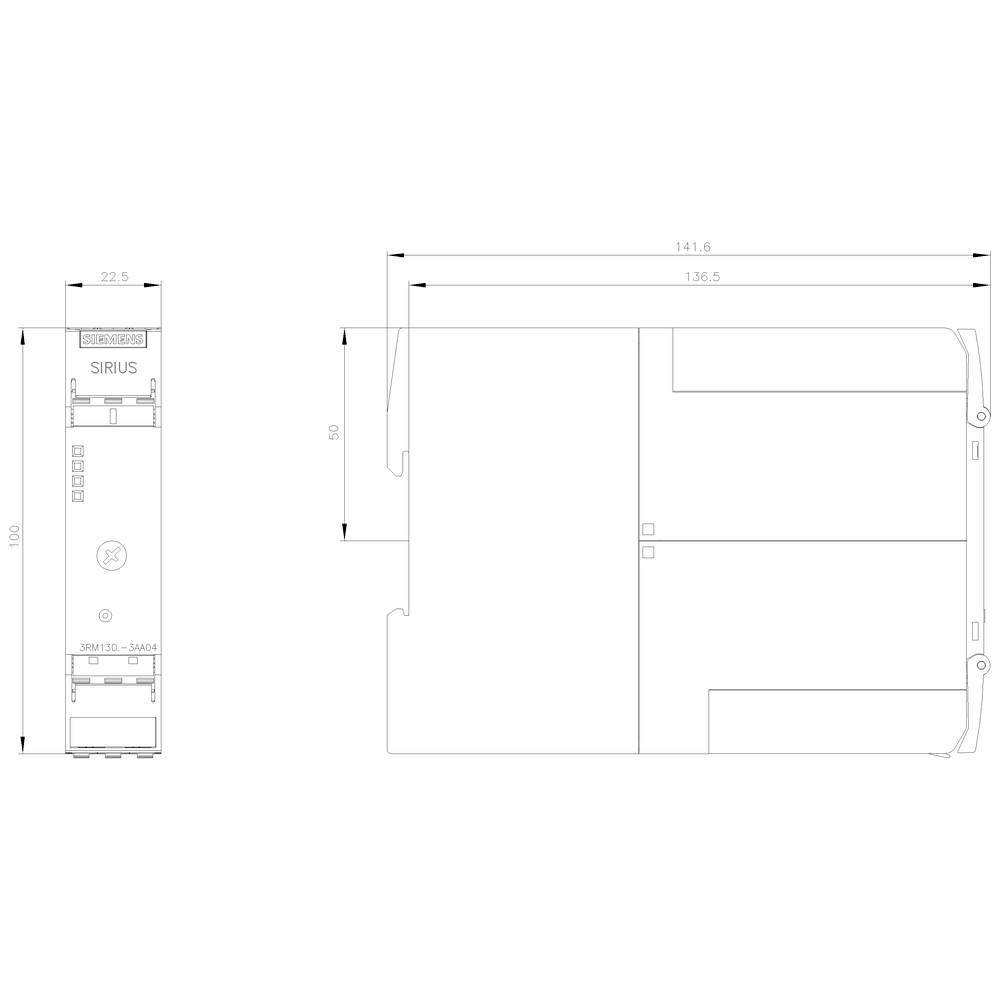

- Dim
(L x W x H) 141.6 x 22.5 x 100 mm
- Width
22.5 mm
- Height
100 mm
- Length
141.6 mm
- Depth
141.6 mm
- Max. temperature
60 °C
- Min. temperature
-25 °C
22.5
100 mm
141.6 mm
FALSE
0.12 kW
0
1
1
FALSE
0.5 A
4
0.5-0.5 A
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
TRUE
24-24 V
IP20
FALSE
FALSE
CLASS 10 A
FALSE
FALSE
Screw connection
Other
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
DC
Other
0.06 kW
0.5 A
60 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1419946 Siemens 3RM1301-3AA04 3RM13013AA04 Reversing starter Motor power at 400 V 0.12 kW 24 V DC Nominal current 0.5 A
User & Safety Instructions
User & Safety Instructions 1419946 Siemens 3RM1301-3AA04 3RM13013AA04 Reversing starter Motor power at 400 V 0.12 kW 24 V DC Nominal current 0.5 A
Description

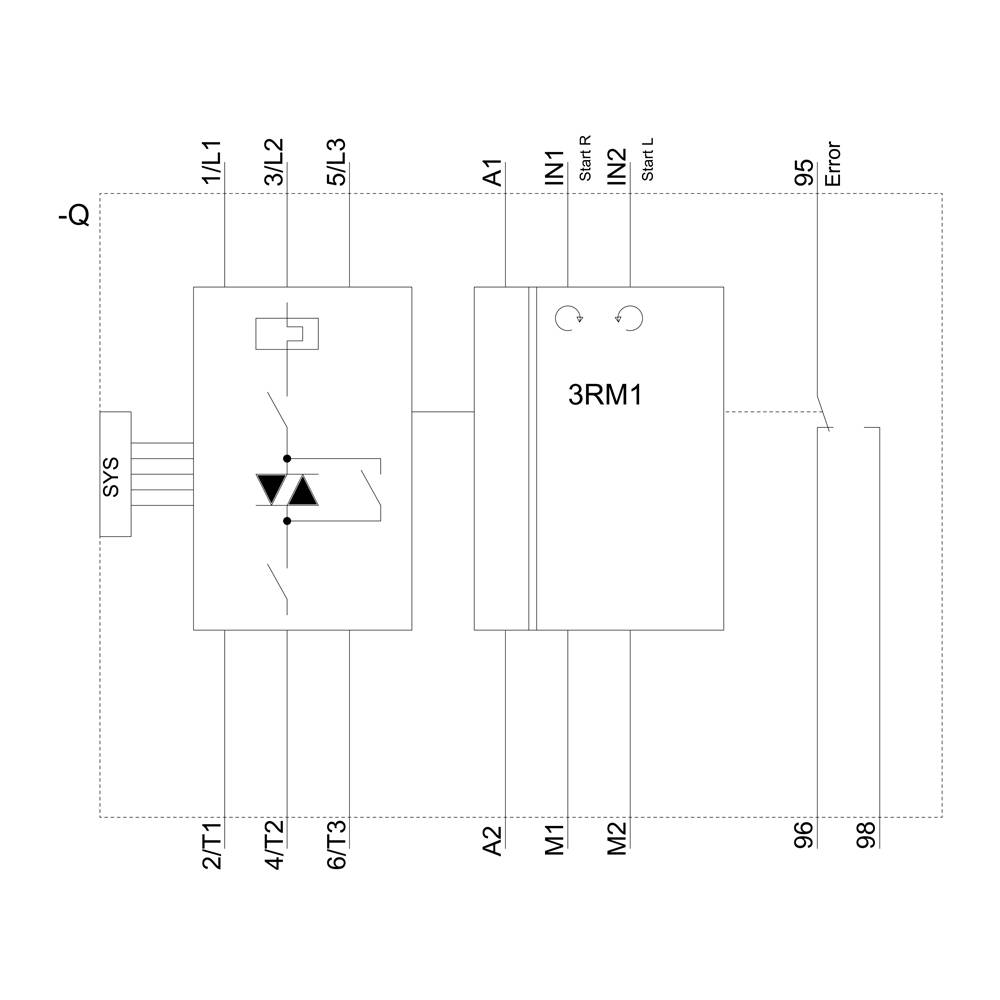

Failsafe reversing starter, 3RM1, 500 V, 0 - 0.12 kW, 0.1 - 0.5 A, 24 V DC, screw/spring-type connection SIRIUS 3RM1 failsafe reversing starter for operational switching of three-phase motors.

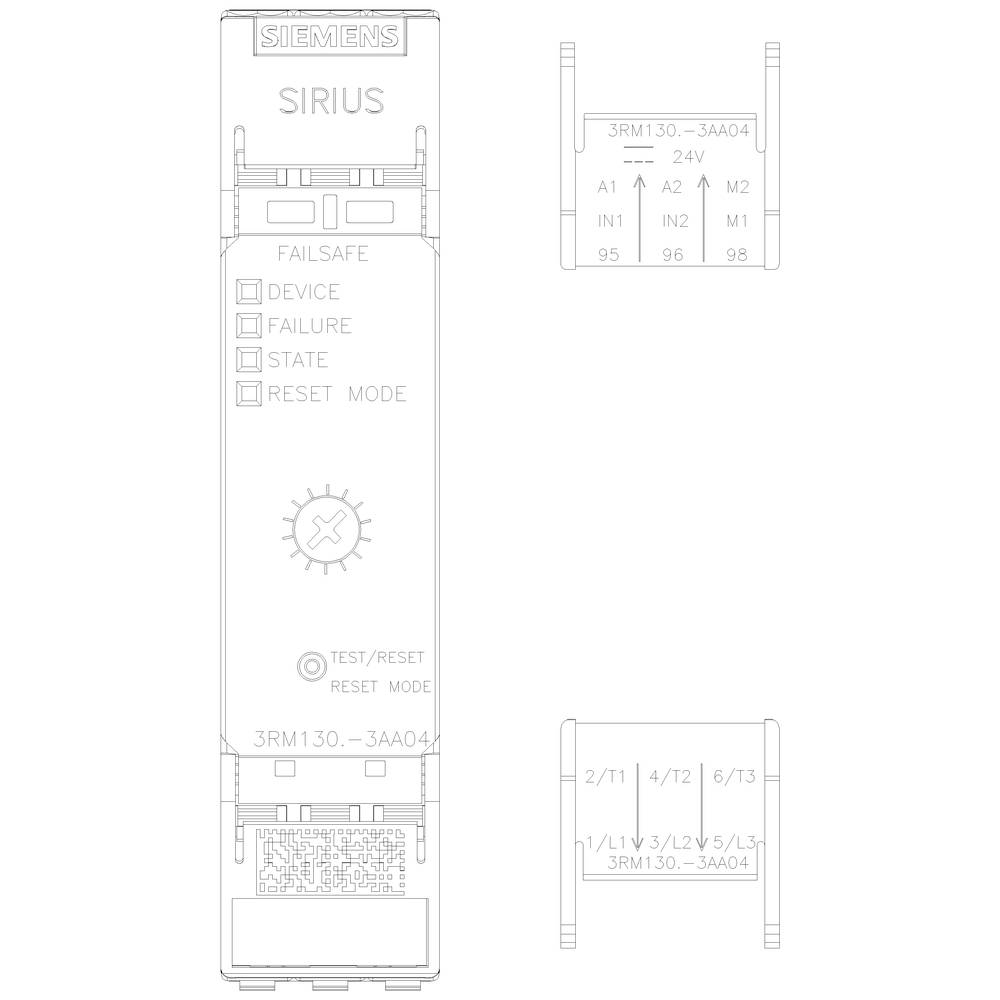

Narrow width, multifunctional, with electronic overload protection, long-lasting and energy-efficient hybrid switching technology, low device variance through wide adjustment range, easy mounting through lower wiring expenditure, fast error diagnosis through LED-display, innovative housing concept e.g. with labeled cover flaps and removable connection clamps.
Available as direct or reversing starters with either ATEX certification and safety-related shutdown, with various motor current ranges, supply voltage types and connection techniques.

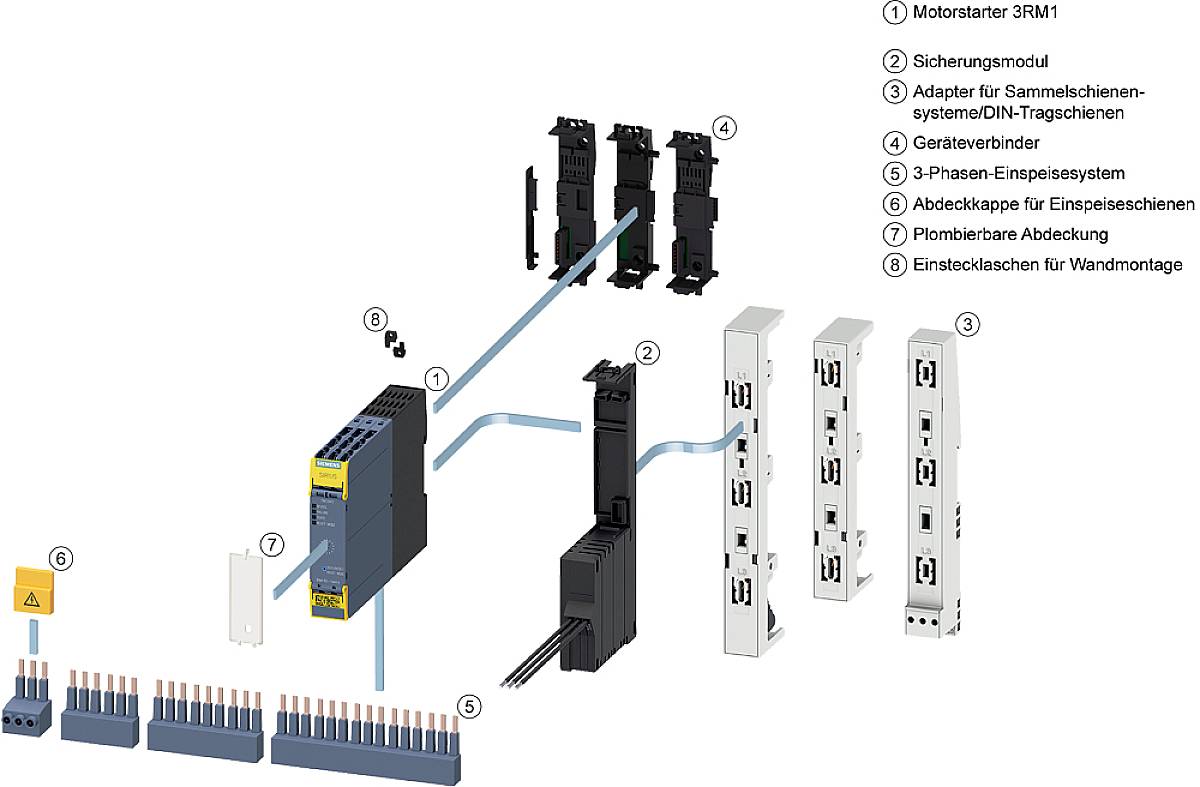

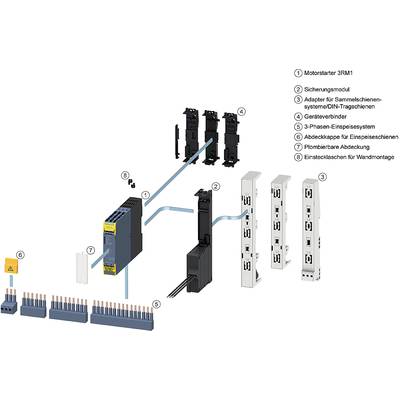

Extensive accessories such as device connectors, fuse module, infeed system or sealable covers round off the system.
Starting in confined spaces - SIRIUS 3RM1 motor starters.
