Name: Siemens 3RT1056-6AB36 Electrical contactor 3 makers 90 kW 1000 V AC Compatible with (relay brand): Siemens 1 pc(s)
Brand: Siemens
SKU: 1744922
Availability: BackOrder

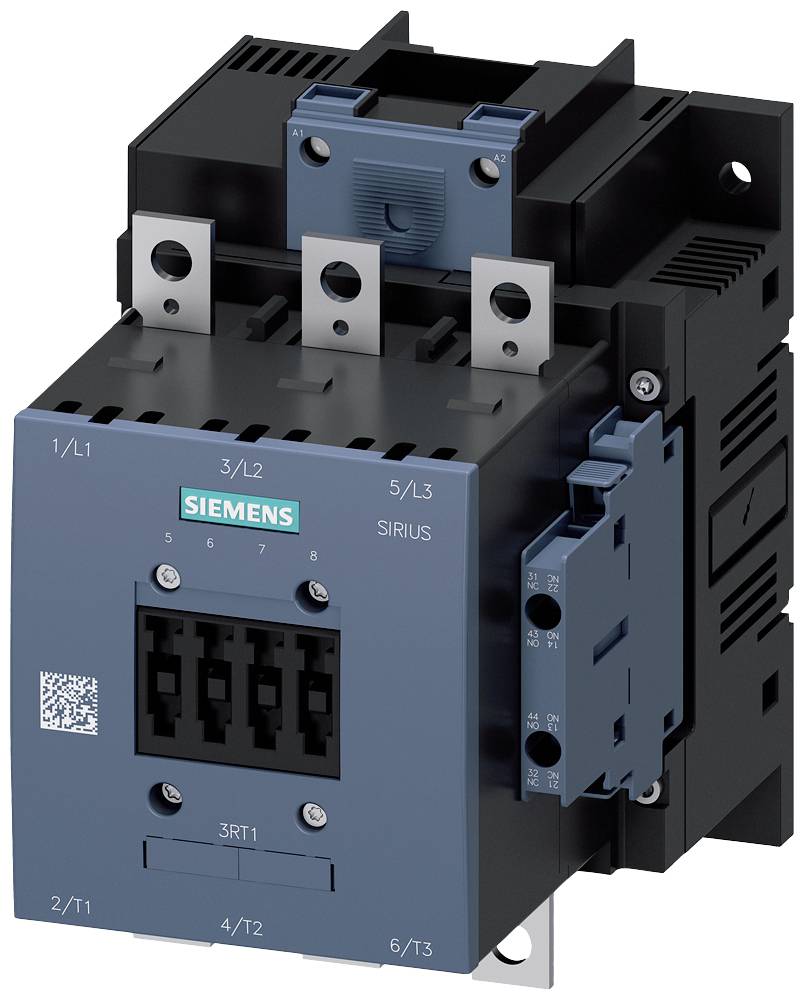

A blue Siemens contactor for industrial applications with open electrical contacts and serial number on the front.

Electrical panel with exposed circuits; it's raining outside. Technology in the foreground, rain on the window pane in the background.

The image shows an air defence system with accessories: electronic delay, cable connection, terminal cover, and auxiliary switch modules.

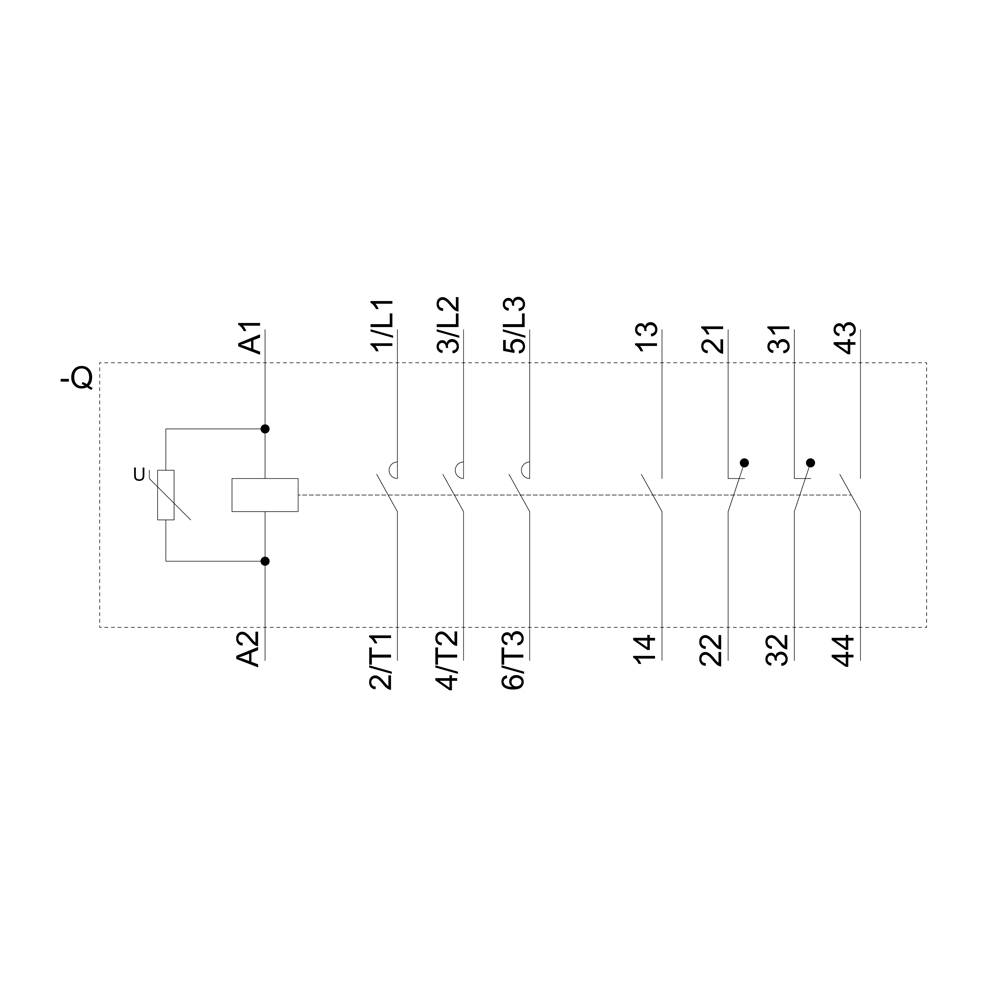

Relay Circuit Diagram with Connections: A1, A2, 1L1, 3L2, 5L3, 1/T1, 4/T2, 6/T3, 13, 14, 21, 22, 31, 32, 43, 44.

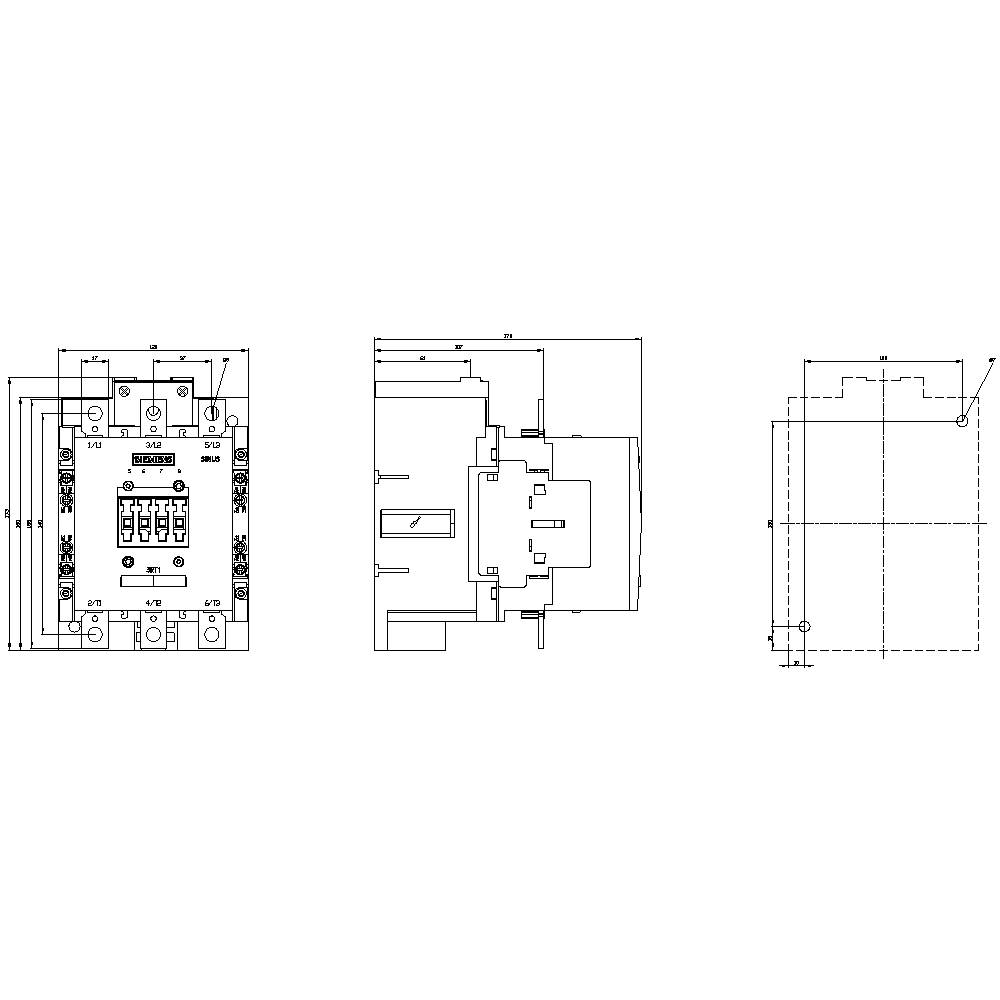

Technical drawing of a contactor. Shows front, side, and top views with dimensions and electrical connections.

1/5

Image similar

Product type

Electrical contactor

No. of pins

3-pin

Nominal voltage

1000 V AC

Power

90 kW

Connection

Terminal strip

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Tue 10 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 1,185.00 / piece)

€ 1,185.00

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Type of voltage, AC/DC
Conductor cross-section single or multi-strand: 120 mm²

Product type: Electrical contactor

Type: 3RT1056-6AB36

Type: S6

No. of pins: 3-pin

Contact type: 3 makers

Nominal voltage: 1000 V AC

Control voltage (min.): 23 V DC

Control voltage (max.): 26 V DC

Control voltage range: 23 - 26 V DC

Switching voltage (max.): 1000 V AC

Permanent current (max.): 185 A

: 90 kW

Compatible with: Siemens

Compatible with series: Siemens Sirius series

Mounting type: Screw-fit

Connection: Terminal strip

Durability: 1000 0000

: IP00

Min. temperature: -25 °C

Max. temperature: +60 °C

Width: 120 mm

Height: 172 mm

Depth: 170 mm

Dim: (W x H x D) 120 x 172 x 170 mm

Content: 1 pc(s)

RoHS-compliant: Yes

: TRUE

: 90 kW

: 3

: 2

: 2

: 185 A

: 215 A

: 23-26 V

: 23-26 V

: 23-26 V

: Rail connection

: AC/DC

: 160 A

: 90 kW

: 110.325

UKCA: yes

Variants(All information include VAT, plus shipping costs)

Power

Siemens 3RT1054-1AB36 Electrical contactor 3 makers 55 kW 1000 V AC + auxiliary contact Compatible with (relay brand): Siemens 1 pc(s)

Item no:1747305

Dispatches on Tue 10 Nov

Conrad Electronic

55 kW

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 825.00^*

Siemens 3RT1054-1AD36 Electrical contactor 3 makers 55 kW 1000 V AC + auxiliary contact Compatible with (relay brand): Siemens 1 pc(s)

Item no:1747306

Dispatches on Fri 20 Nov

Conrad Electronic

55 kW

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 769.00^*

Siemens 3RT1054-1AM36 Electrical contactor 3 makers 55 kW 1000 V AC + auxiliary contact Compatible with (relay brand): Siemens 1 pc(s)

Item no:1747308

Dispatches on Fri 20 Nov

Conrad Electronic

55 kW

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 769.00^*

Siemens 3RT1054-1AP30 Electrical contactor 3 makers 1000 V AC Compatible with (relay brand): Siemens 1 pc(s)

Item no:1747309

Dispatches on Tue 17 Nov

Conrad Electronic

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 769.00^*

Siemens 3RT1054-1AP36-3PA0 Electrical contactor 3 makers 55 kW 1000 V AC + auxiliary contact Piece 1 pc(s)

Item no:1684580

Dispatches on Thu 5 Nov

53 Piece(s)Conrad Electronic

55 kW

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 805.00^*

Siemens 3RT1054-1AR36 Electrical contactor 3 makers 55 kW 1000 V AC + broad range setup Compatible with (relay brand): Siemens 1 pc(s)

Item no:1699216

Dispatches on Thu 12 Nov

Conrad Electronic

55 kW

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 769.00^*

Siemens 3RT1054-1AS36 Electrical contactor 3 makers 55 kW 1000 V AC + auxiliary contact Compatible with (relay brand): Siemens 1 pc(s)

Item no:1747311

Dispatches on Thu 5 Nov

22 Piece(s)Conrad Electronic

55 kW

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 769.00^*

Siemens 3RT1054-1AT36 Electrical contactor 3 makers 55 kW 1000 V AC + auxiliary contact Compatible with (relay brand): Siemens Piece 1 pc(s)

Item no:1750316

Dispatches on Fri 20 Nov

Conrad Electronic

55 kW

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 769.00^*

Siemens 3RT1054-1AU36 Electrical contactor 3 makers 1000 V AC + auxiliary contact Compatible with (relay brand): Siemens 1 pc(s)

Item no:1701888

Dispatches on Fri 20 Nov

Conrad Electronic

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 769.00^*

Siemens 3RT1054-1AV36 Electrical contactor 3 makers 55 kW 1000 V AC Compatible with (relay brand): Siemens 1 pc(s)

Item no:1747312

Dispatches on Fri 27 Nov

Conrad Electronic

55 kW

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 769.00^*

Documents & Downloads

Datasheet

Datasheet 1744922 Siemens 3RT1056-6AB36 Electrical contactor 3 makers 90 kW 1000 V AC Compatible with (relay brand): Siemens 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1744922 Siemens 3RT1056-6AB36 Electrical contactor 3 makers 90 kW 1000 V AC Compatible with (relay brand): Siemens 1 pc(s)

Description

Power contactor, AC-3 185 A, 90 kW / 400 V AC (50-60 Hz) / DC operation 96-127 V UC Auxiliary contacts 2 NO + 2 NC 3-pole, Size S6 Busbar connections Drive: electronic with PLC interface 24 V DC screw terminal
