Siemens 3TH4271-0AP0 Auxiliary contactor Compatible with (relay brand): Siemens 1 pc(s)

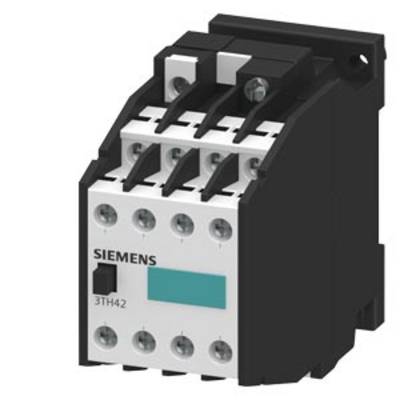

A black Siemens contactor 3TH42 with six protruding terminals on the front, used in electrical switchgear.
'Industrial electrical cabinet with electrical components and wiring, opened door, showing internal device structure.'

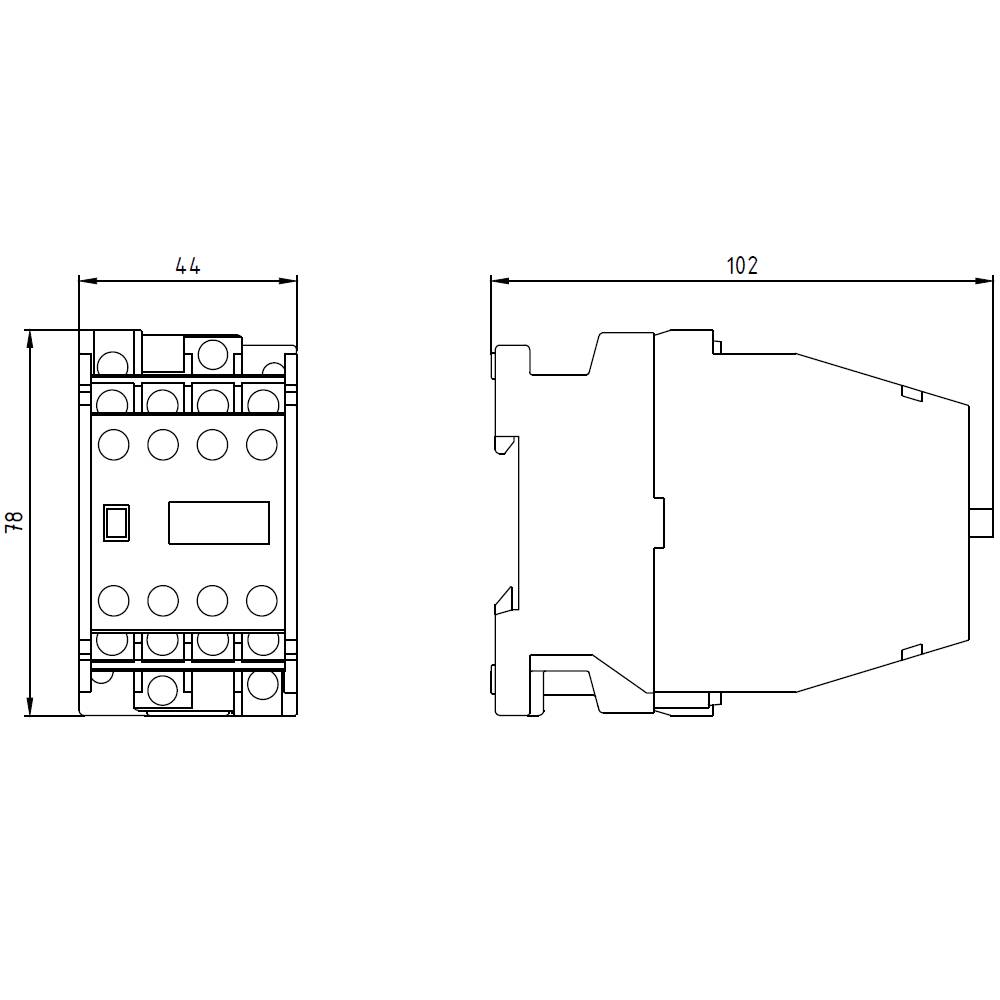

Technical drawing of an electronic component with dimensions: width 44 mm, height 78 mm, depth 102 mm. Front and side view.
1/3
Image similar
Product type
Auxiliary contactor
No. of pins
8-pin
Type
3TH4271-0AP0
Auxiliary contact type
1 breaker
7 makers
Control voltage (min.)
230 V AC
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Thu 19 Nov
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 95.99 / piece)
€ 95.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

  • Type of voltage: AC
Product type

Auxiliary contactor

Type

3TH4271-0AP0

No. of pins

8-pin

Auxiliary contact type

1 breaker

7 makers

Control voltage (min.)

230 V AC

Control voltage (max.)

277 V AC

Control voltage range

230 - 277 V AC

Compatible with

Siemens

Mounting type

Snap-in

Screw-fit

IP20

Min. temperature

-25 °C

Max. temperature

+55 °C

Width

45 mm

Height

78 mm

Depth

102 mm

Dim

(W x H x D) 45 x 78 x 102 mm

Content

1 pc(s)

RoHS-compliant

Yes

7

1

6 A

0

230-230 V

277-277 V

FALSE

Screw connection

0

0

AC

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 1730822 Siemens 3TH4271-0AP0 Auxiliary contactor Compatible with (relay brand): Siemens 1 pc(s)

Datasheet 1730822 Siemens 3TH4271-0AP0 Auxiliary contactor Compatible with (relay brand): Siemens 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1730822 Siemens 3TH4271-0AP0 Auxiliary contactor Compatible with (relay brand): Siemens 1 pc(s)

Description

Contactor relay, 71E, DIN EN 50011, 7 NO + 1 NC, screw terminal AC operation 230 V AC 50 Hz, 277 V 60 Hz
