Name: Siemens 5SV36126KL 5SV3612-6KL RCCB A 2-pin 25 A 0.3 A 230 V
Brand: Siemens
SKU: 1418977
Availability: BackOrder

A two-pole Siemens residual current circuit breaker with test button, neutral and live connections, rated current of 500A, mountable in distribution boards.

Hydraulic Circuit Diagram: Two-Way Valve with Symbols for Pump (-Q), Cylinder (H1), and Connections N1, N2. Arrows Indicate Flow Direction.

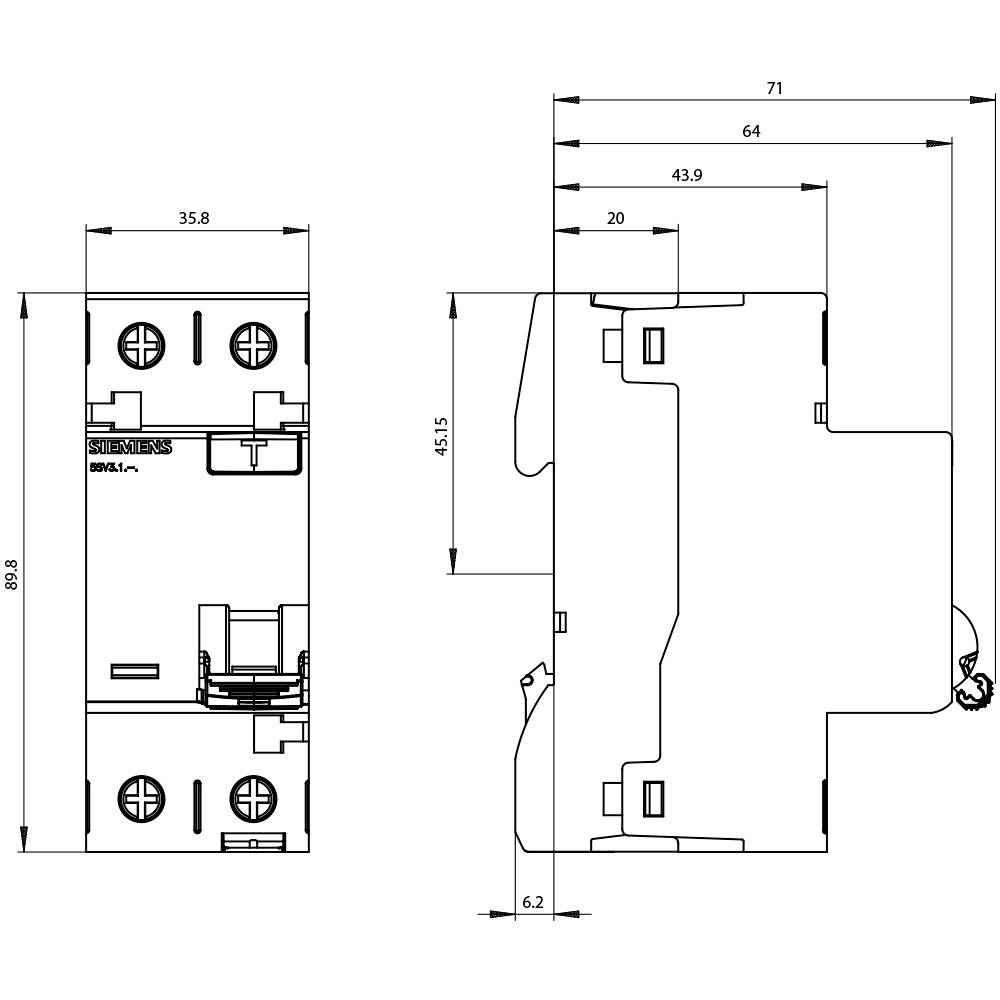

Technical drawing of an electrical switch: Dimensions are given in millimetres. Width 35.8 mm, height 89.8 mm, depth 71 mm.

1/3

Product type

RCCB

Number of pins

Release characteristics

Differential current rating

0.3 A

Nominal current - rounded value

25 A

Datasheet (PDF)

Dispatches on Thu 22 Oct

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 77.99 / piece)

€ 77.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Mechanical life (Cycles): 10000
IP20, for distributor installation, with the connected conductors

Product type: RCCB

Number of pins: 2

Release characteristics: A

Differential current rating: 0.3 A

Nominal current: 25 A

Nominal current - rounded value: 25 A

Dim: (W x H x D) 36 x 90 x 70 mm

Switch-off capacity: 0.5 kA

Content: 1 pc(s)

Nominal voltage: 230 V

Width: 36 mm

Height: 90 mm

Depth: 70 mm

RoHS-compliant: Yes

: DIN rail

: AC

: 70 mm

: 25 A

: 230 V

: 2000 V

: 2

: 0.3 A

: A

: FALSE

: 10 kA

: 1 kA

: 2

: 2

: FALSE

: 7035

: 0.6 W

: 50 Hz

: IP20

: TRUE

: TRUE

: 6

UKCA: not relevant

Variants(All information include VAT, plus shipping costs)

Nominal current - rounded value

Differential current rating

Siemens 5SV31116 5SV3111-6 RCCB A 2-pin 16 A 0.01 A 230 V

Item no:1419236

Fast track dispatch on Wed 14 Oct

4 Piece(s)Conrad Electronic

16 A

0.01 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 95.99^*

Siemens 5SV31116KL 5SV3111-6KL RCCB A 2-pin 16 A 0.01 A 230 V

Item no:1419237

Dispatches on Thu 22 Oct

Conrad Electronic

16 A

0.01 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 104.99^*

Siemens 5SV33116 5SV33116 RCCB A 2-pin 16 A 0.03 A 230 V

Item no:1419238

Fast track dispatch on Wed 14 Oct

4 Piece(s)Conrad Electronic

16 A

0.03 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 47.99^*

Siemens 5SV33116KL 5SV3311-6KL RCCB A 2-pin 16 A 0.03 A 230 V

Item no:1419239

Dispatches on Thu 22 Oct

Conrad Electronic

16 A

0.03 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 99.99^*

Siemens 5SV33126 5SV3312-6 RCCB A 2-pin 25 A 0.03 A 230 V

Item no:1419240

Fast track dispatch on Wed 14 Oct

24 Piece(s)Conrad Electronic

25 A

0.03 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 31.99^*

Siemens 5SV33126KK01 5SV3312-6KK01 RCCB A 2-pin 25 A 0.03 A 230 V

Item no:1419241

Dispatches on Thu 22 Oct

Conrad Electronic

25 A

0.03 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 109.99^*

Siemens 5SV33126KK12 5SV3312-6KK12 RCCB A 2-pin 25 A 0.03 A 230 V

Item no:1419242

Fast track dispatch on Wed 14 Oct

6 Piece(s)Conrad Electronic

25 A

0.03 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 63.99^*

Siemens 5SV33126KL 5SV3312-6KL RCCB A 2-pin 25 A 0.03 A 230 V

Item no:1419243

Fast track dispatch on Wed 14 Oct

7 Piece(s)Conrad Electronic

25 A

0.03 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 32.99^*

Siemens 5SV33146 5SV3314-6 RCCB A 2-pin 40 A 0.03 A 230 V

Item no:1419244

Fast track dispatch on Wed 14 Oct

44 Piece(s)Conrad Electronic

40 A

0.03 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 30.99^*

Siemens 5SV33146KK01 5SV3314-6KK01 RCCB A 2-pin 40 A 0.03 A 230 V

Item no:1419245

Dispatches on Thu 22 Oct

Conrad Electronic

40 A

0.03 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 119.99^*

Documents & Downloads

Datasheet

Datasheet 1418977 Siemens 5SV36126KL 5SV3612-6KL RCCB A 2-pin 25 A 0.3 A 230 V

User & Safety Instructions

User & Safety Instructions 1418977 Siemens 5SV36126KL 5SV3612-6KL RCCB A 2-pin 25 A 0.3 A 230 V

Description

GROUND fault circuit breaker, 2-pole, type A, in 25 A, 300 mA, UN AC: 230 V, N-left the FI switch is the residual current protection device for touch protection The patented residual current protection devices from Siemens are an important component of the SENTRON protective components for electrical installation, because they prevent life-threatening electric shocks by safely switching off dangerous fault currents against earth. Electrically ignited fires can be prevented even in the . Whether by direct contact with live parts during operation or by indirect contact with equipment, the protection is achieved primarily by rapid shutdown. The Siemens 5SV FI circuit breakers are characterized above all by: 1. Comprehensive protection for persons and property against electric shock. 2. Whether sinusoidal AC fault currents or smooth DC fault currents, Siemens offers the right type and special versions for all requirements. 3. Reliable safety during installation thanks to the standard included comprehensive and touch protection. 4. Tool-free release from the DIN rail or from the busbar network by means of convenient slide-manual operation. 5. Datamatrix code on the front of the device offers all information about the FI-circuit breaker quickly and easily. 6. Be protected according to standards: The residual current circuit breakers comply with the DIN VDE regulations. 7. Optimum technology for your safety - only from Siemens.

This text is machine translated.
