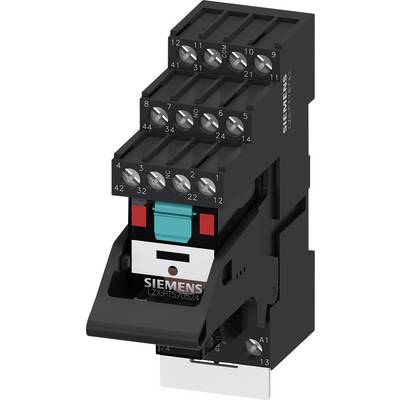

Siemens LZS:PT5B5T30 Plug-in relay 4 change-overs 5 pc(s)
EAN:
Part number:
Item no:
Product type
Plug-in relay
Contact type
4 change-overs
Type
LZS:PT5B5T30
Connection
Screws
Contact material
AgNi 90/10
Datasheet (PDF)
Number (Package size 5 pc(s))
Total (€ 18.49 / piece)
€ 92.43
plus VAT.
Technical specifications
- Power loss: 1 W
- Control supply voltage frequency: 50/60 Hz
- Thermal current 6 A
- To suit conductor cross-section: 1 mm²-2.5 mm²
- Mounting type: Snap-on mounting
- Wire stripping length: 8 mm
- Product type
Plug-in relay
- Type
LZS:PT5B5T30
- Connection
Screws
- Contact type
4 change-overs
- Contact material
AgNi 90/10
- Electrical lifespan
250000
- Durability
2.0E7
IP20
- Max. temperature
+70 °C
- Min. temperature
-40 °C
- Depth
77 mm
- Width
28 mm
- Height
79 mm
- Dim
(W x H x D) 28 x 79 x 77 mm
- Content
5 pc(s)
- Mounting type
Push-fit
- Operating voltage
230 V AC
- Max. operating voltage
230 V AC
Documents & Downloads
Datasheet
Datasheet 1740369 Siemens LZS:PT5B5T30 Plug-in relay 4 change-overs 5 pc(s)
User & Safety Instructions
User & Safety Instructions 1740369 Siemens LZS:PT5B5T30 Plug-in relay 4 change-overs 5 pc(s)
Description
Fixing/reject bracket for plug-in relay RT series and PT screw terminal base not logical
