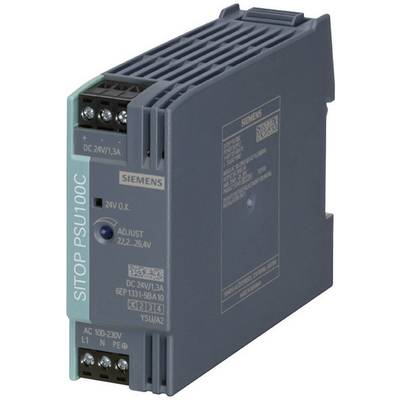

Siemens SITOP PSU100C Power Supply Unit, Compact Design, Input: 100-230V AC, Output: 24V DC, 1.3A, Industrial Power Supply.

Siemens SITOP PSU100C Power Supply Unit, Compact Design, Input: 100-230V AC, Output: 24V DC, 1.3A, Industrial Power Supply.

Siemens

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 12 Nov

12 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 71.99 / piece)

€ 71.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Rail mount power supply SITOP PSU100C. 1.3 A

Low energy consumption
26.4 V DC/ 1.3 A
30 W
Input1 -phase
Wide-range input
Input voltage range 85 - 264 Vac, 110 - 300 V DC
Slim design
Connection (components): Screw terminal

Technical specifications

IP20

Nominal input voltage: 115 V/AC
230 V/AC
110 - 300 V/DC

Type: Switched Mode

Product type: Rail mounted PSU (DIN)

Min. input voltage: 85 V AC

Output voltage: 24 V DC

Inputs: 1

Input voltage: 85 - 264 Vac, 110 - 300 V DC

Input voltage (max.): 264 V AC

Max. output current: 1.3 A

Output current (max.) - rounded: 1.3 A

: 30 W

Output type (power supply units): Adjustable

Phases: 1

Output voltage (nominal): 24 V DC

No. of outputs: 1 x

Connection: Screw terminal

Dim: (W x H x D) 30 x 80 x 100 mm

Weight: 0.17 kg

Output voltage (max.): 26.4 V DC

Output voltage (min.): 22.2 V DC

Operating temperature (max.): 70 °C

Max. operating temperature (derating): 70 °C

Operating temperature (min.): -20 °C

Manufacturer part #: 6EP13315BA10

Content: 1 pc(s)

PSU features: Adjustable voltage output

Width: 30 mm

Height: 80 mm

Max. temperature: +70 °C

Min. temperature: -20 °C

Type: SITOP PSU100C 24 V/1,3 A

Depth: 100 mm

: 30 W

Connections: Plug terminals

Output current (details): 1.3 A

: 30

: 80 mm

: 100 mm

: 180 mm

: 30 mm

: TRUE

: AC/DC

: Screw connection

: TRUE

: IP20

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 513291 Siemens SITOP PSU100C 24 V/1,3 A Rail mounted PSU (DIN) 24 V DC 1.3 A 30 W No. of outputs:1 x Content 1 pc(s)

User & Safety Instructions

User & Safety Instructions 513291 Siemens SITOP PSU100C 24 V/1,3 A Rail mounted PSU (DIN) 24 V DC 1.3 A 30 W No. of outputs:1 x Content 1 pc(s)

Description

The SITOP compact Series is ideal for switch boxes and small switch cabinets Power-efficient current supply for DIN rail mounting with less loss of power in the entire load range even in standby mode.

This text is machine translated.

Features

Power indicator
Adjustable output voltage (22.2 - 26.4 V)
Operating temperature -20 to +70 °C> 55 °C Derating).

Description

The SITOP compact Series is ideal for switch boxes and small switch cabinets Power-efficient current supply for DIN rail mounting with less loss of power in the entire load range even in standby mode.

This text is machine translated.

Features

Power indicator
Adjustable output voltage (22.2 - 26.4 V)
Operating temperature -20 to +70 °C> 55 °C Derating).
