Name: Siemens SSR 3RF21503AA02 50 A Switching voltage (max.): 230 V AC Zero crossing 1 pc(s)
Brand: Siemens
SKU: 1430907
Availability: BackOrder

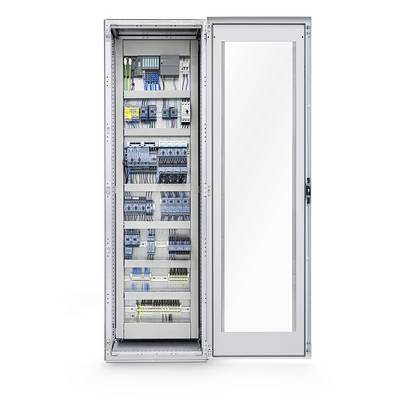

'An open server cabinet reveals several stacked devices with cabling and circuits, arranged in a well-organised layout.'

Circuit symbol for a protective circuit with two counter-rotating diodes in series, connected to L and T, marked with A1+ and A2-.

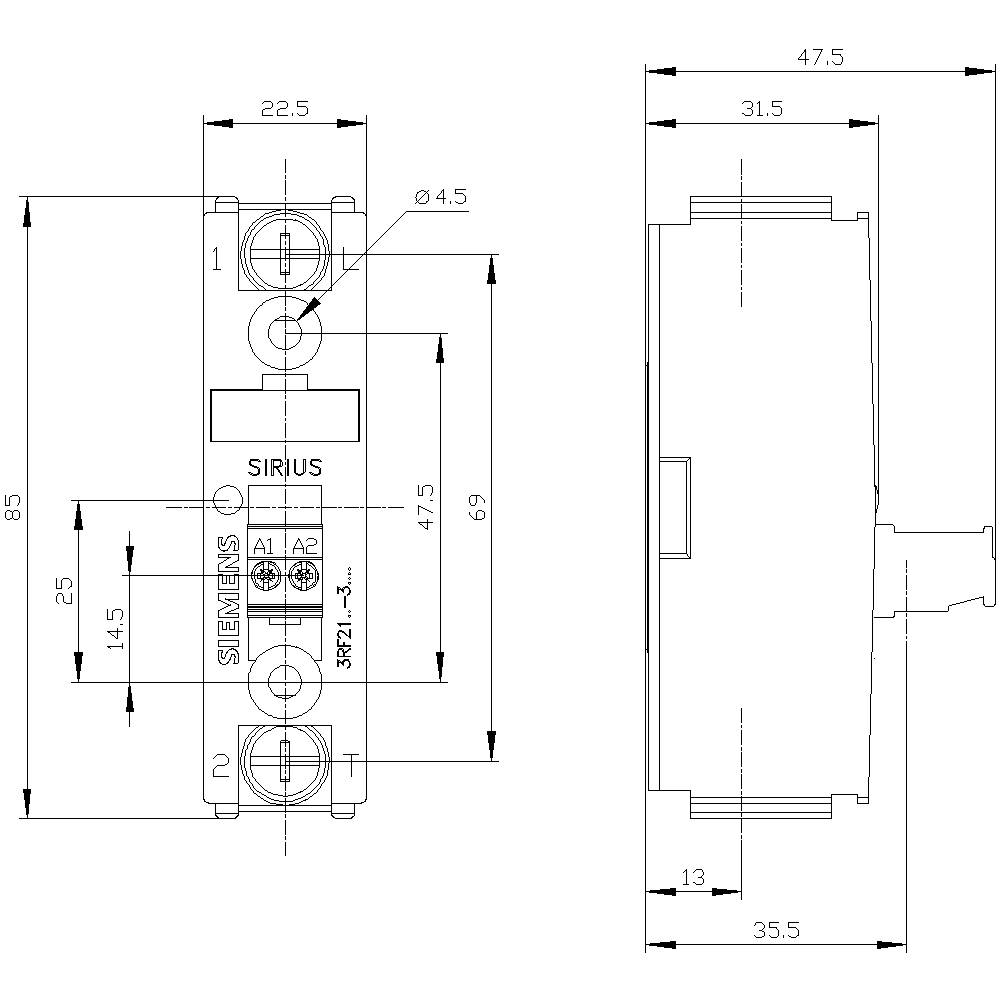

Technical drawing of a Siemens SIRIUS relay, showing dimensions and connections. Left: front view with width and height specifications, right: side view with depth measurements.

1/3

Application

Packaging type

Piece

Product type

SSR

Control voltage (min.)

15 V DC

Control voltage (max.)

24 V DC

Switching voltage (max.)

230 V AC

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Thu 26 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 61.99 / piece)

€ 61.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Mounting type: screw fastening
Number of poles: 1
Isolation voltage: 600 V

Packaging type: Piece

Product type: SSR

Type: 3RF2150-3AA02

Switching type: Zero crossing

Connection: 3 mm eyelet
5 mm eyelet

Control voltage (min.): 15 V DC

Control voltage (max.): 24 V DC

Control voltage range: 15 - 24 V DC

Control current (max.): 15 mA

Surge current (max.): 600 A

Switching voltage (min.): 24 V AC

Switching voltage (max.): 230 V AC

Current load (max.): 50 A

Output voltage (min.): 24 V

Output voltage (max.): 230 V AC

Max. output current: 50 A

Contact type: 1 maker

Min. temperature: -25 °C

Max. temperature: +60 °C

: IP00

Width: 22.5 mm

Height: 85 mm

Depth: 48 mm

Weight: 77 g

RoHS-compliant: Yes

Permanent current (max.): 50 A

Content: 1 pc(s)

Nominal control voltage: 24 V DC

: 1

: TRUE

: 50 A

: DC

: 50 A

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 1430907 Siemens SSR 3RF21503AA02 50 A Switching voltage (max.): 230 V AC Zero crossing 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1430907 Siemens SSR 3RF21503AA02 50 A Switching voltage (max.): 230 V AC Zero crossing 1 pc(s)

Description

Solid state relays, 1-phase 3RF2 width 22.5 mm, 50 A 24-230 V / DC 24 V ring cable connection SIRIUS 3RF21 solid state relays for switching resistive/inductive loads, e.g. of radiators or valves in a filling plant.
The devices are wear-free and silent and are ideal for noise-sensitive areas (offices, hospitals). They are extremely reliable even at high switching frequencies. The compact design saves space on the cooling surface. The solid-state relays can also be expanded by simply clicking on the standardized 3RF29 function modules for a wide range of applications. The devices are approved worldwide (e.g. IEC and UL/CSA).
The solid-state relays are available as single-phase devices in two widths or as 3-phase devices. They are available for different power ratings and rated operating voltages. Designed for AC or DC operation, they are available with screw, spring-loaded or ring cable lug connection.
In addition to the 3RF29 function modules, control plugs and terminal covers are also available as accessories.
Simple, efficient, always up-to-date - the SIRIUS modular system.

This text is machine translated.
