Name: Siemens SSR 3RF22301AC35 30 A Switching voltage (max.): 600 V AC Zero crossing 1 pc(s)
Brand: Siemens
SKU: 1430933
Availability: BackOrder

Siemens contactor from the Sirius series, suitable for electrical applications, showing connection terminals and product markings.

An open electrical cabinet with multiple levels of electrical components and wiring, visible through a glass door.

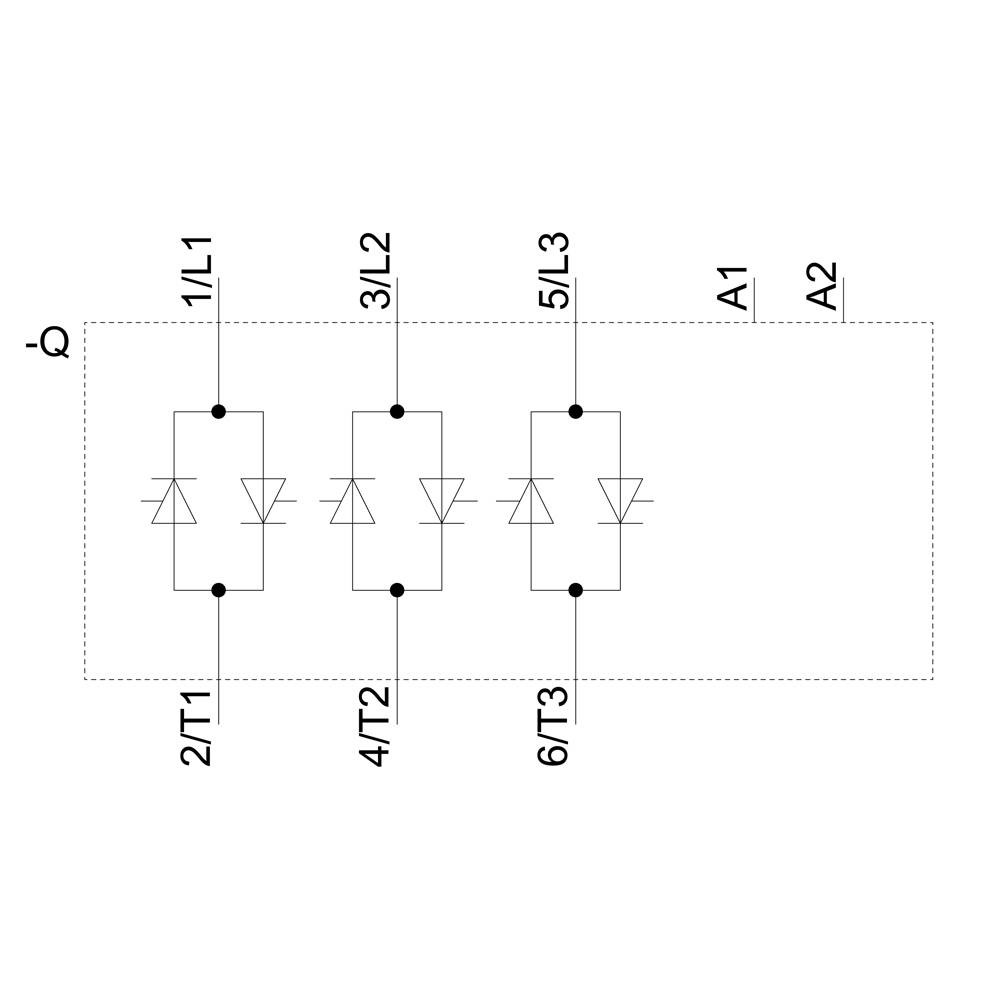

Circuit diagram of an electronic component with labelled terminals: L1, L2, L3, T1, T2, T3, A1, A2. Diodes are connected in parallel.

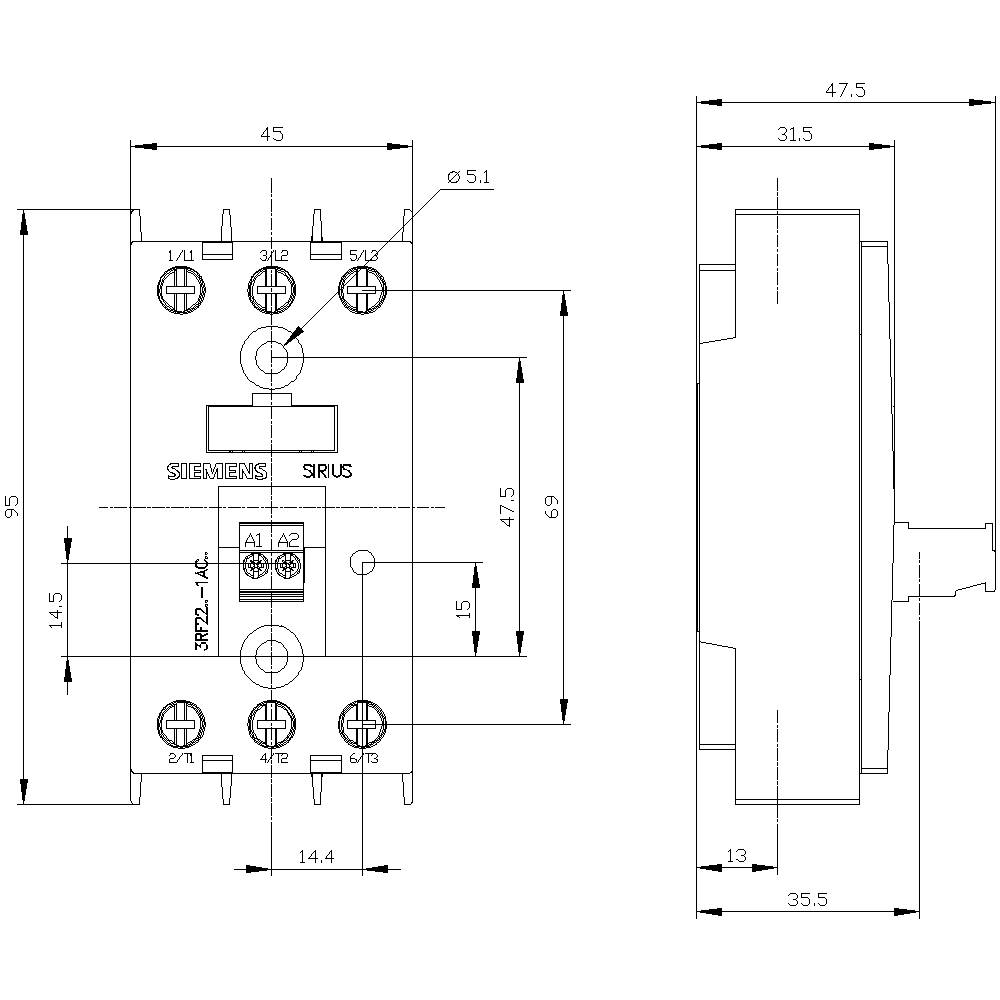

Technical drawing of a Siemens Sirius component with detailed dimensions, connections, and mounting points, in black and white.

1/4

Image similar

Packaging type

Piece

Product type

SSR

Control voltage (min.)

88 V AC

Control voltage (max.)

121 V AC

Switching voltage (max.)

600 V AC

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Thu 26 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 179.99 / piece)

€ 179.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

SSR 2RF2, 3-phase 30A 48-600V/110V AC3 phases controlled

3-phase-controlled
This text is machine translated.

Technical specifications

Mounting type: screw fastening
Number of pins: 3
Isolation voltage: 600 V

Packaging type: Piece

Product type: SSR

Type: 3RF2230-1AC35

Switching type: Zero crossing

Connection: Screw terminal

Control voltage (min.): 88 V AC

Control voltage (max.): 121 V AC

Control voltage range: 88 - 121 V AC

Control current (max.): 15 mA

Surge current (max.): 300 A

Switching voltage (min.): 48 V AC

Switching voltage (max.): 600 V AC

Current load (max.): 30 A

Output voltage (min.): 48 V

Output voltage (max.): 600 V AC

Max. output current: 30 A

Contact type: 3 makers

Min. temperature: -25 °C

Max. temperature: +60 °C

: IP20

Width: 45 mm

Height: 95 mm

Depth: 47 mm

Weight: 149 g

RoHS-compliant: Yes

Permanent current (max.): 30 A

Content: 1 pc(s)

Nominal control voltage: 110 V AC

: 3

: TRUE

: 30 A

: AC

: 30 A

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1430933 Siemens SSR 3RF22301AC35 30 A Switching voltage (max.): 600 V AC Zero crossing 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1430933 Siemens SSR 3RF22301AC35 30 A Switching voltage (max.): 600 V AC Zero crossing 1 pc(s)

Description

Solid state relay, 3-phase 3RF2 30 A / 40 °C 48-600 V / 110 V AC 3-phase controlled Screw connection Reverse voltage 1200 V SIRIUS 3RF22 solid state relay for switching resistive/inductive loads, e.g. of radiators or valves in a filling plant.
The devices are wear-free and silent and are ideal for noise-sensitive areas (offices, hospitals). They are extremely reliable even at high switching frequencies. The compact design saves space on the cooling surface. The solid-state relays can also be expanded by simply clicking on the standardized 3RF29 function modules for a wide range of applications. The devices are approved worldwide (e.g. IEC and UL/CSA).
The solid-state relays are available as single-phase devices in two widths or as 3-phase devices. They are available for different power ratings and rated operating voltages. Designed for AC or DC operation, they are available with screw, spring-loaded or ring cable lug connection.
In addition to the 3RF29 function modules, control plugs and terminal covers are also available as accessories.
Simple, efficient, always up-to-date - the SIRIUS modular system.
