Name: Siemens SSR 3RF22302AB45 30 A Switching voltage (max.): 600 V AC Zero crossing 1 pc(s)
Brand: Siemens
SKU: 1430833
Availability: BackOrder

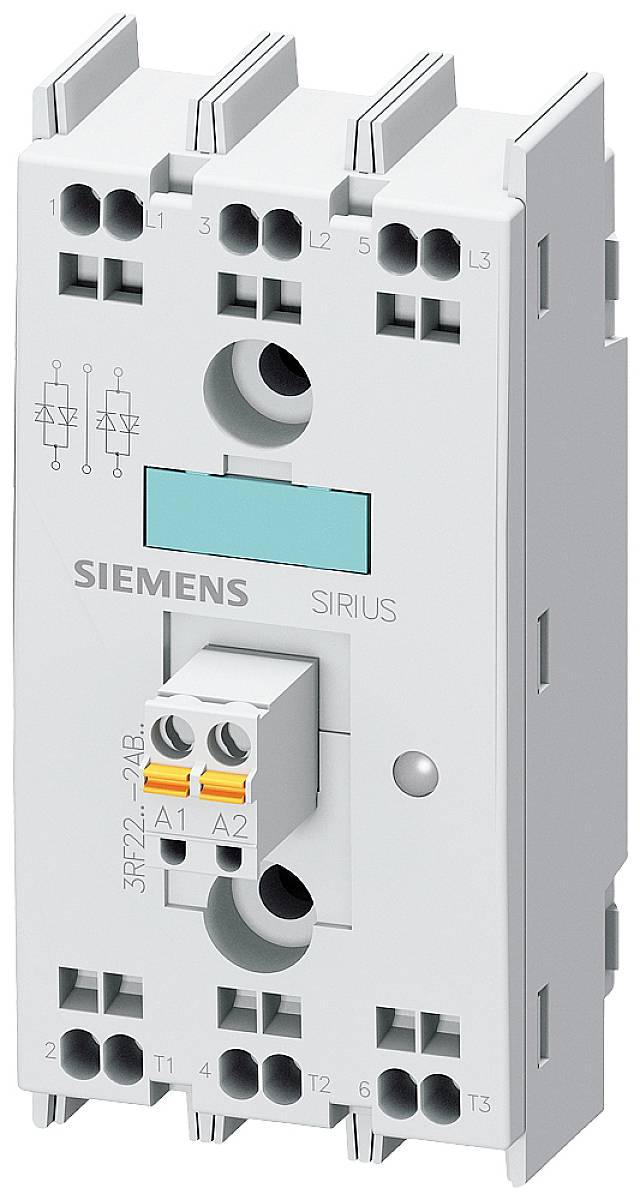

A grey-white Siemens contactor from the Sirius series with multiple connection terminals and labels. Suitable for load switching.

An open electrical cabinet reveals a multitude of switching devices and wiring used for electricity distribution and control.

'Circuit diagram shows two parallel diode pairs. Connections: 1/L1, 3/L2, 5/L3, 2/T1, 4/T2, 6/T3, A1+, A2-.'

Technical drawing of an electrical component with dimensions and connections. Top: 47.5 mm, Total length: 95 mm, detailed measurements marked.

1/4

Image similar

Packaging type

Piece

Product type

SSR

Control voltage (min.)

4 V DC

Control voltage (max.)

30 V DC

Switching voltage (max.)

600 V AC

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Thu 26 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 159.99 / piece)

€ 159.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

SSR 2RF2, 3-phase 30A 48-600V/4-30V DC2 phases controlled

2-phase-controlled
This text is machine translated.

Technical specifications

Mounting type: screw fastening
Number of pins: 3
Isolation voltage: 600 V

Packaging type: Piece

Product type: SSR

Type: 3RF2230-2AB45

Switching type: Zero crossing

Connection: Spring-loaded terminal

Control voltage (min.): 4 V DC

Control voltage (max.): 30 V DC

Control voltage range: 4 - 30 V DC

Control current (max.): 30 mA

Surge current (max.): 300 A

Switching voltage (min.): 48 V AC

Switching voltage (max.): 600 V AC

Current load (max.): 30 A

Output voltage (min.): 48 V DC

Output voltage (max.): 600 V AC

Max. output current: 30 A

Contact type: 2 makers

Min. temperature: -25 °C

Max. temperature: +60 °C

: IP20

Width: 45 mm

Height: 95 mm

Depth: 47 mm

Weight: 140 g

RoHS-compliant: Yes

Permanent current (max.): 30 A

Content: 1 pc(s)

: 3

: TRUE

: 4-30 V

: 30 A

: DC

: 20 A

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1430833 Siemens SSR 3RF22302AB45 30 A Switching voltage (max.): 600 V AC Zero crossing 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1430833 Siemens SSR 3RF22302AB45 30 A Switching voltage (max.): 600 V AC Zero crossing 1 pc(s)

Description

Solid state relay, 3-phase 3RF2 30 A / 40 °C 48-600 V / DC 4-30 V 2-phase controlled spring-loaded reverse voltage 1200 V solid state relay SIRIUS 3RF22 for switching resistive/inductive loads, e.g. of heaters or valves in a filling plant.
The devices are wear-free and silent and are ideal for noise-sensitive areas (offices, hospitals). They are extremely reliable even at high switching frequencies. The compact design saves space on the cooling surface. The solid-state relays can also be expanded by simply clicking on the standardized 3RF29 function modules for a wide range of applications. The devices are approved worldwide (e.g. IEC and UL/CSA).
The solid-state relays are available as single-phase devices in two widths or as 3-phase devices. They are available for different power ratings and rated operating voltages. Designed for AC or DC operation, they are available with screw, spring-loaded or ring cable lug connection.
In addition to the 3RF29 function modules, control plugs and terminal covers are also available as accessories.
Simple, efficient, always up-to-date - the SIRIUS modular system.

This text is machine translated.
