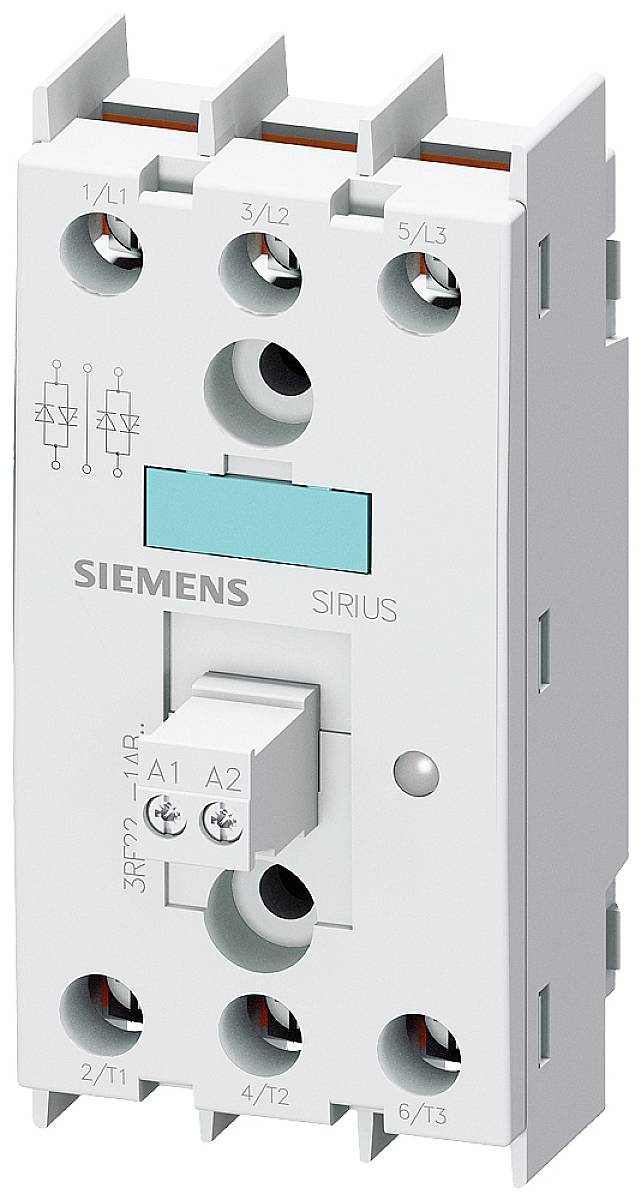

Siemens SSR 3RF22551AB35 55 A Switching voltage (max.): 600 V AC Zero crossing 1 pc(s)
EAN:
Part number:
Item no:
Product type
SSR
Control voltage (min.)
88 V AC
Control voltage (max.)
121 V AC
Switching voltage (max.)
600 V AC
Current load (max.)
55 A
Datasheet (PDF)
Sales and shipping:
Number
Total (€ 138.65 / piece)
€
Highlights & Details
SSR 2RF2, 3-phase 55A 48-600V/110V AC2 phases controlled

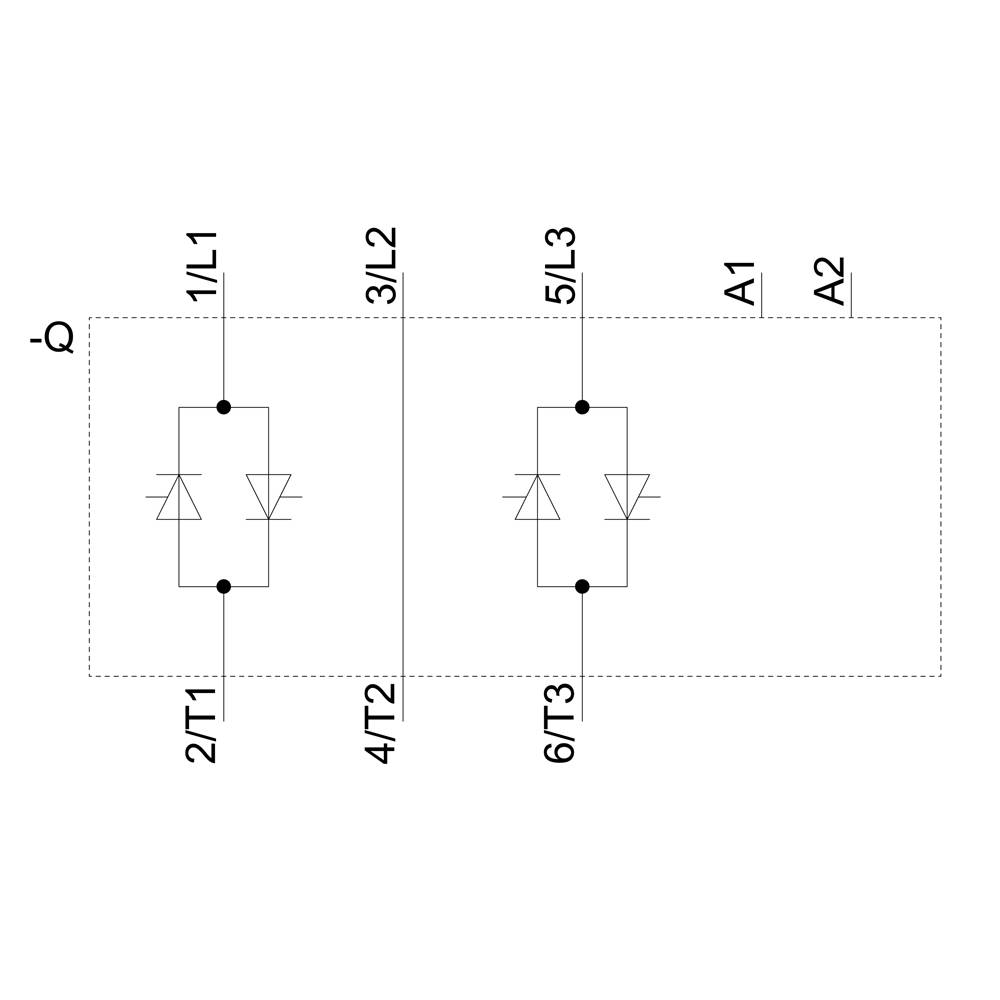

- 2-phase-controlled
- This text is machine translated.
Technical specifications
- Mounting type: screw fastening
- Number of pins: 3
- Isolation voltage: 600 V
- Product type
SSR
- Type
3RF2255-1AB35
- Switching type
Zero crossing
- Connection
Screw terminal
- Control voltage (min.)
88 V AC
- Control voltage (max.)
121 V AC
- Control voltage range
88 - 121 V AC
- Control current (max.)
15 mA
- Surge current (max.)
600 A
- Switching voltage (min.)
48 V AC
- Switching voltage (max.)
600 V AC
- Current load (max.)
55 A
- Contact type
2 makers
- Min. temperature
-25 °C
- Max. temperature
+60 °C
IP20

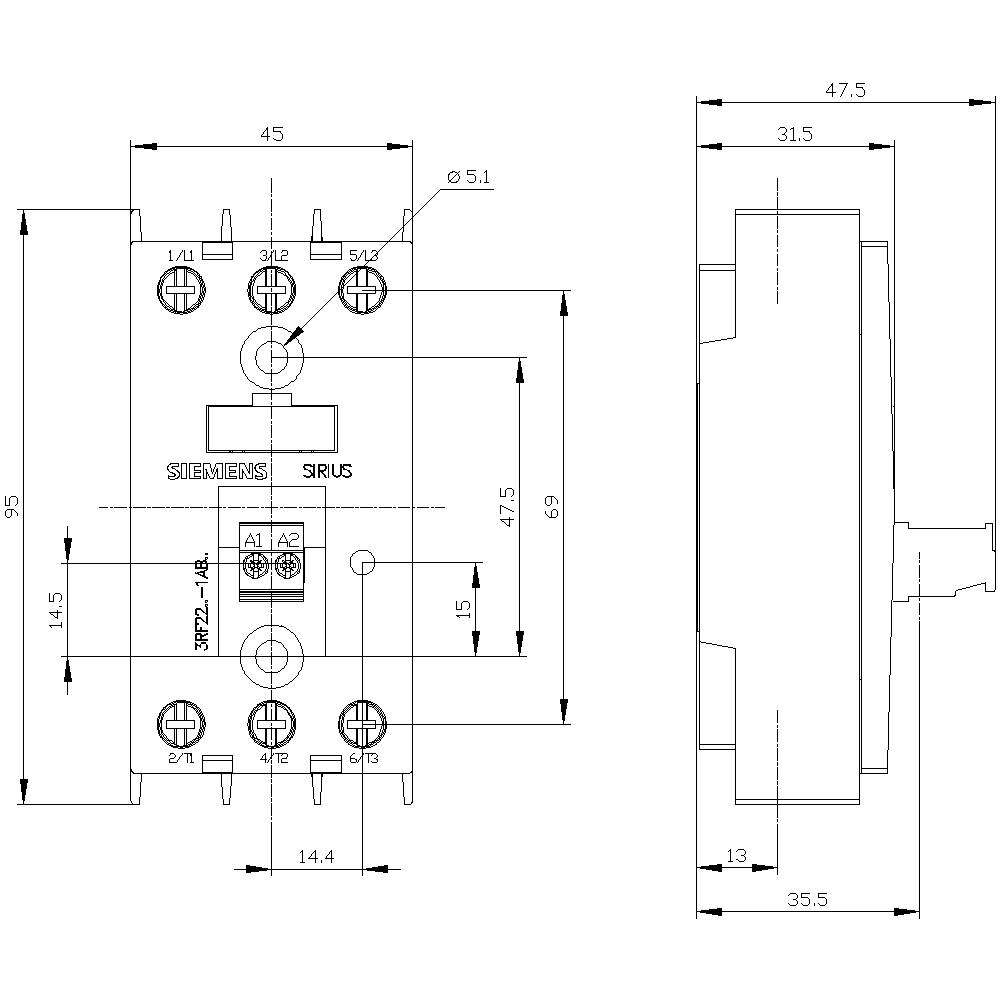

- Width
45 mm
- Height
95 mm
- Depth
47 mm
- Weight
141 g
- RoHS-compliant
Yes
- Content
1 pc(s)
3
TRUE
55 A
AC
50 A
Documents & Downloads
Datasheet
Datasheet 1430818 Siemens SSR 3RF22551AB35 55 A Switching voltage (max.): 600 V AC Zero crossing 1 pc(s)
Datasheet 1430818 Siemens SSR 3RF22551AB35 55 A Switching voltage (max.): 600 V AC Zero crossing 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1430818 Siemens SSR 3RF22551AB35 55 A Switching voltage (max.): 600 V AC Zero crossing 1 pc(s)
Description
Solid state relay, 3-phase 3RF2 55 A / 40 °C 48-600 V / 110 V AC 2-phase controlled Screw connection Reverse voltage 1200 V SIRIUS 3RF22 solid state relay for switching resistive/inductive loads, e.g. of radiators or valves in a filling plant.
The devices are wear-free and silent and are ideal for noise-sensitive areas (offices, hospitals). They are extremely reliable even at high switching frequencies. The compact design saves space on the cooling surface. The solid-state relays can also be expanded by simply clicking on the standardized 3RF29 function modules for a wide range of applications. The devices are approved worldwide (e.g. IEC and UL/CSA).
The solid-state relays are available as single-phase devices in two widths or as 3-phase devices. They are available for different power ratings and rated operating voltages. Designed for AC or DC operation, they are available with screw, spring-loaded or ring cable lug connection.
In addition to the 3RF29 function modules, control plugs and terminal covers are also available as accessories.
Simple, efficient, always up-to-date - the SIRIUS modular system.
This text is machine translated.
The devices are wear-free and silent and are ideal for noise-sensitive areas (offices, hospitals). They are extremely reliable even at high switching frequencies. The compact design saves space on the cooling surface. The solid-state relays can also be expanded by simply clicking on the standardized 3RF29 function modules for a wide range of applications. The devices are approved worldwide (e.g. IEC and UL/CSA).
The solid-state relays are available as single-phase devices in two widths or as 3-phase devices. They are available for different power ratings and rated operating voltages. Designed for AC or DC operation, they are available with screw, spring-loaded or ring cable lug connection.
In addition to the 3RF29 function modules, control plugs and terminal covers are also available as accessories.
Simple, efficient, always up-to-date - the SIRIUS modular system.
This text is machine translated.
Hints
Please note that the product is a custom-made and therefore exempt from the returns policy. Special order, no right of withdrawal.
