Siemens Thermostat 8MR2171-2BA 240 V (L x W x H) 33 x 33 x 47 mm 1 pc(s)

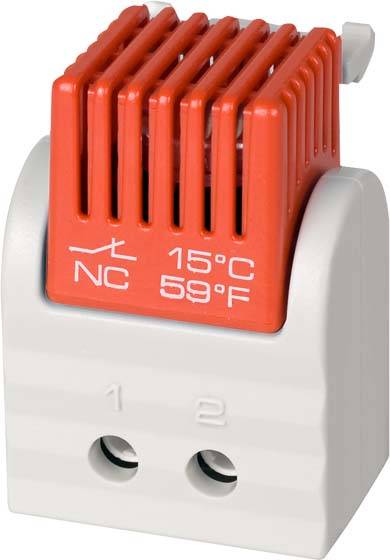

A thermostat in red and white with labelling '15°C, 59°F' and symbols. It shows the NC position when the temperature is reached.
Image similar
Product type
Thermostat
Switching current (max.)
10 A
Operating voltage
240 V
Type
8MR2171-2BA
Mounting type
Clamp
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Thu 19 Nov
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 17.99 / piece)
€ 17.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

THERMOSTAT- FIX

Our service for you

Technical specifications

  • Material: plastic
  • Weight: 39 g
  • Mechanical life: 100000
Product type

Thermostat

Type

8MR2171-2BA

Mounting type

Clamp

Switching current (max.)

10 A

Operating voltage

240 V

Max. operating voltage

240 V

Operating voltage

240 V (max)

Length

33 mm

Width

33 mm

Height

47 mm

Dim

(L x W x H) 33 x 33 x 47 mm

IP20

RoHS-compliant

Yes

Other

240 V

Breaker contact

10 A

UKCA

not relevant

Documents & Downloads

Datasheet

Datasheet 1701728 Siemens Thermostat 8MR2171-2BA 240 V (L x W x H) 33 x 33 x 47 mm 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1701728 Siemens Thermostat 8MR2171-2BA 240 V (L x W x H) 33 x 33 x 47 mm 1 pc(s)

Description

NC contact, 25 °C, 77 °F FT011, 01160.0-01
