Smartwin SMMH035320240K-C09 Touchscreen unit 8.9 cm (3.5 inch) 320 x 240 Pixel Backlighting

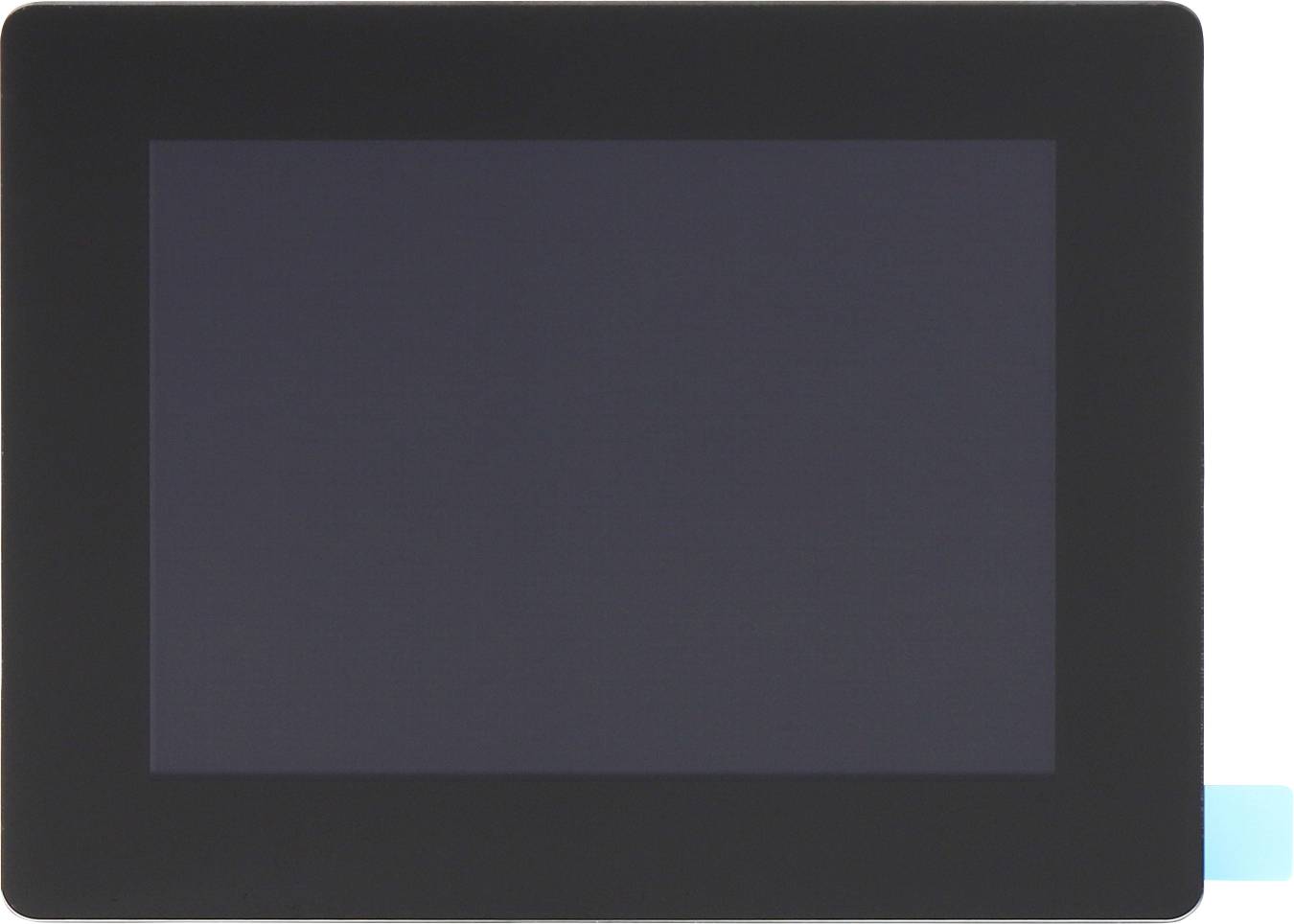

A black picture frame with an empty screen, slightly tilted to the right. A blue tab extends out on the right-hand side.
Label on a technical component with part number 'SMMT035320240K-C09', date '24-12-09', serial number '000013'.
A rectangular electronic device with metal and plastic components. On the label, a product number, date, and serial number are visible.
1/3
EAN:
Part number:
Item no:
Fast track dispatch on Fri 6 Nov
2 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 61.99 / piece)
€ 61.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
Only 2 Piece(s) available
Only available for business customers
14-day return policy included
Report legal concerns

Technical specifications

  • Module width: 93.88 mm
  • Module height: 76.36 mm
  • Module depth: 5.15 mm
  • Min. Verso voltage 3 V / DC
  • Verso supply voltage max. 3.6 V/DC
  • Operating temperature min. 80 °C
  • Max. operating temperature: 80 °C
Product type

Display

Display technology

LCD

Display (cm)

8.9 cm

Screen size diagonal (inches)

3.5 inch

Display resolution

320 x 240 Pixel

Interfaces

I²C

Features

Backlighting

Brightness (max.)

1000 cd/m²

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3394672 Smartwin SMMH035320240K-C09 Touchscreen unit 8.9 cm (3.5 inch) 320 x 240 Pixel Backlighting

Description

Hints

Recommended board: LD_C_W_S3_1A Recommended connector: DF23C-50DP-0.5V
