Name: Sol Expert 96442 Micro gearmotor G 53M incl. threaded rod, Steel cogwheels 1:53 50 - 450 U/min
Brand: Sol Expert
SKU: 1676731
Availability: InStock

A small electric motor with a long, helical drive, mounted on a metal plate.

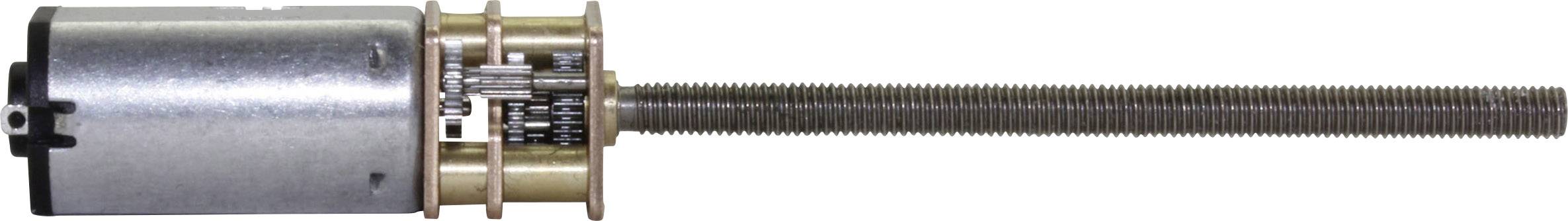

An electronic drive with a housing on the left and a long threaded rod on the right for transmitting rotational movements.

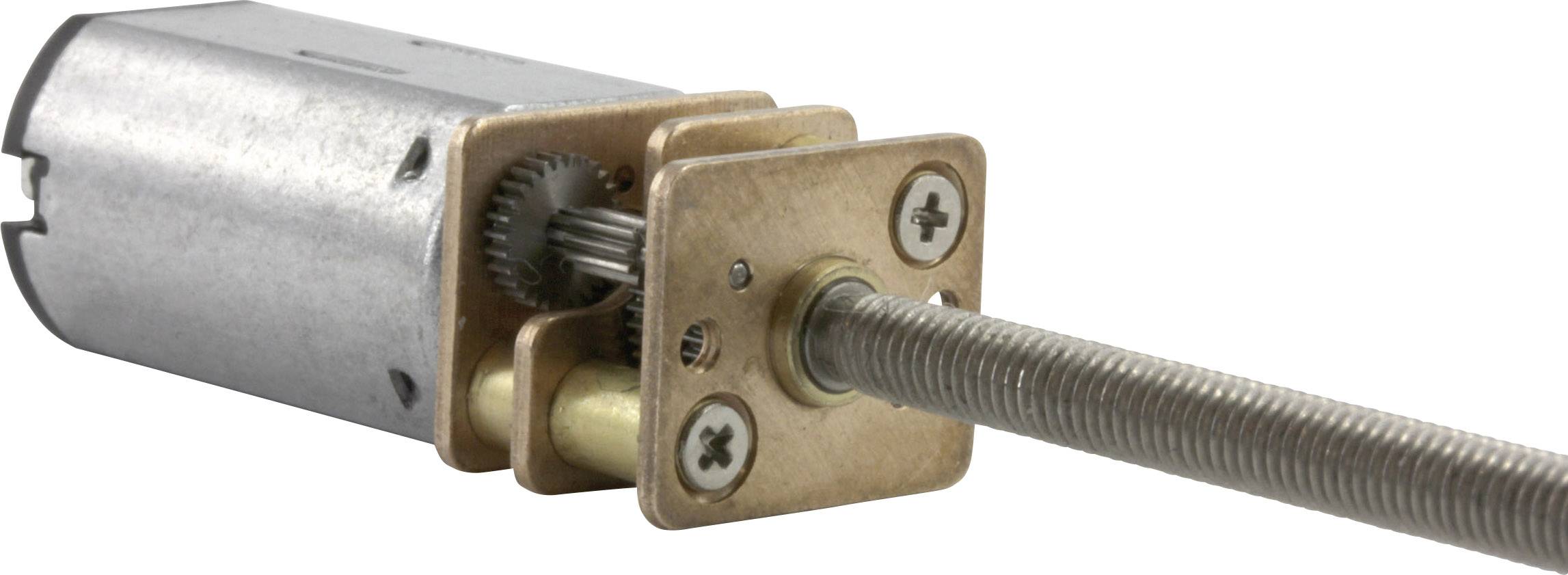

Close-up of a small electric motor with gearbox on a threaded rod, which can be used for mechanical movements.

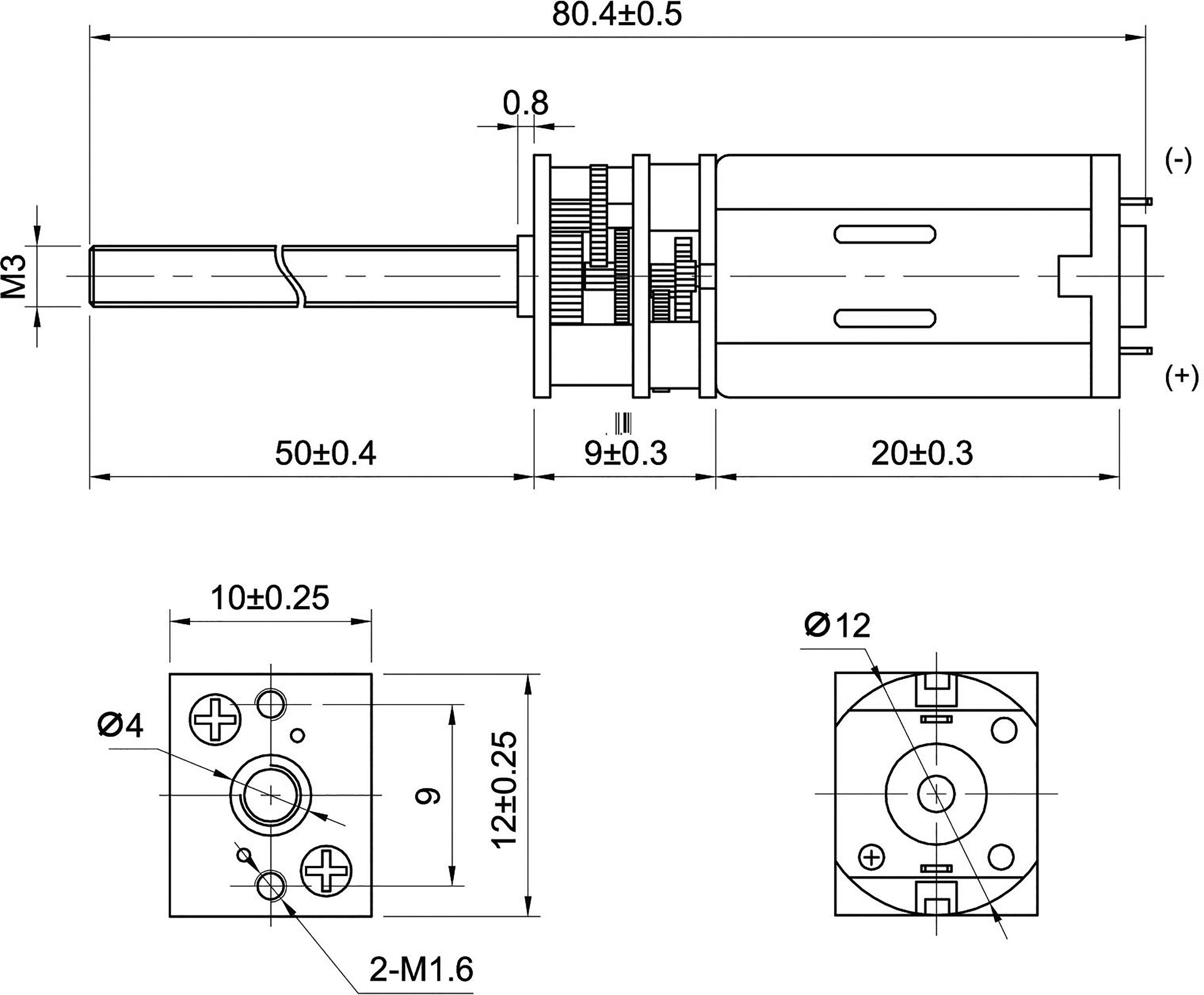

Technical drawing of an electric motor with dimensions: total length 80.4±0.5 mm, shaft length 50±0.4 mm, diameter 12 mm.

1/4

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Wed 4 Nov

69 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 15.99 / piece)

€ 15.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Micro Drive G53M with threaded rod

Model Car Tuning

Technical specifications

Size: Universal

Product type: Micro gearmotor

Type: G 53M

Axle length: 50 mm

Features: incl. threaded rod
Steel cogwheels

Gear reduction: 1:53

Axle Ø: 4 mm

Rotational speed (min.): 50 U/min

Rotational speed (max.): 450 U/min

Rotational speed range: 50 - 450 U/min

Voltage (min.): 2 V

Voltage (max.): 18 V

Length: 80 mm

Width: 12 mm

Height: 10 mm

Dim: (L x W x H) 80 x 12 x 10 mm

Age category: 15 years and over

Documents & Downloads

Datasheet

Datasheet 1676731 Sol Expert 96442 Micro gearmotor G 53M incl. threaded rod, Steel cogwheels 1:53 50 - 450 U/min

Description

With this gearbox output shaft comes as an M3 threaded rod. Thanks to this mechanics, it is now possible to slow and uniform lifting and lowering movements to create. To this end, on the threaded rod an M3 nut set too high. The nut is now fixed on an object (e.g. landing gear support), move these, depending on the polarity of the gearbox slowly upwards or downwards. The activation of the transmission can be, for example, through the drive control (HE 100).
Can also be used e.g. in hydraulic excavators, can be very well with this gear.
Depending on the voltage (2 - 18 V) can speeds of 50 - 450 U/m can be produced.
At 20 turns per cm, the following way hazards:
- 2 Volt: 2.5 cm/min
- 6 Volt: 7.5 cm/min
- 12 Volt: 15cm/min
The metal gear motor is operated with voltages between 2 V and 12 V voltage. Thus in the speeds of 50 - 450 U/m (depending on the voltage). In the gear used metal gear wheels guarantee a long service life and quiet operation. The threaded rod with a length of 50 mm can be switched shortens.
